Мощный статор и ротор 2021 горячая Распродажа машина для штукатурки

Описание и отзывы

Характеристики

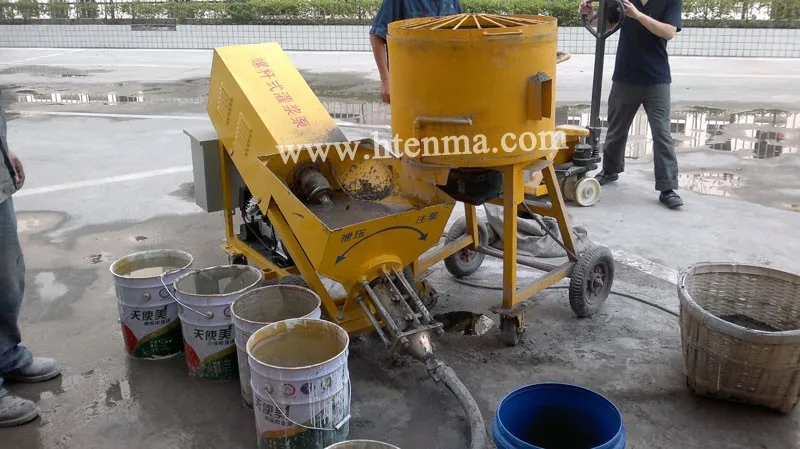

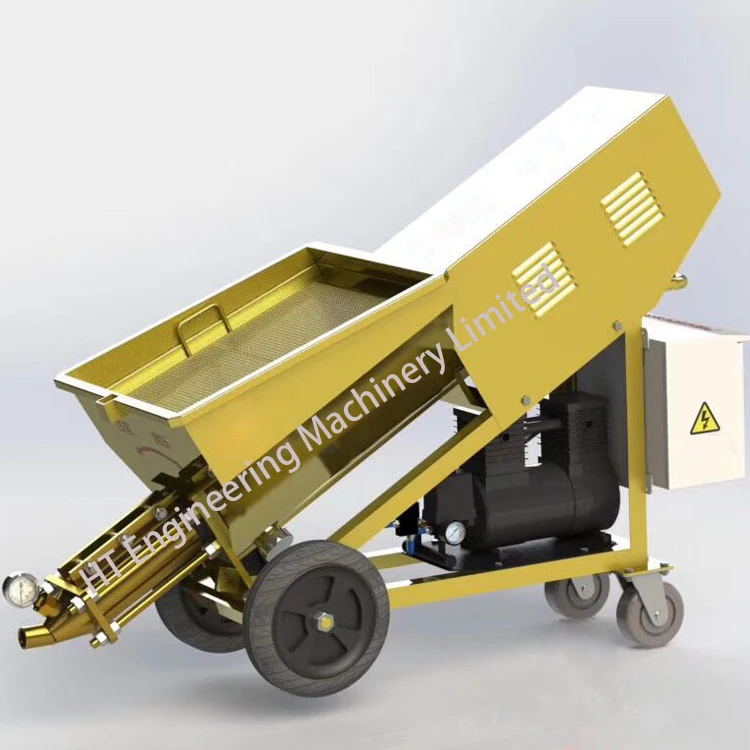

Cement Plastering Machine,Cement Plaster Machine :

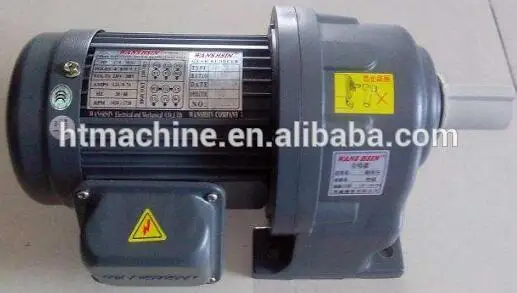

2 Motor connection double bearing :

Counteract the thrust from the transmission system,one bear counteracts forward rotation thrust,another bear counteracts reversal rotation thrust.

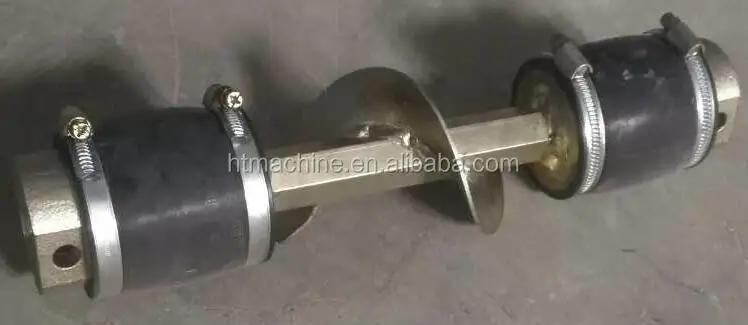

3 Universal transmission :

Planetary cycloid movement, eccentricity and swing is reduced to one third, displacement and

Pressure increases one third.





4 Seal case set on the universal transmission part :

Protect the transmission part,extend using life.

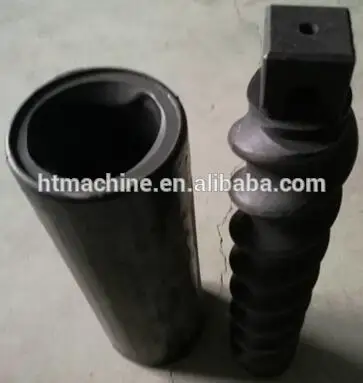

5 Stator and rotor :

Stator : wear-resistant rubber and fine steel,seamless,rigid stator technology,anti pressure,

anti high and low temperature.

Rotor : double helix,nano wear-resistant technology, anti impact,anti aging,anti high and low temperature, super wear-resistant,durable.

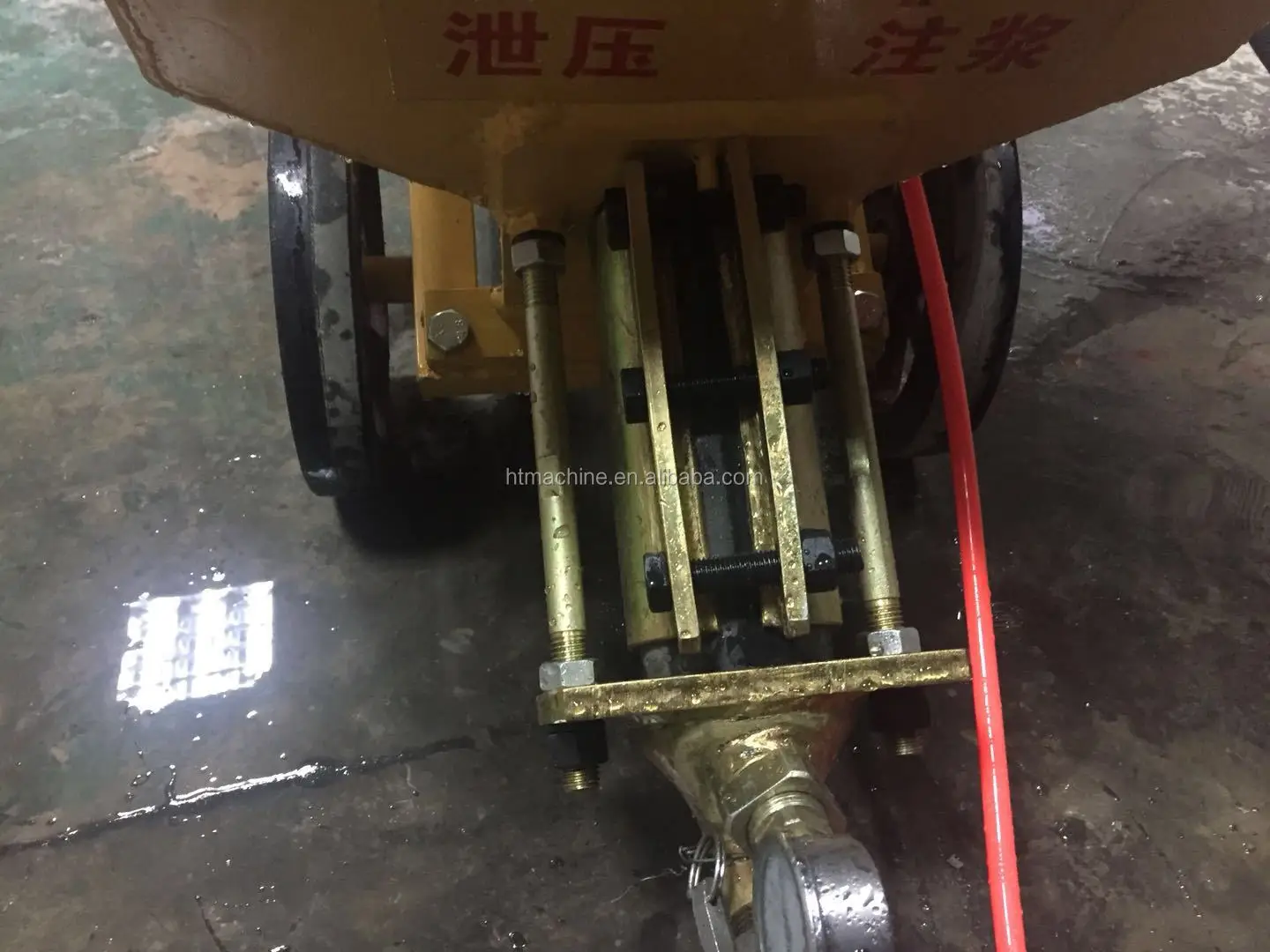

6 Stator sleeve :

You can adjust the pressure by adjustint this sleeve outside of the stator,it also can extend the using lift of stator and rotor by making the sleeve tight (adjust the screw to realize tight or loose)

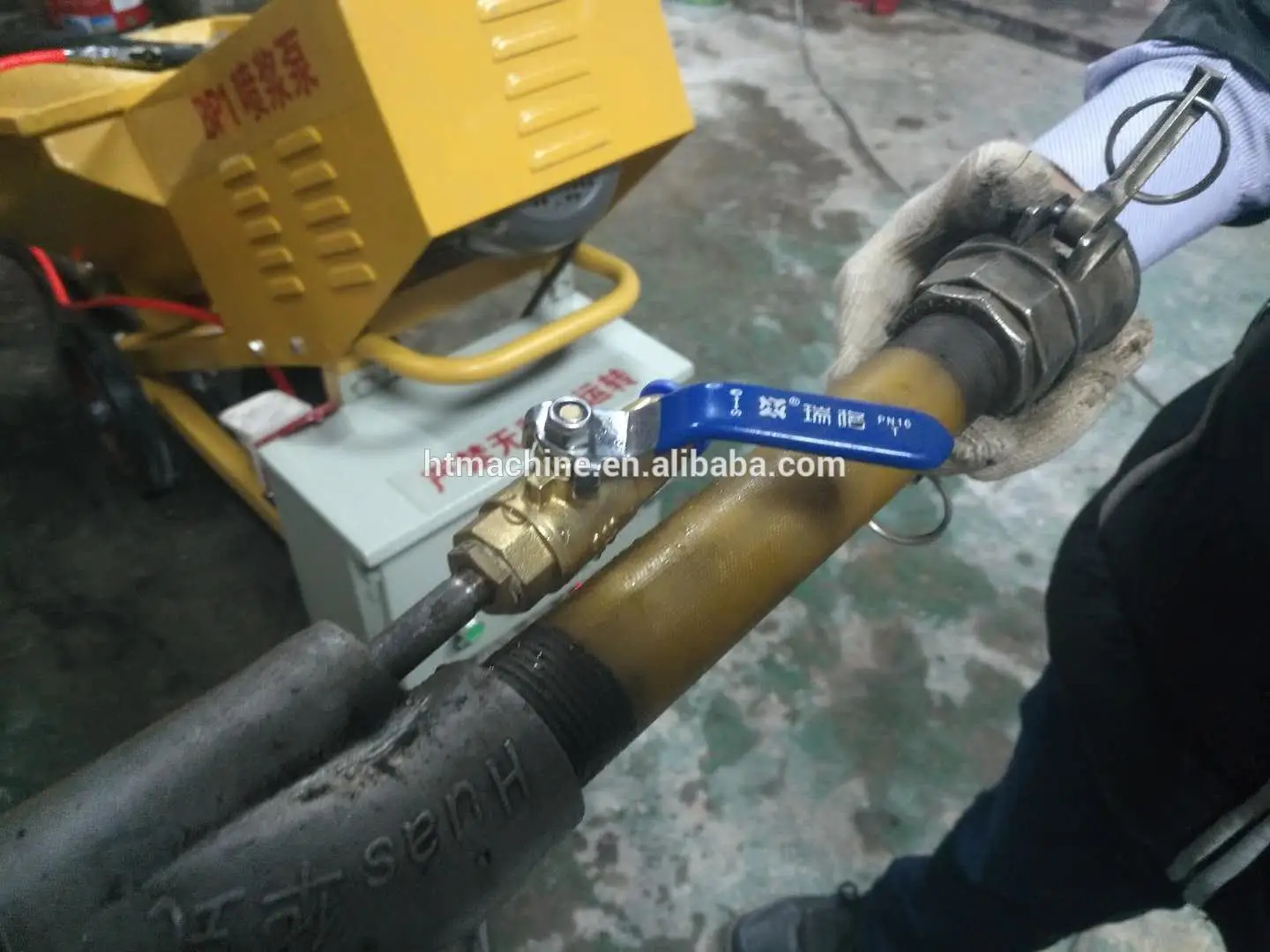

7 Air value controls the motor :

You can control the “ start” and “stop” of motors (machine motor and air compressor motor).

Swtich on the air value,the motor of machine and air compressor also swith on automatically.

Swtich off the air value,the motor of machine and air compressor also swith off automatically.



You can control the “ start” and “stop” of motors remotely,it is our patented technology,only we can realize this function in China.





8 Application :

Can spray putty, diatom mud, K11, 911, penetration crystallization, polyurethane, JS, cement and asphalt waterproofing coating materials, continuous and stable, no impulse.





  9 Technical specifications :



Model	BP-05	BP-1	BP-2
Max Aggregate Diameter (MM)	2	4	6
Spraying Thickness (MM)	10-40	10-40	10-40
Spraying Capacity (M3/Hour)	0.9	1.8	3.5
Displacement (L/Minute)	15	30	45
Air Consumption (L/Minute)	150-600	180-900	180-900
Working Pressure (Mpa)	<=4 (Adjustable)	<=4 (Adjustable)	<=4 (Adjustable)
Plastering Distance (M)	Vertical:15	Vertical:20	Vertical:20
	Horizontal:30	Horizontal:30	Horizontal:30
Power (KW)	1.5	2.2	4
Electricity	220V/Single Phase	380V/Three Phases	380V/Three Phases
Weight (Kg)	120	160	200
Dimension (MM)	1300x450x1000	1500x500x1000	1600x560x1100

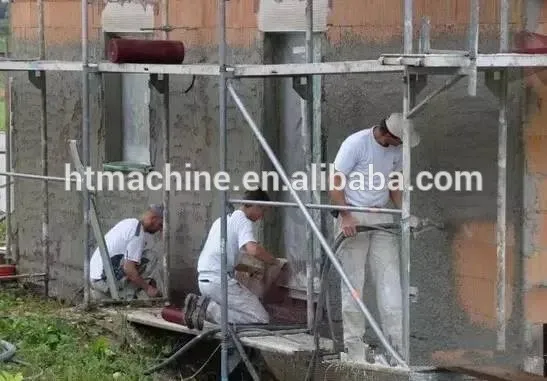

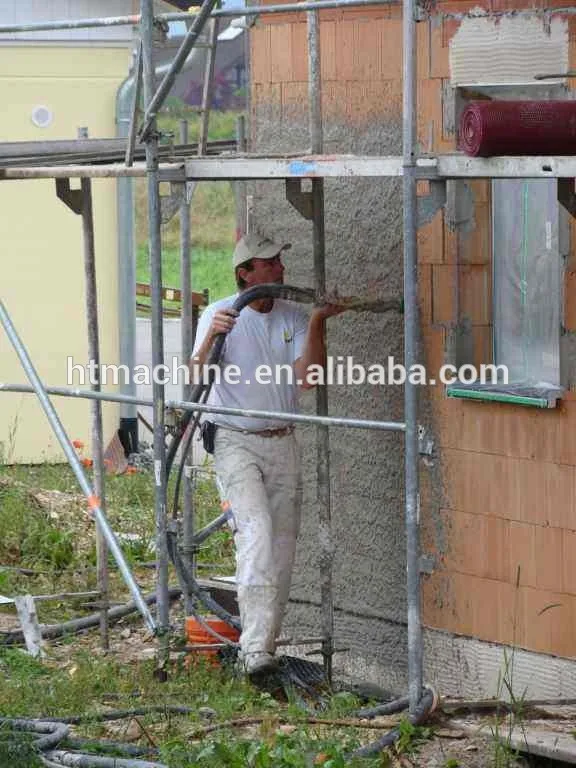

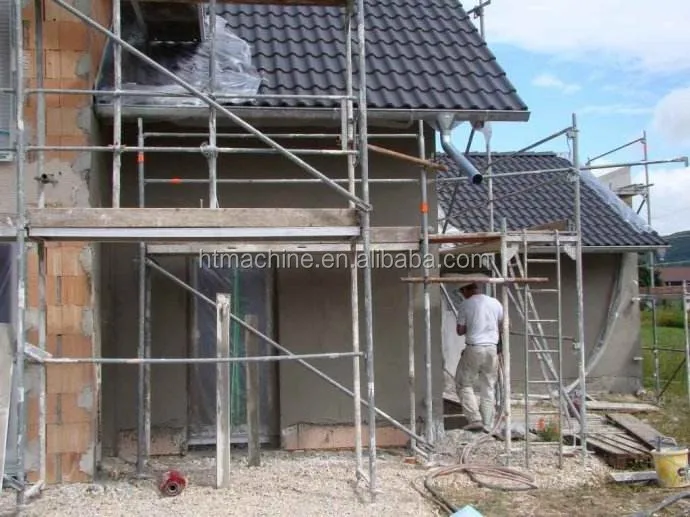

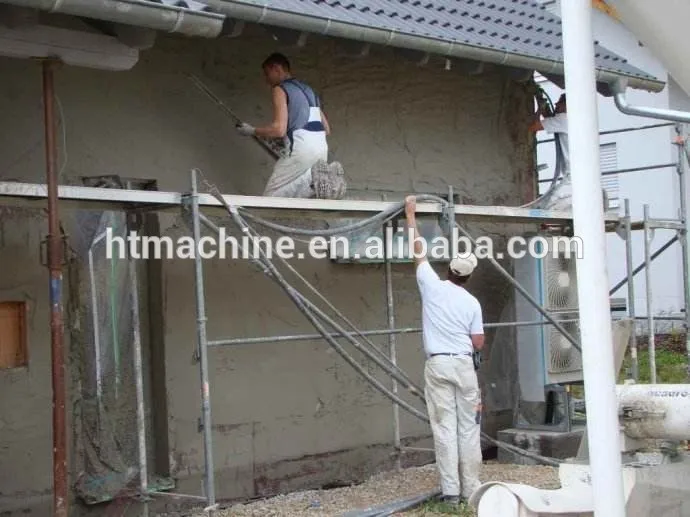

Construction Site :
