RS485 4-20mA 0-5V 0-10V output hydrogen sulfide gas detector H2S sensor for industrial
Product Description
The hydrogen sulfide transmitter designed by our company adopts the imported first-line brand electrochemical hydrogen sulfide sensor, which has the characteristics of rapid response and strong anti-interference ability.
Parameter name | 485 Type | Analog type | |
Power supply | 10~30V DC | 10~30V DC (0~10V output type can only supply 24V) | |
Power consumption | 0.12W | 0.25W | |
Temperature measurement range | -40℃~+80℃ | ||
Humidity measurement range | 0~100%RH | ||
Temperature accuracy | ±0.5℃（25℃） | ||
Humidity accuracy | ±3%RH（60%RH,25℃） | ||
Operating temperature | -20~50℃ | ||
Operating humidity | 15~90%RH non-condensing | ||
output signal | RS485 | 4-20mA、0-5V、0-10V | |
Pressure range | 90~110Kpa | ||
Stability | ≤2% signal value/month | ||
Range | 0~100ppm | ||
Precision | ±2ppm or ±10% | ||
Resolution | 1ppm | ||
Response time | ≤35S | ||
Preheat time | ≥5 minutes | ||
Details Images
Features of hydrogen sulfide sensor
1. Imported first-line brand electrochemical sensors are used, which are stable and durable.2. Range 0-100ppm, other ranges can also be customized.
3. The measurement accuracy is high, within ±3% FS, and the repeatability can reach within 2%.
4. A variety of analog signal output options: 4~20mA/0~5V/0~10V/RS485

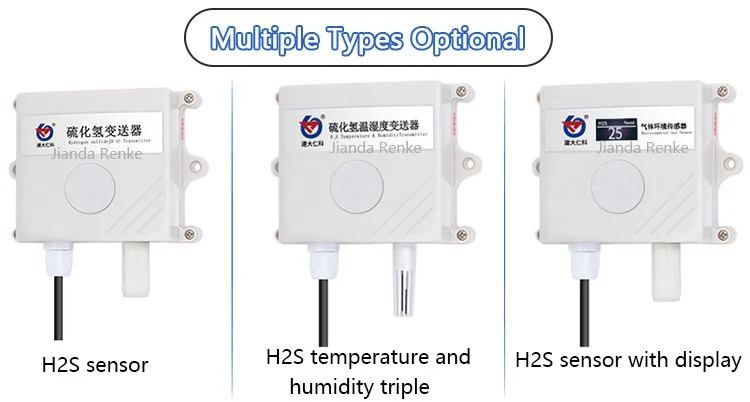

5. Optional high-quality OLED display, the value can be viewed directly on site, and can be displayed clearly at night.
6. On-site power supply adopts 10~30V DC wide-voltage power supply, which can adapt to a variety of on-site DC power supplies.

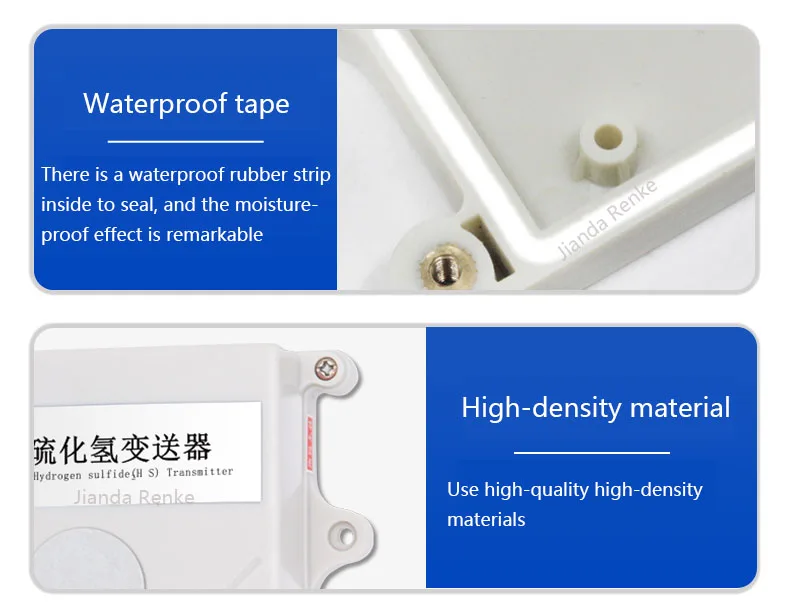

7. The product adopts a wall-mounted waterproof shell, which is easy to install and has a high degree of protection, which can be used in harsh on-site environments.

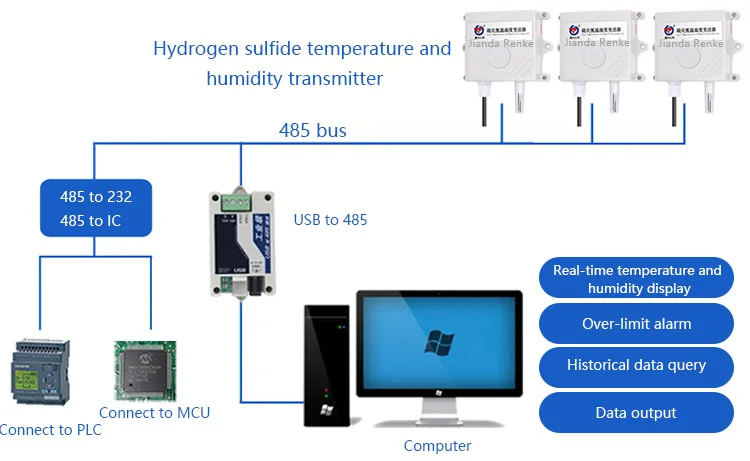

Output method
