DZ41 500C SW102 Bafang BBS01 BBS02 M500 M600 дисплей
US $25.00-$45.00
Дисплей для электровелосипеда KT LCD5 с разъемом SM Kuteng дисплей 36 В 48 контроллера 500 Вт 1000
- Категории: Other Electric Bicycle Parts >>>
- Поставщик: Changzhou,Mayebikes,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

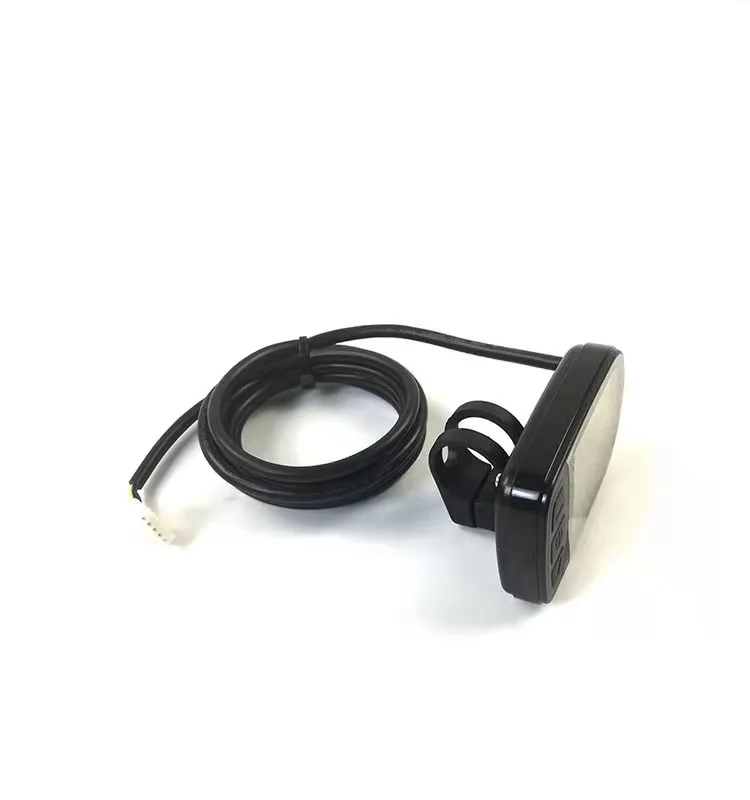

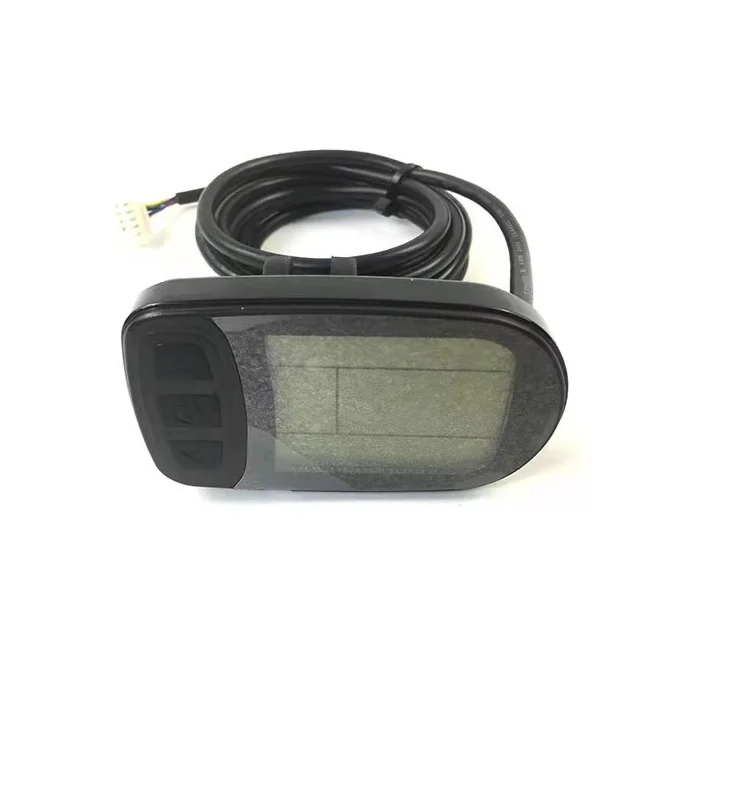

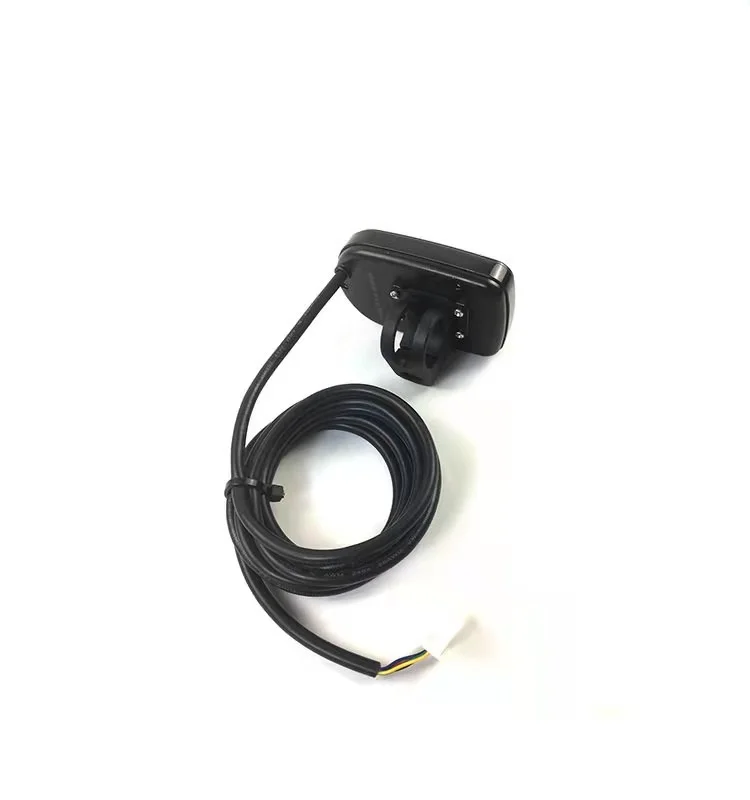

Electric bike display KT LCD5 with SM connector Kuteng display 36V 48V for Ebike controller 500W 1000W 1500W
Product Description
Please Note:
-KT LCD5 EBike Display only for KT Series Controllers. It is not suitable for other controllers.
-KT LCD5 EBike Display only for KT Series Controllers. It is not suitable for other controllers.
-If you use one hall PAS sensor,the setting of C1=2
-If you use dual hall PAS sensor,the setting of C1=7
Features：
1. Data display:it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power
and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters; 2.
Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;
3. Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when
turned on; 4. Parameter setting:with a number of user parameter setting functions, motor parameters, velocity measurement
parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum
current parameters and other operating models for settings adjustment ; 5. Data view:Users can view historical driving data and
clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding; 6.
Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving
the vehicle and the vehicle driving is labor-saving and easy; 7. Cruise and constant speed:With the setting and display of the
cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed; 8. Night
driving:With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be
turned on during driving at night; 9. Password setting:With three-bit of power-on password setting; 10. Automatically prompt:For
the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a
temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection; 11. Use five-line
of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the
data exchanges and parameters copy directly; 12. Host part and operation buttons of the meter use sub-structure design, making the
operation to be more reasonable and convenient; 13. Supply voltage of 24V, 36V, 48V can be automatically identified and
compatible; 14. Black housing 15.panel cable Length: 160cm
1. Data display:it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power
and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters; 2.
Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;
3. Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when
turned on; 4. Parameter setting:with a number of user parameter setting functions, motor parameters, velocity measurement
parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum
current parameters and other operating models for settings adjustment ; 5. Data view:Users can view historical driving data and
clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding; 6.
Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving
the vehicle and the vehicle driving is labor-saving and easy; 7. Cruise and constant speed:With the setting and display of the
cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed; 8. Night
driving:With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be
turned on during driving at night; 9. Password setting:With three-bit of power-on password setting; 10. Automatically prompt:For
the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a
temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection; 11. Use five-line
of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the
data exchanges and parameters copy directly; 12. Host part and operation buttons of the meter use sub-structure design, making the
operation to be more reasonable and convenient; 13. Supply voltage of 24V, 36V, 48V can be automatically identified and
compatible; 14. Black housing 15.panel cable Length: 160cm
