Китайско STAHL H0654 6 дюймов деревообрабатывающий строгальный станок для резки сверлильный Малый высокое качество толщиной твердой древесины
- Категории: Other Woodworking Machinery >>>
- Поставщик: Sichuan,VANWOOD,Technology,Co.Ltd
Поделиться:
Описание и отзывы
Характеристики
Motor type | 220v/50HZ | Tenoning ability | 12.7*156mm |
Motor Power | 1250W | Height of worktable | 822mm |
Rotation speed of cutter shaft | 5000RPM | Backer size | 113*745mm |
Cutting diameter of blade | 65mm | Backer positioning angle | 45°/90°/135° |
Planing width | 25.4-156mm | Push handle | 2 |

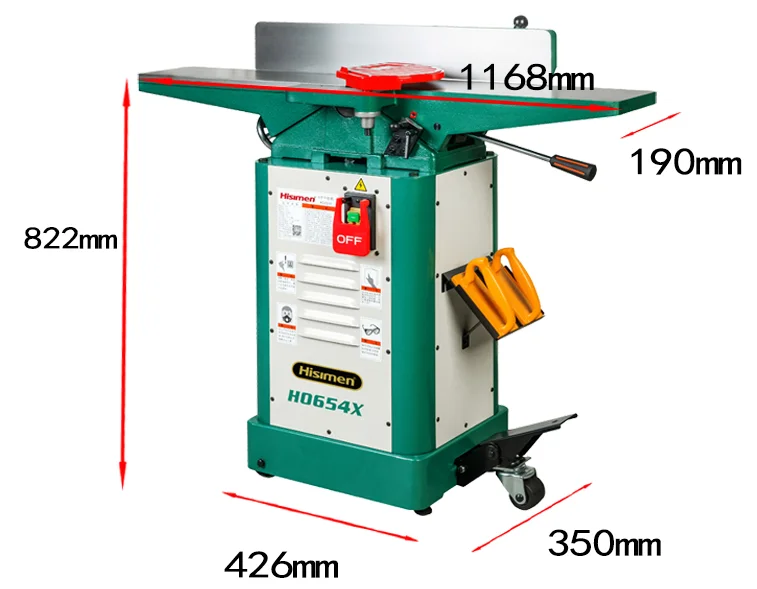

Maximum planing depth | 3.175mm | Machine size | 1168*540*905mm |
Minimum planing thickness | 12.7mm | Package dimensions | 1260*580*465mm |
Minimum planing length | 254mm | Net weight/Gross weight | 105/126kg |

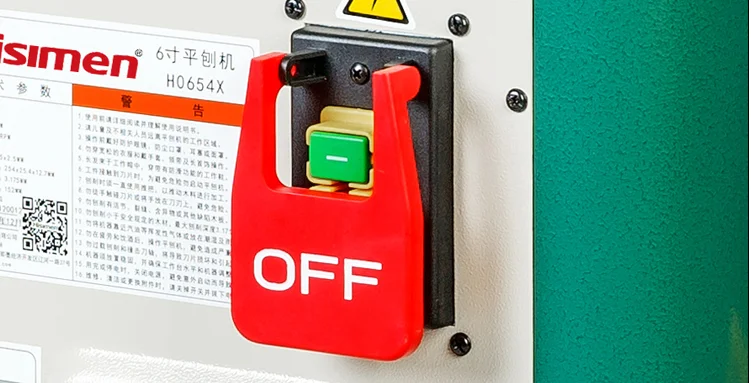

Industrial grade electromagnetic switch
Industrial-grade safety electromagnetic switch, dust-proof, moisture-proof, power-off protection

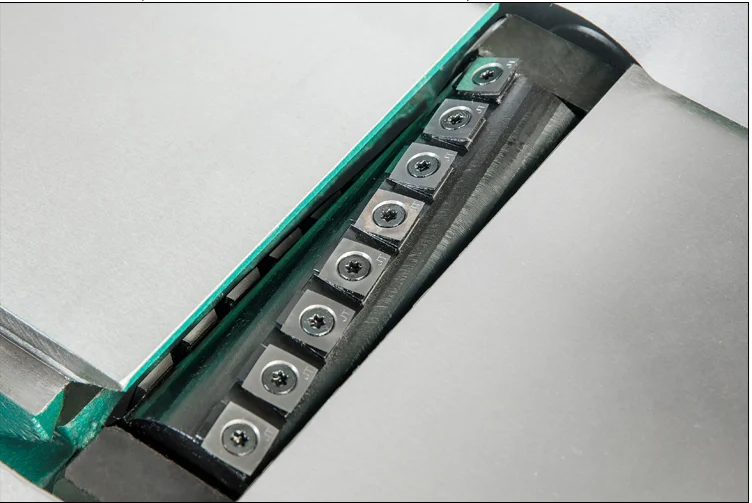

Arc spiral cutter shaft
4 slots and 30 blades, using cemented carbide blades to ensure excellent surface finish

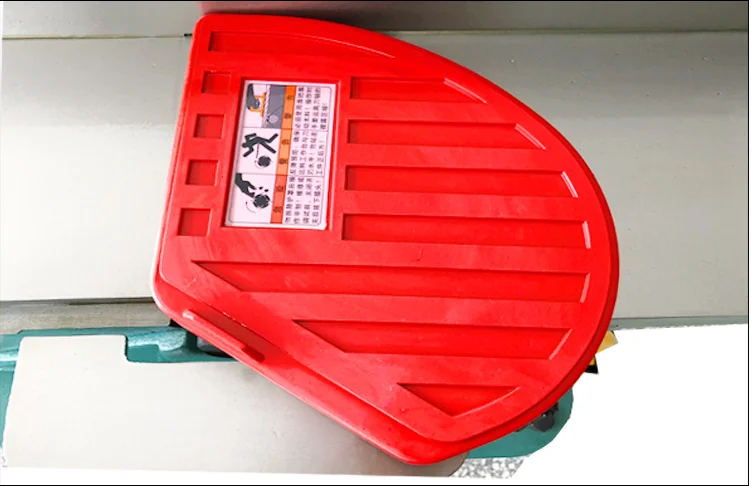

Knife shaft safety guard
Use the knife shaft safety shield to avoid the direct release of the hand and the knife shaft to ensure the safety of work

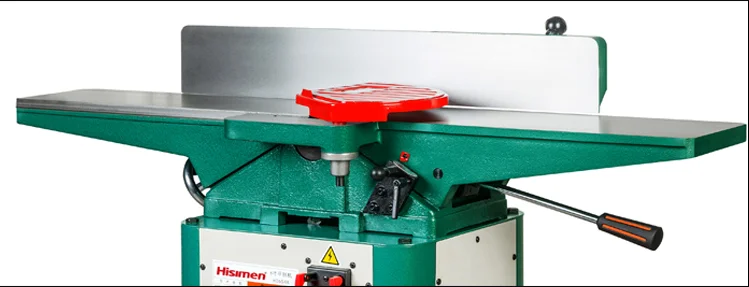

Dovetail lifting structure of worktable
The dovetail lifting structure has unparalleled lifting accuracy and smoothness, as well as strong structural rigidity
Workbench lift scale
Clear worktable lifting scale ruler to ensure accurate workpiece planing size

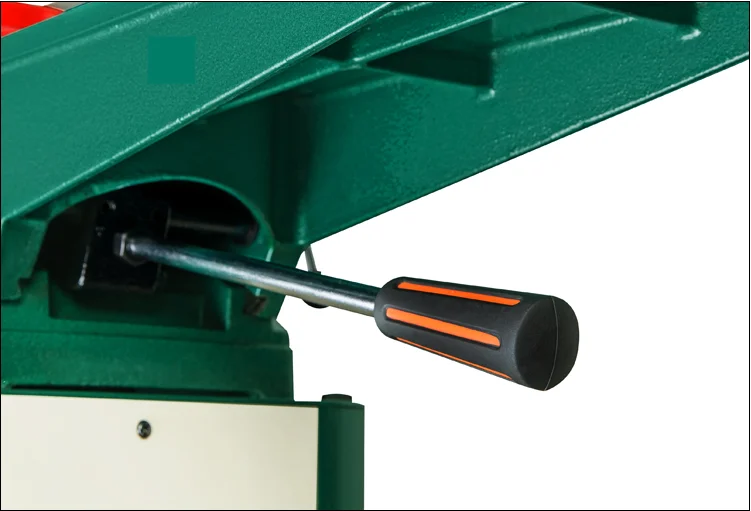

Feeding table adjustment handle
The feed table adopts a handle design to quickly locate the size of the workpiece to be planed

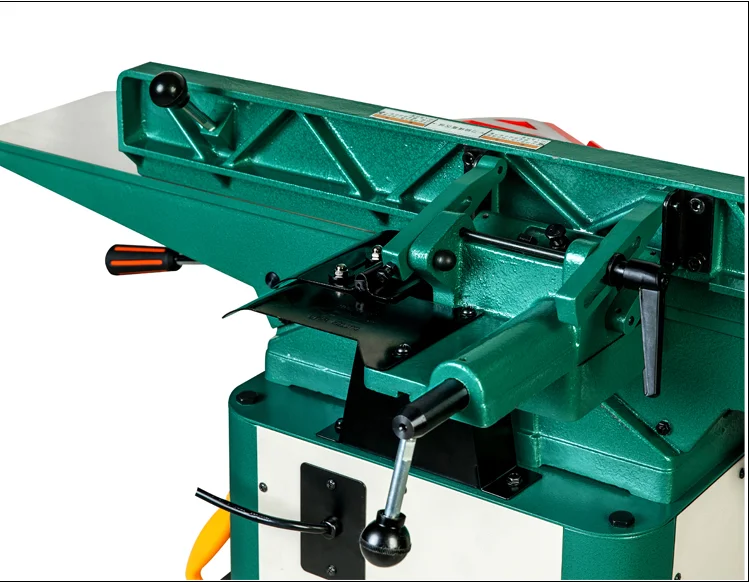

Backer quick setup
The sliding rod moves forwards and backwards, 45° inside and outside, 90° quick positioning, fast debugging, accurate and reliable

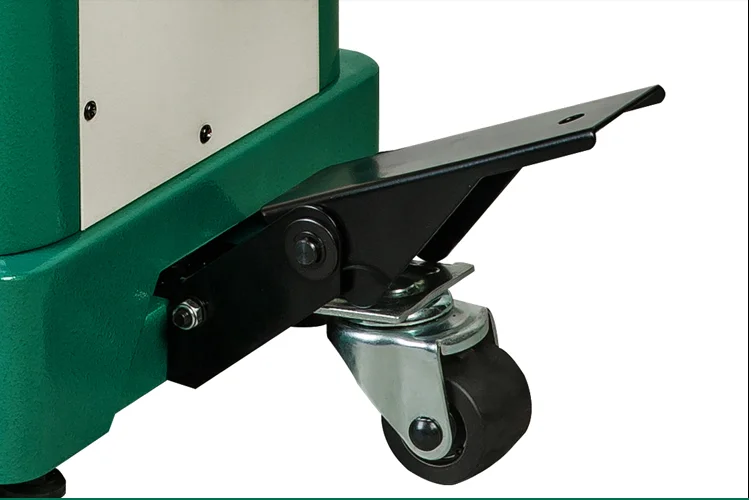

Universal moving casters
One step can quickly move to any designated position
Adapt to the scene

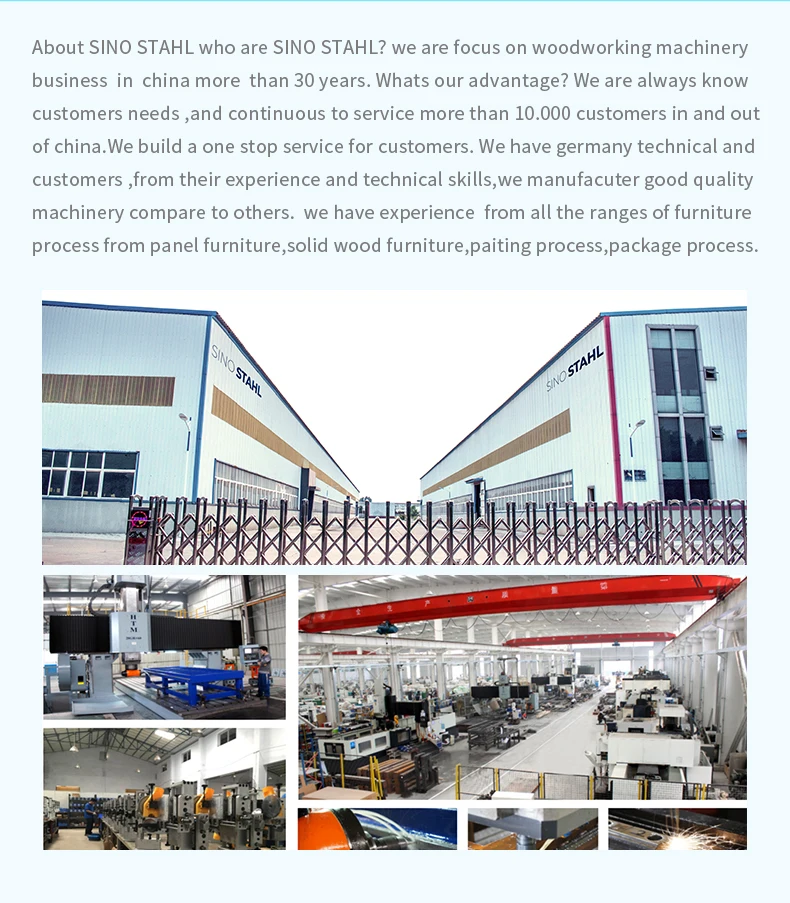

Company Profile
Certifications
Exhibition
FQA
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long termcooperation with each other and have closely relationship with each other,so thereis no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normaloperation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is undernormal situation during warranty period, and all the round-trip couriertransportation cost of damaged/repaired replacement parts in warranty periodshould be borne by the buyer. Wearing parts are not included.
(3) 24 hour technical support by email or calling
(4) User-friendly English manual for machine using and maintaining
4.our srvices?
(1)One-stop service, meet needs of the customers from individuals to internationalcompanies.
(2)OEM service accepted.
(3) Separate trading office: Trading with 30 experienced sales offering fullscaleservice.
(4)After sale Service: experienced and knowledgeable team of technical support,provideengineer oversea service.
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long termcooperation with each other and have closely relationship with each other,so thereis no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normaloperation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is undernormal situation during warranty period, and all the round-trip couriertransportation cost of damaged/repaired replacement parts in warranty periodshould be borne by the buyer. Wearing parts are not included.
(3) 24 hour technical support by email or calling
(4) User-friendly English manual for machine using and maintaining
4.our srvices?
(1)One-stop service, meet needs of the customers from individuals to internationalcompanies.
(2)OEM service accepted.
(3) Separate trading office: Trading with 30 experienced sales offering fullscaleservice.
(4)After sale Service: experienced and knowledgeable team of technical support,provideengineer oversea service.
