Product Description&Applications

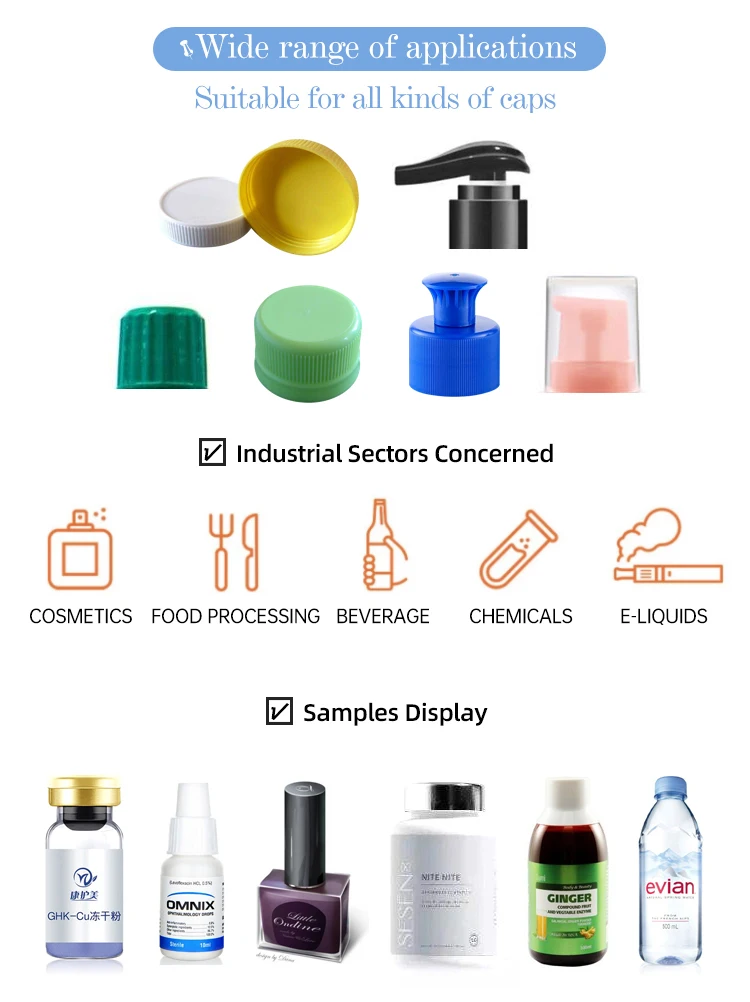

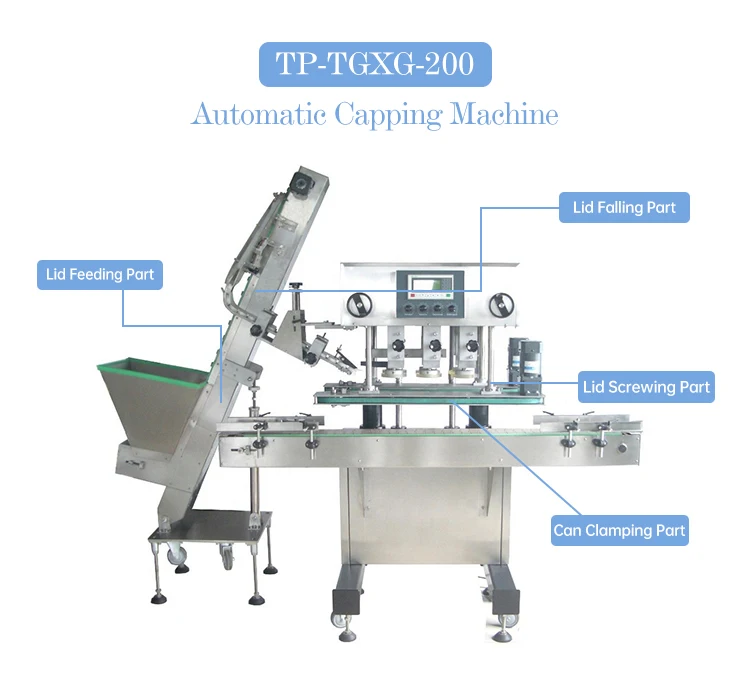

TP-TGXG-200 Bottle Capping Machine is an automatic capping machine to press and screw lids on bottles. It’s special designed for automatic packing line. Different to traditional intermittent type capping machine, this machine is a continuous capping type. Compared to intermittent capping, this machine is more efficient, pressing more tightly, and do less harm to the lids. Now it’s widely applied in food, pharmaceutical, chemical industries.
Features &Specificaton

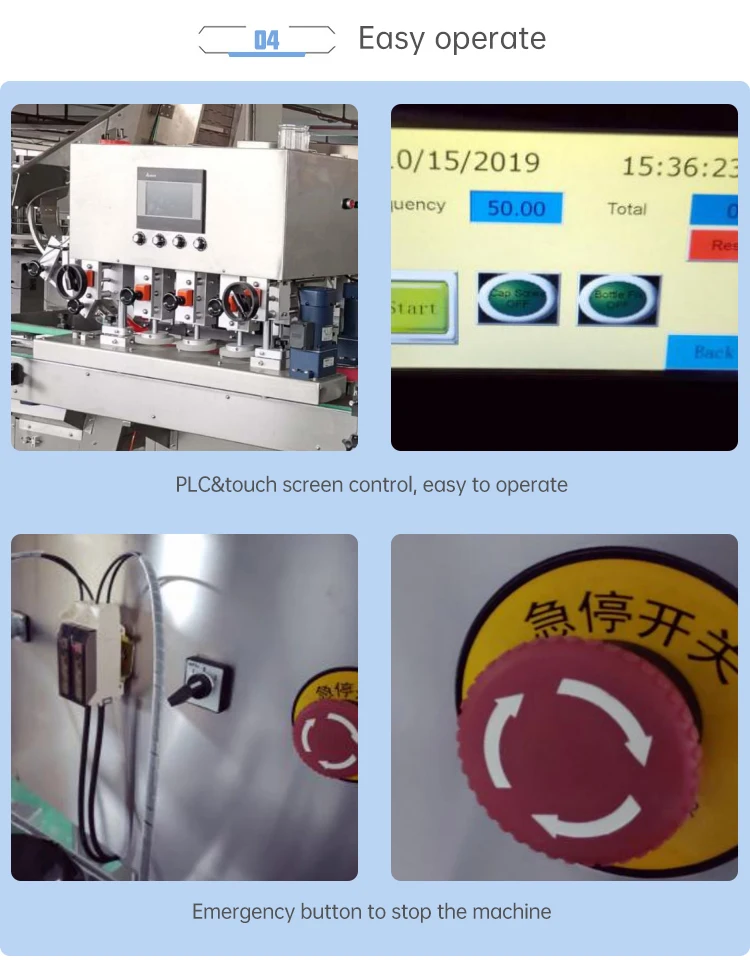

■ PLC&touch screen control, easy to operate
■ Easy to operate , Speed of conveying belt is adjustable to synchronous with whole system

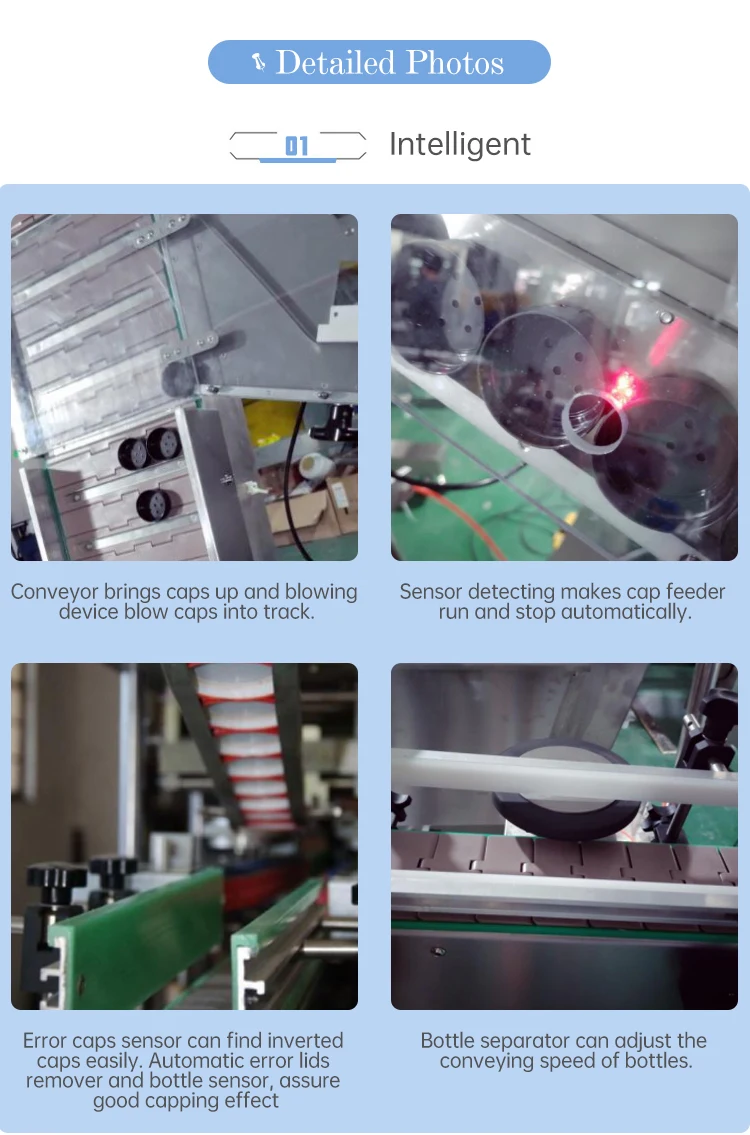

■ Stepped lifting device to feed in lids automatically
■ Lid falling part can remove error lids away(by air blowing and weight measuring)
■ All the contact parts with bottle and lids are made of material safety for food
■ The belt to press the lids is inclined, so it can adjust the lid into the correct place and then pressing
■ Machine body is made of SUS 304, meet GMP standard
■ Optronic sensor to remove the bottles which are error capped (Option)
■ Digital display screen to show the size of different bottle, which will be convenient for changing bottle(Option).
■ Easy to operate , Speed of conveying belt is adjustable to synchronous with whole system
■ Stepped lifting device to feed in lids automatically
■ Lid falling part can remove error lids away(by air blowing and weight measuring)
■ All the contact parts with bottle and lids are made of material safety for food
■ The belt to press the lids is inclined, so it can adjust the lid into the correct place and then pressing
■ Machine body is made of SUS 304, meet GMP standard
■ Optronic sensor to remove the bottles which are error capped (Option)
■ Digital display screen to show the size of different bottle, which will be convenient for changing bottle(Option).
TP-TGXG-200 Bottle Capping Machine | TP8-200 | |
Laminated film | Capacity 50-120 bottles/min | |
Bottles diameter | Φ22-120mm ( customized according to requirement ) | |
Lid size | Φ15-120mm | |
Qualified rate | ≥99% | |
Matrial | Stainless steel 304 | |
Dimension | 2100*900*1800mm | |
Bottles height | 60-280mm (customized according to requirement ) | |
Net Weight | 350kg | |
Power | 1300W | |
Voltage | 220V/50-60Hz(or customized) | |
Details

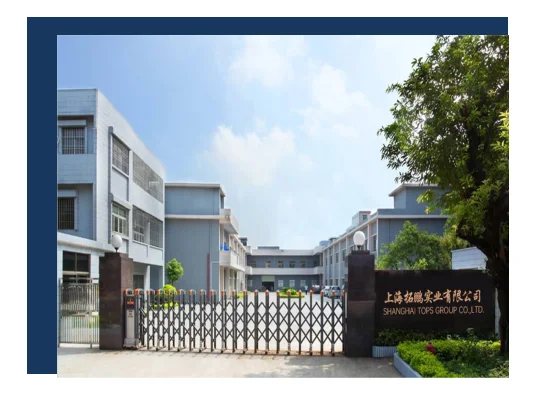

About Us
Shanghai Tops Group Co., Ltd is professional manufacturer for powder and granular,liquid packaging systems.We specialize in the
fields of designing, manufacturing, supporting and servicing a complete line of machinery for different kinds of powder and granular,liquid products, Our main target of working is to offer the products which are related to the food industry, agriculture industry, chemical industry, and pharmacy field and more.
fields of designing, manufacturing, supporting and servicing a complete line of machinery for different kinds of powder and granular,liquid products, Our main target of working is to offer the products which are related to the food industry, agriculture industry, chemical industry, and pharmacy field and more.
Package & Shipping
