Лабораторная система удаления дыма и пыли для сбора
- Категории: Gas Disposal Machinery >>>
- Поставщик: Qingdao,Yosion,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Features
The filter cartridge adopts the polyester peritoneal burning method to become a kind of ultra-micro filter, with activated carbon adsorption material in the middle, which has high micro-efficiency for sub-micron particles.
1. Advanced functions: The use of German dust removal technology is different from the traditional exhaust air, water filtration, and bag dust removal technology, which can collect and even recycle fine dust.
2. Intelligent control: select well-known brand microcomputer control, simple operation.
3. Automatic dust removal: with intelligent negative pressure detection system, if the filter is clogged, it will automatically remove dust to ensure the smooth operation of the equipment.
4. Small size: the size is one-third of the same filter area of the bag filter.
5.Safe to use, a full set of safety protection devices. Highly insulated layout and wiring, and safe weak current control voltage to ensure safe use.
6.The system layout is beautiful. Unique pipeline layout. Save space, and make the system more concise and beautiful.
7.Efficient dust treatment, large filtering area.
8.Efficient and comprehensive dust capture, and comprehensive dust source control can capture the dust generated in all stages of coal ore sample preparation from crushing, mixing, reduction to cleaning. Efficient internal dust source control can capture more than 90% of the dust generated by the crushing equipment.
1. Advanced functions: The use of German dust removal technology is different from the traditional exhaust air, water filtration, and bag dust removal technology, which can collect and even recycle fine dust.
2. Intelligent control: select well-known brand microcomputer control, simple operation.
3. Automatic dust removal: with intelligent negative pressure detection system, if the filter is clogged, it will automatically remove dust to ensure the smooth operation of the equipment.
4. Small size: the size is one-third of the same filter area of the bag filter.
5.Safe to use, a full set of safety protection devices. Highly insulated layout and wiring, and safe weak current control voltage to ensure safe use.
6.The system layout is beautiful. Unique pipeline layout. Save space, and make the system more concise and beautiful.
7.Efficient dust treatment, large filtering area.
8.Efficient and comprehensive dust capture, and comprehensive dust source control can capture the dust generated in all stages of coal ore sample preparation from crushing, mixing, reduction to cleaning. Efficient internal dust source control can capture more than 90% of the dust generated by the crushing equipment.

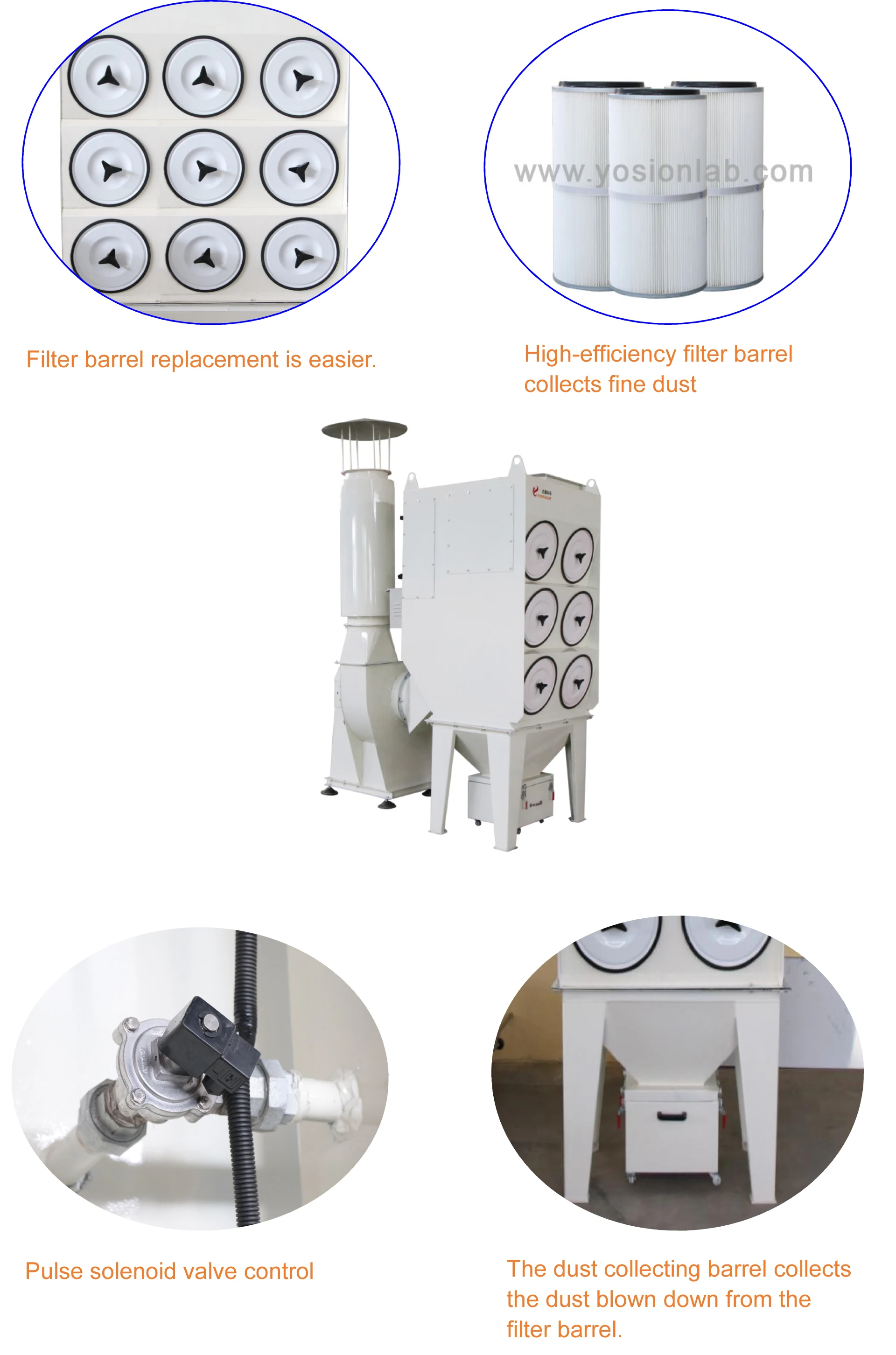

Main Components
The dust removal system should be designed and produced according to the laboratory layout, including pulse dust collector, centrifugal fan, fume hood and pipes.
YXM-7000RH Pulse Dust Collector
Product Name: Pulse Dust Collector
Model: YXM-7000RH
Air volume: 6800-9600m3/h
Pressure: 1450-1950Pa
Matching facilities: suction table, centrifugal fan, pipeline valve, etc.
Gate dust collector size: 5000x1500x2000mm
Material: 1.5mm galvanized sheet
YXM-7000RH Pulse Dust Collector
Product Name: Pulse Dust Collector
Model: YXM-7000RH
Air volume: 6800-9600m3/h
Pressure: 1450-1950Pa
Matching facilities: suction table, centrifugal fan, pipeline valve, etc.
Gate dust collector size: 5000x1500x2000mm
Material: 1.5mm galvanized sheet
Specification
Product name | Dust Extraction System |
Brand | YOSION |

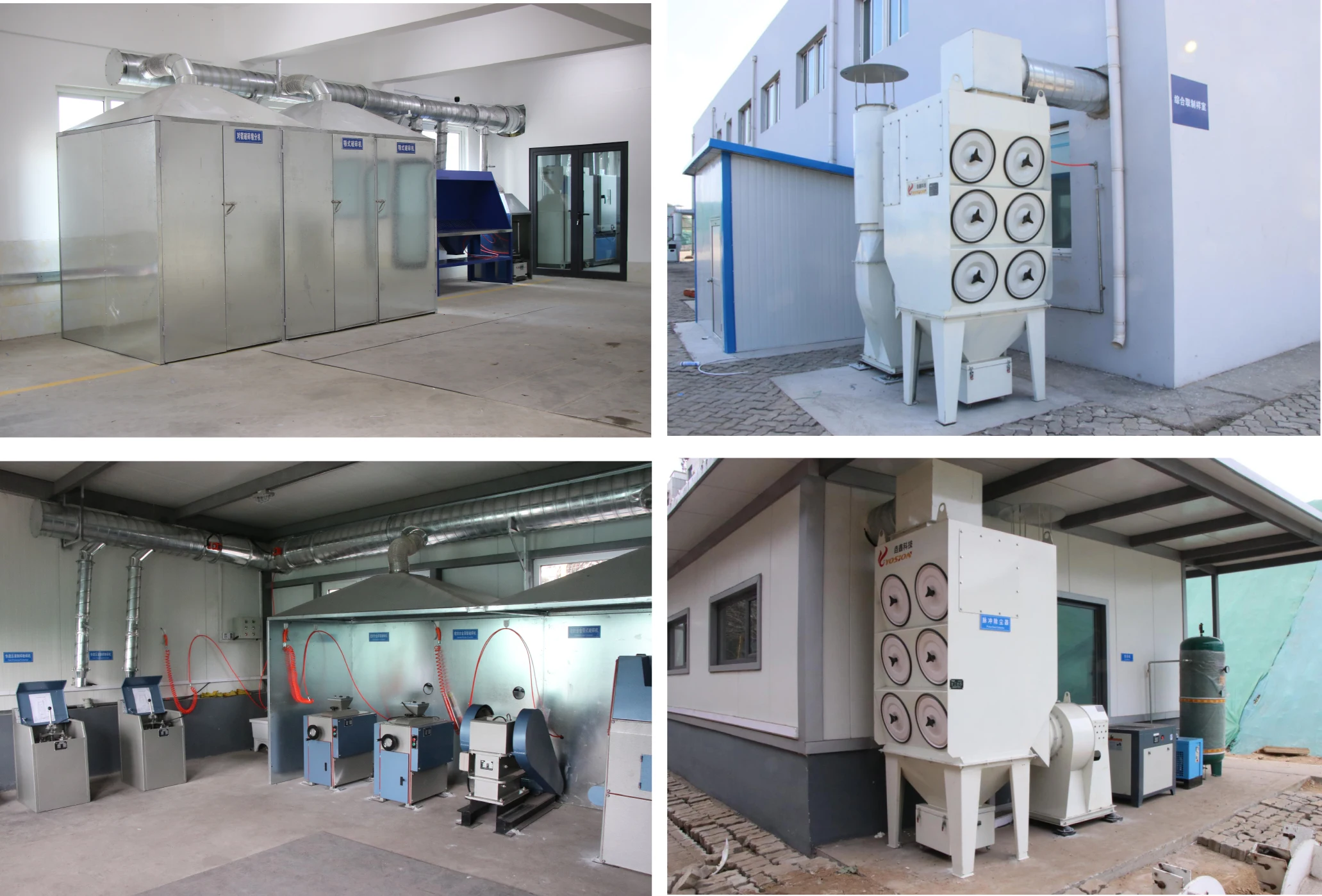

Project References
Packing & Delivery
Company Profile
QINGDAO YOSION INTELLIGENT TECHNOLOGY CO., LTD. is a comprehensive laboratory service provider integrating research &development, production, sales and service.Yosion specialize in automated sampling & preparation system, sample preparation equipment, containerized laboratory, fire assayequipment & consumable,chemical analysis instrument etc.
Yosion team step by step, focusing on customer needs, actively implement the "going out" strategy, participate in the construction of global mineral laboratories, and have customers in Southeast Asia, Africa, Mid East, North America,South America and so on.
Payment
FAQ
Q1. Are you a factory?
A:Yes, we are a factory, a manufacturer.
Q2. Can the product be customized according to my requirements?
A:Yes, we have our own R&D team. You can communicate your requirements with us, our engineers will give you a drawing
confirmation, and then the production department will complete the product.
Q3. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. What about the lead time?
A:Because we have a wide range of products, some commonly used equipment and consumables are in stock, and we can ship them when we receive the payment. Some customized products have a delivery period of 2-6 weeks depending on the production cycle.
Q5. What kind of warranty can you provide?
A:For equipment, we provide a one-year warranty period for the main parts after commissioning.But consumables are not covered by the warranty.If the product is damaged due to the transportation process, please contact us within 7 days after receiving the product.
Q6. Do you have experience in foreign projects?
A:Yes,we have.We have participated in the design and construction of sample preparation laboratories and fire assay laboratories in many countries.
For example,full set of fire assay equipment and tools, consumables for AZANA Lab in Ethiopia;containerized lab of fire assay for AHK lab in South Korea ;containerized lab of sample preparing for AHK lab in Chile;containerized lab of sample preparing in Zambia etc.You can communicate with us for more details.
A:Yes, we are a factory, a manufacturer.
Q2. Can the product be customized according to my requirements?
A:Yes, we have our own R&D team. You can communicate your requirements with us, our engineers will give you a drawing
confirmation, and then the production department will complete the product.
Q3. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. What about the lead time?
A:Because we have a wide range of products, some commonly used equipment and consumables are in stock, and we can ship them when we receive the payment. Some customized products have a delivery period of 2-6 weeks depending on the production cycle.
Q5. What kind of warranty can you provide?
A:For equipment, we provide a one-year warranty period for the main parts after commissioning.But consumables are not covered by the warranty.If the product is damaged due to the transportation process, please contact us within 7 days after receiving the product.
Q6. Do you have experience in foreign projects?
A:Yes,we have.We have participated in the design and construction of sample preparation laboratories and fire assay laboratories in many countries.
For example,full set of fire assay equipment and tools, consumables for AZANA Lab in Ethiopia;containerized lab of fire assay for AHK lab in South Korea ;containerized lab of sample preparing for AHK lab in Chile;containerized lab of sample preparing in Zambia etc.You can communicate with us for more details.
