Высокоскоростной смеситель для профиля с пластиковым порошком 600

Описание и отзывы

Характеристики



500-600kg/h plastic powder high speed mixer

Model	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/2000
Capacity(L)	200/500	300/600	500/1000	800/2000
Effective capacity(L)	150/320	200/360	375/640	600/1500
Rotate speed(rmp)	475/950/130	475/950/130	430/860/50	370/740
Motor&heating power(kw)	30/42/11	40/55/11	47/67/15	83/110/30
Weight(T)	3.5	4.2	5.8	7.3

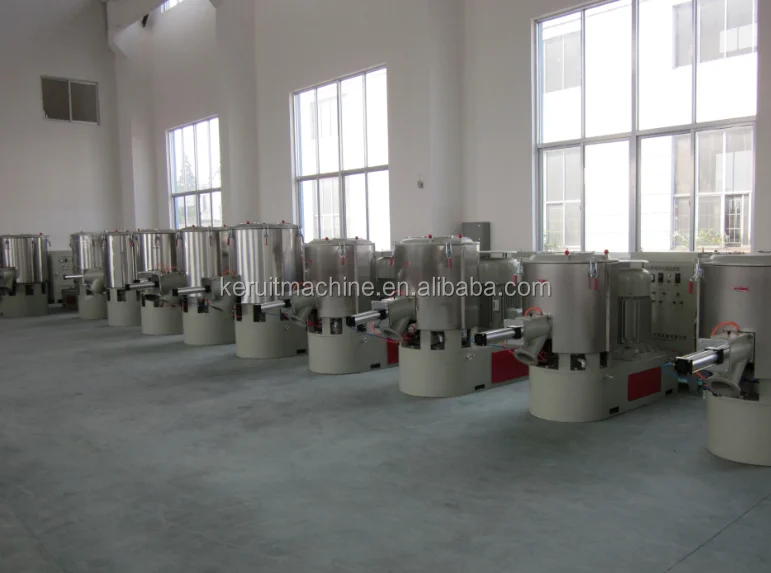

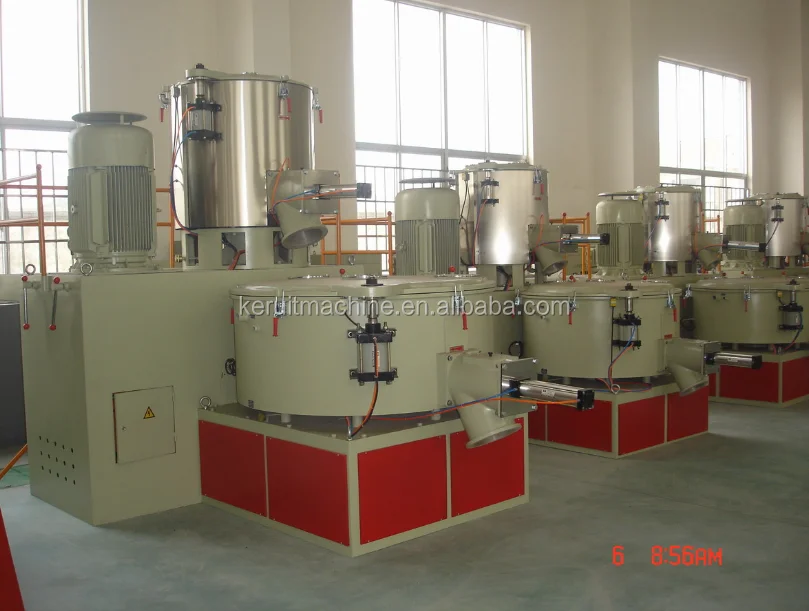

SRL200/500L PVC plastic mixer is mainly composed of high speed hot mixer, cold mixer, and electric control components etc.



1.This plastic mixer is  used for the process of compounding , mixing, drying as one of the most ideal equipments for the manufacture of profiles and tubes.

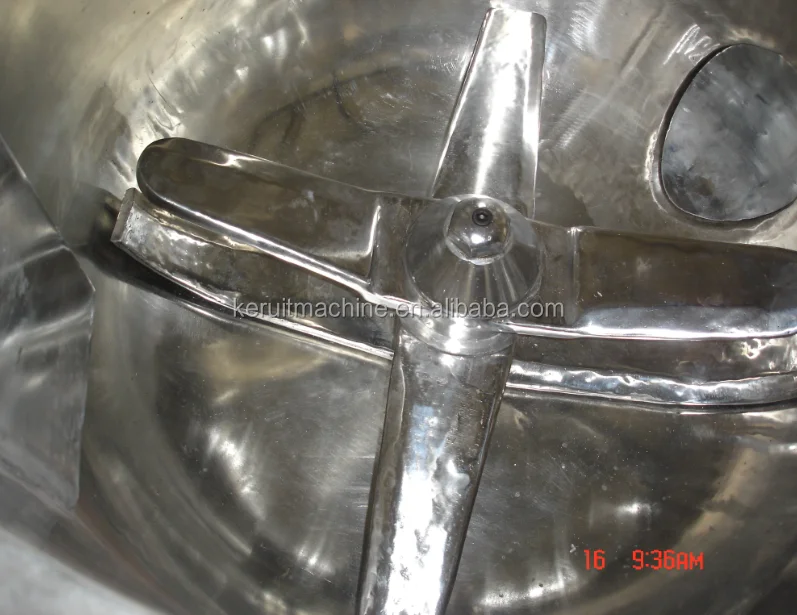

2.Two layers sealing pot cover, cover opening adopts pneumtic control. All baldes are tested by dynamic and static balance.

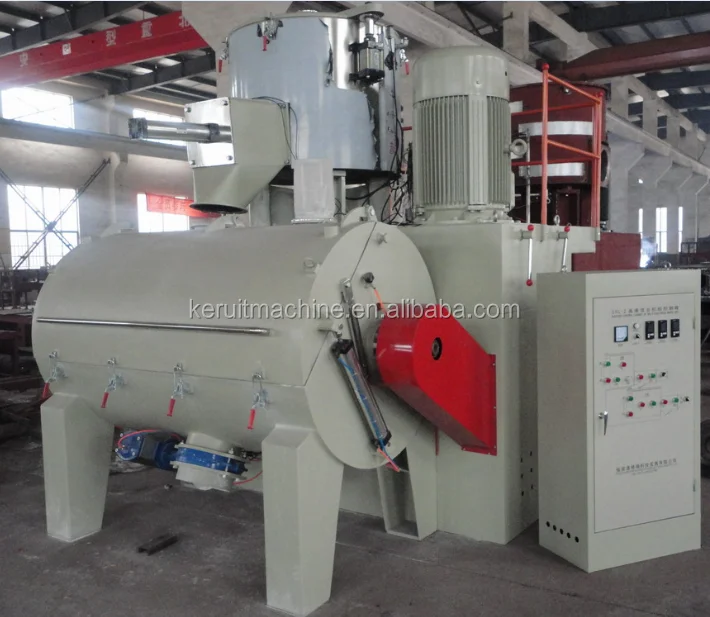

 3. The cold mixer adopts horizontal structure with the characteristics of large cooling area , fast speed, more homogenized.
