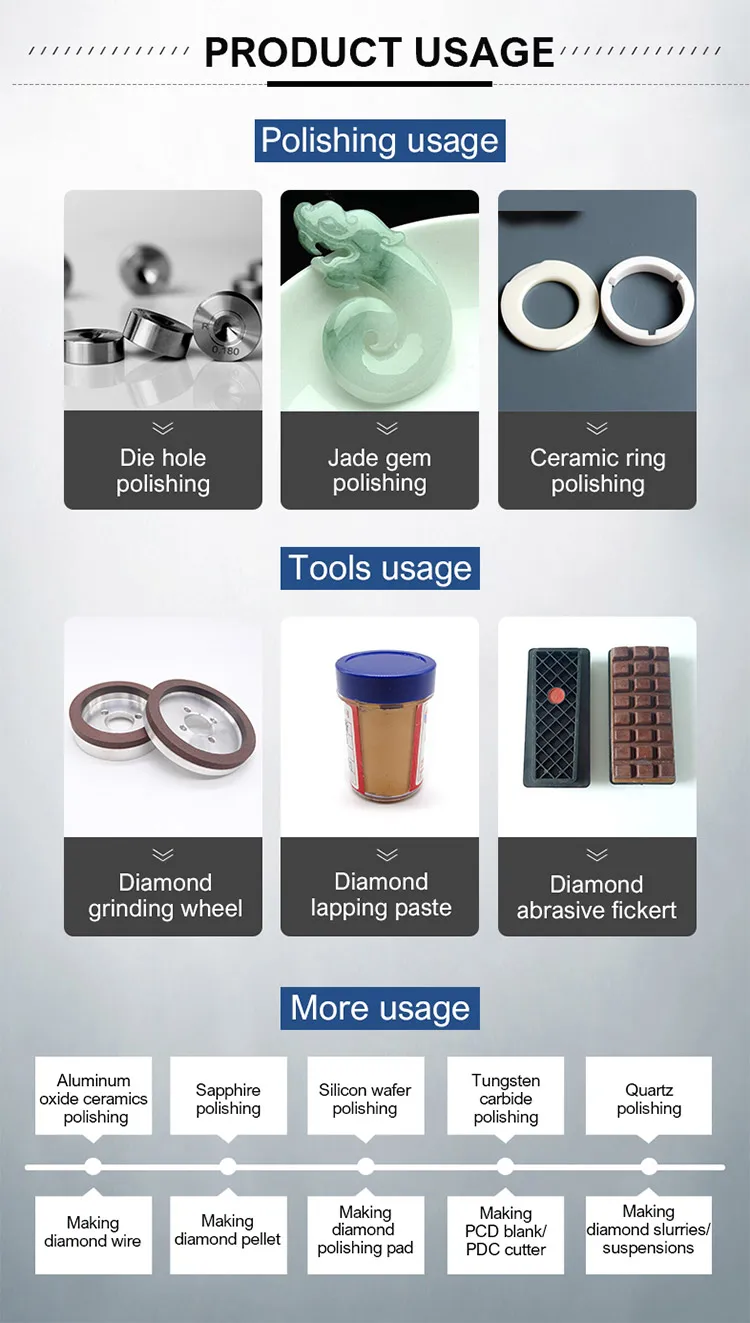

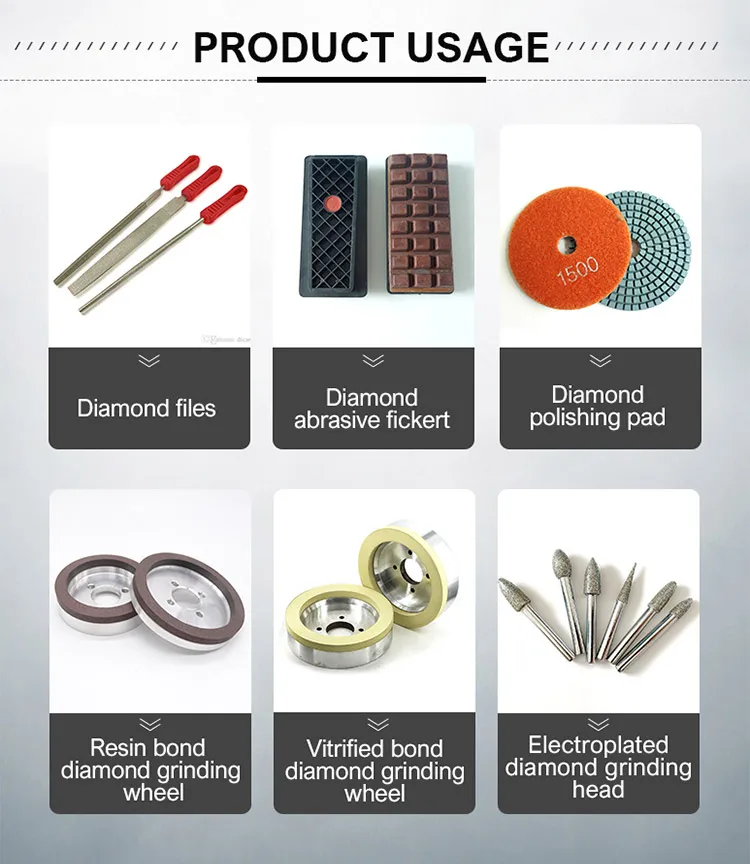

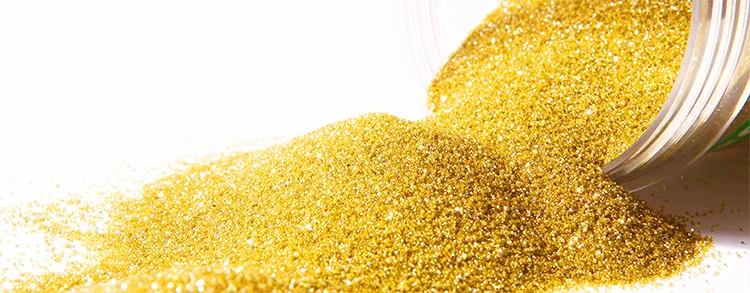

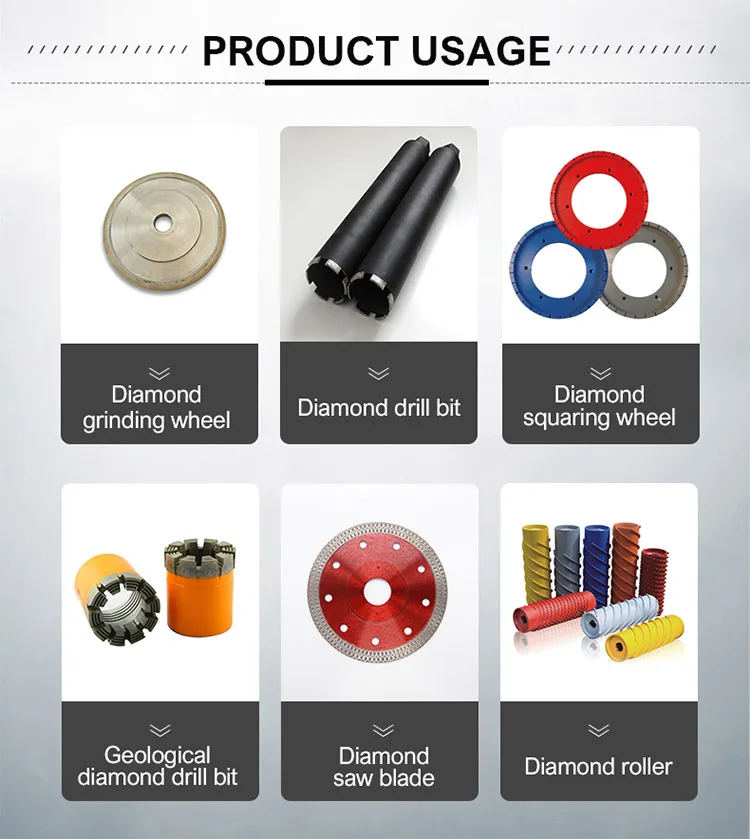

HNHONGXIANG synthetic diamond powder is made of the high-quality synthetic diamond as raw material, through many different and strict production processes. Our diamond powder can be processed and applied to the different industries for cutting, grinding,drilling and polishing usage, in order to match the different requirements.
Diamond Micron Powder
Irregular shape. The same raw material as green RVD. For making diamond polishing pads/diamond abrasive Fickert/resin bond diamond
grinding wheel
grinding wheel
For making diamond lapping paste/diamond polishing pads/diamond abrasive Fickert/resin bond & vitrified bond diamond grinding
wheel/electroplated diamond bur
wheel/electroplated diamond bur
For making diamond slurries/suspensions to polish sapphire, silicon wafer, precision ceramics,optical lenses, optical fiber
communication.
communication.
Regular shape and polishing better to avoid scratch, for making diamond lapping paste, resin bond diamond grinding wheel.
Uniform particle size and shape. For making silicon wafer cutting diamond wire, jewelry saw, semiconductor saw.
For making diamond slurries/suspensions to polish sapphire, silicon carbide, semiconductor wafers, optical and electro-optical crystals, hard brittle materials.
Standard of China | Standard of international | Mesh | Polishing effect | Standard of China | Standard of international | Mesh | Polishing effect |
W0.1 | 0-0.1 | 100000 | Super mirror polishing | W12 | 8-12 | 1600 | Normal polishing |
W0.25 | 0-0.25 | 60000 | W14 | 7-14 | 1500 | ||
W0.5 | 0-0.5 | 30000 | Mirror polishing | W14 | 8-16 | 1300 | |
W1 | 0-1 | 15000 | W20- | 10-20 | 1200 | ||
W1.5- | 0-2 | 13000 | W20 | 12-22 | 1000 | ||
W1.5 | 1-2 | 12000 | Fine polishing | W20+ | 15-25 | 800 | |
W2.5 | 1-3 | 10000 | W28 | 20-30 | 700 | ||
W3 | 2-3 | 7000 | W28+ | 22-36 | 600 | ||
W3.5 | 2-4 | 6500 | W40- | 20-40 | 500 | Rough grinding | |
W3.5 | 2-4 | 6000 | W40 | 30-40 | 450 | ||
W4 | 2-5 | 5000 | W40+ | 35-45 | 400 | ||
W5 | 3-6 | 4000 | W50 | 36-54 | 350 | ||
W6 | 4-6 | 3500 | 325/400 | D46 | 320 | ||
W7 | 4-8 | 3000 | Normal polishing | 270/325 | D54 | 270 | |
W10 | 4-9 | 2500 | 230/270 | D64 | 230 | ||
W10 | 5-10 | 2000 | 200/230 | D76 | 200 | ||
W10 | 6-12 | 1800 |

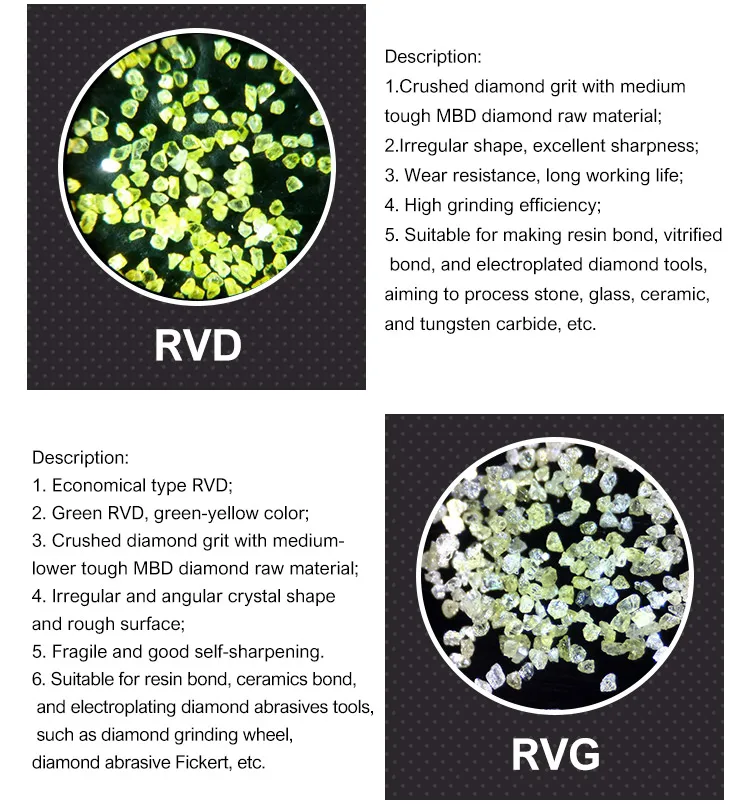

RVD Diamond Powder
Grit | Mest | Grit | Mest |
80/100 | 80# | 230/270 | 230# |
100/120 | 100# | 270/325 | 270# |
120/140 | 120# | 325/400 | 325# |
140/170 | 140# | 400/500 | 400# |
170/200 | 170# | 500/600 | 500# |
200/230 | 200# |

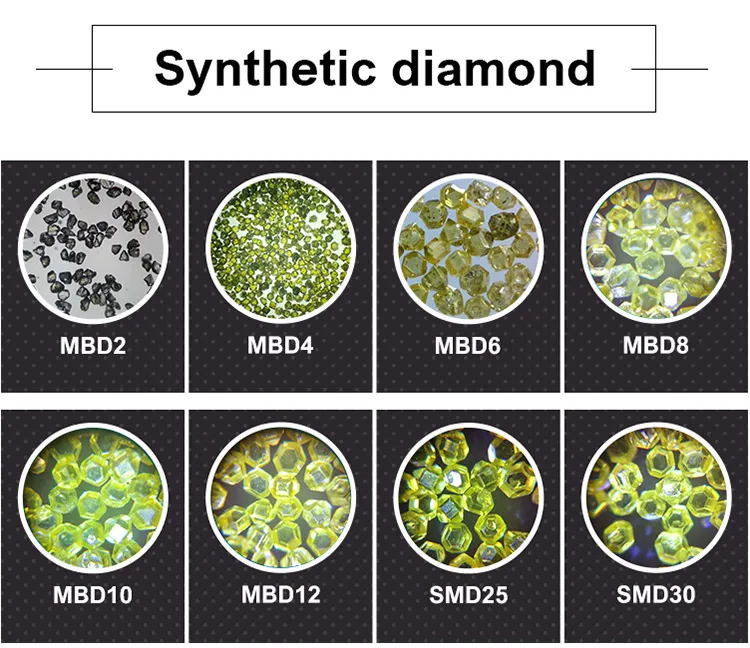

Synthetic Diamond
Grit | MBD0 | MBD1 | MBD2 | MBD3 | MBD4 | MBD5 | MBD 6/8 | MBD10/12 | SBD25-30 |
30/35 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
35/40 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
40/45 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
45/50 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
50/60 | √ | √ | √ | √ | |||||
60/70 | √ | √ | √ | √ | √ | ||||
70/80 | √ | √ | √ | √ | √ | ||||
80/100 | √ | √ | √ | √ | √ | √ | |||
100/120 | √ | √ | √ | √ | √ | √ | |||
120/140 | √ | √ | √ | √ | √ | √ | |||
140/170 | √ | √ | √ | √ | √ | √ | |||
170/200 | √ | √ | √ | √ | √ | √ | |||
200/230 | √ | √ | √ | √ | √ | √ | |||
230/270 | √ | √ | √ | √ | √ | √ | |||
270/325 | √ | √ | √ | √ | √ | √ | |||
325/400 | √ | √ | √ | √ | √ | √ | |||
400/500 | √ | √ | √ | √ | √ | √ |

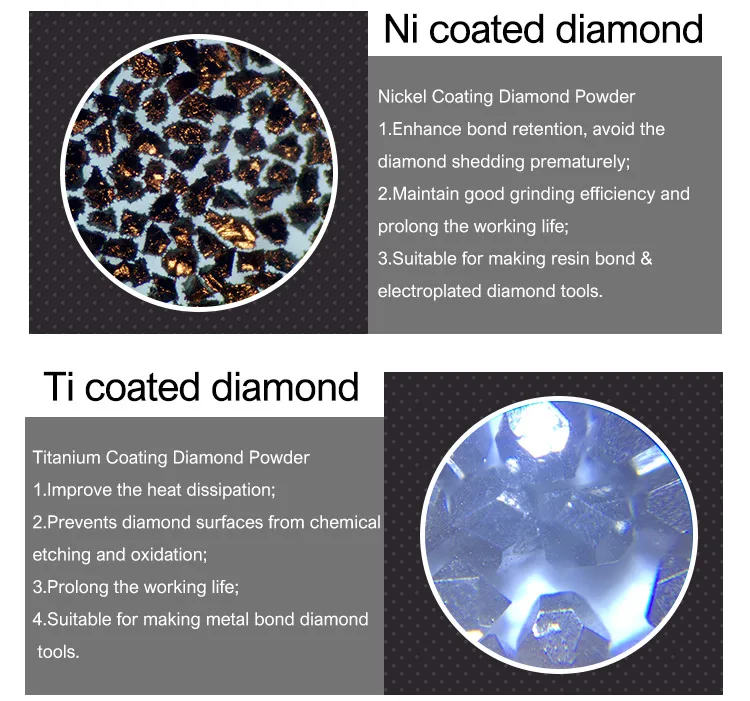

Coated Diamond Powder
Recommended By Seller

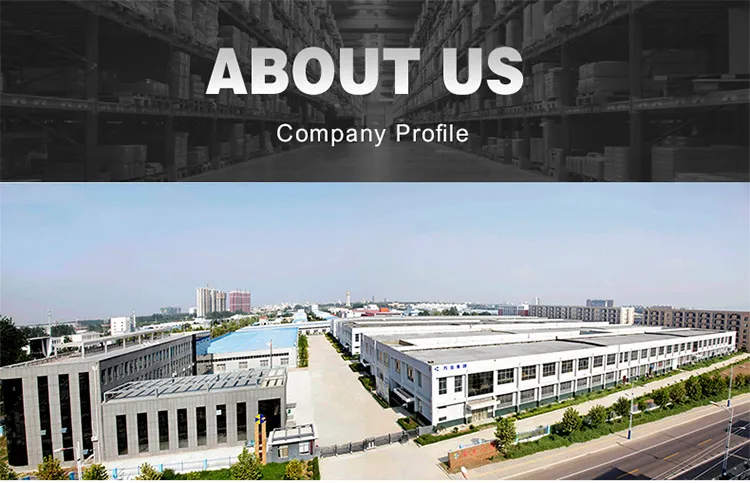

Company Introduction
HNHONGXIANG is a research and development enterprise specializing in the production of diamond composite plates and wire drawing dies. We have professional product quality inspection and professional technical support. The factory is located in the heart of Henan Province, China, covering an area of 12,400 square meters. Our core values are "quality products, excellent prices, and excellent service."
