Комбинированный универсальный деревообрабатывающий станок деревообрабатывающие комбинированные станки 5
- Категории: Other Woodworking Machinery >>>
- Поставщик: Qingdao,Hysen,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Planer | C300 |
Working Table | 300*1500 mm |
Cutter block diameter | 70 mm |
Cutter block rotation speed | 5700 r. p. m |
Dimension knives(3 knives) | 300*20*3 mm |
Max table adjustment | 4 mm |
Thickness | C300 |
Working Table | 300*660 mm |
Feeding Speed | 7 m/1’ |
Working Height | 4-220 mm |
Mortiser | C300 |
Working Table | 250*500 mm |
Longitudinal /Trasversal /Vertical Stroke | 205/95/90 mm |
Churck ( M18*1.5-S) | 0-16 mm |
Churck Rotation speed | 5700 r. p. m |
Circular saw | C300 |
Working table | 220x1000 mm |
Shaft rotation speed | 4500 r. p. m |
Blade diameter | 250 mm |
Blade bora diameter | 30 mm |
Cutting height 90° | 80 mm |
Max. distance between blade and fence | 500 mm |
Blade inclination | 45° |
Max cutting height 45° | 50 mm |
Shaft rotation speed engraver | 7000 r. p. m |
Engraver blade diameter | 90 mm |
Engraver blade bora diameter | 22 mm |
Shaper | C300 |
Working tables | 220x1000 mm |
Shaft rotation speeds | 2000/3100/4400/7000 r. p. m |
Standard shaft diameter | 30 mm |
Spindle lenght | 105 mm |
Shaft vertical stroke | 115 mm |
Max. tool diameter | 160 mm |
Max. tenoning depth | 55 mm |
C300 | |
3-phase motor | 3.0 HP/2.2KW |
Weight | 550 kgs |
Feature
Combined 3 operations
Surface Planer--Thickness--Mortiser
Surface Planer--Thickness--Mortiser

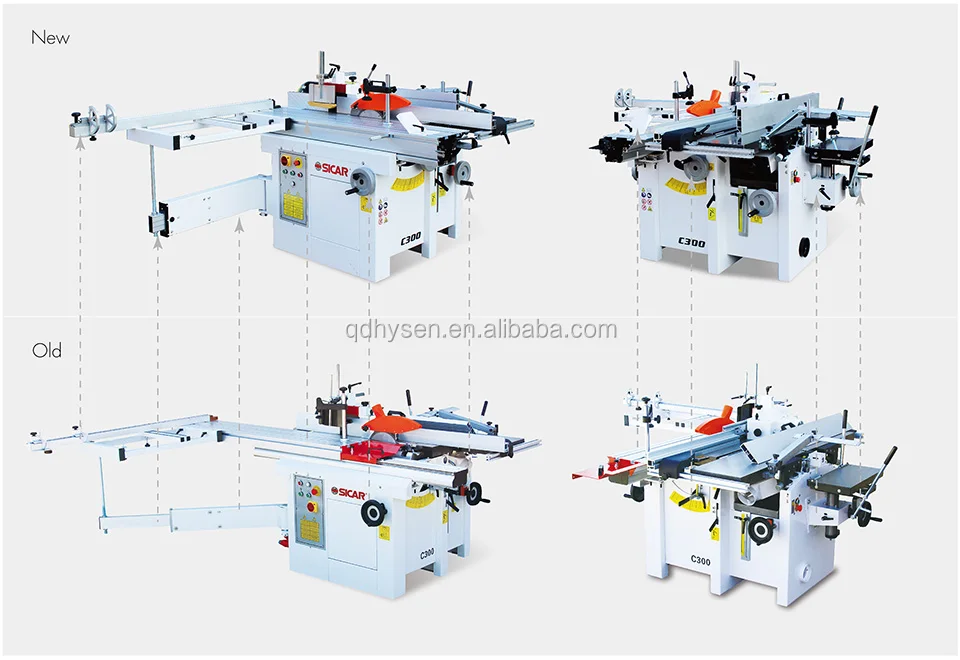

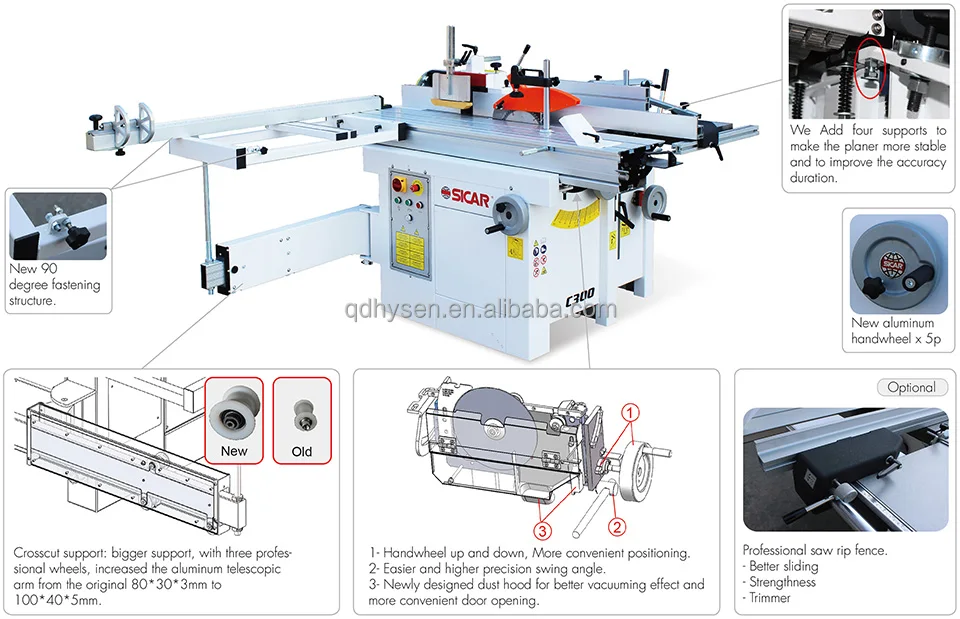

Details Images

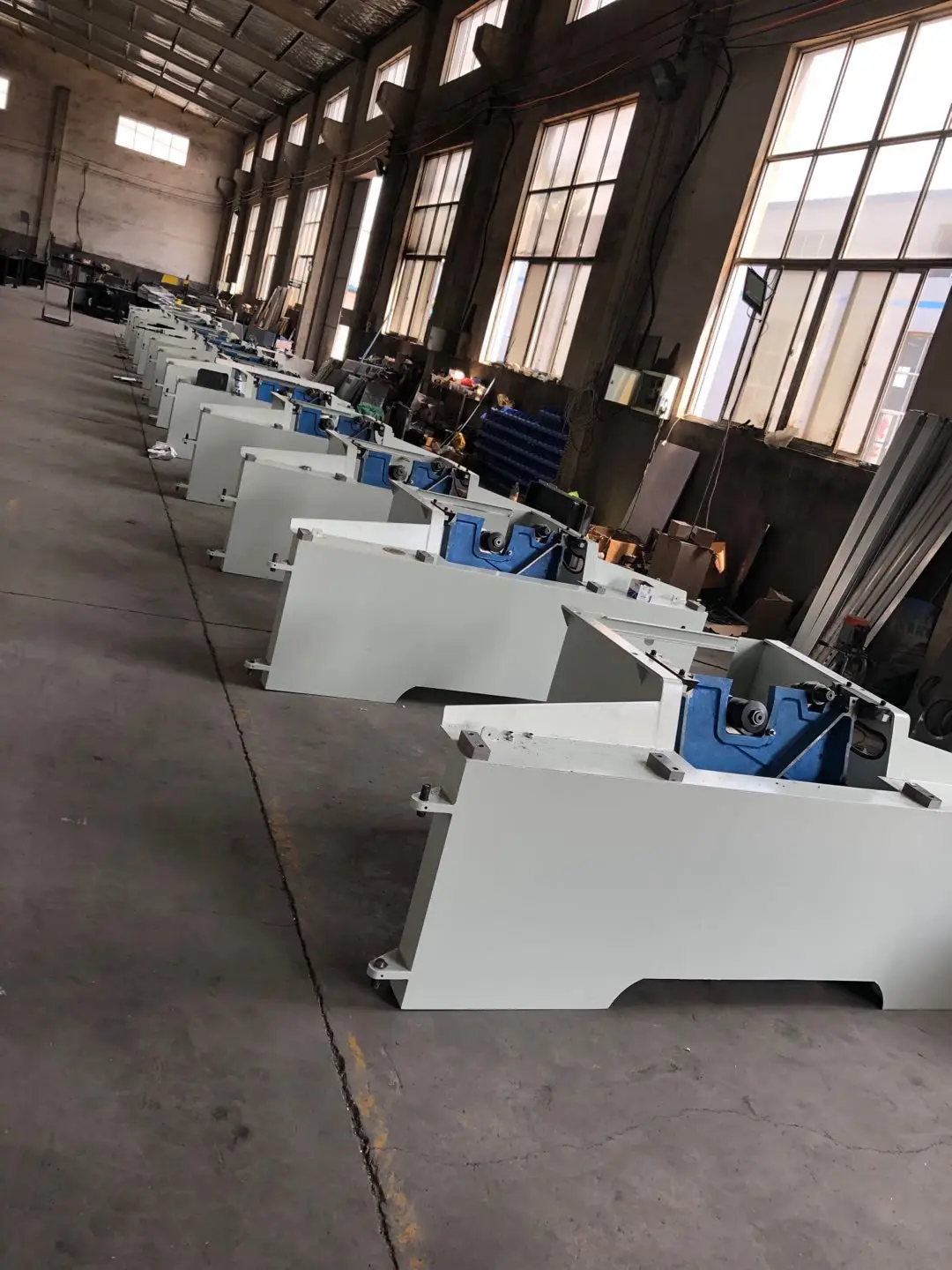

Company Profile
Qingdao Hysen is a leading company of specializing in manufacturing and exporting woodworking machine. We are able to offer professional woodworking machines to customers.
Our products are mainly Edge Banding Machine, Precise panel saw, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia.
Our company takes the principle of quality first and customer foremost Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machines.. Complete sets of CNC processing equipments and experienced technicians to guarantee high quality. Mainwhile, we got ISO9001 international system certificate and CE security certificate. Complete sales system provides perfect pre-sale and after-sale services. Which is proved by all customers.
Qingdao Hysen is looking forward to establishing long-term strategic cooperation relationship with you and offering you high quality products and perfect service system.
Our products are mainly Edge Banding Machine, Precise panel saw, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia.
Our company takes the principle of quality first and customer foremost Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machines.. Complete sets of CNC processing equipments and experienced technicians to guarantee high quality. Mainwhile, we got ISO9001 international system certificate and CE security certificate. Complete sales system provides perfect pre-sale and after-sale services. Which is proved by all customers.
Qingdao Hysen is looking forward to establishing long-term strategic cooperation relationship with you and offering you high quality products and perfect service system.
Packing & Delivery
wooden case
