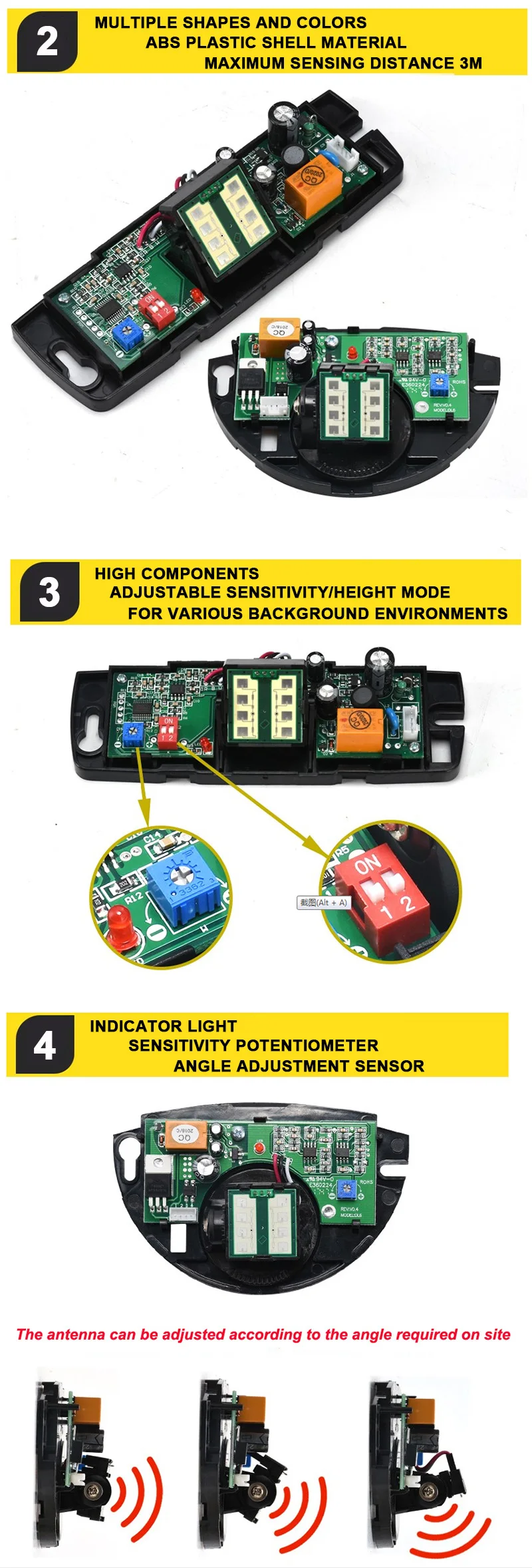

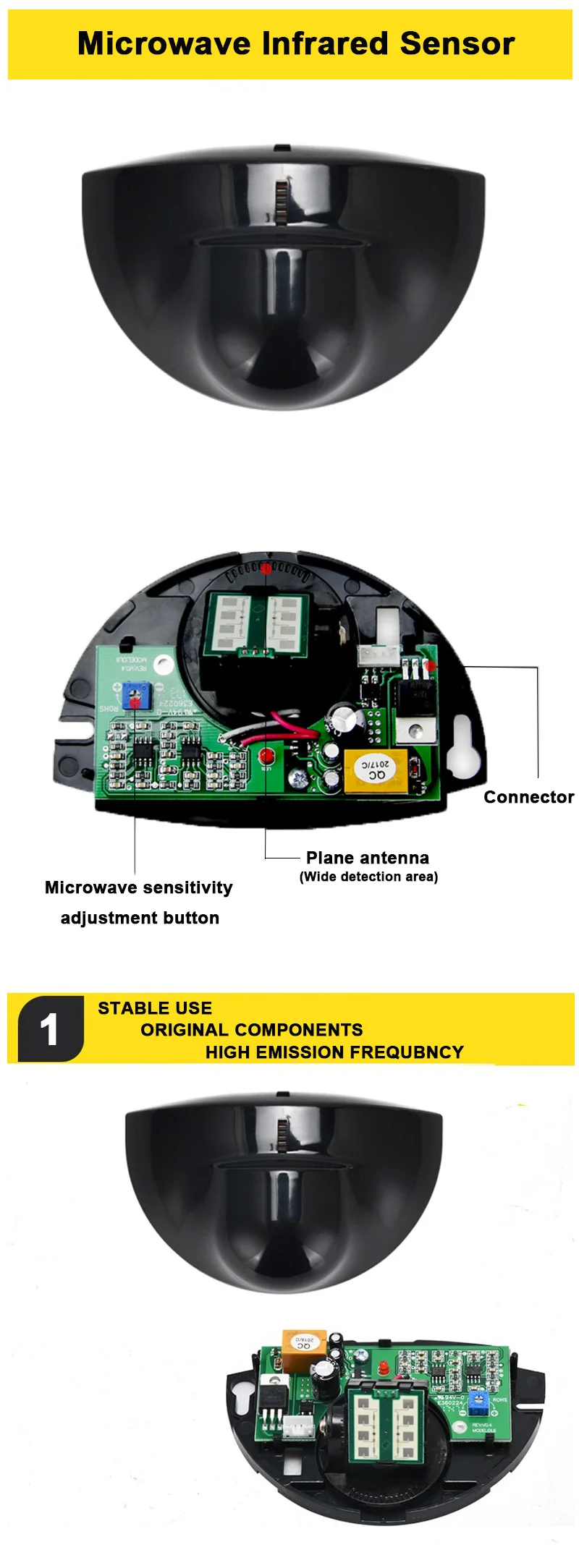

Автоматический датчик двери раздвижная дверь микроволновый
- Категории: Inductive Switch >>>
- Поставщик: Shenzhen,Vians,Electric,Lock,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Implementation Technology | Microwave/Microwave Processor |
Transmission frequency | 24.125GHz |
Transmit power | <20dBm ElRP |
Transmission frequency density | <5mW/cm2 |
Maximum installation height | 3m |
Inclination | Vertical 0. to 90°, horizontal 30°to +30° |
Detection range (installation height=2.2m) | 4m(W)x2m(D) |
"Ruler | Sports |
Minimum detection speed | 5 cm/s (along the longitudinal axis of the sensor) |
Power supply voltage | 12V to 24V AC/DC +30%/-10% |
Power frequency | 50 to 60 Hz |
Power consumption | <2W(VA) |
Maximum contact voltage | 42V AC-60V DC |
Maximum contact current | 1A (resistance) |
Maximum switching power | 30W(DC)/60VA(AC) |
Bao Bao time | 0.5 seconds |
Temperature range | -20°C to +55°C |
Shell material | ABS plastic |
Shell color | black, silver gray |
Dimensions | 120mm (length) x 80mm (width) x 50mm (height) |
Weight | 210g |
Wire length | 2.5 meters |
