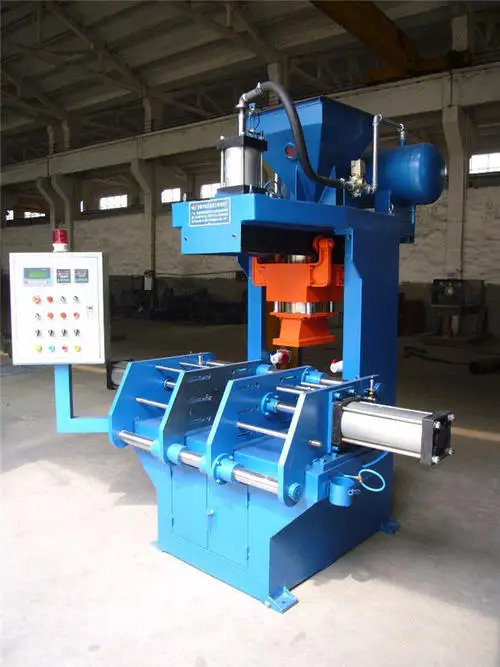

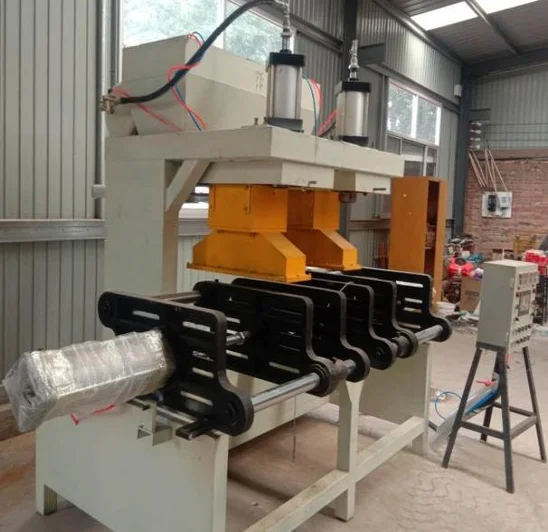

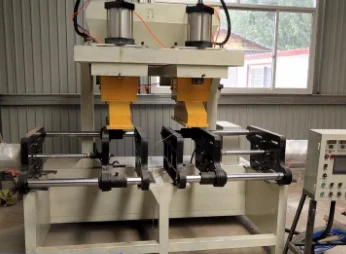

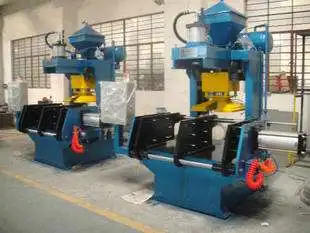

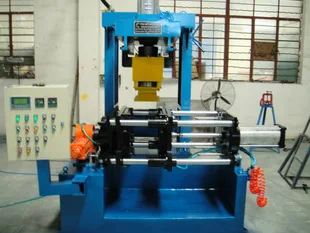

hot box sand core shooter is a novel high-efficiency, fully automatic hot-box core shooter.,This hot box core shooting machine is divided into two-molds parting and four-molds parting. It can shoot sand cores with horizontal parting or horizontal and vertical parting.
The hot box sand core shooter suites for small and medium green sand core & shell core.

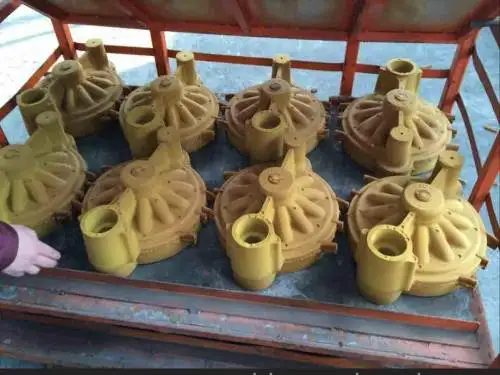

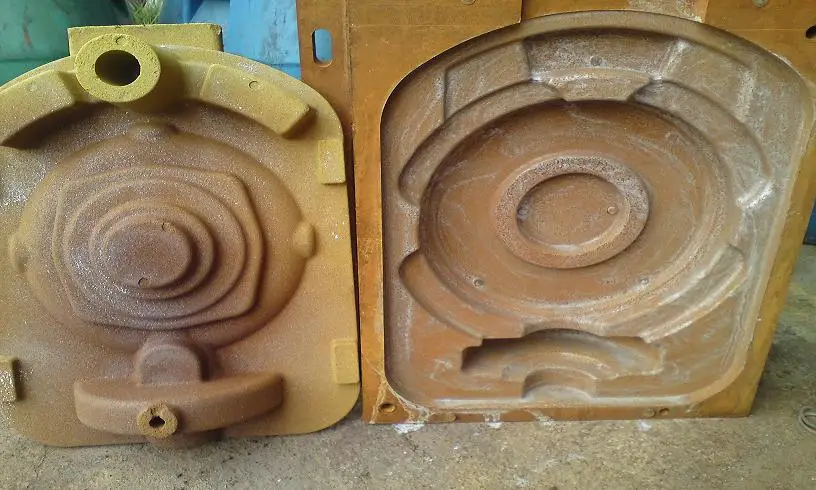

The production efficiency of the hot box core shooter is high. Its sand filling and compaction are performed synchronously. The entire cycle can be completed in ten seconds. The quality of the produced sand core is better than ordinary. hot box core shooter can make complex sand cores with precise dimensions and smooth surfaces. it's the best choice in the foundry industry
Item/Model | ZH8610 | ZH8620 | ZH8630 | ZH8640 | ZH8650 |
Pattern size | 540x400mm | 620x280mm | 620x420mm | 700x450mm | 1000x700mm |
Clamping stroke | 400mm | 400mm | 400mm | 400mm | 400mm |
Max sand core weight | 12kg | 20kg | 18kg | 25kg | 50kg |
Shooting pressure | 0.3-0.4Mpa | 0.3-0.4Mpa | 0.3-0.4Mpa | 0.3-0.4Mpa | 0.3-0.4Mpa |
Heat power | 25kw | 25kw | 25kw | 40kw | 45kw |
We manufacture and design full scope of green sand casting equipment. including Green Sand Mixer, Sand Feeder and Conveyor, Sand Molding machine and Sand Reclamation Machine.
We also design custom production line of green sand casting prodcution.
We also design custom production line of green sand casting prodcution.

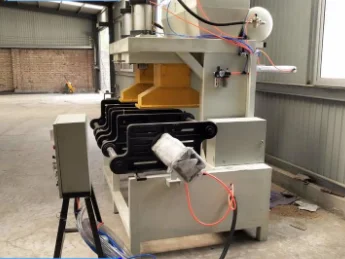

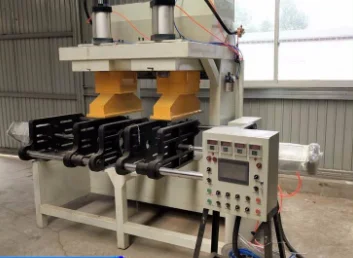

Structure of Hot box sand core shooter:

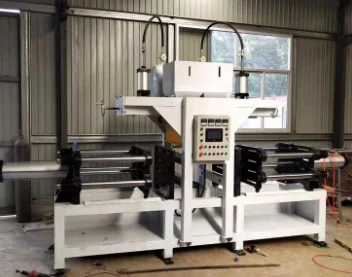

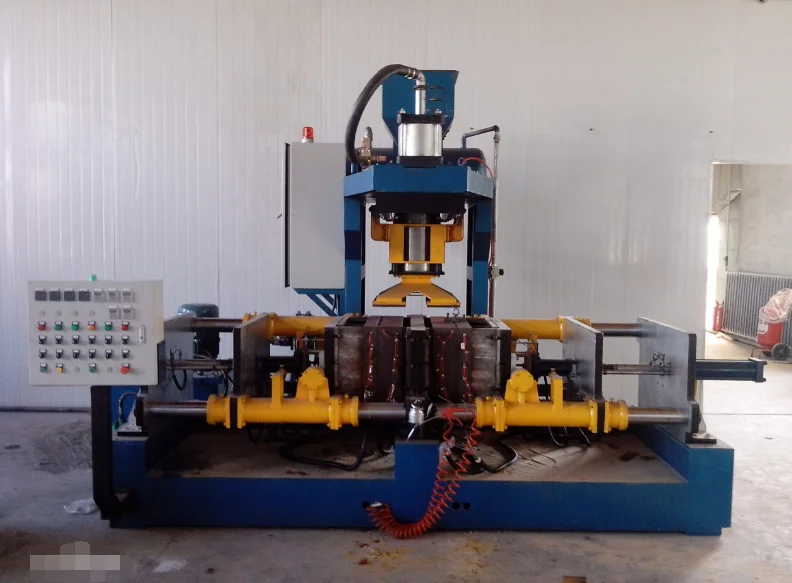

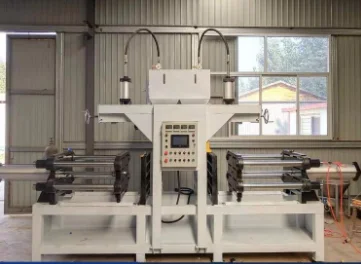

The hot box core shooter consists of a core shooter in the middle and two core lifters on both sides. One or two movable worktables are driven by the air cylinders to shoot the cores at the core-shooting stations, and heat and solidify at the core-lifting stations and core-lifting. The guide rails of the mobile worktable mounted on the base are extended on both sides of the core lifter. When the core box or shooting plate needs to be replaced, the mobile worktable can be pulled to this position to shoot the core.
The hot box core shooter consists of a core shooter in the middle and two core lifters on both sides. One or two movable worktables are driven by the air cylinders to shoot the cores at the core-shooting stations, and heat and solidify at the core-lifting stations and core-lifting. The guide rails of the mobile worktable mounted on the base are extended on both sides of the core lifter. When the core box or shooting plate needs to be replaced, the mobile worktable can be pulled to this position to shoot the core.
Quality Control System In Hezhi Machinery Group:
1. The equipment raw materials (steel) and all accessories are strictly selected. Our suppliers are long-term cooperative and
reputable companies to ensure that the materials meet domestic and international standards.
2.Professional engineers with15 years rich experience provide professional & accurate detailed drawings and recommendations that meet customer all requirements, proficient in various technical parameters of the equipment,also will provide professional help
&solution for customers use and maintenance.
3. The workshop employees have many years of work experience in production and manufacturing, and the company also will regularly
train to ensure that production strictly follows all requirements of the process, drawings and contracts.
4. Workshop equipment is regularly maintained and optimized, and the company is still planning new workshops and introducing
moreadvanced new production equipment
5. The quality inspection department will conduct strict quality inspection on all raw materials, accessories and all products
produced to ensure the good quality of each equipment. Eliminate worries for customers
6. The client manager have many years of export experience, can better serve customers from various countries, and will also
participate in the inspection of equipment and work with the quality inspection department to ensure product quality.manager will
updating the production process to clients by sending pictures and videos every week.
7. Perfect after-sales service to solve customers' worries.
1. The equipment raw materials (steel) and all accessories are strictly selected. Our suppliers are long-term cooperative and
reputable companies to ensure that the materials meet domestic and international standards.
2.Professional engineers with15 years rich experience provide professional & accurate detailed drawings and recommendations that meet customer all requirements, proficient in various technical parameters of the equipment,also will provide professional help
&solution for customers use and maintenance.
3. The workshop employees have many years of work experience in production and manufacturing, and the company also will regularly
train to ensure that production strictly follows all requirements of the process, drawings and contracts.
4. Workshop equipment is regularly maintained and optimized, and the company is still planning new workshops and introducing
moreadvanced new production equipment
5. The quality inspection department will conduct strict quality inspection on all raw materials, accessories and all products
produced to ensure the good quality of each equipment. Eliminate worries for customers
6. The client manager have many years of export experience, can better serve customers from various countries, and will also
participate in the inspection of equipment and work with the quality inspection department to ensure product quality.manager will
updating the production process to clients by sending pictures and videos every week.
7. Perfect after-sales service to solve customers' worries.
Qingdao Hezhi is a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
We owned 3600m2 work shop area for production with 2x10 cranes.
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
Q: How many days do you need to produce this machine?
A: It depends on the size of the machine. Usually 20-30days for shot blasting machine and green sand machine.45days for production line equipments.
Q: How to control your quality ?
A: First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.
For the smaller machine we will install the machine at our workshop to make sure it can work well.
For the bigger machine, we will install the machine for our customers until it can work well
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
More questions please contact with Anna, my phone No. is 0086 1995325 9235
