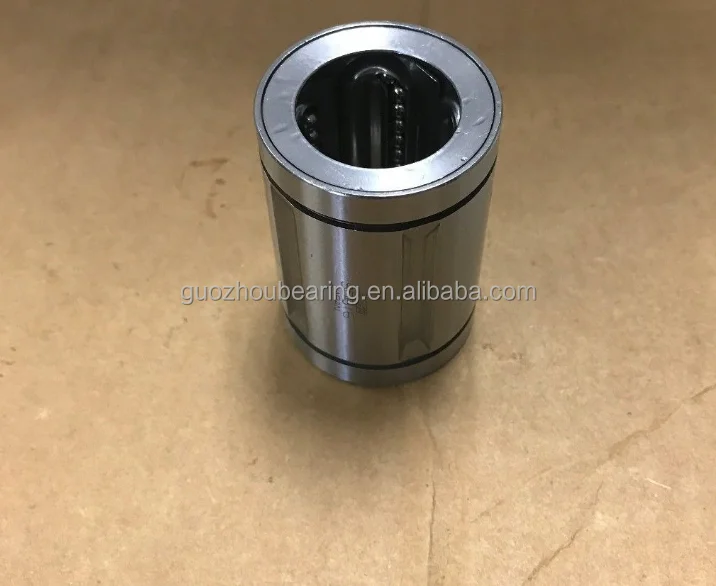

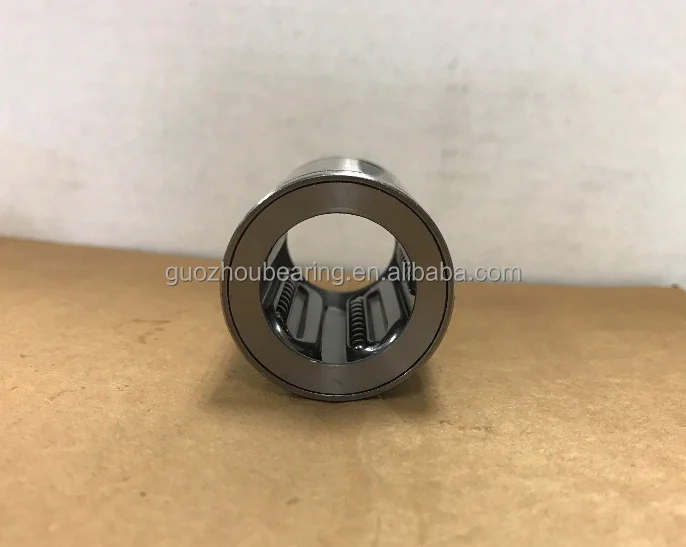

Японская легкая линейная скользящая втулка подшипника SDB16 SDB16AJ

1

The EASE linear ball bearing has outer race that is processed by
cold press forming to shape the ball tracks. This gives features to its appearance,too.

2

The cold press forming has enabled lightweight structure of
the bearing.This eventually provides compact and lightweight machine design.

3

The balls circulate endlessly.This structure provides unlimited
stroke with minimal frictional resistance that ensures long service life and energy saving.

4

The frictional resistance remains almost unchanged,even when
the load increases.Therefore,heavy load is acceptable depending on application conditions.

5

Because of the cold press forming for the outer race,an early failure caused by moment load and excessive pre-load can be prevented.

6

The EASE linear ball bealing is heat treated in such a method as to suit to the outer race that is cold press formed.

7

The EASE linear ball bearing with steel retainer is resistant against high temperature and applicable upto 150°C when it is without seals.Please consuite EASE on use outside the recomended temperature range.

8

The EASE linear ball bearing is interchangeable.The eccentricity is small and centering is easy.It can operate with simple lubrication or without any lubrication.depending on applications.
Thus maintenance is almost free.
