Профессиональный лазерный уровень S04CG 4D 16 линий зеленый луч нивелир с жестким чехлом
- Категории: Лазерные уровни >>>
- Поставщик: Zhuhai,Wukon,Optoelectronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

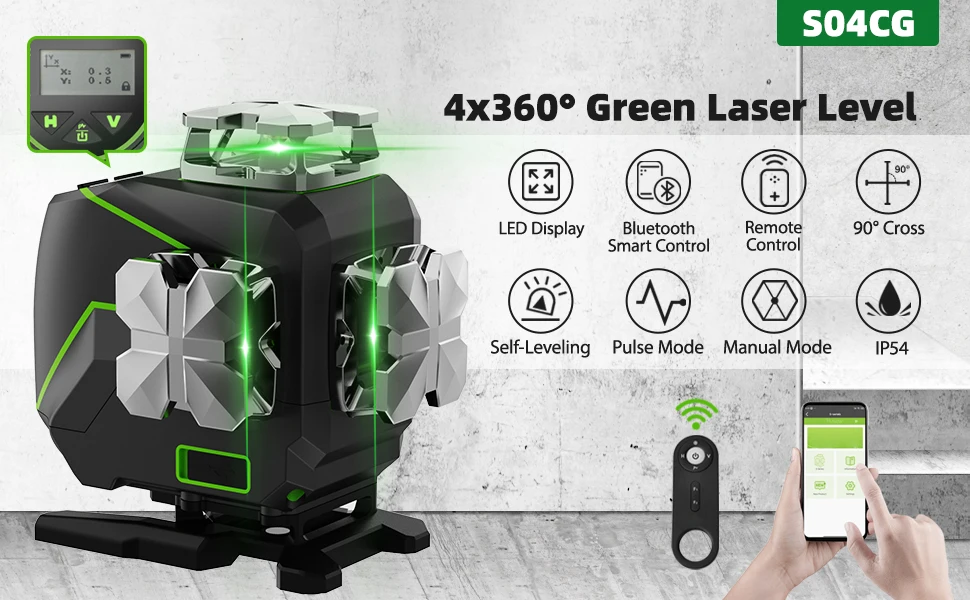

S04CG 16 Lines 4D Green Laser Level Specifications:
● Laser Beam: Green Beam Electronic Level
● Screen type: LCD screen with backlight
● Projection: 16 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Germany Osram 505nm-520nm
● Horizontal / Vertical Accuracy: ±2mm/10m, ±1/13 in. at 33 ft
● Leveling / Compensation Range: 3.5°±1°
● Leveling Time: ≤3s
● Working Distance: ≥20m, ≥40m with detector
● Working Time: About 5 hours with li-ion battery, About 0.5 hours with AA battery
● Power Source: 7.4V / 2600mAh Li-ion battery & 4 x AA battery
● Mount Size: 1/4"-20
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃
● Screen type: LCD screen with backlight
● Projection: 16 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Germany Osram 505nm-520nm
● Horizontal / Vertical Accuracy: ±2mm/10m, ±1/13 in. at 33 ft
● Leveling / Compensation Range: 3.5°±1°
● Leveling Time: ≤3s
● Working Distance: ≥20m, ≥40m with detector
● Working Time: About 5 hours with li-ion battery, About 0.5 hours with AA battery
● Power Source: 7.4V / 2600mAh Li-ion battery & 4 x AA battery
● Mount Size: 1/4"-20
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃
WARNING:
● Do not point the laser beam directly into the eyes.

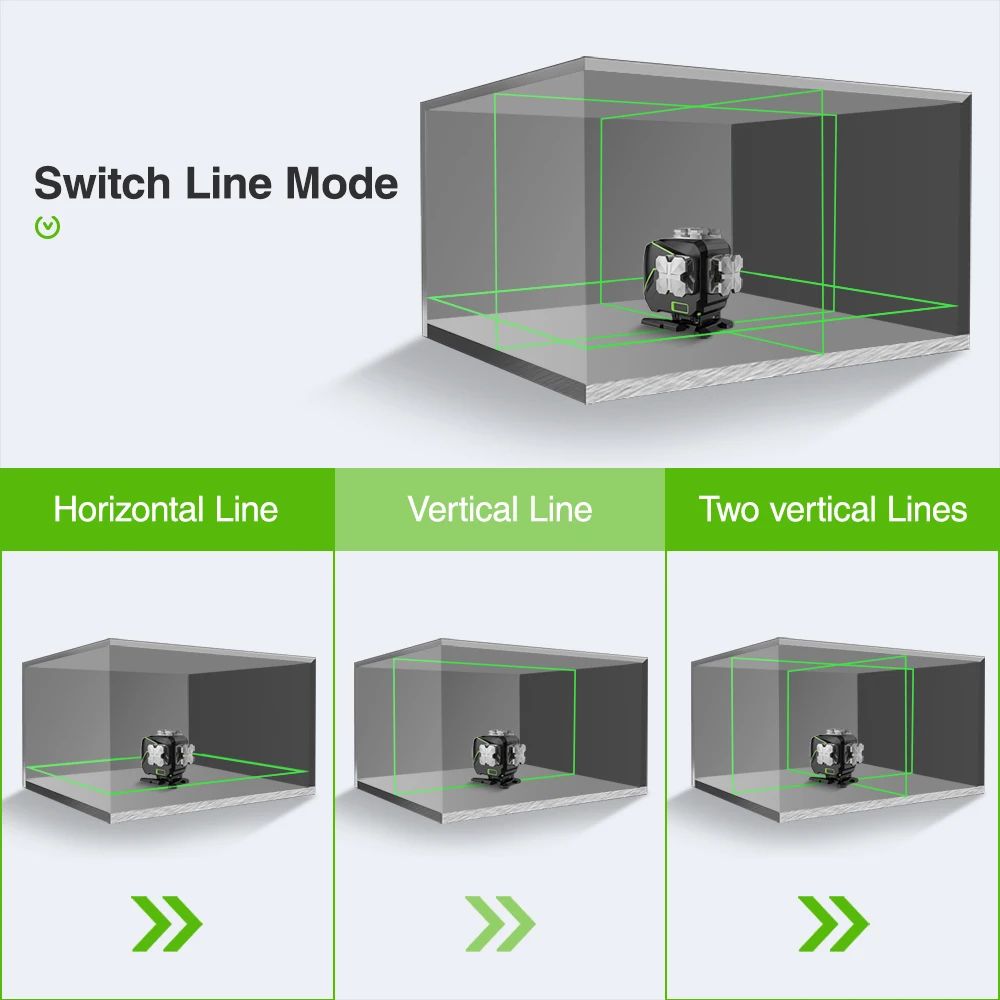

Line Switching:
Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
The laser lines can be selected separately according to job requirements.
The laser lines can be selected separately according to job requirements.
Product item | Huepar S04CG |
Warranty | 2 years |
Certification | CE, FCC, ROHS |
Dot Numbers | 0 |
Customized support | OEM, ODM |
Place of Origin | China |
Brand Name | Huepar |
Size | 36.5*14*29.3cm |
Precision | ±2mm/10m, ±1/13 in. at 33 ft |
Wavelength | Germany Osram 505nm-520nm |
Laser Class | Class 2 (IEC/EN60825-1/2014), <1mW power output |
Screen type | LCD screen with backlight |
Laser Wavelength | Germany Osram 505nm-520nm |
Horizontal / Vertical Accuracy | ±2mm/10m, ±1/13 in. at 33 ft |
Leveling / Compensation Range | 3.5°±1° |
Leveling Time | ≤3s |
Working Distance | ≥20m, ≥40m with detector |
Working Time | About 5 hours with li-ion battery, About 0.5 hours with |
Power Source | 7.4V / 2600mAh Li-ion battery & 4 x AA battery |
Mount Size | 1/4"-20 |

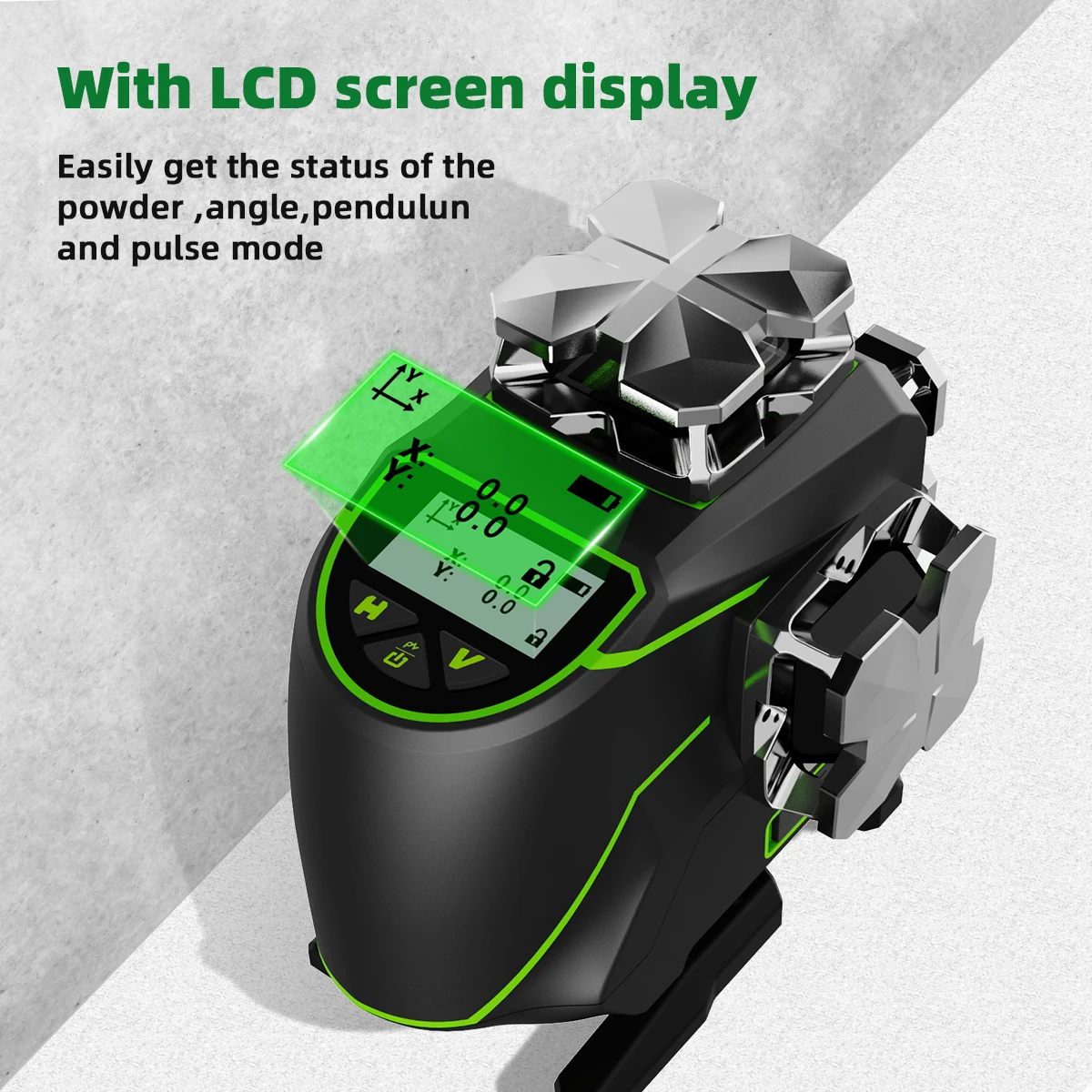

With LCD Display Screen:
The laser level kit features LCD screen display.
Users can easily get the status of the power, angle, pendulum and pulse mode on the display.
Users can easily get the status of the power, angle, pendulum and pulse mode on the display.

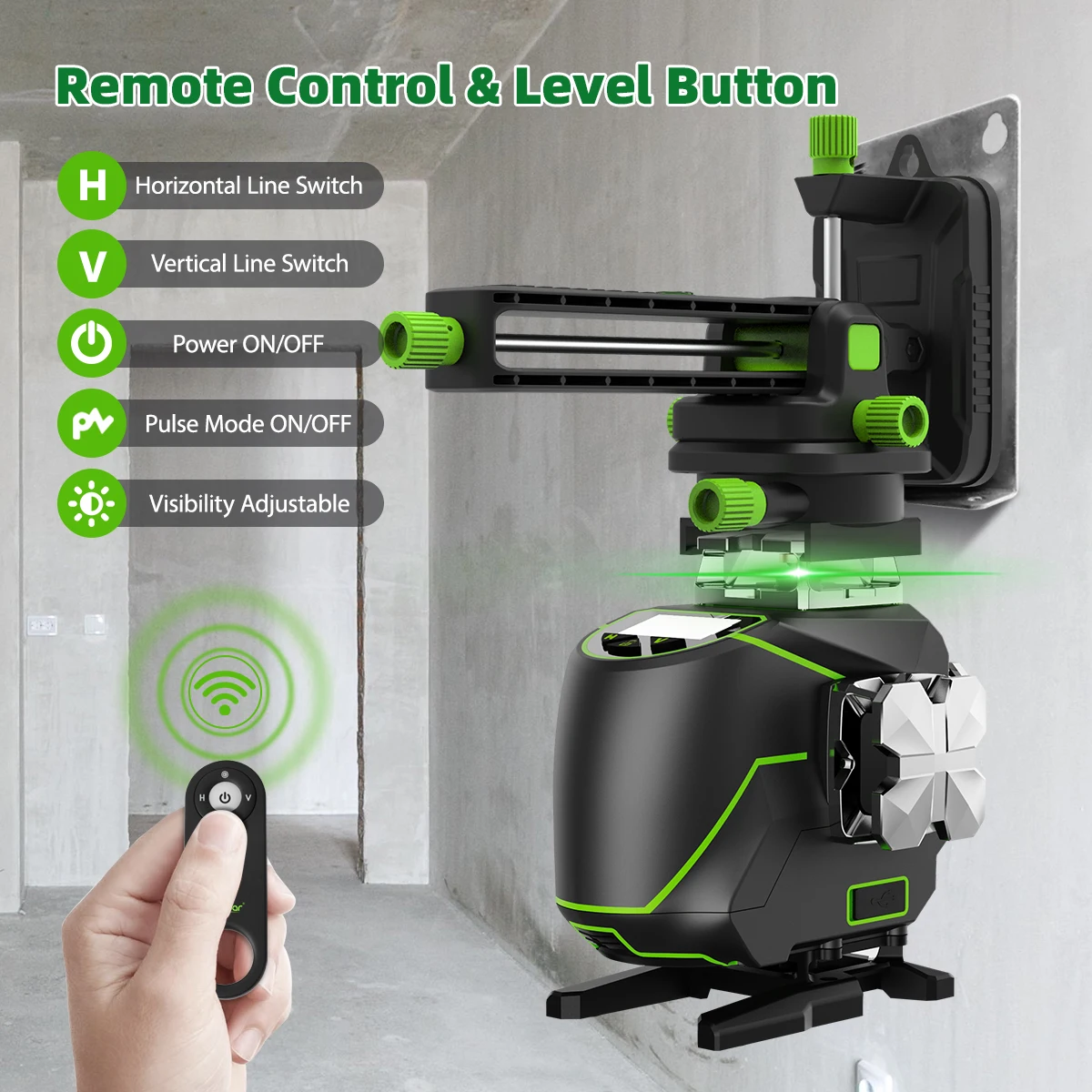

With Remote control:
The remote control enables to Turn ON /OFF the laser lines and switch four 360° laser lines individually at a distance up to 33Ft.With the remote control, users can also turn on/off the pulse mode and adjust the line visibility.

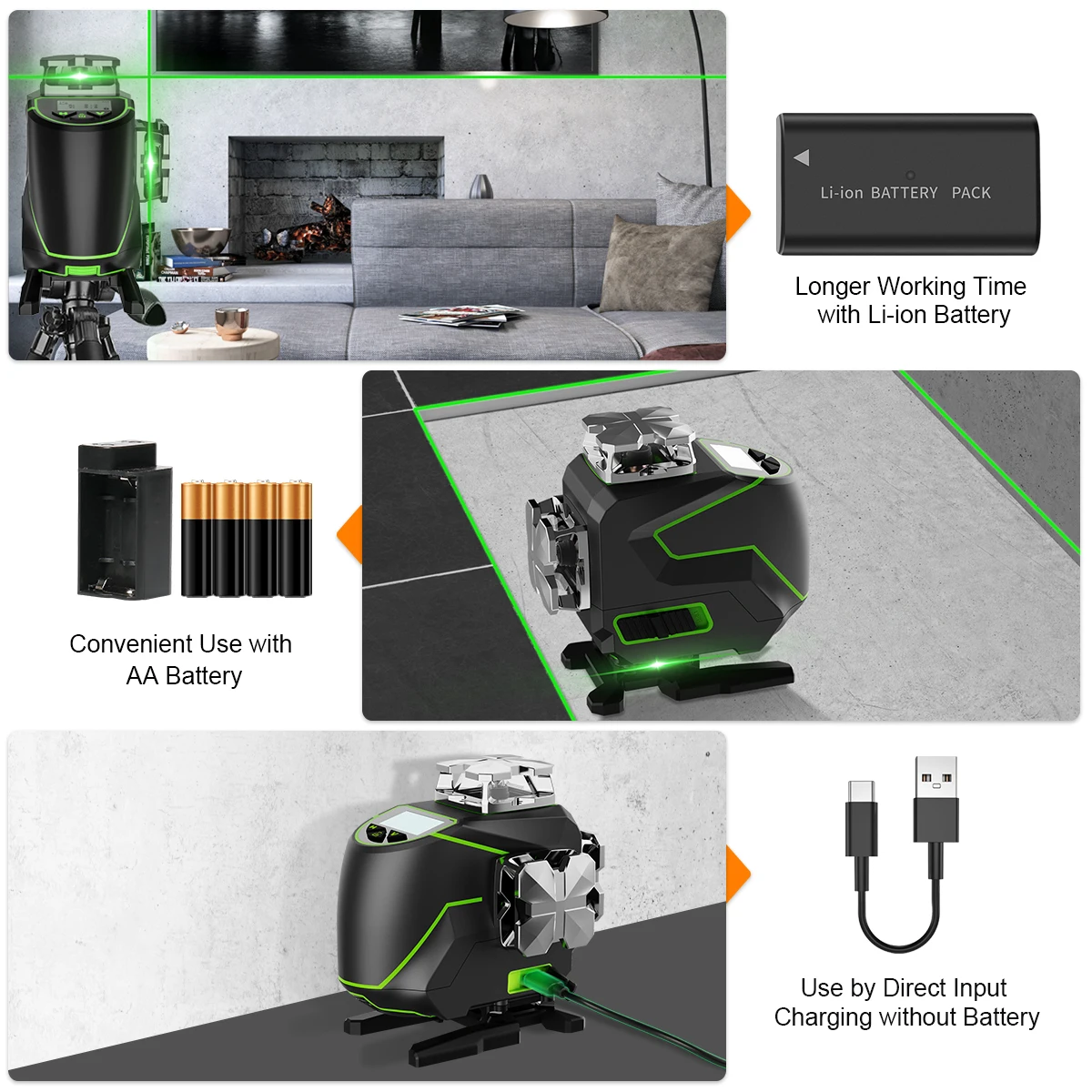

Diverse Power Supply:
Large-capacity li-ion battery: 5 hours of extra-long working
AA battery: 4x AA battery for 0.5h usage
Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
Charging protection help prevent the tool from overcharge.
AA battery: 4x AA battery for 0.5h usage
Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
Charging protection help prevent the tool from overcharge.

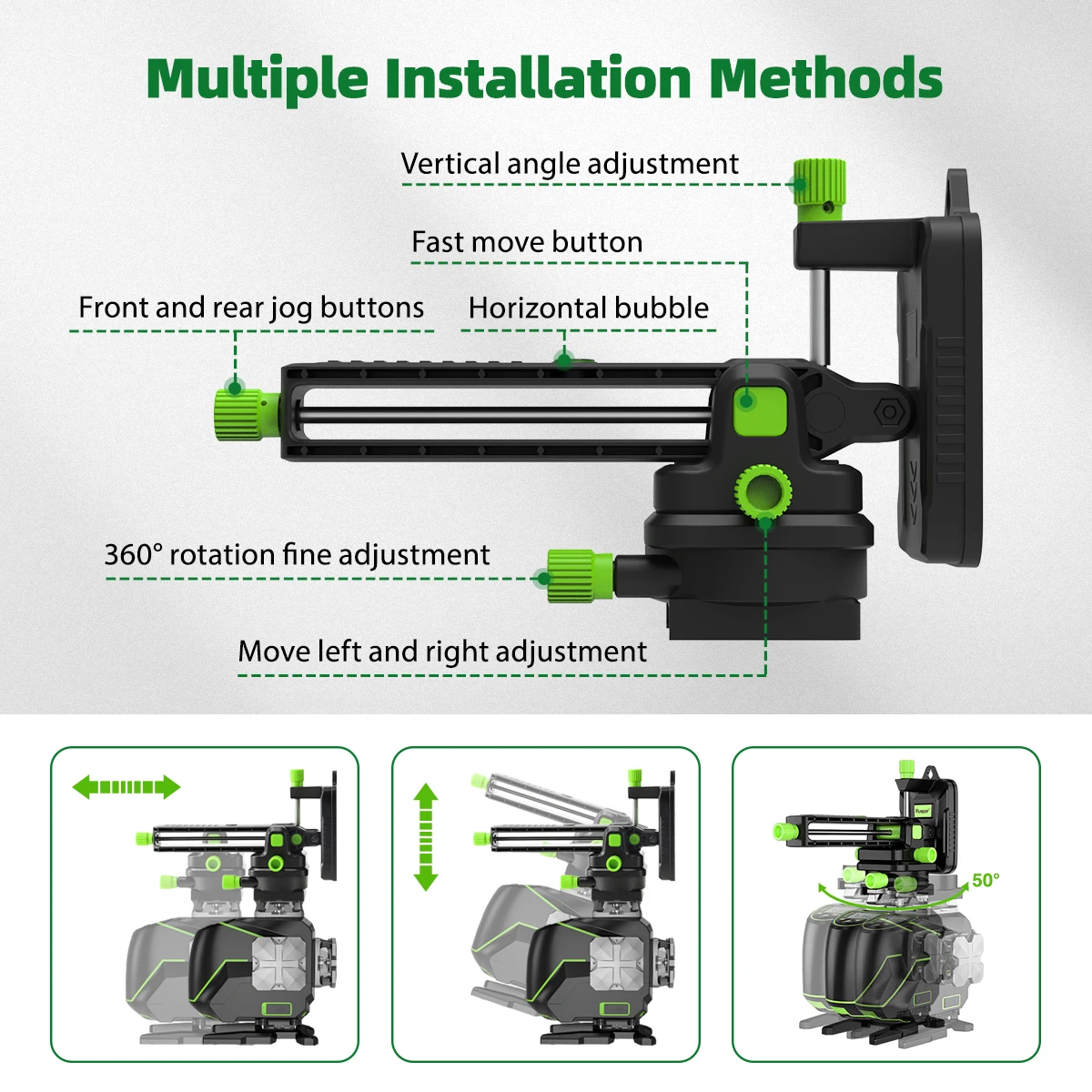

Multiple Installation Method:
360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around
at 360 degree , projecting lines at any angle.
With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions
between 1 inch and 3.15 inch height.
Mount Size: 1/4"-20 mounting thread for temporarily fastening in place or being fixed on tripod.
at 360 degree , projecting lines at any angle.
With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions
between 1 inch and 3.15 inch height.
Mount Size: 1/4"-20 mounting thread for temporarily fastening in place or being fixed on tripod.

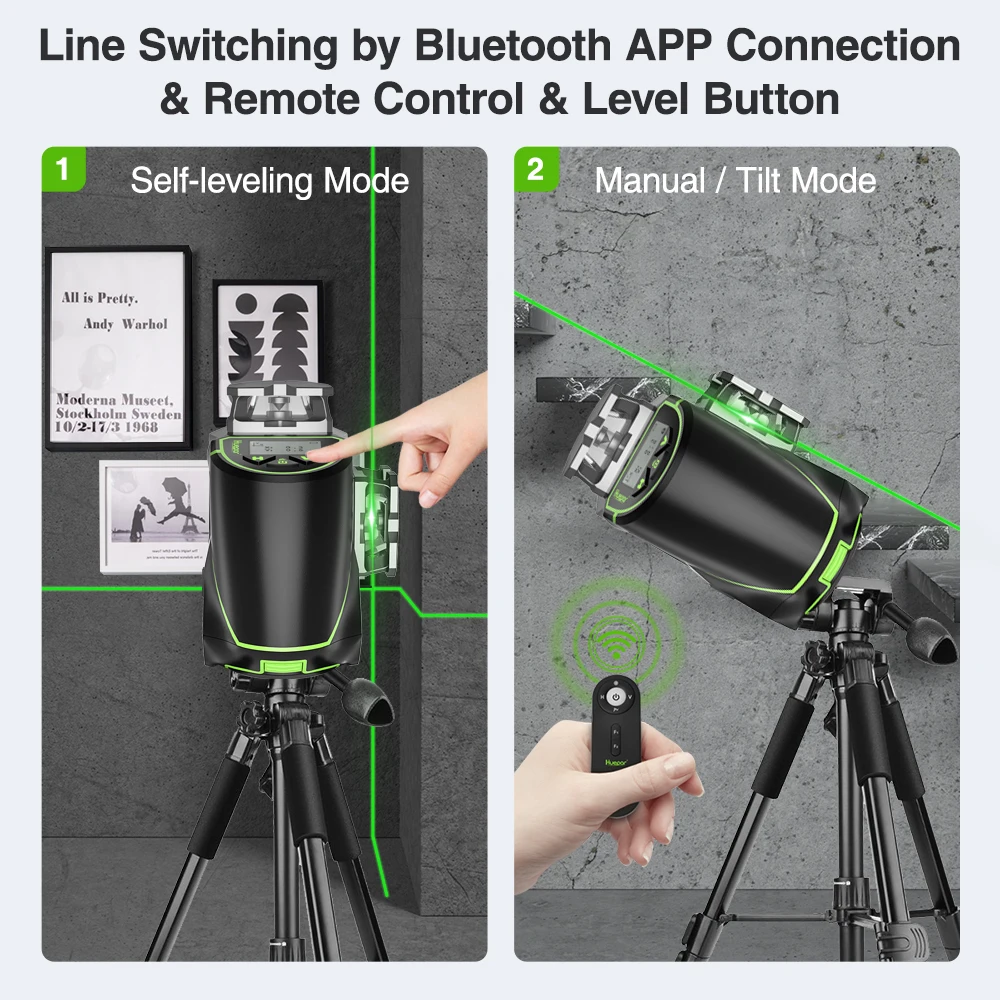

Self-leveling mode:
Once the pendulum unlocked, self-leveling mode is enabled.

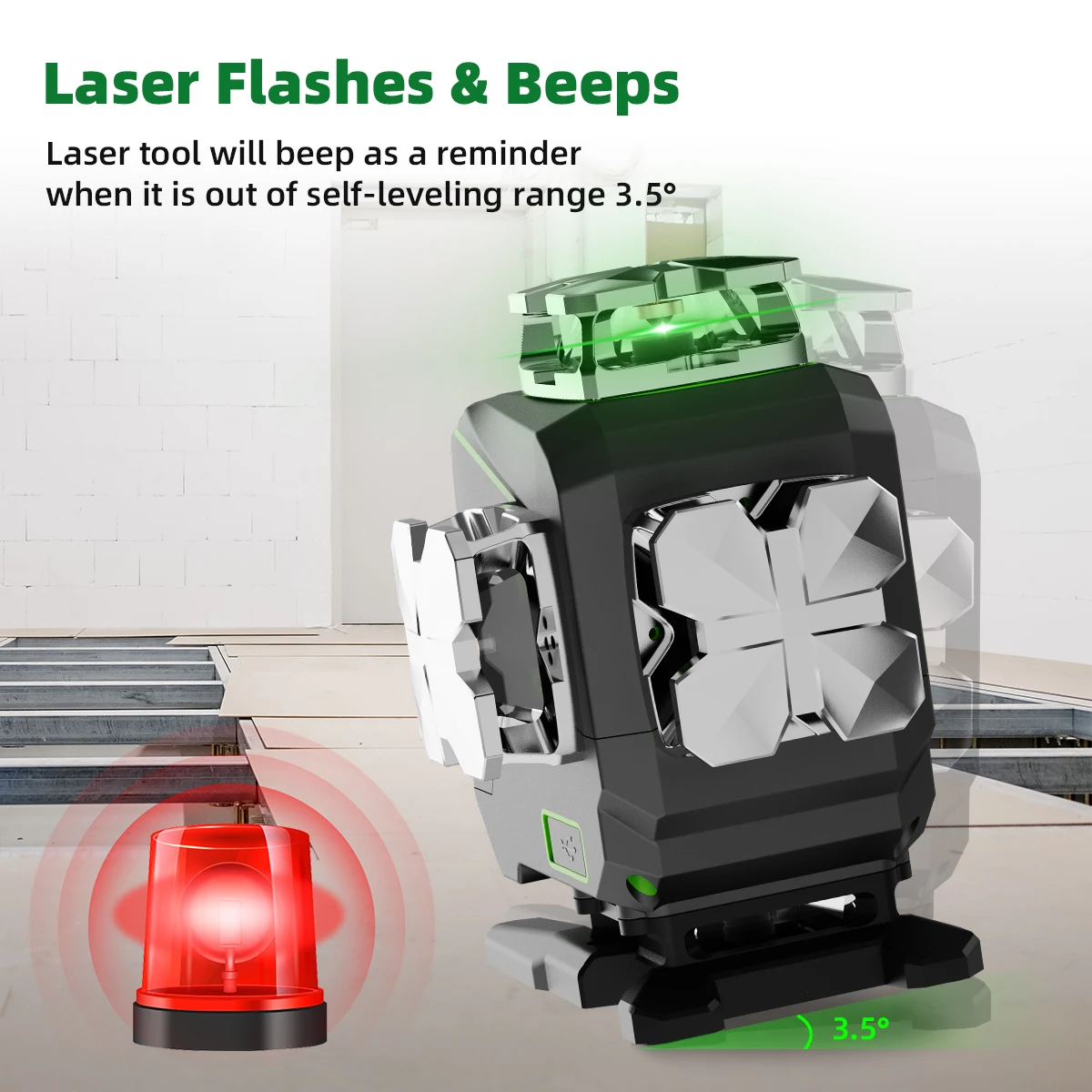

The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
Pulse Mode:
Turn ON pulse mode: Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse
mode.

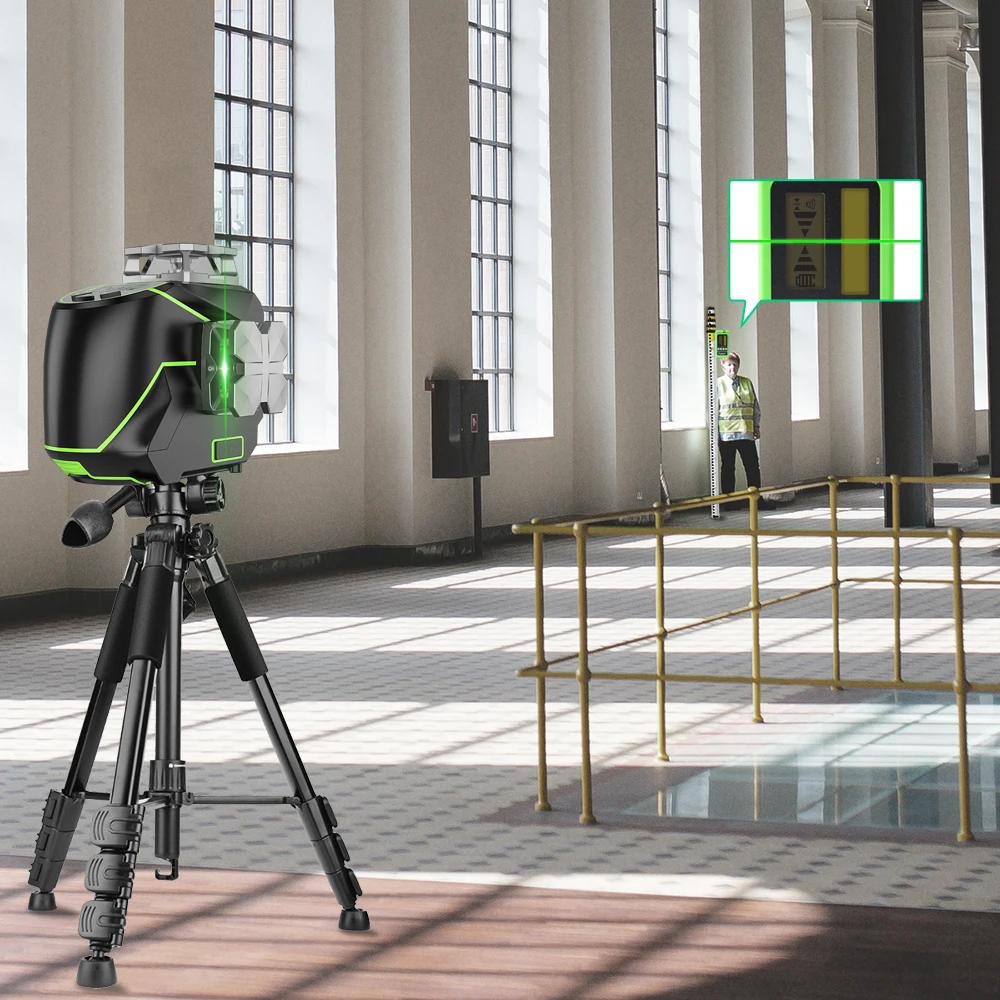

Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.
mode.
Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.

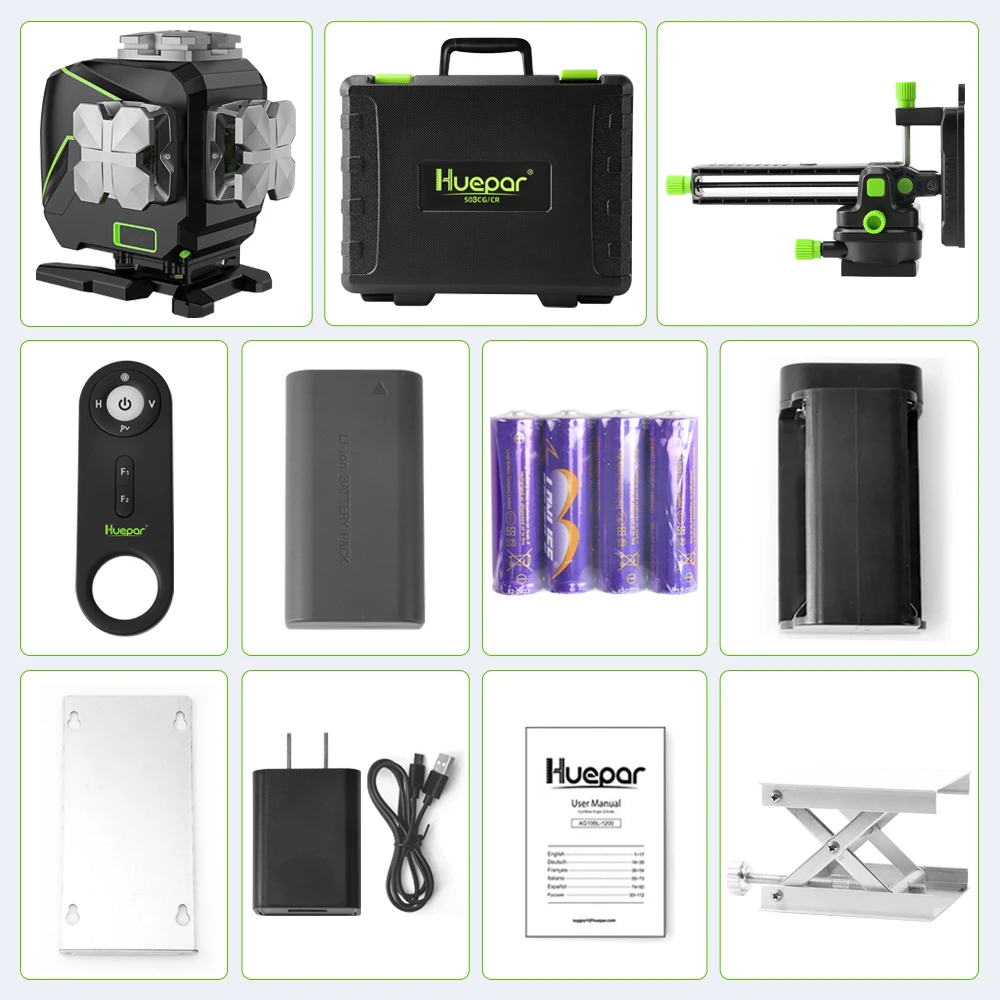

Package include:
1 x Green Laser Level S04CG 1 x Wall Hanging Plate
1 x Multi-functional Pivoting Base
1 x 2600mAh Li-ion Battery 1 x Remote Control
1 x Power Adapter
1 x Lifting Base
1 x AA Battery Compartment
4 x AA battery 1 x User Manual
1 x Hard Carry Case
