Product Overview
USES

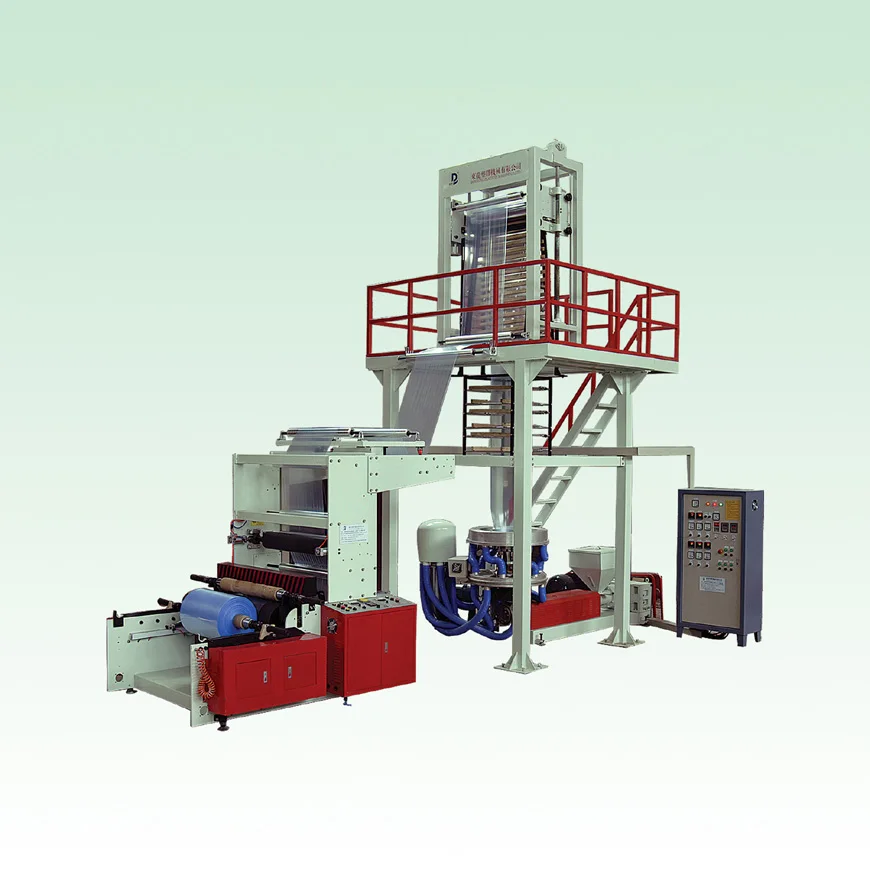

The film blowing machine/film blowing machines/film blowing machinery/plastic film blowing machinery is used to produce the mulch
plastic film, agricultural film and outer
package film made of low density polyethylene (LDPE), high density polyethylene
(HDPE), linear low density polyethylene (LLDPE) and metallocene linear low density
polyethylene (LLDPE). This kind of film blowing machines employs some new technologies like the most advanced heat running technology and special wind ring that is used to extrude the shaped
mulch plastic film. The film blowing machines is designed reasonably and elegantly. It is
small and is easy to operate and maintain. The product features with good
plasticization, high physical and mechanical performance and strong tear resistance.
plastic film, agricultural film and outer
package film made of low density polyethylene (LDPE), high density polyethylene
(HDPE), linear low density polyethylene (LLDPE) and metallocene linear low density
polyethylene (LLDPE). This kind of film blowing machines employs some new technologies like the most advanced heat running technology and special wind ring that is used to extrude the shaped
mulch plastic film. The film blowing machines is designed reasonably and elegantly. It is
small and is easy to operate and maintain. The product features with good
plasticization, high physical and mechanical performance and strong tear resistance.
FEATURES AT A GLANCE
1) This film blowing machines is designed to produce plastic film made of low density
polyethylene (LDPE), high density polyethylene (HDPE), linear low density polyethylene (LLDPE).
2) The pe film blowing machine is designed reasonably and elegantly. It is small and is easy to operate and maintain.
3) With high output, low energy consumption, good stability and reliability.
4) The film are widely used in application of package of civil and industrial products such as food, garment, textile and daily
necessities etc. It includes vest bag, shopping bag, garment bag and food bag.
polyethylene (LDPE), high density polyethylene (HDPE), linear low density polyethylene (LLDPE).
2) The pe film blowing machine is designed reasonably and elegantly. It is small and is easy to operate and maintain.
3) With high output, low energy consumption, good stability and reliability.
4) The film are widely used in application of package of civil and industrial products such as food, garment, textile and daily
necessities etc. It includes vest bag, shopping bag, garment bag and food bag.
Right elevation
Left elevation
Front elevation
PRODUCT CONFIGURATION
Main technology parameters:
Model No.:SJ35-FMS500P
1)Layer number:one layer
Max.Flim Width:400mm
Film Thickness:0.008-0.10mm
Raw Material:HDPE
Output:20kg/h
2)EXTRUDER
Screw Diamter:Φ35mm
Screw L/D:28:1
Heater Capacity:8.9kw
Driving Motor:5.5kw
3)DIE:
Die Diameter:Φ30mm,Φ
Heater Capacity:3.45kw
Cooling Blower:075kw
4)Haul-off:
With embossing roller(HDPE)
Driving Motor:0.75kw
Take-up Speed:10-70m/min
Winder Drive Motor:1.5kw
Temperature Control:5 units
Whole Power With Total Machine:About 21kw
Shape size:(L x W x H)3.5X2.5X3.0M
Weight:about 1.5t
Model No.:SJ35-FMS500P
1)Layer number:one layer
Max.Flim Width:400mm
Film Thickness:0.008-0.10mm
Raw Material:HDPE
Output:20kg/h
2)EXTRUDER
Screw Diamter:Φ35mm
Screw L/D:28:1
Heater Capacity:8.9kw
Driving Motor:5.5kw
3)DIE:
Die Diameter:Φ30mm,Φ
Heater Capacity:3.45kw
Cooling Blower:075kw
4)Haul-off:
With embossing roller(HDPE)
Driving Motor:0.75kw
Take-up Speed:10-70m/min
Winder Drive Motor:1.5kw
Temperature Control:5 units
Whole Power With Total Machine:About 21kw
Shape size:(L x W x H)3.5X2.5X3.0M
Weight:about 1.5t
