Китайско STAHL китайско H9850 тяжелый ласточкин хвост 10 дюймов высокая точность резки Деревообработка с высоким качеством по доступной цене форматно-раскроечный станок ЧПУ
- Категории: >>>
- Поставщик: Sichuan,VANWOOD,Technology,Co.Ltd
Поделиться:
Описание и отзывы
Характеристики
▶The sliding table saw is easy to install, the material is wear-resistant, and the service life is long
▶There are two models
▶There are two color options, green, black, dirt-resistant, stylish and unique
▶Inclination direction of saw blade：45°-90°

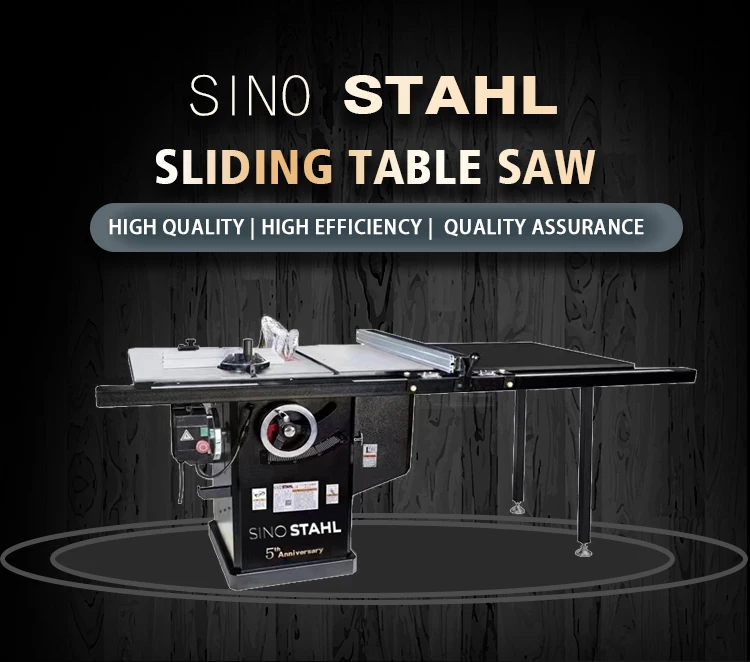

10 inch heavy dovetail precision table saw
H9830 | H9850 | |
Motor type | Induction motor 220V/50HZ | Induction motor 220V/50HZ |
Motor Power | 2500W | 2500W |
Table size | 1120*686mm (Wooden extension wing not included） | 1120*686mm (Wooden extension wing not included） |
Right wooden extension | 305x686mm | 813x686mm |
Standard saw blade | 254mm/15.875mm/2.8mm/ 40 teeth | 254mm/15.875mm/2.8mm/ 40 teeth |
Dado slotting saw blade(option） | ||
Maximum Dado slotting size | 20.6mm | 20.6mm |
Cutting speed of saw blade | 3550RPM | 3550RPM |
Inclination direction of saw blade | 45°to the left | 45°to the left |
Maximum cutting thicknesss 90 degrees/45degrees | 80/55mm | 80/55mm |
Right longitudinal cutting width of saw blade | ||
Left longitudinal cutting width of saw blade | 305mm | |
Suspended lifting structure | Swallow tail | Swallow tail |
Table height | 870mm | 870mm |
Dust collector | 100mm | 100mm |
Machine dimensions | 1630*1060*1040mm | 1630*1060*1040mm |
Package size | Main body :930*855*1100mm Rail:1680×140×150mm | Main body: 930*855*1100mm Rail: 2260*140*150mm |
Net / gross weight | Main body :183/255Kg Rail:16/22Kg | Main body:188/230Kg Rail:25/33Kg |
Dividing knife：
The dividing knife has the function of quick removal, which can lift and tilt withthe saw blade to prevent the saw
from clamping and rebound during cutting.
from clamping and rebound during cutting.
Backer movement scale：
Accurate backer scale ensures the accuracy of sawing.
Angle push ruler 0-60° adjustment：
The angle is adjusted by 60 degrees on both sides of the ruler, which is suitablefor a variety
of operations.
of operations.
Luxury chrome plated handwheel：
The multi width luxury chrome plated handwheel is beautiful and easy to lift.
Saw blade transparent shield：
Use saw blade safety shield to avoid direct contact between hands and saw bladeand ensure the safety
of work.
of work.
Suspension system：
The suspension system is suspended on the box, which is easy to maintain andthe worktable will not deform after
long-term use.
long-term use.
About SINO STAHL who are SINO STAHL?
we are focus on woodworking machinerybusiness in china more than 30 years. Whats our advantage? We are always knowcustomers needs ,and continuous to service more than 10.000 customers in and outof china.We build a one stop service for customers. We have germany technical andcustomers ,from their experience and technical skills,we manufacuter good qualitymachinery compare to others. we have experience from all the ranges of furnitureprocess from panel furniture,solid wood furniture,paiting process,package process.
QA
1. who are we?
We are based in Sichuan, China, start from 2017,sell to Domestic Market(25.00%),Southeast Asia(20.00%),North
America(15.00%),Eastern Europe(15.00%),South America(8.00%),Mid East(8.00%),Oceania(6.00%),Western Europe(3.00%). There are total
about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cutting Machine,Edge Bander,CNC Drilling,Solid Wood Machine,Tools And Parts
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Sichuan, China, start from 2017,sell to Domestic Market(25.00%),Southeast Asia(20.00%),North
America(15.00%),Eastern Europe(15.00%),South America(8.00%),Mid East(8.00%),Oceania(6.00%),Western Europe(3.00%). There are total
about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cutting Machine,Edge Bander,CNC Drilling,Solid Wood Machine,Tools And Parts
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
