Bandsaw sawmill blades wood ribbon band saw blade for wood

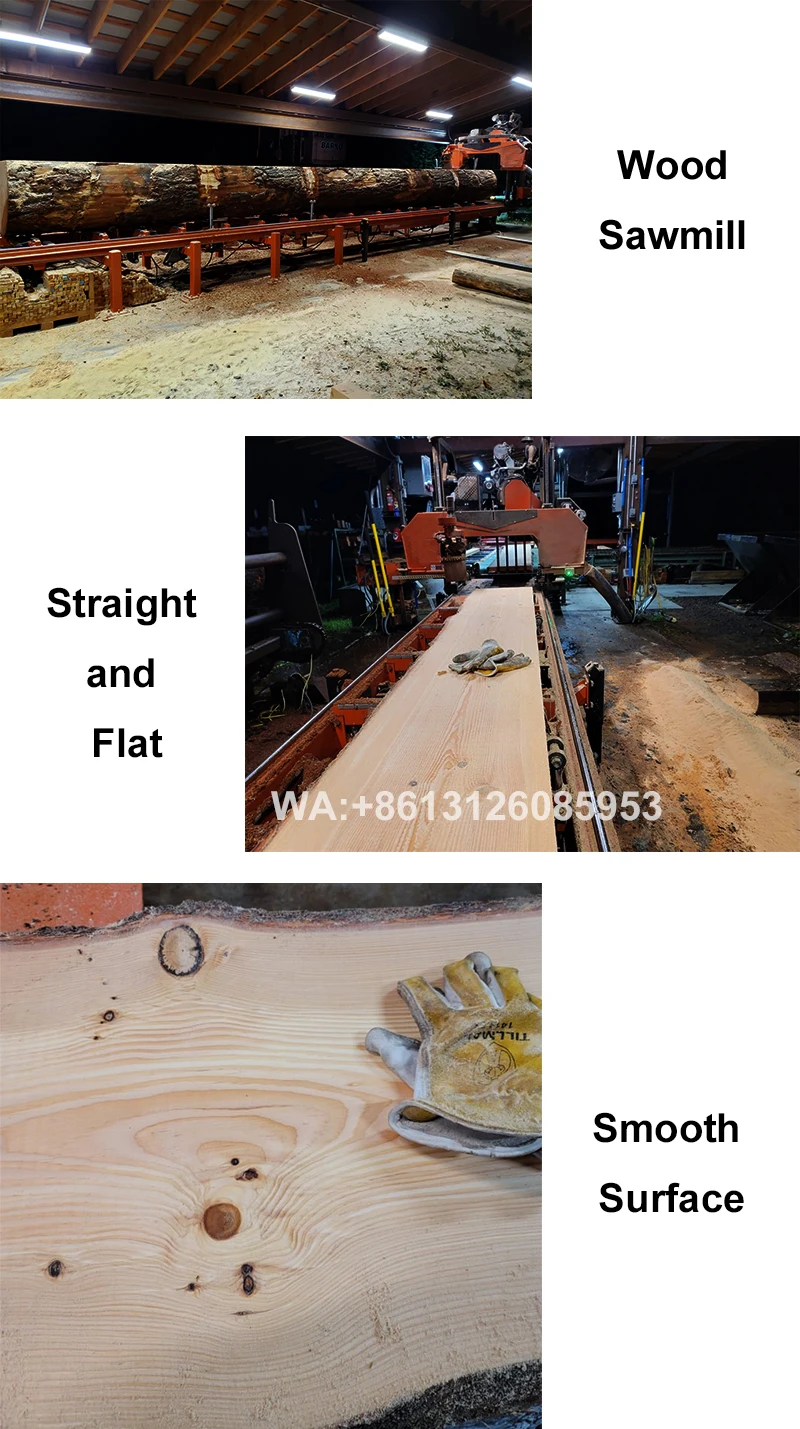

Cutting some logs with large cross-sections, different materials of band saw apply to different customer groups, and we can adjust the hardness of band saw applying to the different user requirements for better tenacity and strong wear resistance. Performance with the best flatness. perfect straightness, good stability, easy cutting, and better trimming, are the most effective and economical cutting tools for logs. Best cutting saw blade for manufacturing with the high fatigue resistance at a high speed, low-cost loss, and good efficiency.

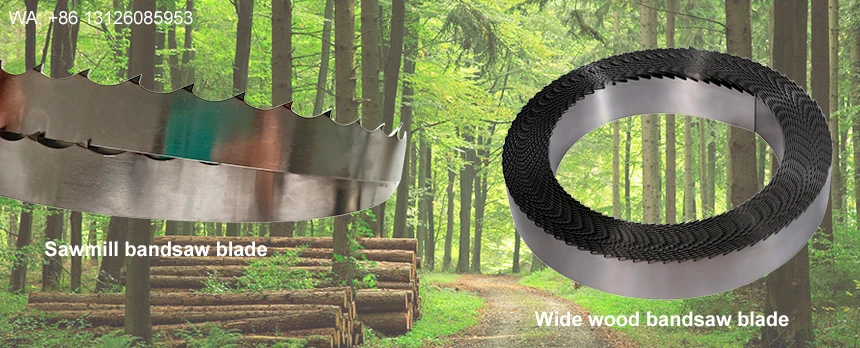

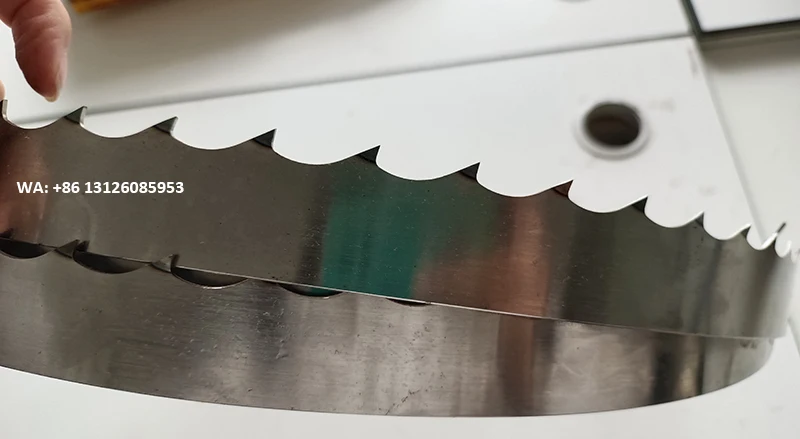

Sawmill Bandsaw Blade
The sawmill blade is manufactured from carbon steel, wood blade can be used on both portable and industrial sawmills and is also suitable for horizontal resaws. Carbon is the most common steel used in narrow-band sawing and can be resharpened.
Wood Band Saw Blade
Thickness:1.0mm, 1.1mm, 1.07mm, 1.14mm
Width: 30mm, 32mm, 35mm, 40mm, 50mm
Material: high carbon steel C75, 51CrV4, 75Cr1, SK5, etc
Material: high carbon steel C75, 51CrV4, 75Cr1, SK5, etc
Tooth Pitch: 12.7mm(Width: 25mm-27mm), 19mm(Width: 27mm-30mm）
SAWMILL BANDSAW BLADE | ||
Blade length | 158in, 176in, 184in, custom length or band saw blade roll(50 meters, 100 meters) | |
Thickness x Width | .035X 1 1/4in, .042x1 1/4in, .045x1 1/4in, .045x1 1/2in, .055x1 1/4in, .055x1 1/2in | |
Tooth Pitch (Tooth Spacing) | 7/8in=22.22mm(T22) | |
Body material | High carbon steel, CK75, SAE1074, C75Cr1, 51CrV4, etc | |
Brand name | Custom brand name is available | |
Hook Angle | * 7 degree: frozen, tropical, And extreme hardwoods on higher horsepower (25+HP), wide cut sawmills * 9 degree: seasoned, hardwoods for lower horsepower sawmills making narrow cuts on smaller logs * 10 degree: all purpose For a mix Of hard And softwoods On all sawmills | |
Width 1", 1.125", 1.25", 1.5", 1.75", 2", 3"
Thickness .035, .038, .042, .045, .050, .055
Typically not resharpened on horizontal resaws using narrow widths (1", 1.125")
Thickness .035, .038, .042, .045, .050, .055
Typically not resharpened on horizontal resaws using narrow widths (1", 1.125")
Blade Thickness
Thicker blades (.045", .050", .055") provide faster feed rates and better cutting performance in difficult sawing conditions such as knotty, frozen, dry or extremely hard material, but requires higher horsepower (25+HP)
Thinner blades (.035", .038", .042") provide longer flex life with lower horsepower sawmills where production or speed is not a primary factor
Blade Width
Wider blades for higher horsepower (25+HP) sawmills and a faster feed rate
Narrow blades for lower horsepower sawmills and more difficult sawing
Hook Angle
7 degree: frozen, tropical, and extreme hardwoods on higher horsepower (25+HP), wide cut sawmills
9 degree: seasoned, hardwoods for lower horsepower sawmills making narrow cuts on smaller logs
10 degree: all purpose for a mix of hard and softwoods on all sawmills
Thicker blades (.045", .050", .055") provide faster feed rates and better cutting performance in difficult sawing conditions such as knotty, frozen, dry or extremely hard material, but requires higher horsepower (25+HP)
Thinner blades (.035", .038", .042") provide longer flex life with lower horsepower sawmills where production or speed is not a primary factor
Blade Width
Wider blades for higher horsepower (25+HP) sawmills and a faster feed rate
Narrow blades for lower horsepower sawmills and more difficult sawing
Hook Angle
7 degree: frozen, tropical, and extreme hardwoods on higher horsepower (25+HP), wide cut sawmills
9 degree: seasoned, hardwoods for lower horsepower sawmills making narrow cuts on smaller logs
10 degree: all purpose for a mix of hard and softwoods on all sawmills

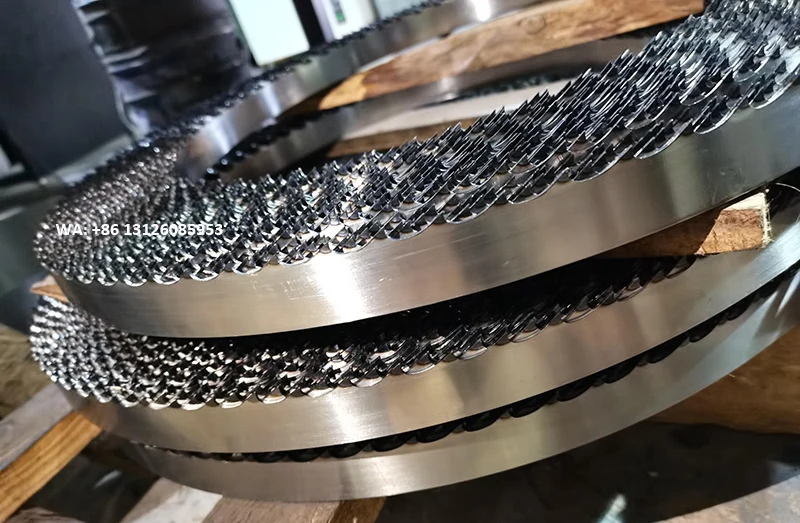

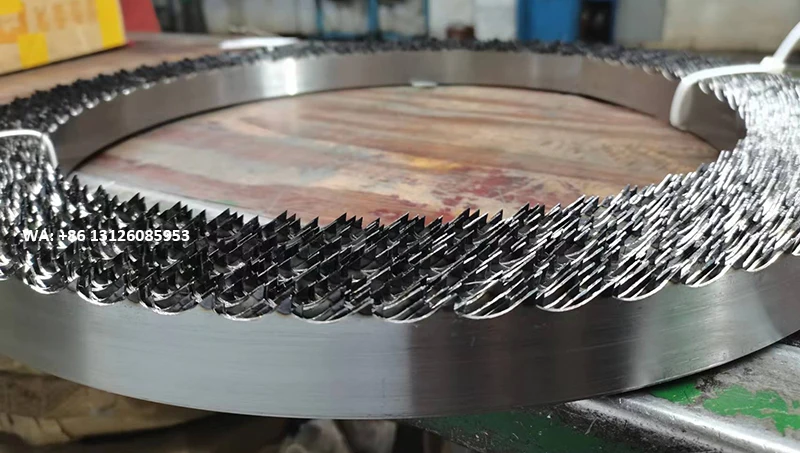

Wide Bandsaw Blade
Made of high carbon steel
Sawmill blade material is manufactured from high-quality carbon steel and is designed for portable and industrial sawmills. With induction hardened teeth, sawmill blades deliver high toughness and long sharp life.
Wide Wood BandSaw Blade Band Sawmill Blades | ||
Body material | High carbon steel(CK75,C75,SK5,51CrV4,C75Cr1,etc) | |
Blade thickness | 1.0mm - 1.65mm | |
Blade width | 100mm - 300mm | |
1.Band saw blades are welded in loop to customized length 2.Make in coil(Usually 100meters one coil) | ||
Tooth spacing | As your required; Typical:40mm, 45mm,50mm,60mm,etc) | |
Brand name | Custom brand name is available | |
Tooth shape | "HS" Teeth Form--For cutting logs and frozen timber "WS" Teeth Form--For cutting timber "U" Teeth Form--Wide band saw tooth shape for heavy-duty band saw machine "V" Teeth Form--Narrow band saw tooth shape for cutting timber | |
Wide Bandsaw Blade for Wood Sawmill
Length | Size(mm) | Teeth Space | |
Customized welded length or 50/100 meters per roll. | 1.1*100.0 | Customized | |
1.2*115.0 | |||
1.25*125.0 | |||
1.28*150.0 | |||
1.45*175.0 | |||
1.45*200.0 | |||
1.65*220.0 | |||
1.65*260.0 |

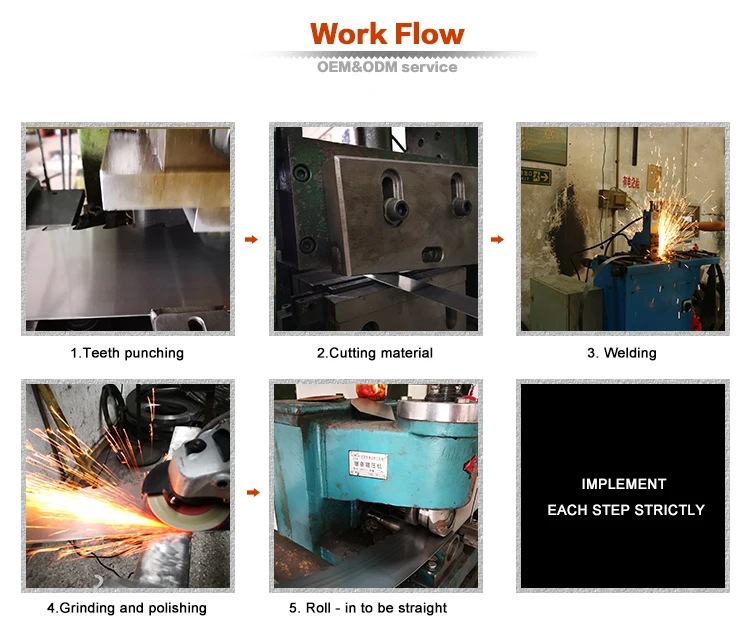

Production Procedure
Band Saw Blades Procedures

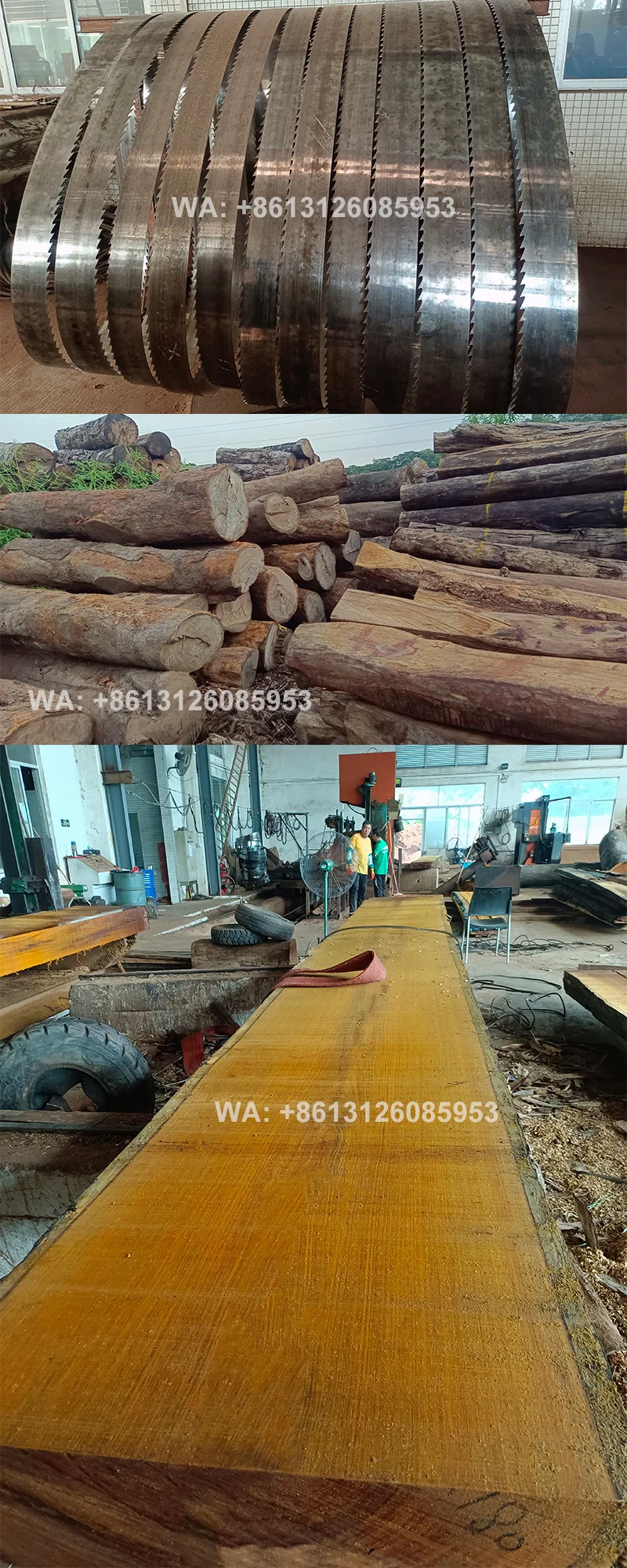

a wide range of wood bandsaw machines used wood cutting band saw blades for sawmill woodworking. We provide custom service of band saw blades on process of tooth setting, tooth grinding, teeth point hardening, welding in loop or make custom length in coils.

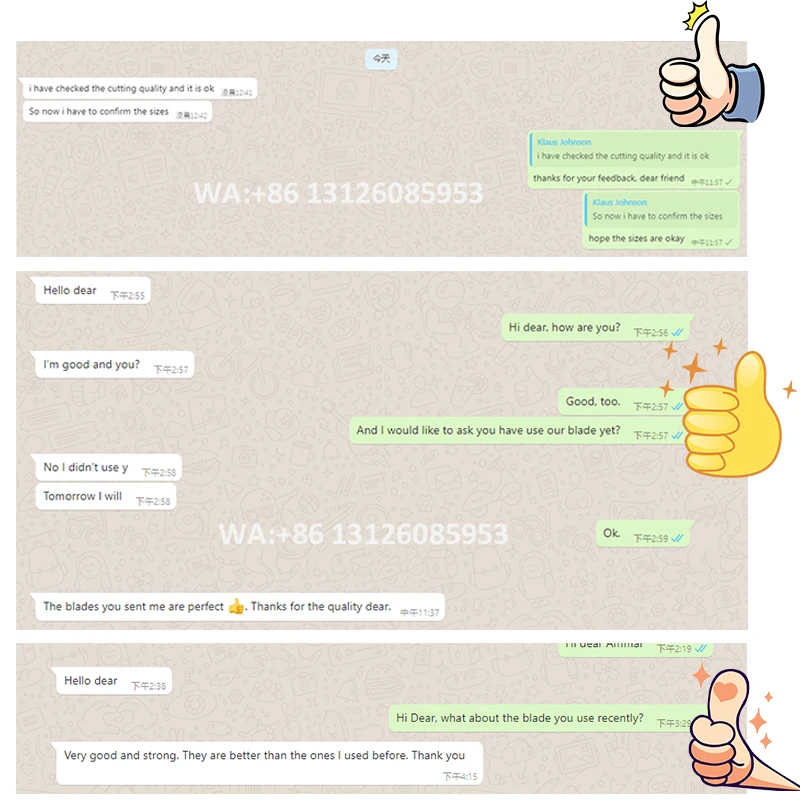

Customer Comments
We got many good comments from customers from different regions, they said the blades have good quality and durable life, it is very strong.
Customer Visit
We are serving many customers from different regions and countries especially Sweden, Italy, Russia, Poland, Australia, New Zealand, Canada, United States, Latin America, Southeast Asia, Africa Continent, etc

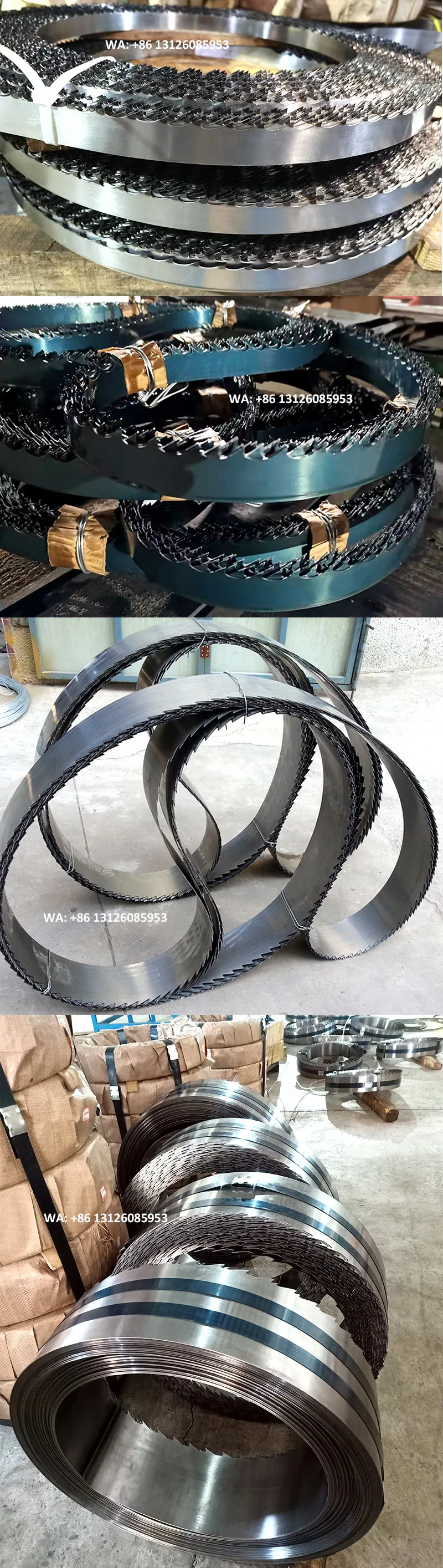

Packaging&Delivery
Joint Bandsaw Blades
Each welded blade 10 or 50 pcs are packed with plastic film, then put in the carton
Common Carton Dimension
60 x 60 x10cm 10pcs
70 x 70 x 20cm 50pcs
Bandsaw Blade coil
All coiled band saw blade are oiled packed with plastic film the with anti-rust paper with strong metal pallet or wood pallet.
Each welded blade 10 or 50 pcs are packed with plastic film, then put in the carton
Common Carton Dimension
60 x 60 x10cm 10pcs
70 x 70 x 20cm 50pcs
Bandsaw Blade coil
All coiled band saw blade are oiled packed with plastic film the with anti-rust paper with strong metal pallet or wood pallet.
Company Introduction
Company Benefits
1. Firtst-rate crude material purchase from ISO certificated state-own enterprise to guarantee superior quality.
2. Advanced production equipment,like grinding teeth machine, welding machine, hardening teeth machine, packing machine,etc.
3. High qualified employees in all positions.
4. 15 years experience in bandsaw blade manufacturing industry.
5. Serve many customers from different regions and countries.
6. Professional&considerate after-sales service.
Contact Us
Please contact me with more details:
Crystine Lee
whatsapp: +8613126085953
email: crystineli@cgoodsaws.com
whatsapp: +8613126085953
email: crystineli@cgoodsaws.com
