Product Description

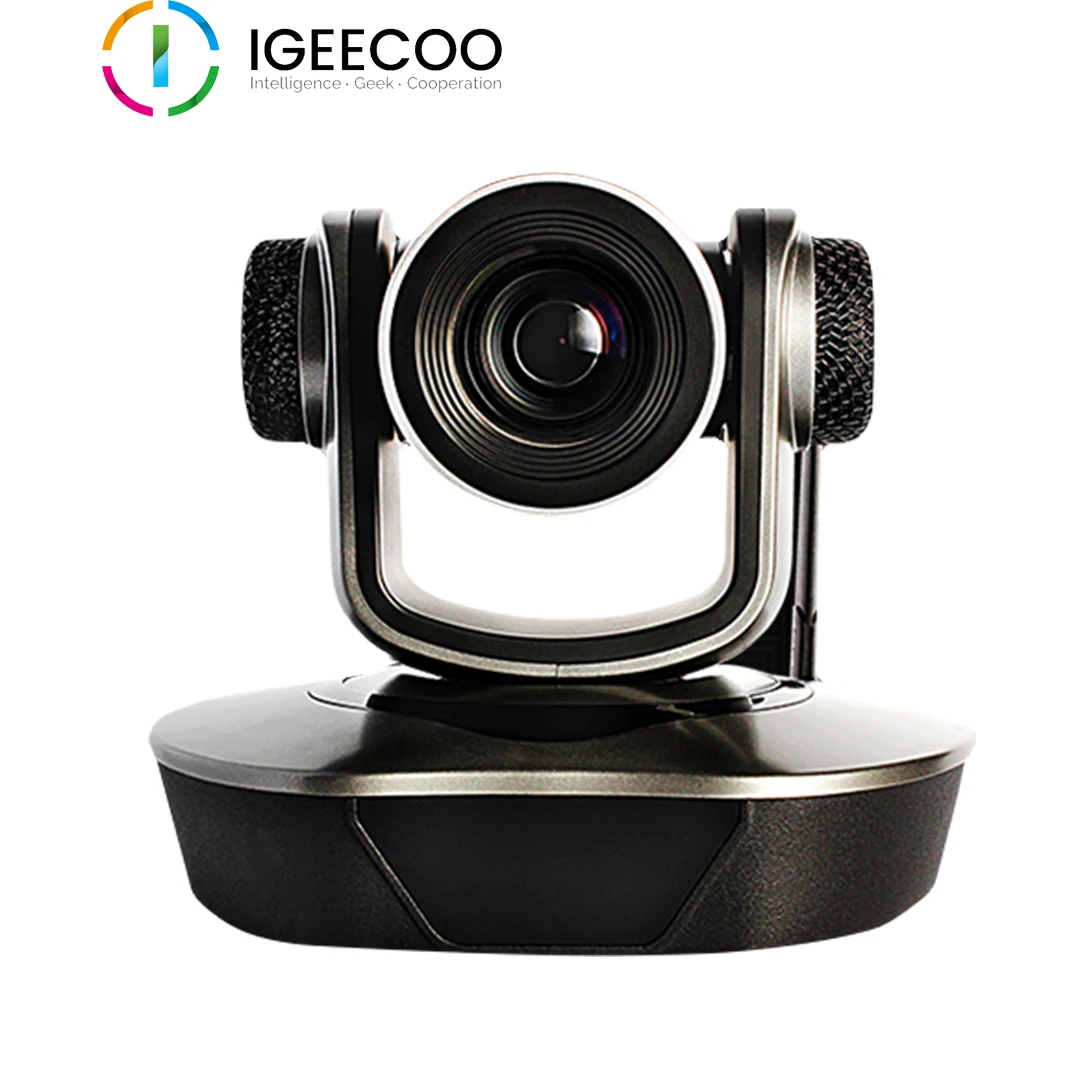

4K NDI | HX 12X UHD SDI PTZ Camera Video Professional IP NDI Camera for Broadcasting Video Conferencing Solution from IGEECOO
Connectivity, creativity, and control of your video is easier than ever using your existing network infrastructure when you
implement NDI. Software, computers and networks are changing the way video is produced, making NDI the most widely adopted and used IP standard in the world. Today, you have compelling new opportunities to engage in visual storytelling within practically any environment.. with IGEECOO NDI PTZ UHD 4K PTZ Color Video Conference Camera


NDI®|HX H.265 Support
HEVC or H.265 provides approximately twice the data compression rate under the same video quality level, significantly improves coding efficiency, saves 50%-60% bandwidth and storage space, or significantly improves the video with the same bit rate quality.
Compatible with NDI®|HX protocol, no external conversion box is required.
NDI's high signal-to-noise ratio and ultra-low latency are very suitable for the radio and television industry, including broadcast
studios and remote live broadcast rooms to stadiums, arenas, churches and lecture halls.
4K Ultra HD
It adopts a new generation of SONY 1/2.5 inch high-quality UHD CMOS sensor witha maximum of 8.51 million pixels, which can
realize 4K (3840x2160) ultra-high-resolution high-quality images. And backward compatible with multiple resolutionssuch as 1080P
and 720P.
12x optical zoom
It adopts high-quality ultra-high-resolution 4K ultra-telephoto lens, 12x optical zoom, and the maximum field of view angle
exceeds 60°.
Low illumination
The new CMOS image sensor with ultra-high performance-to-noise ratio can effectively reduce image noise in low illumination
conditions, while applying 2D and 3D noise reduction algorithms to greatly reduce image noise, even in ultra-low illumination
conditions, still keeping the picture clean and clear , The image signal-to-noise ratio is up to 55dB or more.
HDMI 2.0
It supports HDMI 2.0 specification and can directly output 4K uncompressed digital video.

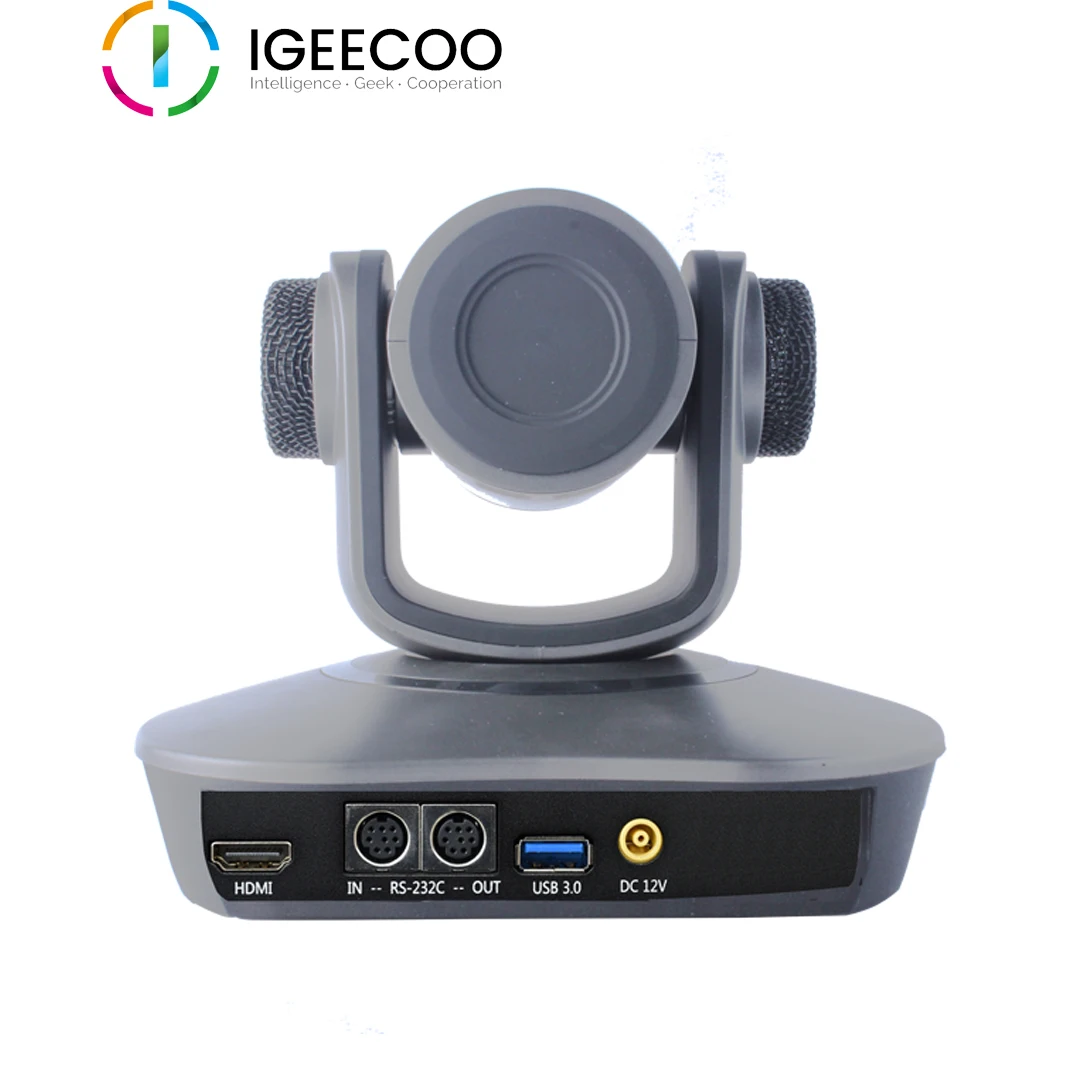

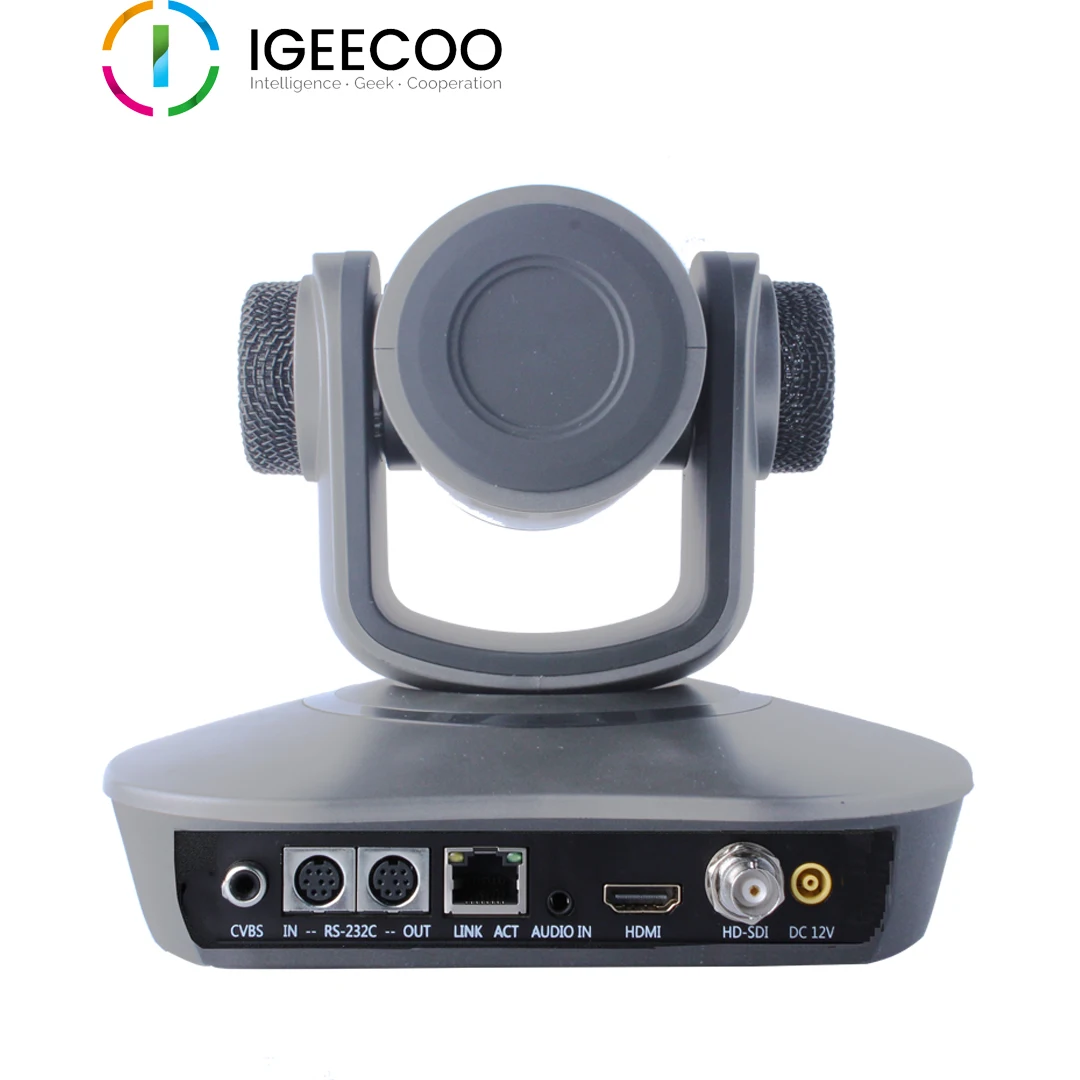

Rich and perfect interface
Support HDMI 2.0 high-definition output, and equipped with 3G-SDI interface, the effective transmission distance is up to
150 meters (1080p30). HDMI, 3G-SDI, USB3.0, LAN four channels can simultaneously output 4 channels of high-definition digital
signals.
Built-in gravity sensor
Support image automatic flip function, convenient for engineering installation and use
Low power consumption sleep function
Support low-power sleep/wake-up, the power consumption in sleep state is less than 400mW.
Smart Exposure
Effectively solve the impact of projectors, televisions and other equipment on shooting people
Remote control
A variety of control methods, RS232, RS485, network and USB can be used tocontrol the camera.


Camera Optical Lens Parameter
Sensor
1/2.5'', CMOS, Max Effective Pixel: 851M
Effective Pixels
Max Effective Pixel: 8.51M
Resolution
HDMI:4KP60fps, 4KP50fps,4KP30fps, 4KP25fps,4KP59.94fps,4KP29.97fps,1080P60fps, 1080P50fps, 1080I60fps,1080I50fps,
1080P30fps,1080P59.94fps,1080I59.94fps, 1080P29.97fps, 720P60fps,720P59.94fps3G-SDI:1080P60fps, 1080P50fps,
1080I60fps,1080I50fps,1080P30fps,1080P29.97fps,1080P59.94fps, 1080I59.94fps, 1080P25fps,720P60fps,720P59.94fps
Optical Zoom
12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Horizontal View Angle
71° ~ 8.2°
Digital Zoom
16X


Camera Optical Functions
Focus
Auto, Manual
Min Illumination
0.5 Lux @ (F1.8, AGC ON)
Shutter Speed
1/30s ~ 1/10000s
AGC
Auto, Manual
White Balance
Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
Exposure
Auto, Manual, Shutter Priority, Iris Priority
SN Ratio
≥55dB
DNR
2D/3D
BLC
Yes


Interface
HD Output
1xHDMI: Version 2.0
Video Interface
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
Network Interface
10M/100M/1000M Ethernet Interface,Support PoE power supply
Audio Interface
1-ch: 3.5mm Audio Interface, Line In
USB
1xUSB3.0: Type-C，Up to 4K@60fps compressed video and 1080P original videocan be output
Communication Interface
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P


IPC Features
Video Compression
H.265/H.264/MJEPG
Video Stream
Main Stream, Sub Stream
Main Stream Resolution
3840x2160, 1920x1080, 1280x720, 1024x576, etc.
Sub Stream Resolution
1920x1080, 1280x720, 720x576, 720x480, 320x240, etc.
Video Bit Rate (NDI®|HX)
32kbps~51200kbps
Video Bit Rate
32kbps~51200kbps
Bit Rate Type
Variable Rate, Fixed Rate
Frame Rate
50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression
AAC, G711
Audio Bit Rate
48Kbps, 64Kbps, 96Kbps, 128Kbps
Support protocols
TCP/IP, HTTP, RTSP, RTMP/RTMPS,SRT, Onvif, DHCP, Multicast,




Model
IGC-HD120WU2
IGC-HD120WHU3
IGC-HD120WSH
IGC-HD120WIP
USB2.0
Yes
HDMI+USB3.0
Yes
HDMI + SDI
Yes
IP+HDMI+SDI
Yes


Installation Process






Applications






Certifications




Company Information




FAQ


Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 5-10 days for order quantity more than



Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will supply replacement or repair services according to real situation.
