Цена:439,00 $ - 500,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Product Description


4SP 2-9
Power
0.5-3HP
Head max
95m
Flow max
90L/min
Outlet size
1.25inches
motor
brushless DC motor
DCvoltages range
60-380Vmp(60-440VOC)

AC voltages range
90-240VAC
Material
304 stainless steel


AC / DC hybrid
AC / DC hybrid motor could offer two option and back up power for user , one hybrid pump= 1 BLDC PUMP+ 1 AC PUMP. AC / DC hybrid power is realized by frequency converter, and the utilization rate of solar energy is more than 95%.

Using encapsulate motor (water filled motor)
No risk of leakage ,effectively higher ,life longer than oil motor.

Using thrust bearing, lower parts loss
The thrust bearing effectively higher ,life longer.

Using the brushless DC motor , long service life, low noise and good safety
BLDC motor Efficiency higher 10% than AC motor, higher RPM make pump size smaller than AC motor , much easier installation. The service life of Brushless DC motor can reach 10000 hours, while the brush and slider of Brushless DC motor are worn, and the maximum service life is 2000-3000h. Without MPPT controller, the efficiency of Brushless DC motor is very low, at the same time, there is no protection, the noise is very large, and the safety performance is obviously lower than that of Brushless DC motor.

Obtained a number of certification, reliable quality
The company obtained ISO9001 & ISO14001 certification, and the products obtained TUV SUD & UL certification.

Voltage range ,we offer much Wider scope than any other factory ,make pump system much more smart .

We offer GPRS RMS ,User could control pump at home ,and got data.

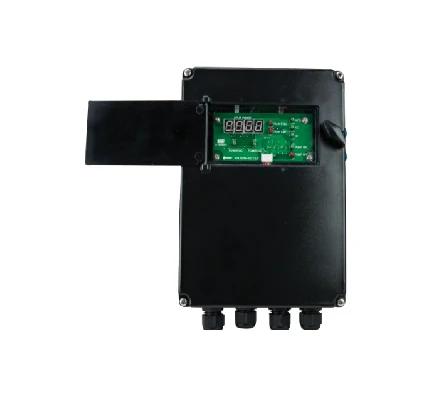

Monitor
① Display input power (AC & DC)
② Level control(with Electric Float Switch)
③ Pressure control (with Mechanical float Switch & Pressure switch)
④ Ability to select the incoming power source supply. AUTO MODE, AC MODE, DC MODE depending on solar irradiation.
⑤ Button to switch between Pump ON, Pump OFF
⑥ Deadhead/no flow conditions protection (with Flow Switch)
⑦ Lightning and surge protection
©According to the in tensity of solar energy, intelligent control generator start and stop
⑨ IP65 weatherproof enclosure.



Application


Drinking water for livestock
Agricultural irrigation
Reservoir filling


Water tank / Water tower filling
Water supply for farm
Garden landscape watering


Water supply for bivouac or camping car

Swimming pool filling
Drinking water and living water


Customer Photos


Our solar water pumps are sold in more than 50 countries and regions all over the world and are well received by customers.












Product model table


We provide nearly 300 kinds of solar pump models, including DC, AC / DC solar pump, built-in and external controller solar pump, and match the appropriate products according to the specific needs of customers. Voltage range ,we offer much Wider scope than any other factory ,make pump system smarter. We offer GPRS RMS ,User could control pump at home ,and got data.

Global official website: www.samkingpump.com


Product series and parameters
Power
0.3hp, 0.5hp, 0.75hp, 1hp, 2hp, 2.5hp, 3hp, 5hp
Power type
DC, AC/DC option
Head
0 - 450m
Flow
0 - 1545L/min (0 - 92.7m3/h)
Diameter
1inch, 1.25inch, 1.5inch, 2inch, 2.5inch, 3inch, 4inch, 5inch, 6inch
Moto type
BLDC ( permanent magnet, encapsulated, water filled thrust bearing )
Controller
external, internal option
Pump body
stainless steel 304（316 optional）
Pump length
44 - 141cm
Impeller
stainless steel, plastic optional
Impeller type
centrifugal, helical
Certification
CE, TUV SUD, UL, ISO9001, ISO14001
Warranty
2 years






Company Profile


Pengyang pump taizhou Co.,Ltd , a leading company in solar pump industry in China . we should say we are china's #1 most trusted solar-powered water pump .we are the first one who make AC/DC hybrid system in china .also is most reliability solar pump manufacturer in china . We have AC/DC built-in electronic hybrid pump We also have DC out-side controller solar pump We also have DC inside-controller solar pump We also have AC BLDC solar pump We sell and install pump to more than 50 countries around the world,we got global friend from our the world ,we are always been copied but never surpassed.





More than 11 patents
We have more than 11 patents of solar water pump technology.
7000 square meters plant
The scale of the factory is over 7000 square meters.
Customers all over the world
Our customers are located in more than 50 countries and regions around the world.










FAQ


1.Are you a trader or a manufacturer?
We are a leading R & D and manufacturer of solar water pumps in China.

2. Where is samking's factory?
Taizhou City, Jiangsu Province, China

3.What is the MOQ?
1pcs,over 10 pcs ,have discount

4. What is the delivery time?
15-30 days after receiving your advanced deposit.

5. Can i print my OEM brand?
Yes, welcome your OEM.
