Полностью автоматический биоразлагаемый PLA крахмал мешок для мусора пластиковый на рулоне делая машину 2 линии другой упаковочной
- Категории: >>>
- Поставщик: Zhejiang,Cidihuakai,Import,And,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Basic Info.
item | value |
Place of Origin | China |
Brand Name | CDHK |
Model Number | BT-LJDZJD-811 |
Industrial Use | Shopping |
Use | Garbage, handle bag |
Material Structure | PE |
Custom Order | Accept |
Feature | BIODEGRADABLE |
Plastic Type | LDPE |
Model Number | BT-300X2 star sealing |
Layer | 8 Layers |
Computerized | Computerized |
Bag Roll Width | 100mm - 250mm |
Machine Dimension | L6500*W2400*H1500mm |
Air Consumption | 5HP |
Specification | ISO9001 & CE |
Sealing & Cutting | Heat-Sealing Heat-Cutting |
Type | Plastic Bag Making Machine |
Total Power | 13kw |
Machine Show
Application
This machine is perforation for bag rewinding, which are suit for printing and non-printing bag making. The material of bag is PE and recycle materials.
BT-300X2 can make garbage bags in efficient production by automatically changing plastic rolls. Machine equip two sets of high voltage cretive sensor devices which can detective the right position to break the film and make the rolls in extract number.
T-shirt bag on roll coreless produce procedures: unwind →handle seal and bottom seal
→perforate the bottom →C-punch to make bag handle →rewind and change film roll
BT-300X2 can make garbage bags in efficient production by automatically changing plastic rolls. Machine equip two sets of high voltage cretive sensor devices which can detective the right position to break the film and make the rolls in extract number.
T-shirt bag on roll coreless produce procedures: unwind →handle seal and bottom seal
→perforate the bottom →C-punch to make bag handle →rewind and change film roll
U-S-type bag on roll coreless bag produce procedures: unwind →bottom seal and perforate
→S-type mode punch →rewind and change film roll
Flat bag on roll coreless produce procedures: unwind →bottom seal and perforate →rewind and change film roll
→S-type mode punch →rewind and change film roll
Flat bag on roll coreless produce procedures: unwind →bottom seal and perforate →rewind and change film roll
Product Paremeter
Technical Parameters | ||
Model | BT-300X2 star sealing | |
Production Line | 2 Lines | |
Film Layers | 8 | |
Bag Length | 300-1500 mm | |
Bag Roll Width | 100 mm - 250 mm | |
Film thickness | 7-25µm per layer | |
Production Speed | 80-100m/min | |
Rewinder Diameter | 120mm (Max.) | |
Total Power | 12KW | |
Air consumption | 3HP | |
Machine Weight | 2800KG | |
Machine Dimension | L7200*W2200*H1700mm | |
Machine Components
Unwinder Feeding
1. 2pcs Air cylinders can lift 2 bag film rolls (max.900mm) which will be chocked by 2 long air shafts.
2. Independent unwinder adopts cylinder break control design which is durable in using.
Sealing knife with Serrated knife
1. This machine use 6 sealing knives to seal the top and bottom of bags seperately.
2. Machine use 4 sealing knives to seal the T-shirt garbage bag handle.
3. Both up and down sealing knives are moving, this allow to seal bag handle tightly.
S-type Punch/ T-shirt type Punch
1. The punch is customized which can be changed into S-type punch to make S-type cut garbage bags.
2. If change the punch mold to T-shirt type, then machine can make T-shirt garbage bag on roll.
3. If not use the punch, machine can make flat bottom sealing garbage bags.
High Voltage Crevice Sensor
1. This high voltage crevice sensor can check film sealing and cutting lines and give signal to film break in the right position, which helps machine run in stable production.
2. This is very important for film length over 600mm.
3. This senor device is imported from Taiwan.
EPC Devices
1. This will adjust the cutting position when garbage bags when it makes long bags.
2. To adjust the cutting line under the film break devices.
Control Parts:
1. The rewinder control panel real-display touch
screen with Taiwan DELTA screen
2. Main motor adopt 1.5KW motor (MARALI FORM ITALYT), driven by the 1.5 KW inventor used DELTA FROM TAIWAN.
3. Driver control program of the whole machine by Taiwan single CHIP control system, with quick reaction.
4. Back feeding motors adopt traction is driven by inverter from Taiwan
5. Bag feeding is driven by double 3 KW servo motors by YASKAWA-JAPAN
6. Each line equip with high voltage crevice sensor devices which can break film in the right positon.
7. All heating use heating tubes which are controlled by FOTEK, Taiwan
8. Machine body with 16mm thickness plate which is cut by laser.
9. Perforating knives are duarable in using which is made in Taiwan supply.
screen with Taiwan DELTA screen
2. Main motor adopt 1.5KW motor (MARALI FORM ITALYT), driven by the 1.5 KW inventor used DELTA FROM TAIWAN.
3. Driver control program of the whole machine by Taiwan single CHIP control system, with quick reaction.
4. Back feeding motors adopt traction is driven by inverter from Taiwan
5. Bag feeding is driven by double 3 KW servo motors by YASKAWA-JAPAN
6. Each line equip with high voltage crevice sensor devices which can break film in the right positon.
7. All heating use heating tubes which are controlled by FOTEK, Taiwan
8. Machine body with 16mm thickness plate which is cut by laser.
9. Perforating knives are duarable in using which is made in Taiwan supply.
Electric Collacate:
● Photocell (2pcs) KT-6W, SICK-Germany
● Servo motor(2pcs, 3 KW) YASKAWA- JAPAN
● Servo motor(2 pcs, 2.2KW)YASKAWA- JAPAN
● Servo motor(2pcs, 1.5KW)YASKAWA- JAPAN
● Main motor(1pcs, 0.75 KW ) with reducer MARALI -ITALY
● Inverter of main motor, DELTA- TAIWAN
● Feeding motor inventor (2pcs, 0.75KW) DELTA- TAIWAN
● Human-computer interface touch screen (1pcs) DELTA- TAIWAN
● Switch and button. SCHNEIDER- FRANCE
● Proximity switch (9pcs), FOTEK-TAIWAN
● Solid state replay (11pcs), FOTEK-TAIWAN
● Electromagnetic valve (14pcs) MINDMAN-TAIWAN
● Static eliminator (1pcs) with static bar (2pcs), HONGKONG
● Servo motor(2pcs, 3 KW) YASKAWA- JAPAN
● Servo motor(2 pcs, 2.2KW)YASKAWA- JAPAN
● Servo motor(2pcs, 1.5KW)YASKAWA- JAPAN
● Main motor(1pcs, 0.75 KW ) with reducer MARALI -ITALY
● Inverter of main motor, DELTA- TAIWAN
● Feeding motor inventor (2pcs, 0.75KW) DELTA- TAIWAN
● Human-computer interface touch screen (1pcs) DELTA- TAIWAN
● Switch and button. SCHNEIDER- FRANCE
● Proximity switch (9pcs), FOTEK-TAIWAN
● Solid state replay (11pcs), FOTEK-TAIWAN
● Electromagnetic valve (14pcs) MINDMAN-TAIWAN
● Static eliminator (1pcs) with static bar (2pcs), HONGKONG

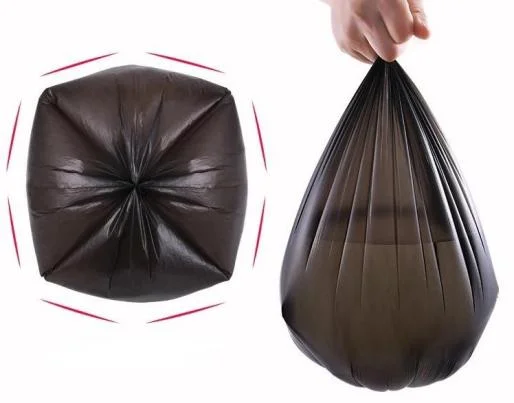

Photos of Finished-product

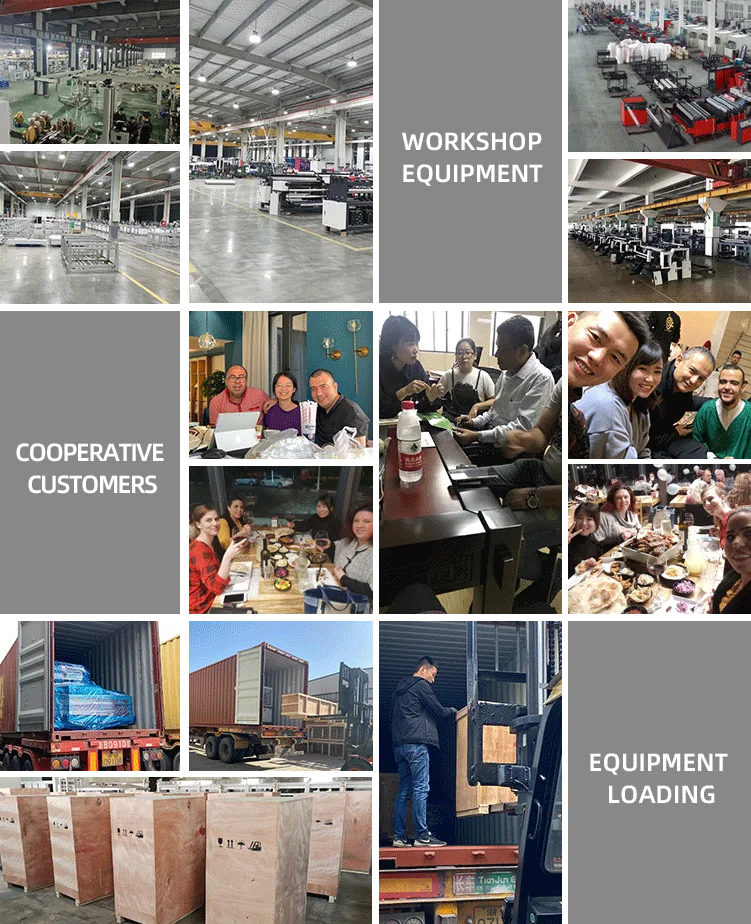

Company Profile
