Product Description





Product Application

Prefabricated Steel Structure Workshop Building With Auto CAD Drawing

Steel structure workshop is widely used in all kind of manufacture factories. Based on different usage, steel workshop can be large span, multiple stories, high rise, etc.

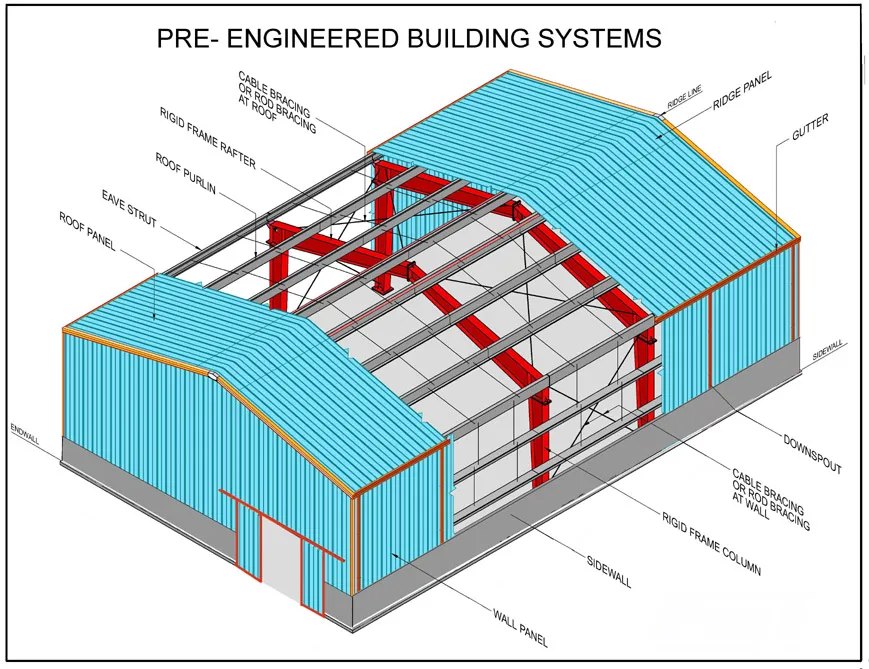

Steel structure workshop is made from steel structure systems, composed by H section steels for both columns and beams, and connected by high strength bolts for main steel structures. And cladding systems like sandwich panels or corrugated steel sheets are connected to the main steel structure by steel purlins. Ventilators are used for fresh air to come and skylight panels and windows used for light to come in.

 For steel structure workshops, overhead crane will be adopted for lifting heavy steel materials. Sandwich panel sliding doors or automatic roller doors are the options for steel structure workshop doors.



Item name
Steel structure building specifications
main steel frame
H section steel beam and comlumns, painted or galvanized
Secondary frame
hot dip galvanized C purlin , steel bracing , tie bar , knee brace , edge cover etc.
Roof panel
EPS sandwich panel , glass fiber sandwich panel , rock wool sandwich panel , and Pu sandwich panel or steel sheet
Wall panel
EPS sandwich panel , glass fiber sandwich panel , rock wool sandwich panel , and Pu sandwich panel or steel sheet
Windows
PVC/Aluminum Alloy Window
Door
Sliding Door/Roller Shutter Door
Connecting
All connected by Bolt
Downspout
Dia 110 PVC Pipe
Gutter
Stainless Steel/Color Steel Sheet material
Packaging
Standard Packaging Way
Drawing
Auto CAD/PKPM




Exterior Building Picture
Interior Building Picture


Main Features

1) Fast Construction and Easy Installation; Save time and Labor;

2) Light weight, high strength and large span;

3)  Low cost and long life span;

4) Strong, stability, Durability and Aesthetics;

5)  Quake Proof; Water Proof;

6) Lower Maintenance Cost;

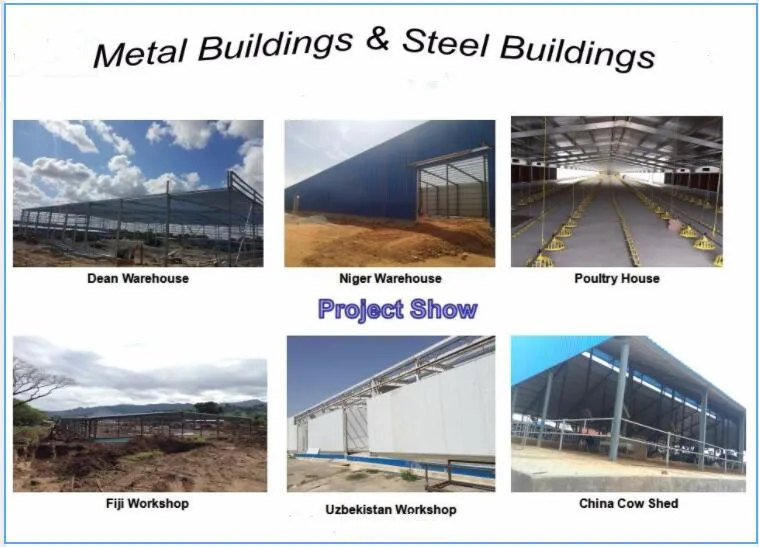

Project Case Show


FIJI Steel Structure Workshop



                       Steel Structure Column Erection

                              Finished Main Frame Installation



                                  Roof Panel Installation

                                  Wall Panel Installation



                Outside Picture of Finished Workshop

                      Inside PIcture of Finished Workshop





Free Design Service


           Design Service

* Free Design Service

* We have our own design team, can design based on client

   requirement


                              3D Drawing

*  For better understand of the building, 3D drawing will be provided if needed!



Foundation Drawing
Based on on site geological info, will provide free foundation
drawing to client for reference!
Installation Drawing
Marks and no.s are marked on every parts, which is matching with the no.s on the installation drawing;
in this way, following the drawing, building will be assembled.


Our Company

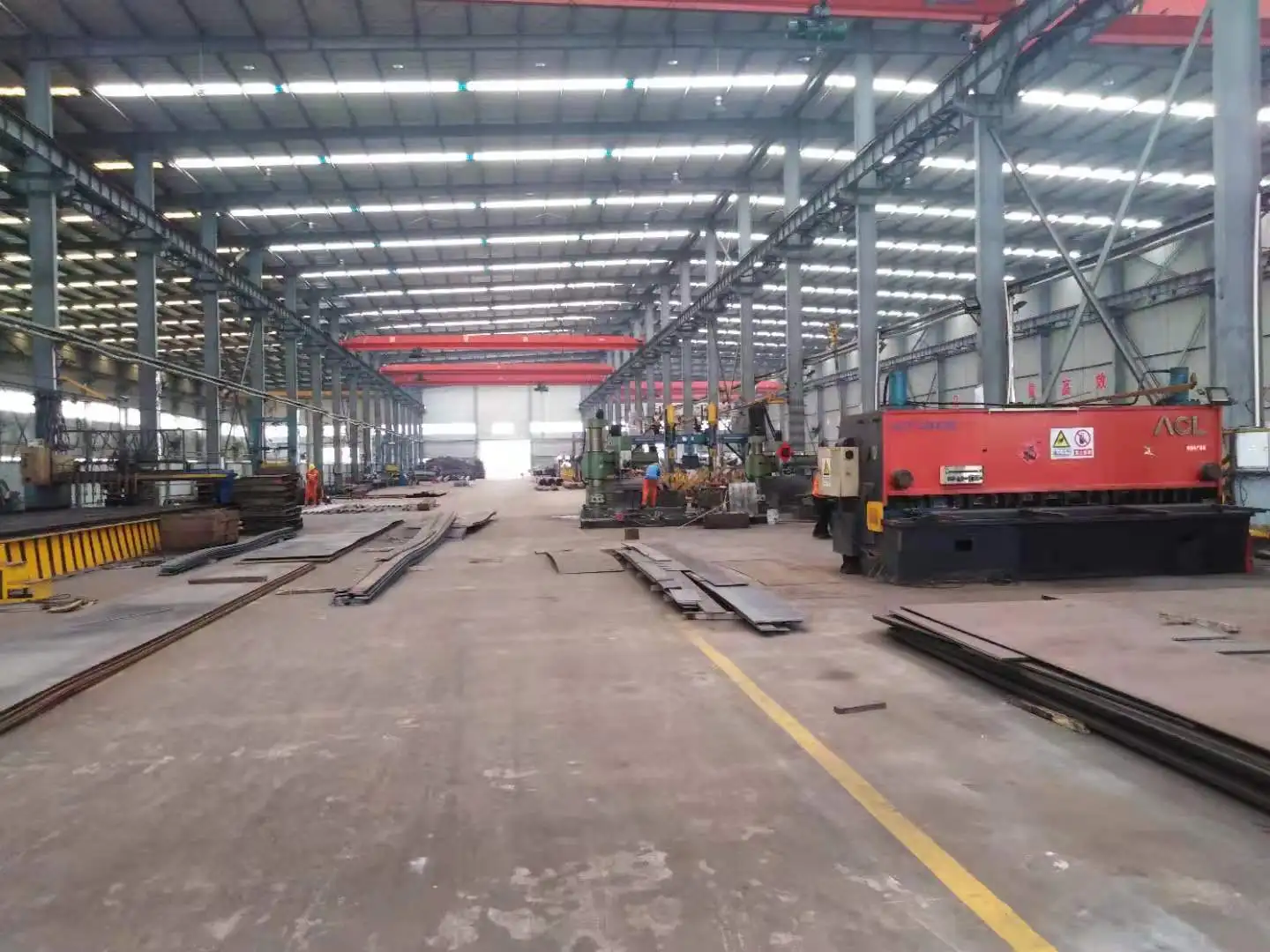

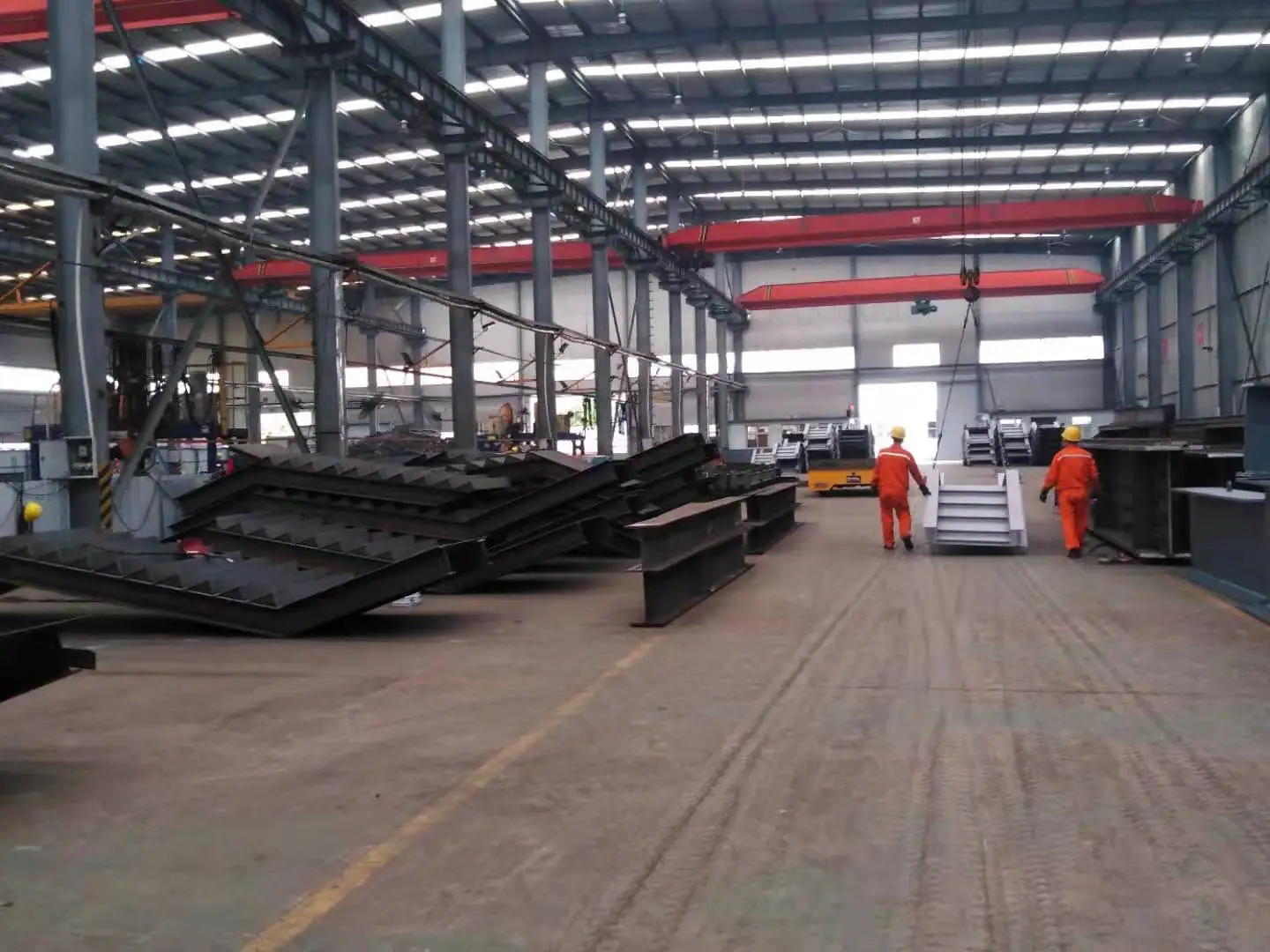

Our factory is located in Huangdao district of Qingdao city.It covers an area of 20 thousand square meters which is specialized in designing,manufacturing and installation of steel structure products.The company has two professional production lines, the annual output reaches 30 thousand tons.It also owns professional design team,two senior structural engineers, three senior architects, three senior engineers, sixty professional processing staffs. Our company has three-grade steel structure construction qualification and passed the ISO9000 international systems Certifications.


As to the steel structure, Prefabricated house produced by our company, are throughout East Asia, Oceania,South America,Africa, European, and enjoy high reputations among clients. The steel structure products have already exported to Philippines, Malaysia, Australia, the United States, Chile, the United Arab Emirates, Saudi Arabia, Russia, Niger etc more than 60 countries and regions.

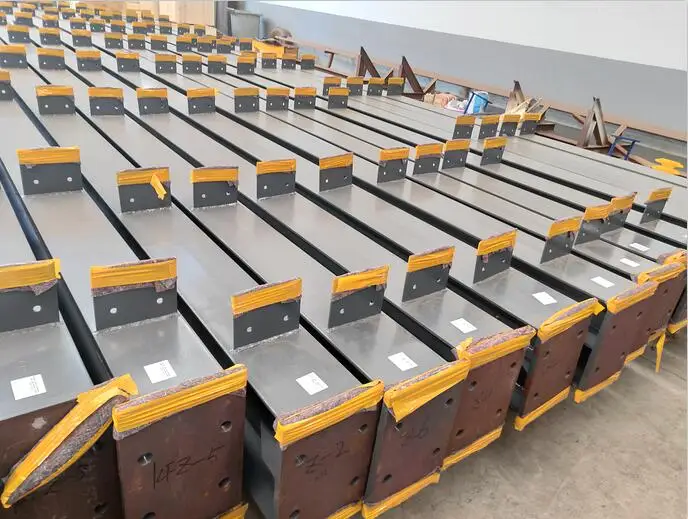

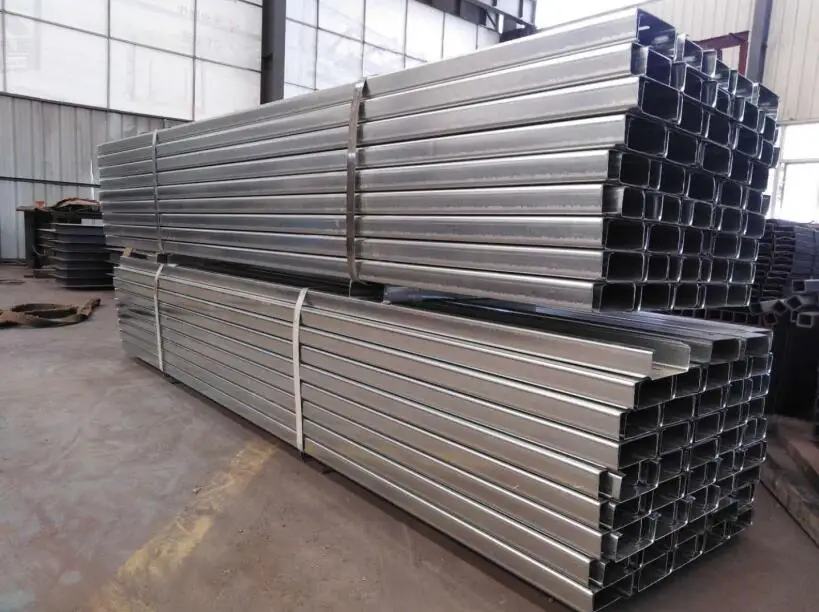

Main Material

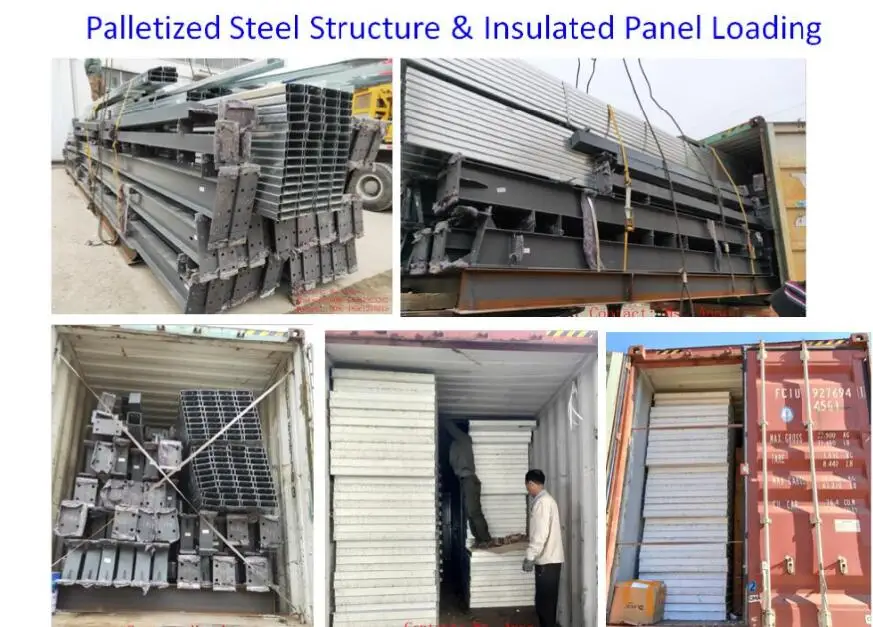

Packing & Delivery

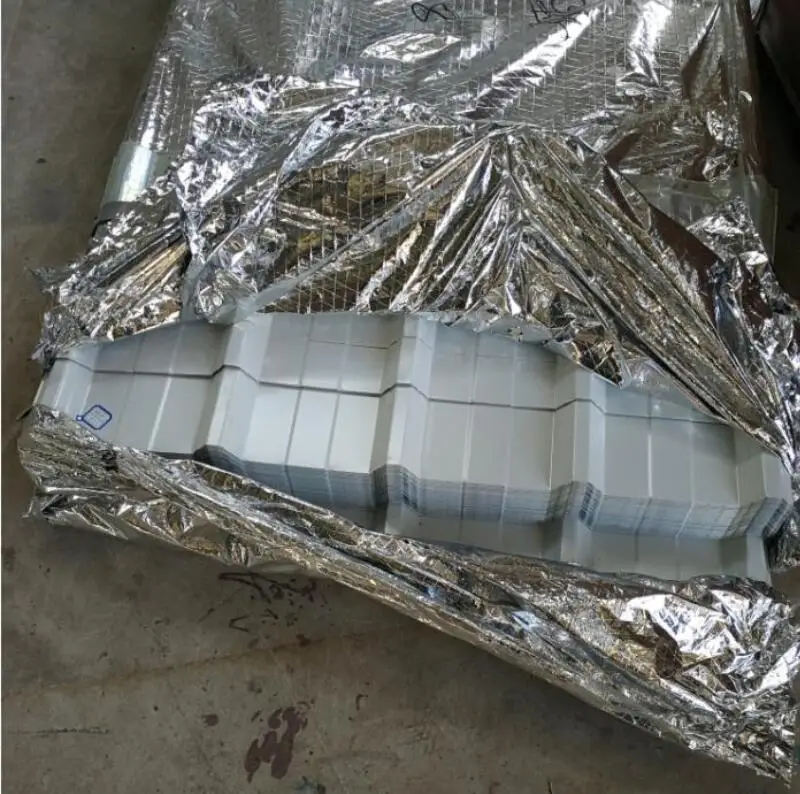

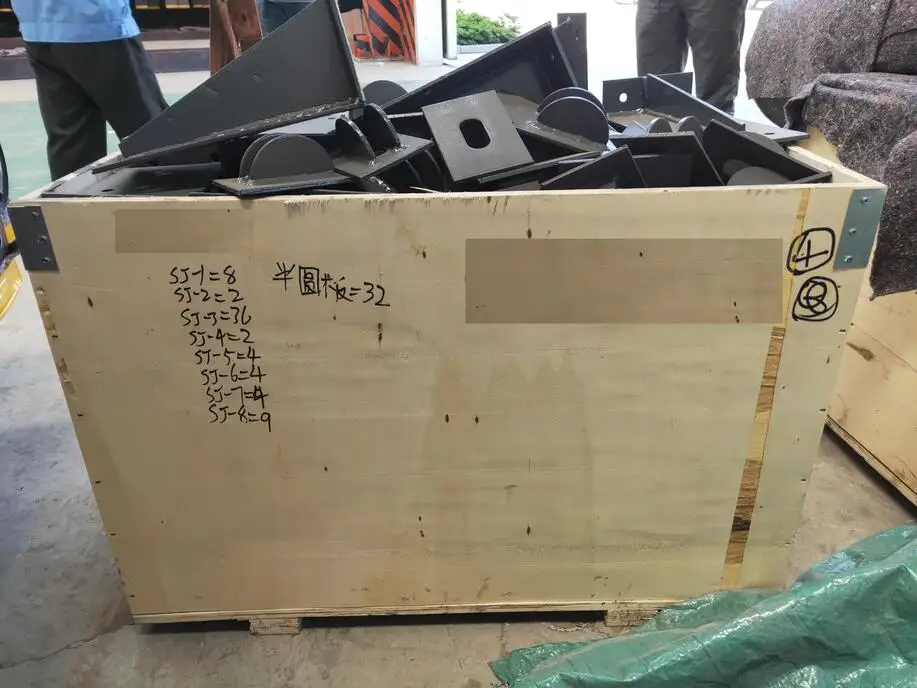

All the parts are well packed; the H column and beam edge are wrapped by fabric cloth; the insulated sandwich panel surface are coated with protective film; all purlins are bundled; In order to avoid loss, all the accessories (bolt, self tapping screw etc) are put into plywood carton;
