Product Description


Product name：
SCW0625S-01D High Quality Mini BLDC DC Haptic Coin Vibration Motor for Electronic Cigarette

BLDC Brushless coin vibration motors are an excellent choice for high reliability applications requiring an exceptionally long life time / MTBF. Applications where the vibration feature used very often or is used in a medical device should consider a BLDC vibrator motor. These BLDC motors typically exceed the life time of brushed type coin motor by over 10 times. They are more costly than brushed types since they incorporate a driver IC. Polarity must be observed when apply power. Other specs are comparable to that of standard brushed type motors.




Products Description

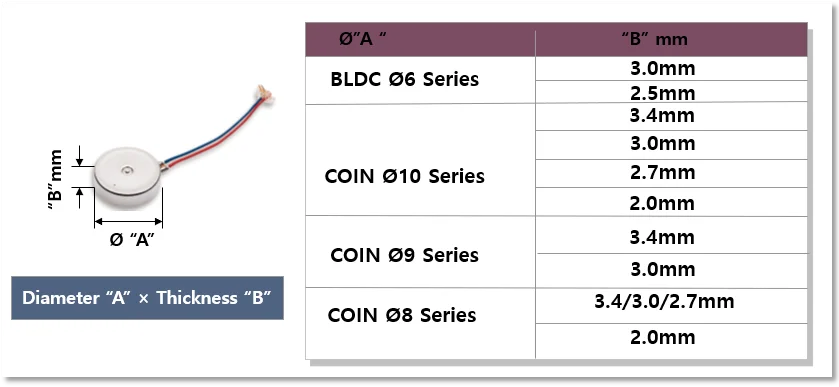

Show Me All Products (Shown below are only seven models of them(SCW0625S-01D; SCW0525L-01D; SCW0625L-01G; SCB0720L-01F; SCB0820L-06F; SCB0830L-01F; SC0832L-LR29D ). If you want to know about other models, please email us.)


SAIBOW P/N
Tech. Type
Motor Size
Voltage
Current
Response Time
Rated speed (rpm)
Vibe Force (G)
Dia (mm)
Thickness (mm)
Operating
Rated (ma) MAX
Rise Time (ms)
Fall Time (ms)
SCW0625S-01D
BLDC
6
2.5
2.7~3.3 Vdc
90
70
90
15000
0.55
SCW0525L-01D
BLDC
5
2.5
2.7~3.3 Vdc
80
70
90
14,000
0.25
SCW0625L-01G
BLDC
6
2.5
2.7~3.3 Vdc
90
70
90
15,000
0.55
SCB0720L-01F
BRUSH
7
2
2.7~3.3 Vdc
85
90
50
10,000
1.1
SCB0820L-06F
BRUSH
8
2.1
2.7~3.3 Vdc
85
90
50
10,000
0.45
SCB0830L-01F
BRUSH
8
3
2.5~3.5 Vdc
85
90
50
12,000
1
SC0832L-LR29D
LRA
8
3.2
0.1~1.9 Vac
80
50
80
-
1.4


The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.


Mechanical Tear Down Of Coin Vibration Motor

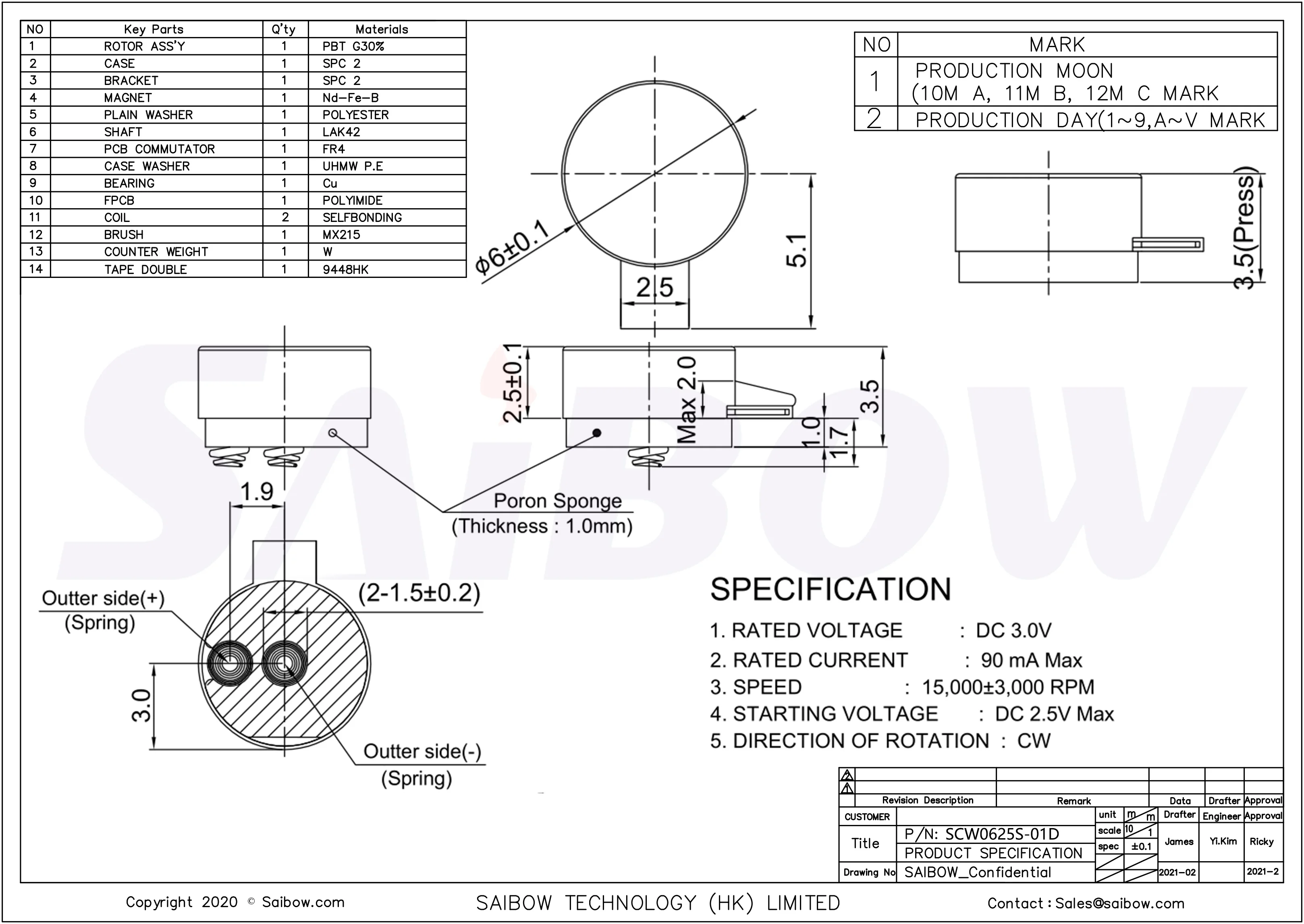

Product Drawing:




Our SCW0625S-01D brushless BLDC coin vibration motor uses helical spring contacts which are designed to mate with corresponding contact pads on the PCB. This motors brushless design makes it ideal for Hi-Rel applications or those with high duty cycles. A driver IC is built imbedded within the motor, so no external driver IC is required. Simply apply DC voltage as you would a normal brushed DC motor. Voltage polarity must be observed or you will damage the internal driver IC. Since reflow solderable SMD coin vibration motors are not yet available, a BLDC coin vibration motor like this, with spring contacts, can be used to streamline the assembly process by eliminating the need for soldering wires.




Application scenario




If you think our product is not suitable for you, you can click below to find the product you want:
DC Coreless with Brushes
Coin Vibration Motors


Recommend Products




Company Profile




SAIBOW is based on Hong Kong and other emerging industrial markets in the Pearl River Delta, specializing in high-end automotive electronic products, communications mech-
anical and electrical parts of technical research and development, production and sales, international trade as one of the multinational enterprises, consumer comm-
unications smart wearable electronic products, to provide domestic and foreign customers with high quality and cheap micro motors, Micro Camera modules, car speakers and smart audio, smart wearable watch (Smart Watches).




SAIBOW With the management policy of
"pioneering and innovative, positive and enterprising, teamwork, professional and pragmatic", SAIBOW is willing to establish a friendly and honest partnership with all customers, and sincerely welcome new and old customers to work hand in hand to strive for win-win, and seek sustainable development of the cause.

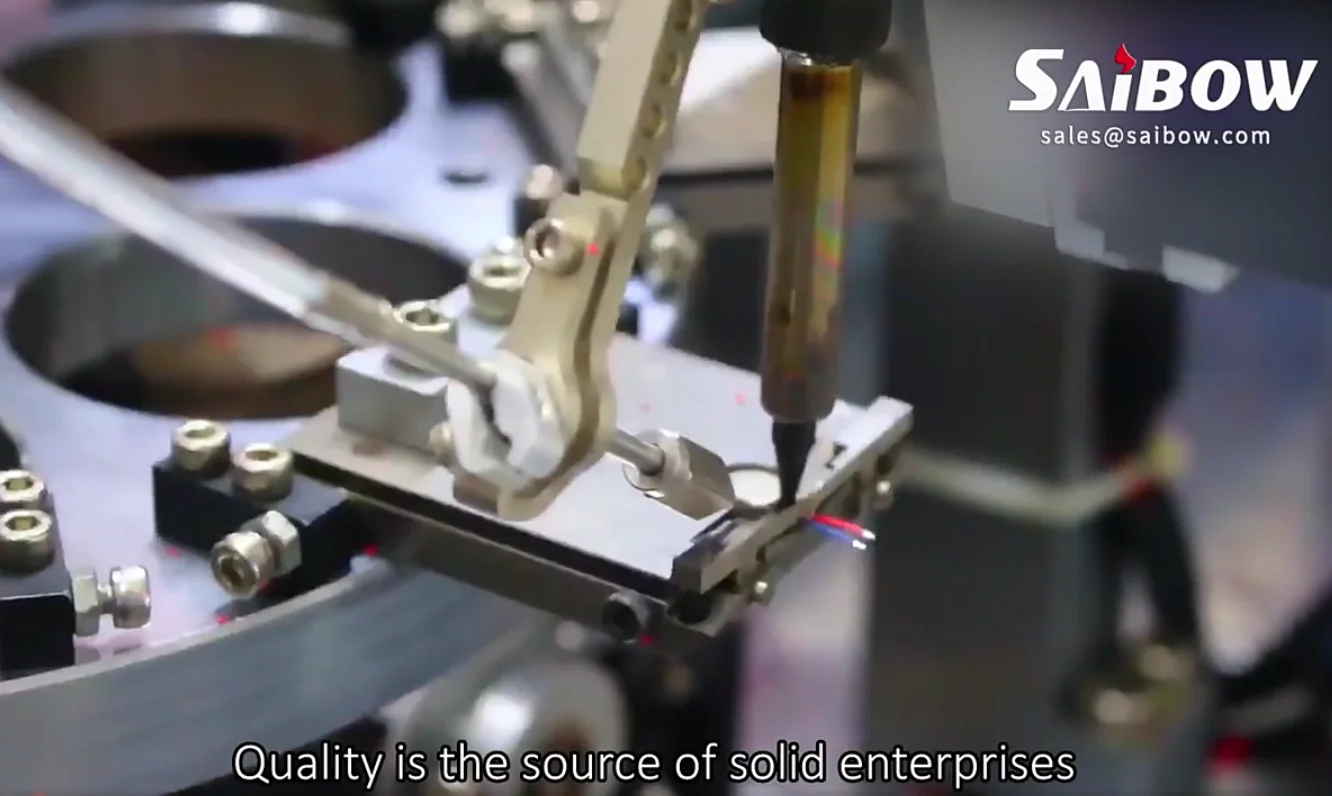

Production Workshop
