Шкаф эрду светодиодный прожектор 3 Вт
6,38-6,48 $
Заводская Встраиваемая круглая Светодиодная потолочная лампа 6 дюймов 8 с микроволновым датчиком движения для здания
- Категории: >>>
- Поставщик: Zhongshan,Allmay,Electronic,And,Plastic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

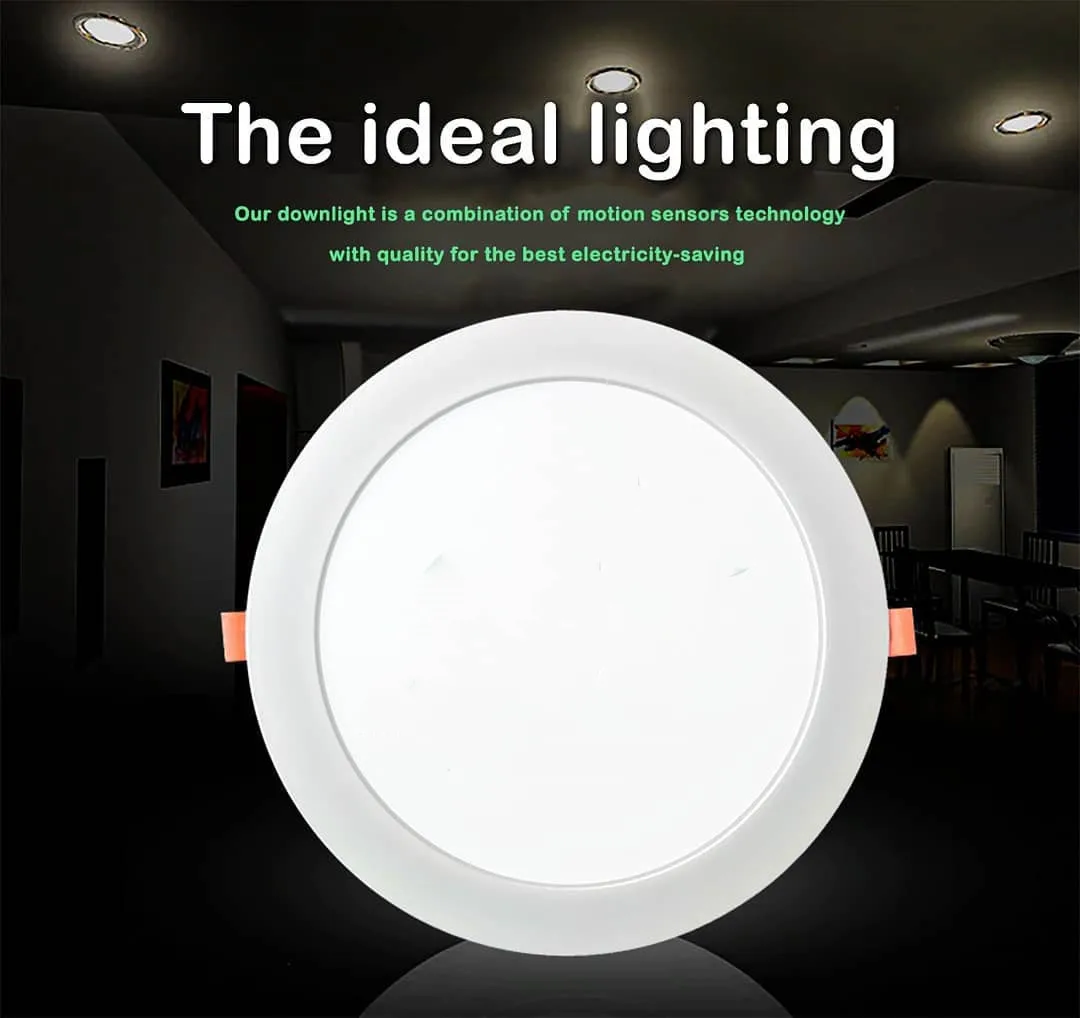

Factory Recessed Round 6" 8" LED Downlight with Smart Built-in Microwave motion sensor for Building Lobby
This is 8inch Round recessed led downlight with external Microwave Motion Sensor Driver, With the sensor driver, it will turn on automatically when it detect movement within 6-8 meters radius, and turn off (or Dimming) when the last motion ceased. Ideal for corridor, hallway, staircase, basement, passageway, Porch. etc.
Saving 80% energy than traditional lamps, As the traditional lamps light up 24 hours a day, However, the sensor downlight only light up when there is person or any movement. The average power is only 5-6 Watt an hour. Our sensor lights are the best saving energy choice for public lighting solution. Intelligent, Energysaving, Energy management.
led down lights with sensor
Company Information
Sensor Downlight
| Input Characteristics | ||||
| Model No. | AM-3.5DGY | AM-4.0GY | AM-6.0DGY | AM-8.0DGY |
| Mains voltage | 180~265V | 100-265V | 100-265V | 100-265V |
| Stand-by power | <0.5W | <0.5W | <0.5W | <0.5W |
| Rated Power | 4-7W | 6-9W | 12-15W | 15-18W |
| LED Qty | 45pcs* SMD2835 | 60pcs* SMD2835 | 90pcs* SMD2835 | 120pcs* SMD2835 |
| Output Lumen | 400 lm | 600 lm | 900 lm | 1500lm |
| Color Temperature | 2700K/6000K | 2700K/6000K | 2700K/6000K | 2700K/6000K |
| Power Factor | 0.5 | 0.5 | 0.5 | 0.5 |
| Lumen Efficiency | >80lm/W | >80lm/W | >80lm/W | >80lm/W |
| CRI (Ra) | >80 | >80 | >80 | >80 |
| Cut-out/ Hole size (mm) | Φ90~100 | Φ115~125 | Φ150~160 | Φ190~200 |
| Faceplate* Height (mm) | Φ120*30 | Φ145*30 | Φ180*30 | Φ220*30 |
| Sensor Data | ||||
| Sensor principle | HF Microwave | HF Microwave | HF Microwave | HF Microwave |
| Operation Frequency | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz |
| Transmission power | <0.2mW | <0.2mW | <0.2mW | <0.2mW |
| Detection range: Max(diameter*H) | 8m*6m radius | 8m*6m radius | 8m*6m radius | 8m*6m radius |
| Detection angle | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° |
| Hold time | 15+/-5s | 15+/-5s | 15+/-5s | 15+/-5s |
| Sensor Mode | On/Off ; Full/Dim | On/Off ; Full/Dim | On/Off ; Full/Dim | On/Off ; Full/Dim |
| Environment | ||||
| Operation Temperature(Ta) | -10~40°c | -10~40°c | -10~40°c | -10~40°c |
| IP Rating | IP20 | IP20 | IP20 | IP20 |
FAQ
Customer Questions & Answers
- Sensor type A: ON/OFF Mode (100%-0%)
When detect movement lighting, Light turn on at 100% brightness,
No movement, stand by status light off (0%)
- Sensor type B: Full/Dim Mode (100%~20%)
When detect movement lighting, Light turn on at 100% Brightness,
No movement, stand by status lighting turn to 20% (2-3 watt)
- Delay time: 20 seconds
Mean: the last movement past, light still keep on lighting 20 seconds
- Quality control:
We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.
- Warranty : 2 years
- Application:

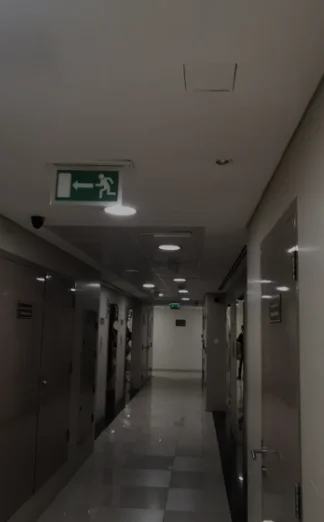

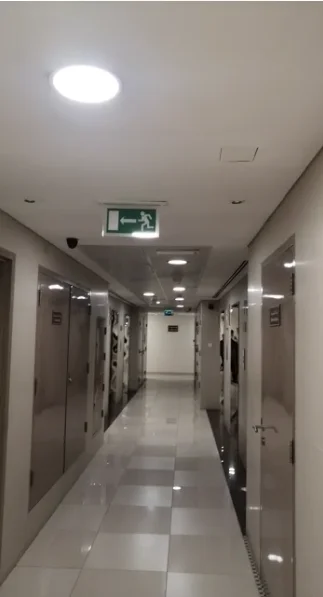

Ideal for domestic applications such as Corridor, cabinets, hallway, Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.
Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives.
Contact us for samples and more details
Contact us for samples and more details
Contact and Company
♥ ♥ ♥ CUSTOMER FEADBACK ♥ ♥ ♥
Contact us for samples and more details
