Q37 Series Hook Type Shot Blasting machine is for surface cleaning or strengthening treatment of small castings, forging parts in industry of foundry, building, chemical, motor, machine tool etc. It is special for surface cleaning and blasting strengthening on various types, small production castings, forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wallparts which is not suitable for impact.

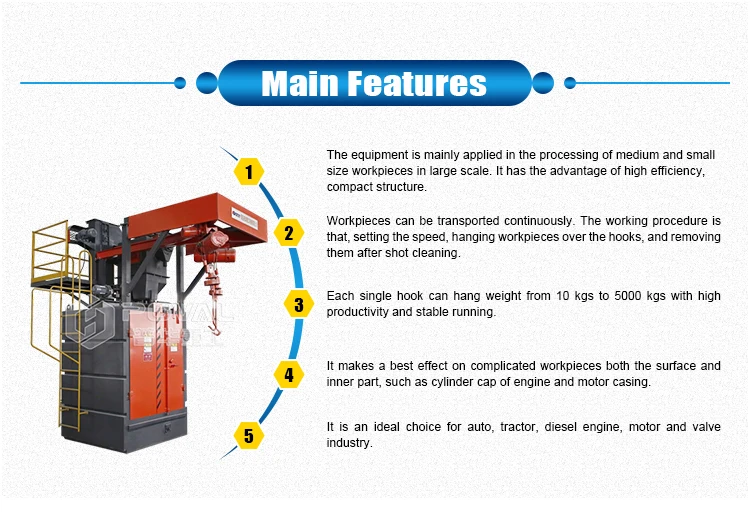

Main Features

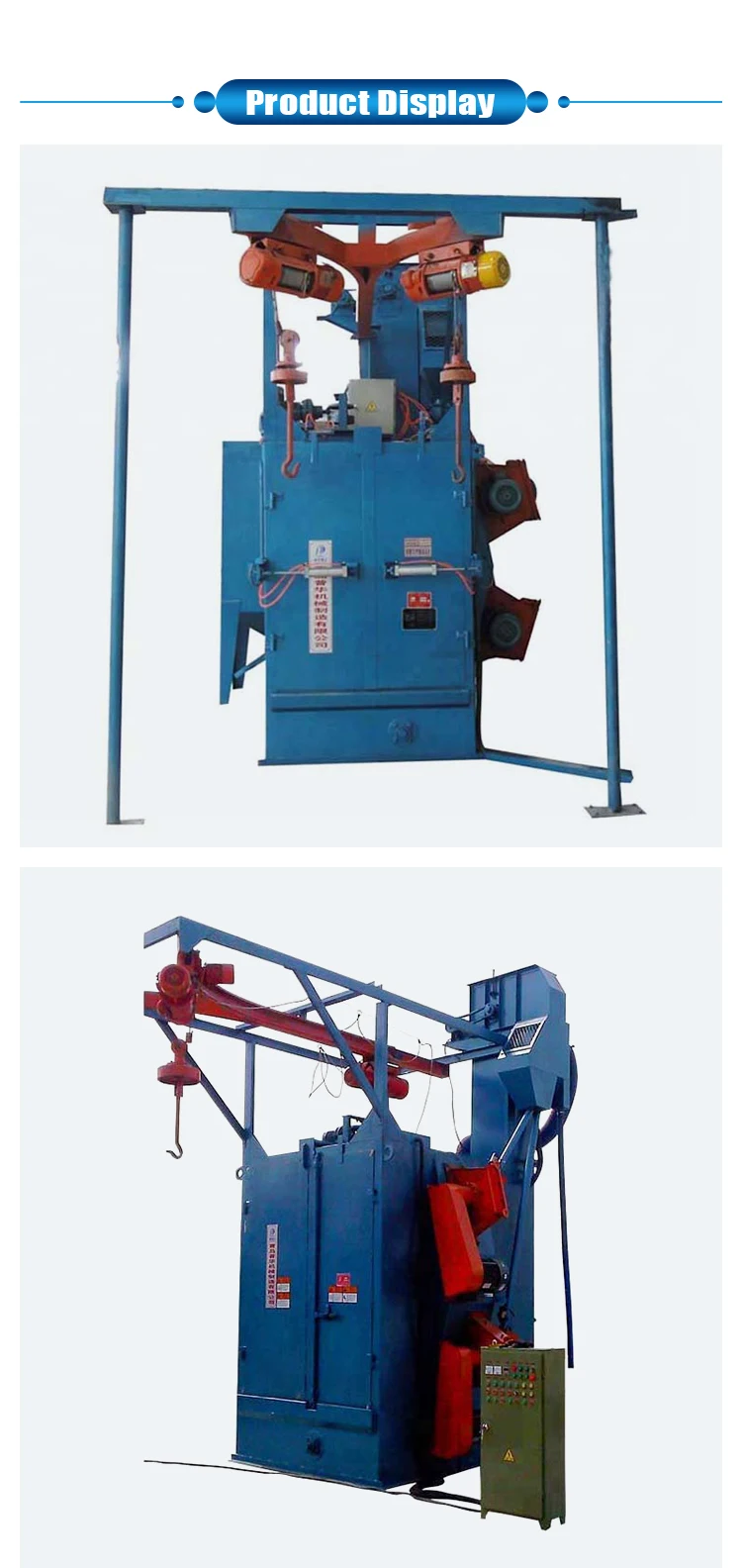

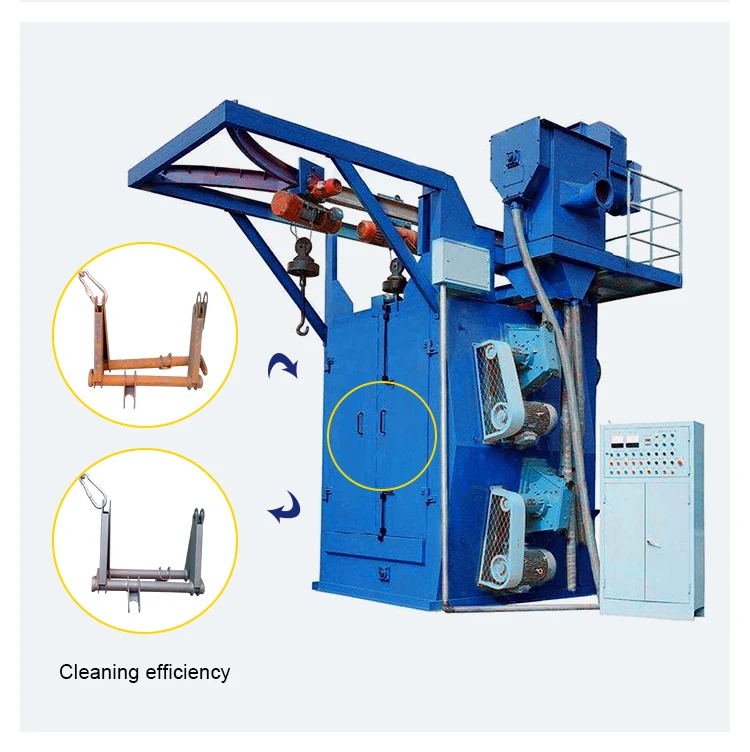

This series is hook type shot blasting machine, is mainly used for surface cleaning of casting, structure, non-ferrous and other parts. This series shot blasting machine have many types, such as single hook type, double hook type, lifting type, non-lifting type. It has advantage of non-pit, compact structure, high productivity, etc.
1). The equipment is mainly applied in the processing of medium and small size workpieces in large scale. It has the advantage of high efficiency, compact structure.
2). Workpieces can be transported continuously. The working procedure is that, setting the speed, hanging workpieces over the hooks, and removing them after shot cleaning.
3). Each single hook can hang weight from 10 kgs to 5000 kgs with high productivity and stable running.

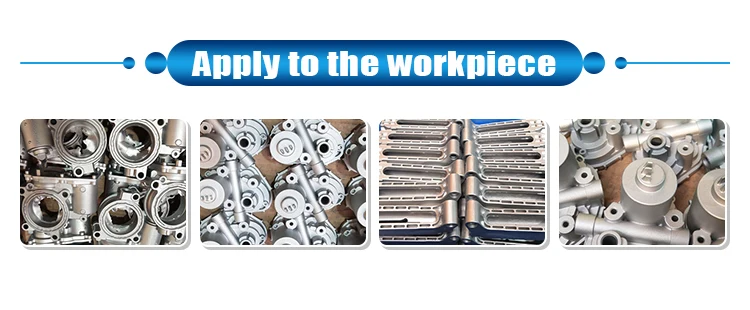

4). It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor casing.
5). It is an ideal choice for auto, tractor, diesel engine, motor and valve industry. Sh
Main Features
This series is hook type shot blasting machine, is mainly used for surface cleaning of casting, structure, non-ferrous and other parts. This series shot blasting machine have many types, such as single hook type, double hook type, lifting type, non-lifting type. It has advantage of non-pit, compact structure, high productivity, etc.
1). The equipment is mainly applied in the processing of medium and small size workpieces in large scale. It has the advantage of high efficiency, compact structure.
2). Workpieces can be transported continuously. The working procedure is that, setting the speed, hanging workpieces over the hooks, and removing them after shot cleaning.
3). Each single hook can hang weight from 10 kgs to 5000 kgs with high productivity and stable running.
4). It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor casing.
5). It is an ideal choice for auto, tractor, diesel engine, motor and valve industry. Sh
Item | Unit | Q376 | Q3710 | Q3720 | Q3730 | Q3750 (customizable ) |
Maximum weight of cleaning | kg | 500 | 1000 | 2000 | 3000 | 5000 |
Abrasive flow rate | kg/min | 2*200 | 2*250 | 3*250 | 3*250 | 4*250 |
Ventilation on capacity | m³/h | 5000 | 5000 | 9000 | 11000 | 14000 |
Lifting amount of elevating conveyor | t/h | 24 | 30 | 45 | 45 | 60 |
Separating amount of separator | t/h | 24 | 30 | 45 | 45 | 60 |
Max overall dimensions of suspender | mm | 600* 1200 | 1200* 1800 | 1400* 2200 | 1600* 2300 | 1800* 2500 |
1. Production time:
20-40 days according to different type.
2. Installation and commissioning time:
10-15 days.
3. Installation and commissioning issue:
We will send 1-2 technicians to help with machine installation and commissioning, customer pays for their tickets, hotel and diet.
4. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
5. Payment term:
30% as prepayment, balance 70% before delivery or L/C at sight.
6. We supply full english documents:
including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
20-40 days according to different type.
2. Installation and commissioning time:
10-15 days.
3. Installation and commissioning issue:
We will send 1-2 technicians to help with machine installation and commissioning, customer pays for their tickets, hotel and diet.
4. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
5. Payment term:
30% as prepayment, balance 70% before delivery or L/C at sight.
6. We supply full english documents:
including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
