Intelligent Multi-span Seedling Glass Greenhouse Green House
Commercial Venlo Glass Covered Greenhouse for Sale
Venlo Glass Greenhouse is widely applied to high end intelligent greenhouse. With more large galvanized steel frame, specific grid, truss structure, it bears much more load than plastic film greenhouse. With it's good resistance to wind and snow, it helps production of food in severe harsh climate area. The unique design of the dual-slope roof increase the drainage and ventilation of the greenhouse. The light transmittance is more than 90%. Long life time of the main body over many years. It can be equipped the most functional supporting systems with inside and outside shading system, roof and side window ventilation system, wet curtain and fan cooling system and so on.
Other equipment can be applied according to the user's planting needs.
Venlo Glass Greenhouse is widely applied to high end intelligent greenhouse. With more large galvanized steel frame, specific grid, truss structure, it bears much more load than plastic film greenhouse. With it's good resistance to wind and snow, it helps production of food in severe harsh climate area. The unique design of the dual-slope roof increase the drainage and ventilation of the greenhouse. The light transmittance is more than 90%. Long life time of the main body over many years. It can be equipped the most functional supporting systems with inside and outside shading system, roof and side window ventilation system, wet curtain and fan cooling system and so on.
Other equipment can be applied according to the user's planting needs.

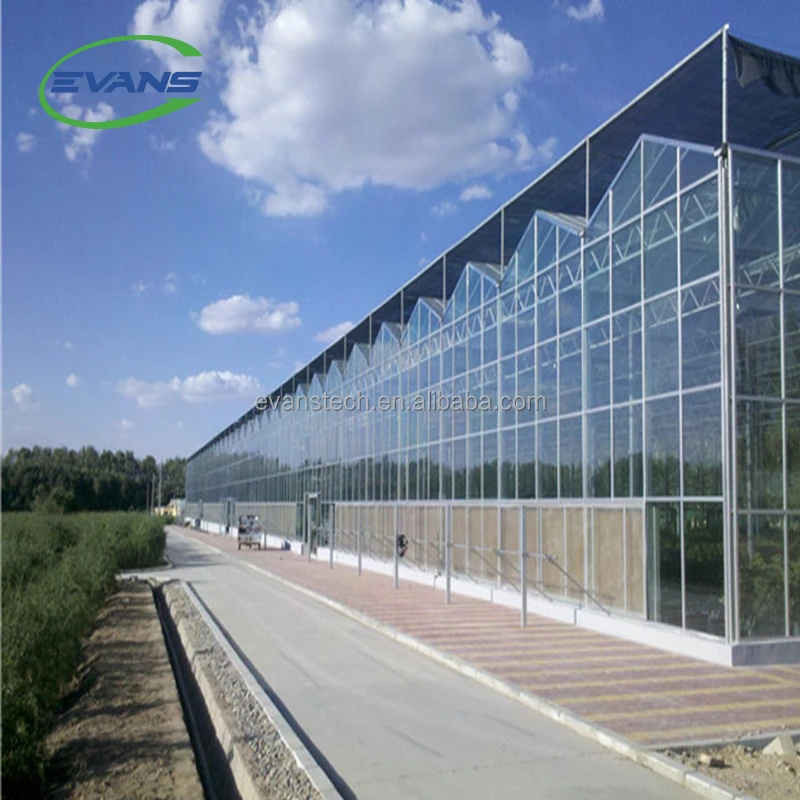

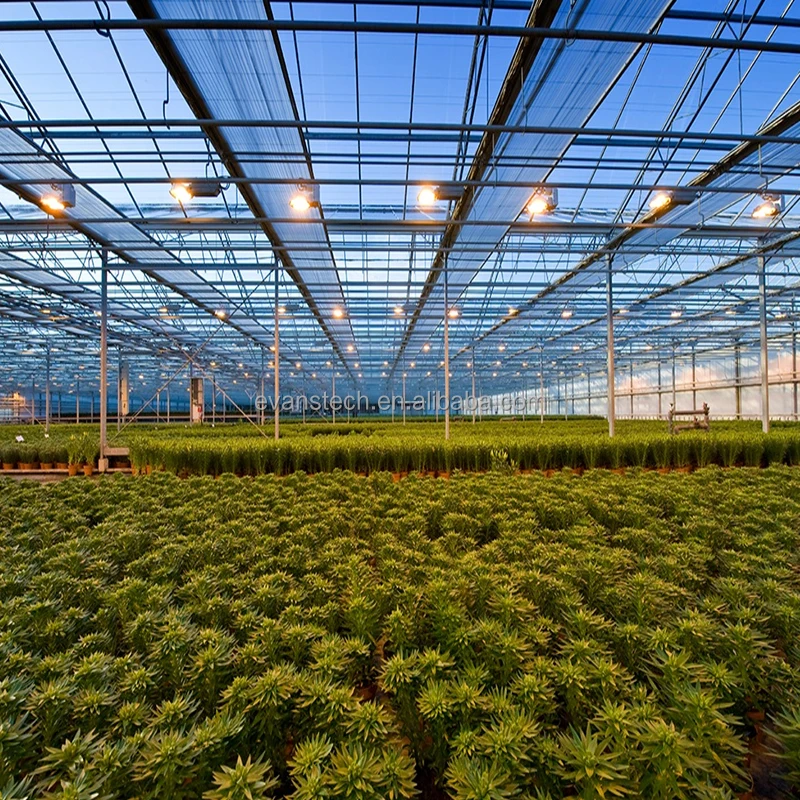

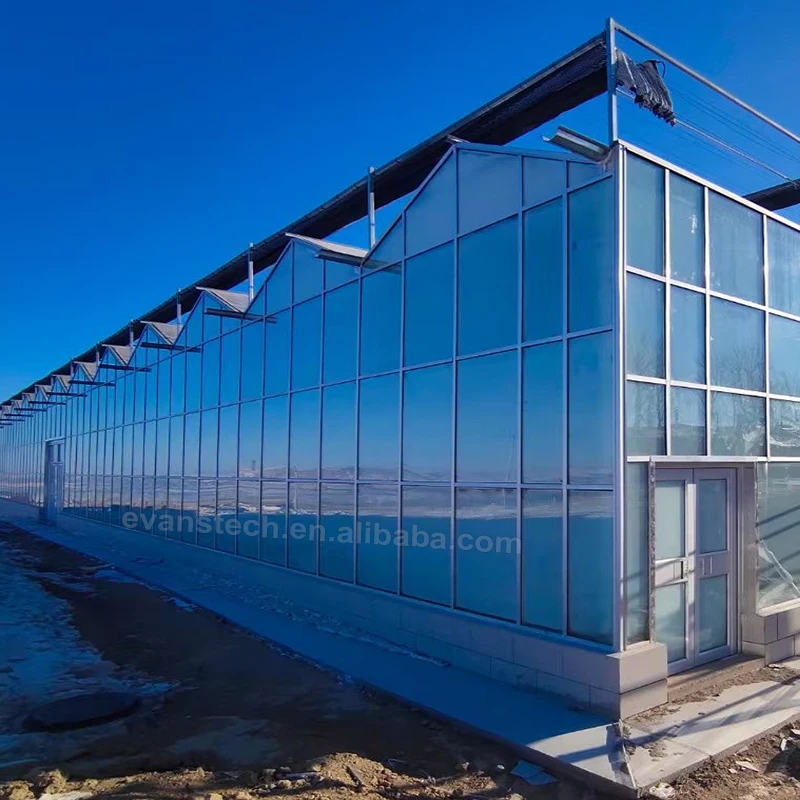

Venlo Glass Greenhouse
1. Good drainage ability 2. Modern and elegant appearance
3. High degree of automation
4. Strong and stable structure
5. High transmittance
6. Long life time of service
7. Cooling, heating, irrigation, misting, lighting, electric control, intelligent control and other supporting system and equipment can be applied to.
Product Paramenters
Paramenters | Modern Venlo Greenhouse with Tempered Glass Panel | Multi-span Plastic Foil Greenhouse | ||
Span | 8m, 9.6m, 10m.../customized | 8m or customized | ||
Section | 4m, 8m.../ customized | 4-8m | ||
Shoulder Height | 3-6m / customized | 2-5m | ||
Ridge Height | 4-7m / customized | 4-8m | ||
Main Frame | Hot galvanized steel frame | Galvanized steel pipe | ||
Covering | Single layer/ Double layer tempered glass | 100-200micron PE/PO foil | ||
Ventilation | Side and roof ventilation | Manual / Electric ventilation | ||
Supporting Systems | Cooling pad and fan system, 10%-95% shading system, blackout light deprivation system, lighting system, circulation system, irrigation system, electric control system, intelligent control system etc. | Cooling pad and fan, heating, lighting, circulation fan, irrigation, shading, intelligent control systems etc. | ||
Application | Tomato, cucumber, chilly pepper, eggplants, flowers, herbs... Large-scale production of seedling or cultivation, Scientific research, exhibition etc. | |||
Feel free to contact further to work out the perfect greenhouse solution specially for you! | ||||
Details Images

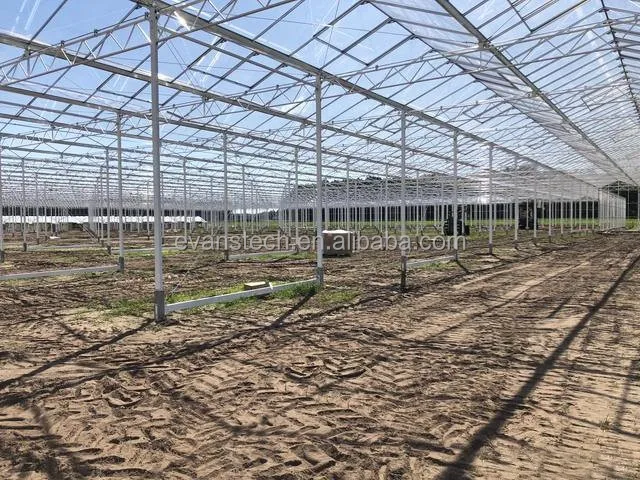

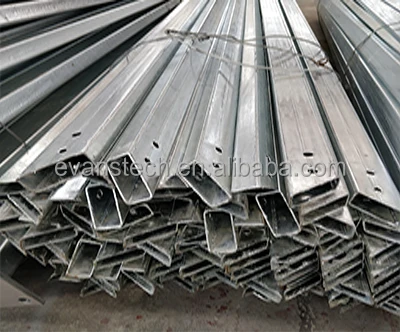

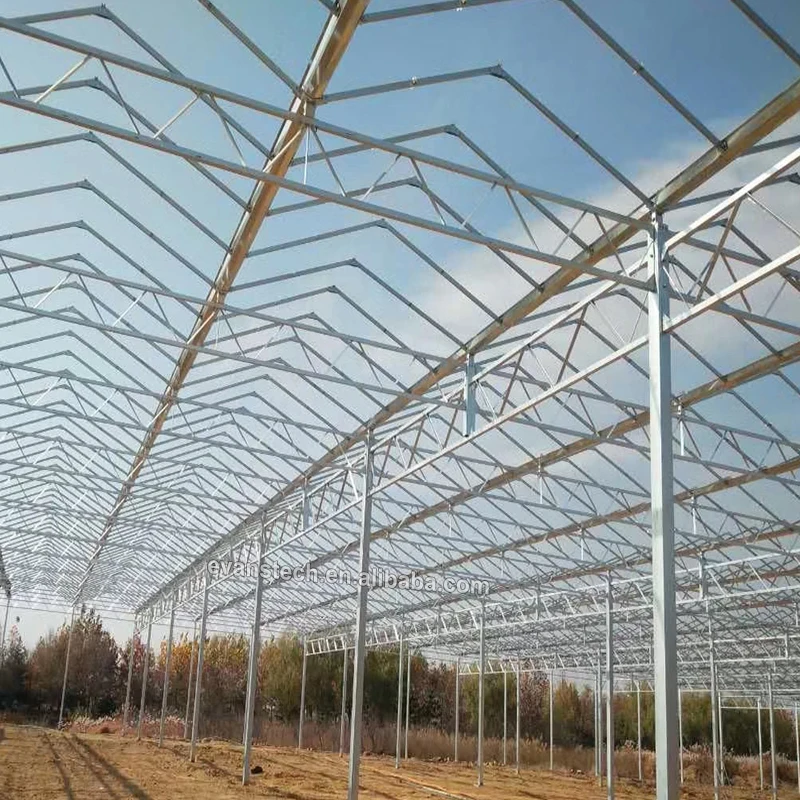

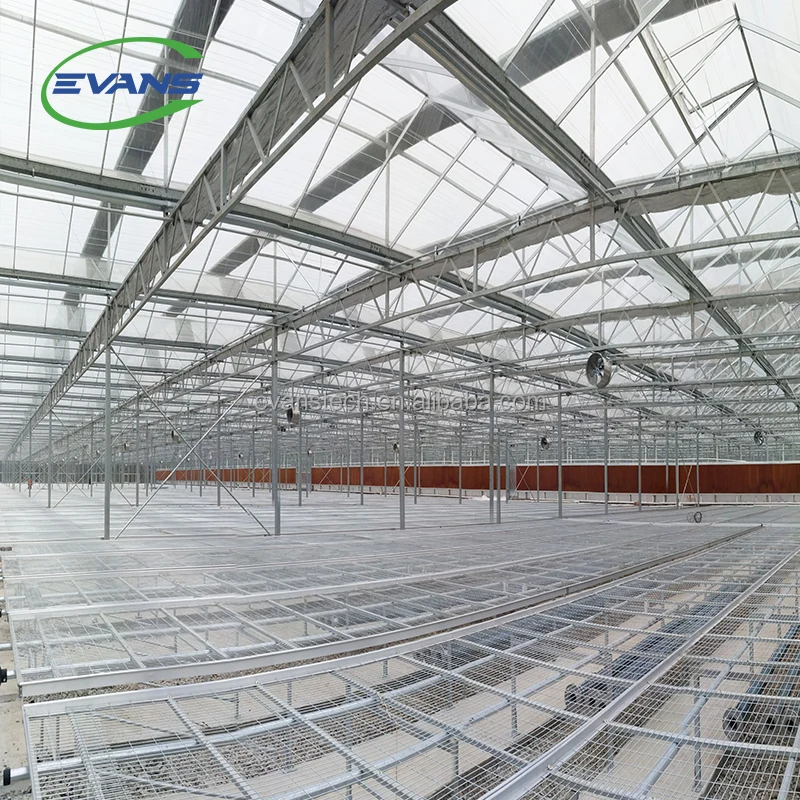

Main Frame:
*Main frame of our greenhouse are all made of galvanized steel pipe structure.
*Practicability of performance and operation, elegant appearance, stable and strong load-bearing, good wind
resistance are all considered during design.
resistance are all considered during design.
* All the pipes and spare parts can be fixed with bolts and nuts, usually no welding needed at site.
* Long life time for greenhouse main body.
* Customized design available according to specific project
Covering Material
Covering Material
Material: Tempered Glass, Diffused Glass
Thickness: 5mm, 4+9+4mm, 5+6+5mm...
Light Transmission ≥ 90%
UV stabilized, diffused treated available
Circulation Fan System
Circulation Fan System
Helps to keep good balance of temperature, humidity, moisture inside of the greenhouse

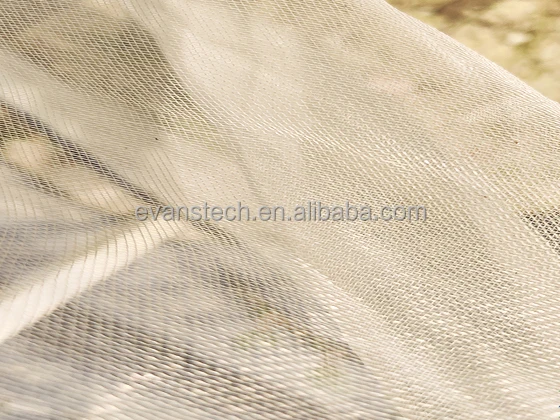

Insect net
Insect net
100% new raw material PE Insect net applied to all ventilation makes sure of good anti insect effect while have good fresh air flow.
Plants grow more healthy with less pesticide.
40 meshes, 60 meshes are used for most of cases.
Different Type of Insect Net Sealing Available

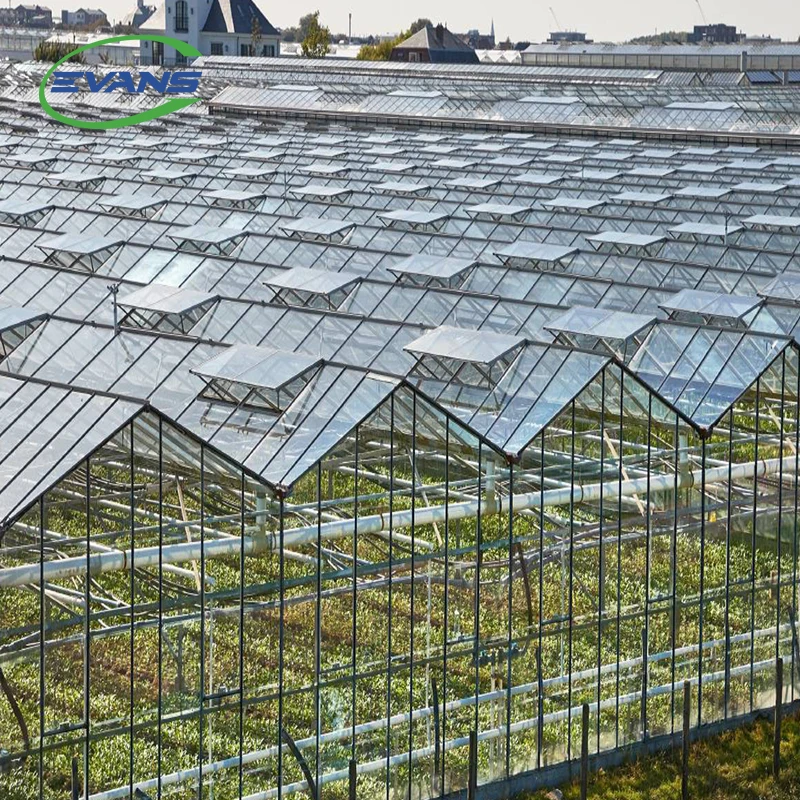

Ventilation System
Ventilation System
Mostly the ventilation in glass greenhouse are rack and pinion mechanism ventilation. With electric control, the window can be operated easily so as to removing heat and moisture from the greenhouse, keeping the temperature within the greenhouse within the range suitable for plant growth.
Contact for More Way of Ventilation

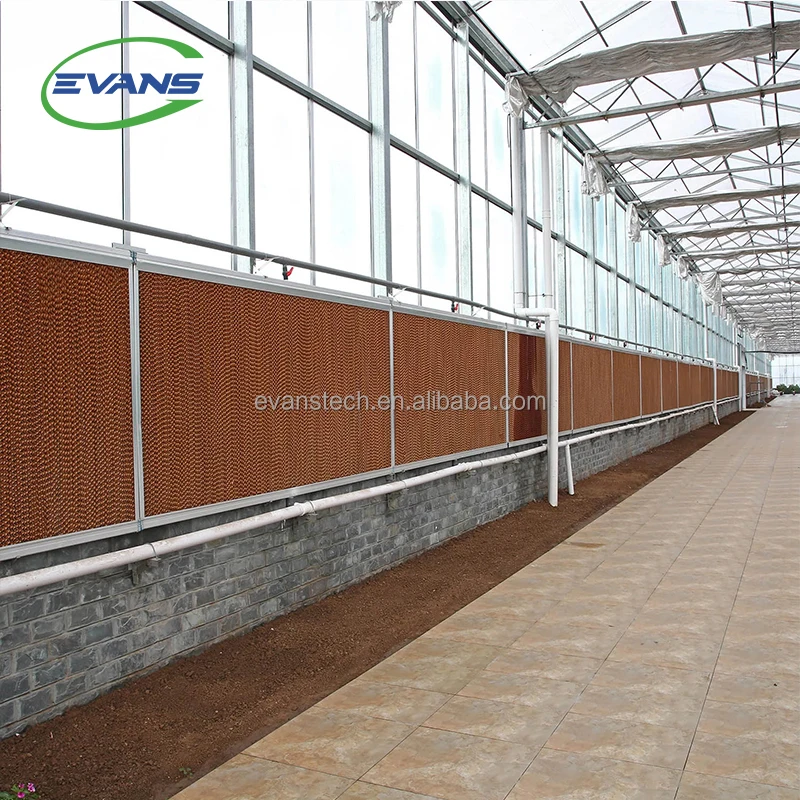

Supporting System
Comprehensive Supporting Systems

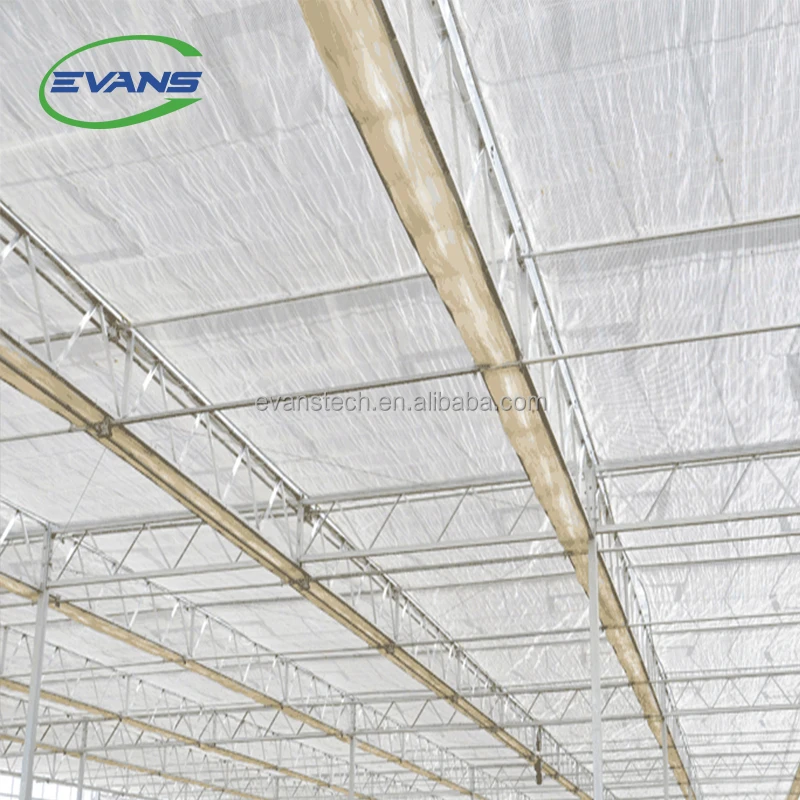

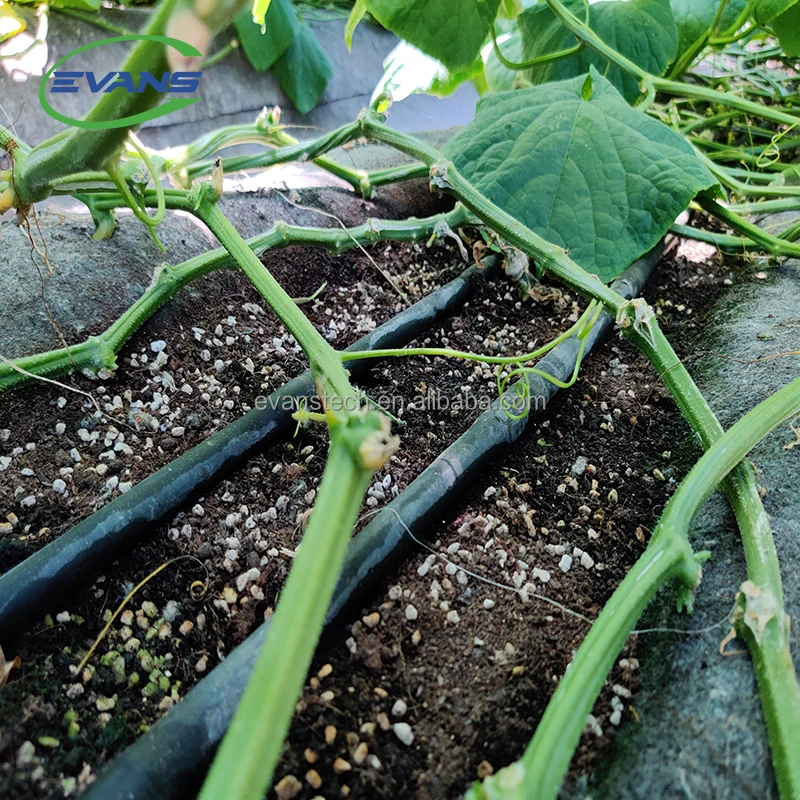

Cooling pad and fan system, misting and dripping irrigation, internal and external shading system, Blackout light deprivation curtain shading, heating system, air circulation system, seedling rolling bench system, ebb and flow rolling bench table, grow light system, electric control, intelligent computer control system etc.
