4030uv принтер UV печатная машина цена бумажная коробка печать uv a3 pro Размер планшетный
- Категории: Печатное устройство >>>
- Поставщик: Shanghai,Rainbow,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

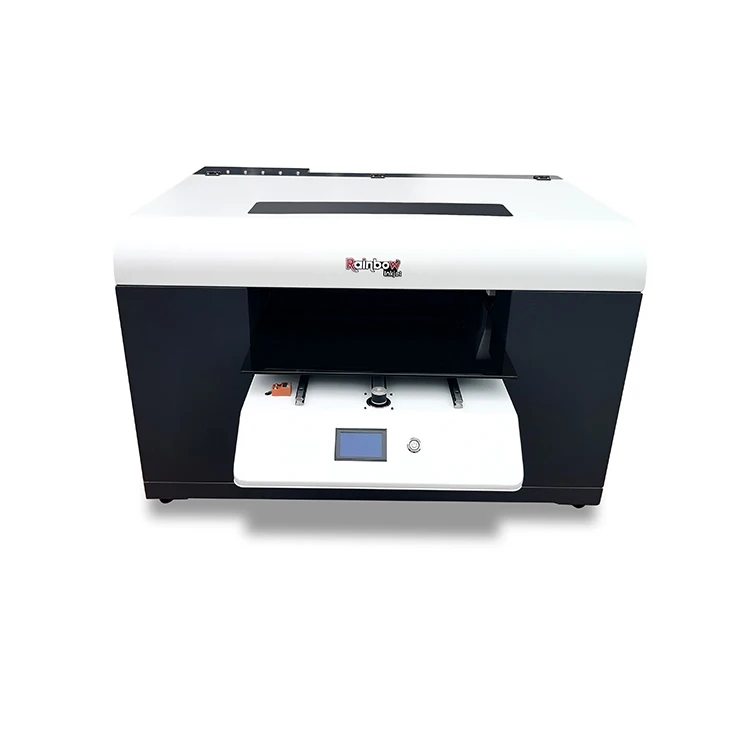

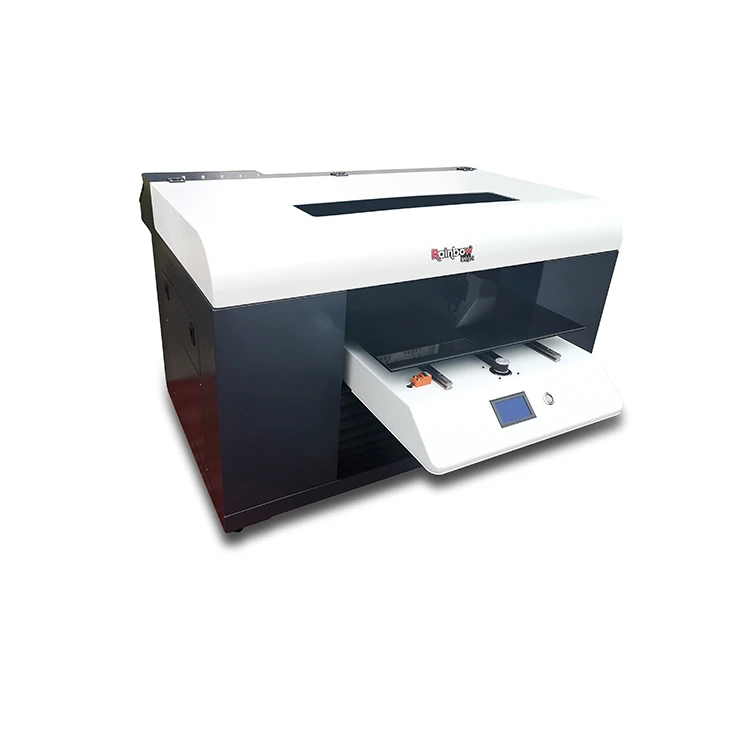

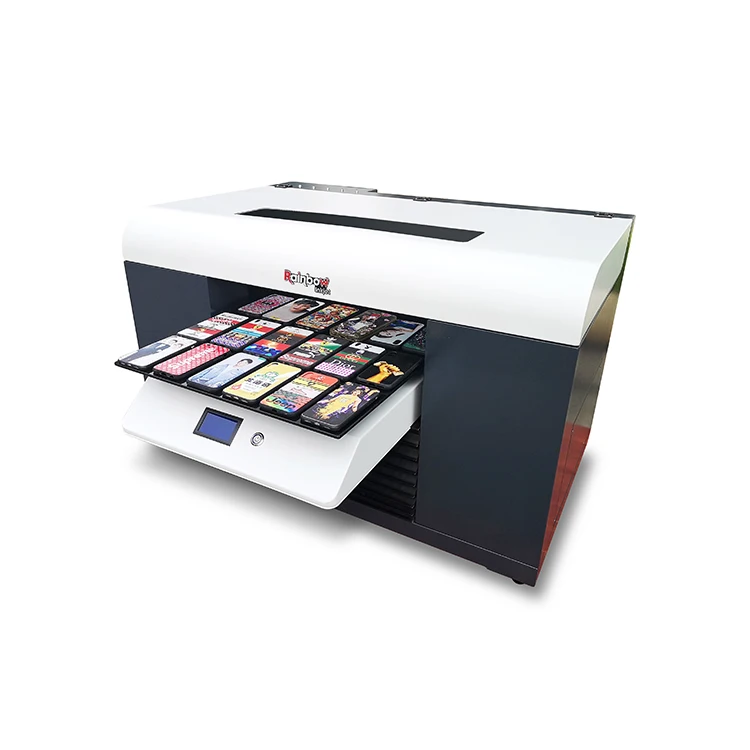

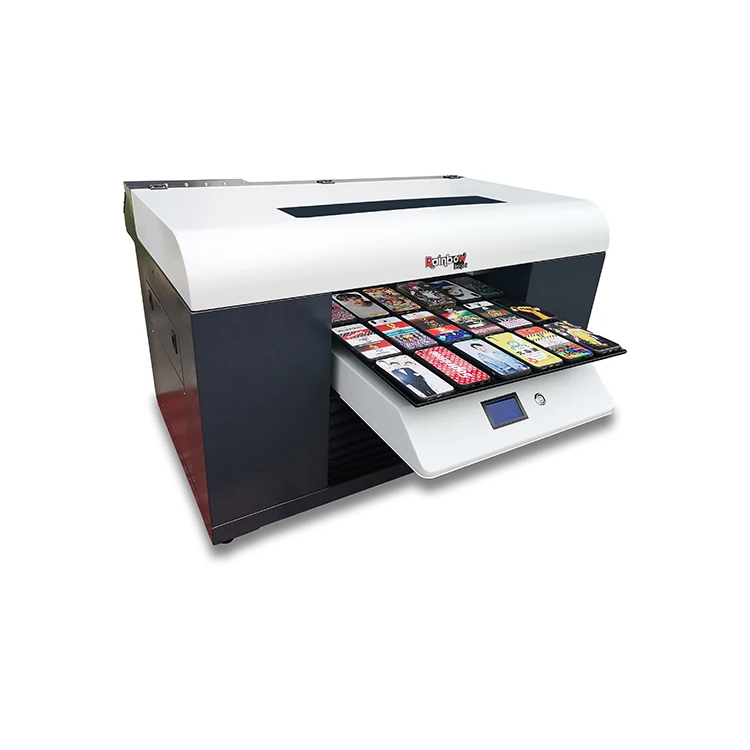

Specs of Rainbow Nano 7 UV flatbed printer | ||||||
Name | Rainbow Nano 7 A2+ digital uv printer | Working Environment | 10 ~ 35 ℃ HR40-60% | |||
Machine Type | Automatic Flatbed UV digital printer | Printer Head | Double Printer Heads | |||
Features | · The UV light source can be adjusted | RIP Software | Maintop 6.0 or PhotoPrint DX 12 | |||
· Auto height measurement | Operation System | All Microsoft Windows system | ||||
. Power auto flash clean | Interface | USB2.0/3.0 Port | ||||
·Print on most material directly | Languages | English/Chinese | ||||
· Ideal for industrial bulk production with high printing speed | Ink Type | UV LED curing ink | ||||
· Finished products is Water proof, UV proof, and Scratch proof | Ink System | CISS Built Inside With Ink Bottle | ||||
· Finished product is suitable for outdoor use | Ink Supply | 500ml/Bottle | ||||
· Max printing Size: 50*70cm | Height Adjustment | Automatic with Sensor. | ||||
· With fixed angel | Driving Power | 110 V/ 220 V. | ||||
· The printing machine can print white color and 3D emboss effect | Power Consumption | 500W | ||||
Materials to Print | · Metal, Plastic, glass, wood,Acrylic, Ceramics,PVC,Steel board,Paper, | Media Feeding System | Auto/Manual | |||
·TPU, Leather, Canvas, etc | Ink Consumption | 9-15ml/SQM. | ||||
UV Curing System | Water Cooling | Print Quality | 720×720dpi/720*1080DPI（6/8/12/16pass） | |||
Printing Method | Drop-on-demand Piezo Electric Inkjet | Machine Dimension | 106x104x65CM | |||
Printing Direction | Smart Bi-directional Printing Mode | Packing Size | 116x114x85CM | |||
Printing Speed | About 4 minutes for 720*720dpi, 500mm*700mm size | Machine Net Weight | 55kg | |||
Max. Print Gap | 16cm | Gross.Weight | 70kg | |||
Power Requirement | 50/60HZ 220V(±10%)<5A | Packing Way | Wooden Case | |||
Details Images

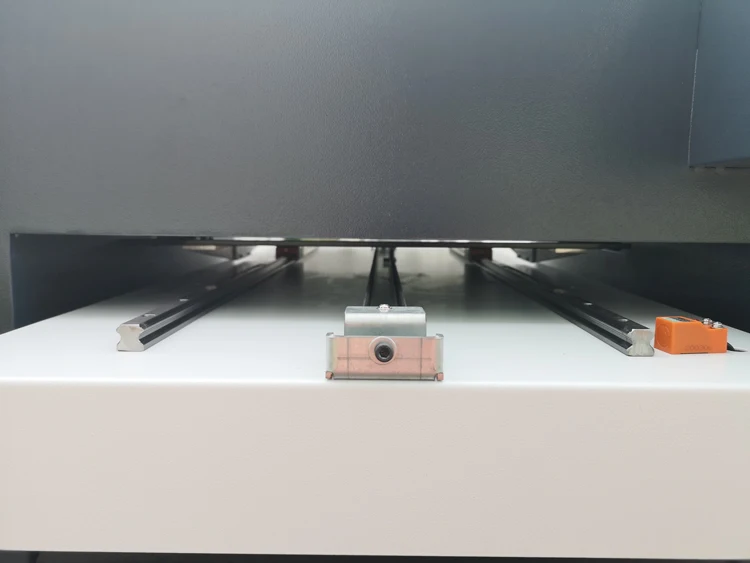

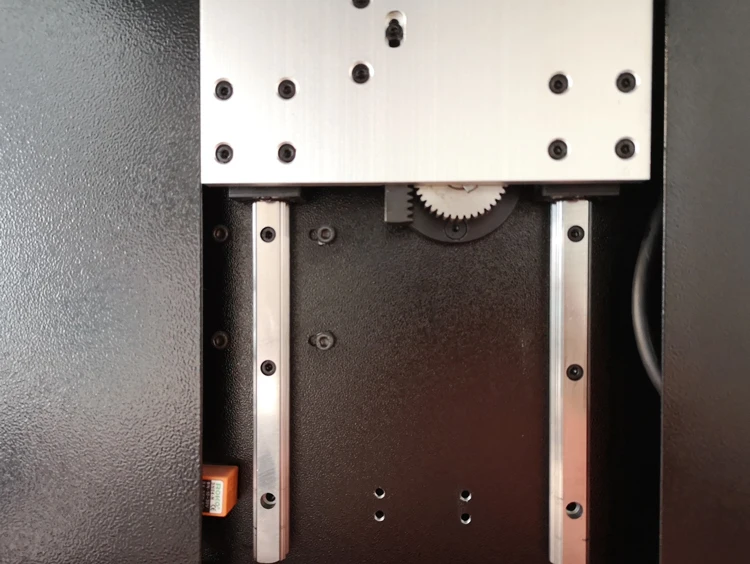

Nano 7 uses 4 pieces Hiwin brand accurate linear guide rail with long lifespan.
Hiwin brand linear guide rail ensured the smooth and silence working of the print head up and down, flatbed move forth and back.

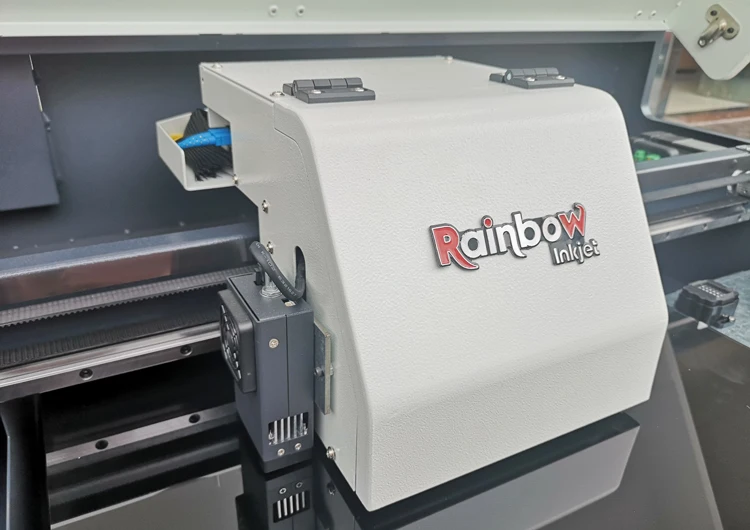

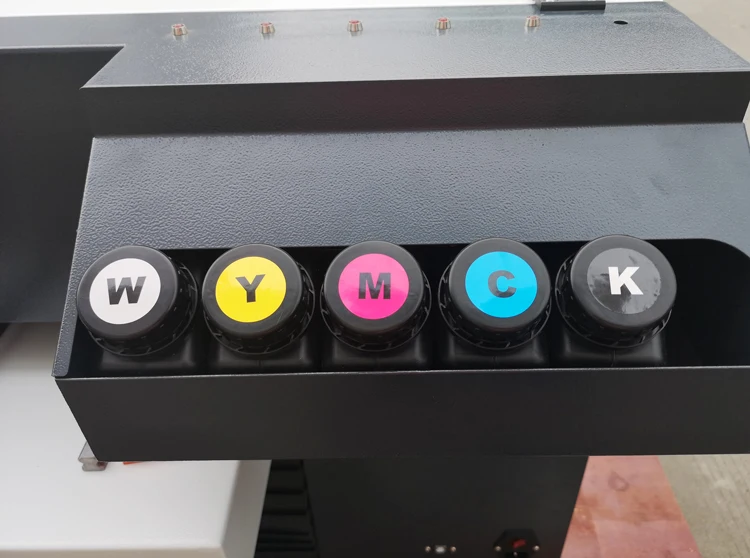

Nano 7 equipped with double print head + CMYKW all colors printing.
Double print head with all colors quick printing.

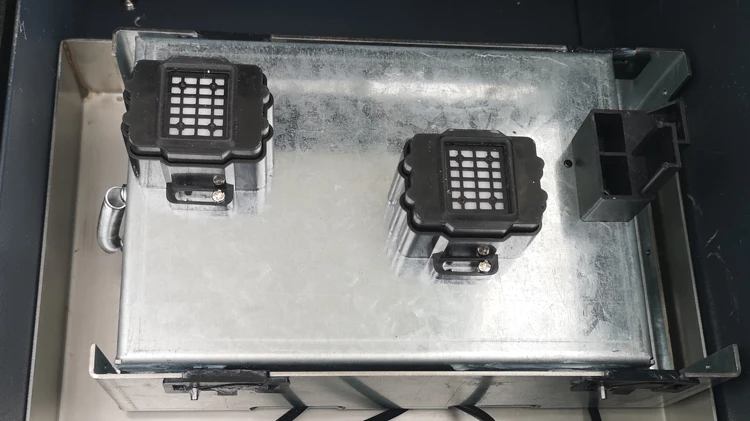

Ink stack: it adopts the precise sliding and leaning ink stack to precisely and automatically clean, moisturize and wipe the ink, which is convenient to use and effectively prolong the service life of the nozzle.

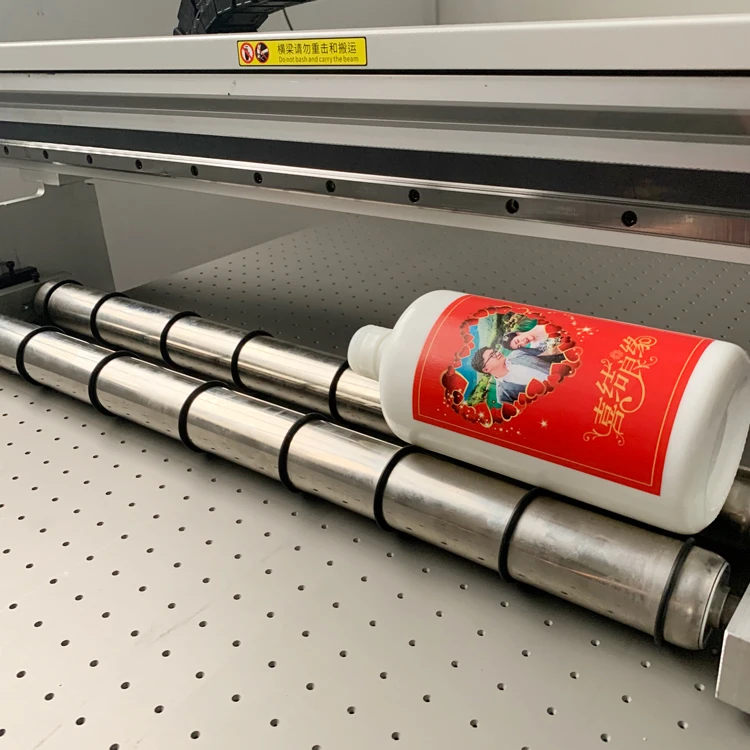

360° rotary bottles printing + mug with handle printing.
Nano 7 equipped with two kinds of rotary devices for any bottles printing, the allowed diameter is from 1cm to 55cm, all tiny cylinder can be printed
3D embossed effect.
The uv printer can print with 3D effect and texture effect.

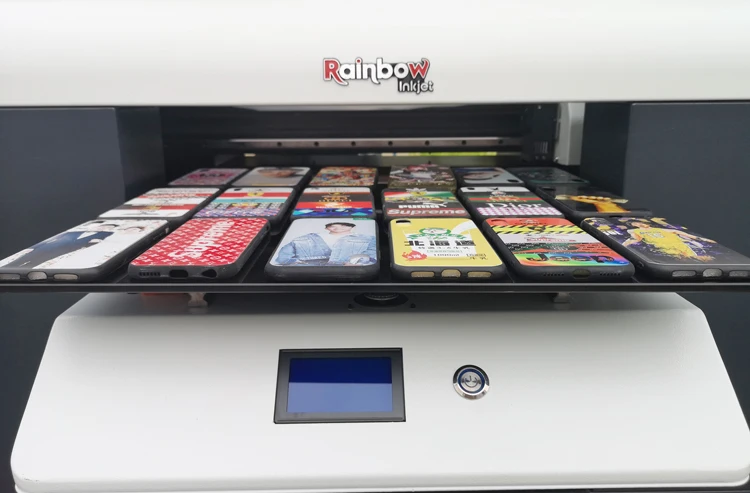

Good quality LED display for convenient use, industrial UV curable light make sure ink dry instant after printing.
Q1:What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather, wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink
dampers.
dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
