Products Description

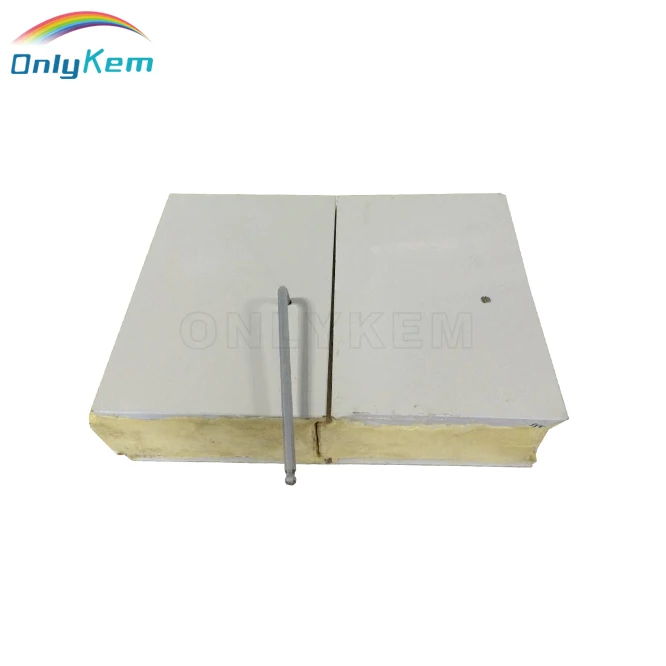

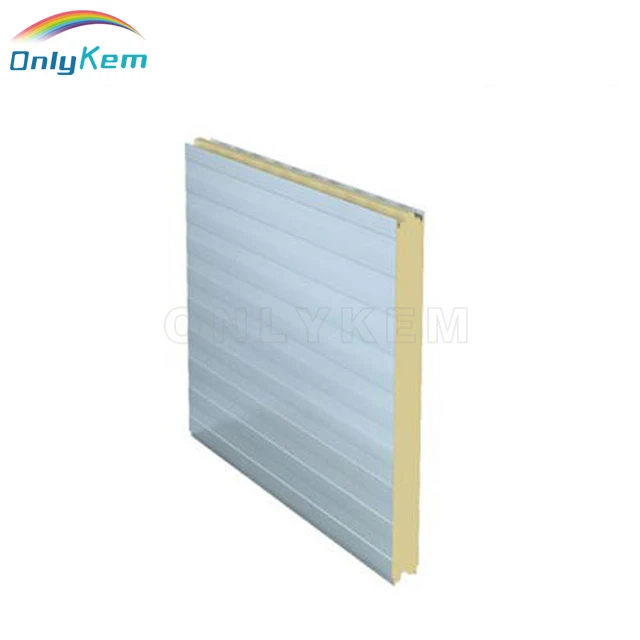

PU Sandwich Panel
PU Sandwich Panel Widely used as wall panel( wall sheet) & roof panel(roof sheet) for good insulation in large industrial plants,
warehouse, supermarkets, hospital, stadiums,cold storage,activity room, office building, pharmaceutical factory, clean workshopand other heat insulation place.

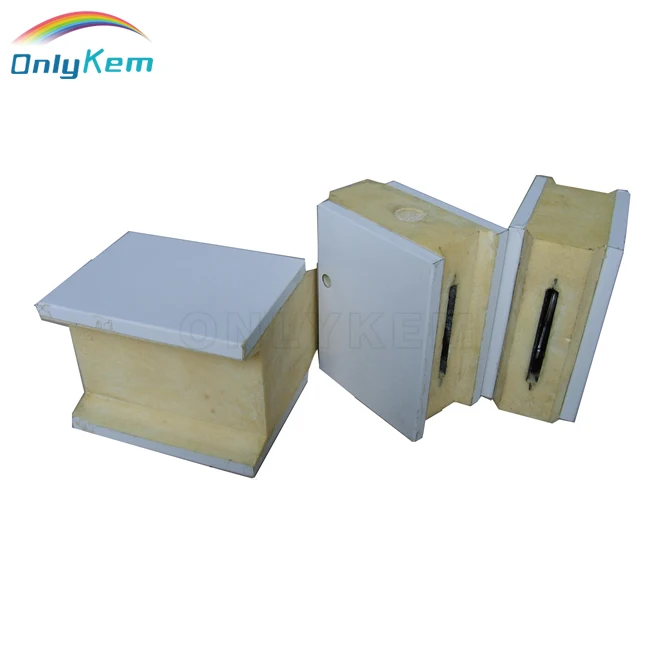

Details Images
This product with easy installation and good insulation which is
applied widely in: cold store, ceiling, temporary house,dormitories,warehouse,workshop and etc.
1. Outer materails specification of Polyurethane Foam Insulated Sandwich Panels Prices
1) Two sides: painted steel sheet, stainless steel sheet and hot-galvanized steel sheet for customers' option
2) Thickness(mm): 0.32~1.5mm
3) Color: According to customer requirement, default is milk white.
4) Width: 980mm, 1180mm
5) Length:According to customer requirement,the max length is 8700mm.
2.Sandwich core: Polyurethane(PU)
Density: 38-40(kg/m3), 40-42(kg/m3), 42-45(kg/m3).
Thickness(mm): 75, 100, 120, 150, 200.
3.Fireproof:According to customer requirement
As long as it leave the fire, will extinguish itself
applied widely in: cold store, ceiling, temporary house,dormitories,warehouse,workshop and etc.
1. Outer materails specification of Polyurethane Foam Insulated Sandwich Panels Prices
1) Two sides: painted steel sheet, stainless steel sheet and hot-galvanized steel sheet for customers' option
2) Thickness(mm): 0.32~1.5mm
3) Color: According to customer requirement, default is milk white.
4) Width: 980mm, 1180mm
5) Length:According to customer requirement,the max length is 8700mm.
2.Sandwich core: Polyurethane(PU)
Density: 38-40(kg/m3), 40-42(kg/m3), 42-45(kg/m3).
Thickness(mm): 75, 100, 120, 150, 200.
3.Fireproof:According to customer requirement
As long as it leave the fire, will extinguish itself
4. Panel inspection result:
Inspection Item | Unit | Technology requirement | Inspection result |
Density | kg/m3 | 32~50 | 43 |
Compressing strength | Kpa | ≥ 160 | 200 |
Bending Strength | Kpa | ≥ 245 | 331 |
Absorbing rate | % | ≤ 4 | 3 |
Heating coefficient | W/mk | 0.024 | 0.021 |
Average burning time(vertical) | S | ≤ 30 | 3 |
Average burning height(vertical) | s | ≤ 250 | 250 |
5.Panels information for Polyurethane Foam Insulated Sandwich Panels Prices
Insulation material | 100% polyurethane, with gasket, with flame retardant |
panel steel cover | SS, GI, aluminum etc |
office Foam panel | 50mm thickness |
standard width | 960mm |
processing room 10℃ | 50mm/ 75mm PU |
5℃ | 75mm/ 100mm PU |
-18℃ | 100mm/ 150mm PU |
-25/ -35℃ | 150mm/200mm PU |

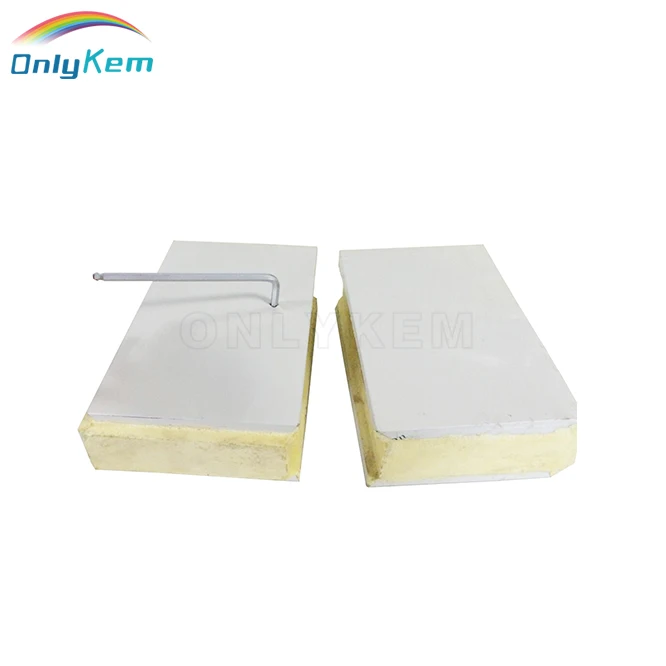

Workshop PU Panel
