Круглый корпус Люка из нержавеющей стали 316L для пищевых
- Категории: Forging >>>
- Поставщик: Linch,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Pressure Vessel Stainless Steel 316L Food Grade Round Manhole Cover
Product Description
Hygienic grade material to meet requirement of sanitary industries
Polished inside and outside surface
Used for normal pressure tank
Application: as a cap for workers to enter the tank for cleaning or maintenance
Widely used dairy, food, chemical, beverage, pharmaceuticals, water treatment, beer, etc.
Polished inside and outside surface
Used for normal pressure tank
Application: as a cap for workers to enter the tank for cleaning or maintenance
Widely used dairy, food, chemical, beverage, pharmaceuticals, water treatment, beer, etc.
Specifications
* Material: 304 or 316L stainless steel
* Be assembled above the liquid level in the tank
* Size: 150mm-600mm
* Wall thickness: 2.0mm-3.5mm
* Height: 100mm-120mm
* Be assembled above the liquid level in the tank
* Size: 150mm-600mm
* Wall thickness: 2.0mm-3.5mm
* Height: 100mm-120mm

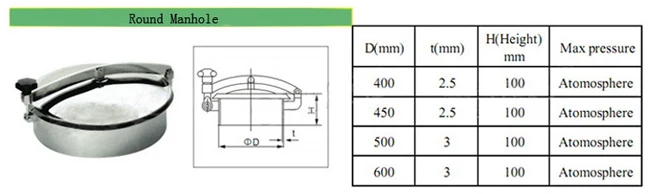

Dimensions

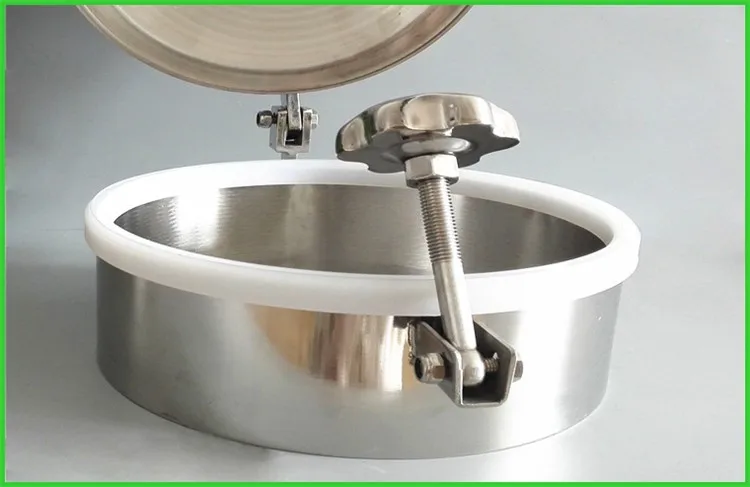

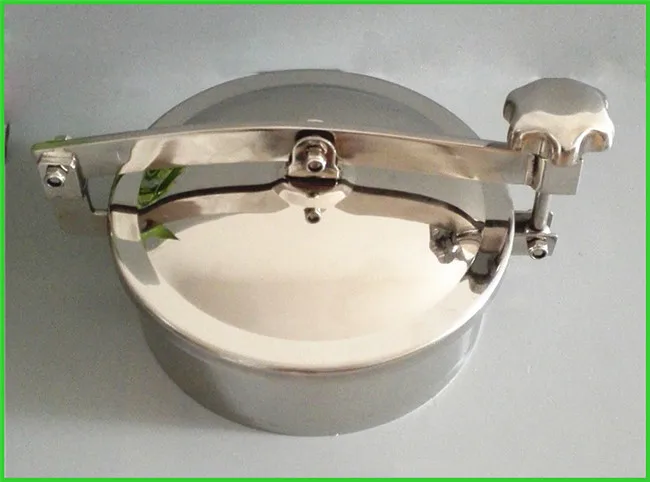

Photo Gallery:
Material | SS304 or SS316L |
Size | 435mm-535mm |
Height | 75mm |
Thickness | 8 or 10mm |
Handle Material | Nylon or SS304 |
Gasket | Silicon, EPDM, FPM |
Working pressure | 0.5Bar |
Surface Finishing | Ra≤0.8 |
Working Temperature | + 120°C (Silicon) |
