Factory Directly Sale Stainless Steel SS304 Sanitary Non Pressure Manhole Cover
Quick Details:
Made from hygienic stainless steel
Connection ends: flange, weld, thread, or tri clamp
Can withstand high pressure especially suitable for pressure vessel
Application: as a door for workers to enter the tank for cleaning or maintenance
Widely used in hygienic industries like beer, beverage, water, dairy, etc.
Connection ends: flange, weld, thread, or tri clamp
Can withstand high pressure especially suitable for pressure vessel
Application: as a door for workers to enter the tank for cleaning or maintenance
Widely used in hygienic industries like beer, beverage, water, dairy, etc.
Specifications
* Material: 316L stainless steel
* Assembled on the top of sanitary pressure tanks or vessels
* Withstand high pressure up to 10 bar
* Inner diameter ranges from 200mm to 800mm
* Wall thickness: 3mm-4mm
*Height: 80mm-120mm
* Assembled on the top of sanitary pressure tanks or vessels
* Withstand high pressure up to 10 bar
* Inner diameter ranges from 200mm to 800mm
* Wall thickness: 3mm-4mm
*Height: 80mm-120mm
Material | SS304, SS316L |
ID size | Φ200mm - 600mm |
Sight glass | DN80 (Φ200-450mm) DN100 (Φ500-600mm) |
Height | 100mm |
Pressure | 2-5bar |
Seal | EPDM, NBR, silicone |
Hand-wheel | 4-6pcs |
Thickness | 3mm (Φ200mm-450mm), 4mm (Φ500mm-600mm) |
Surface Precision | Ra < 0.8 |
Surface Process | Matt 180#, Mirror 320# |

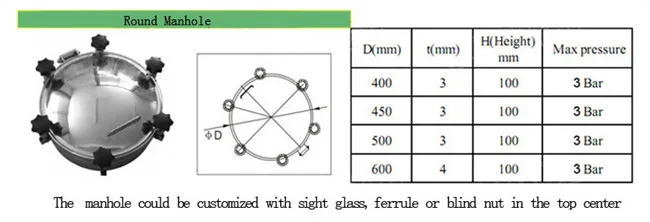

Dimensions

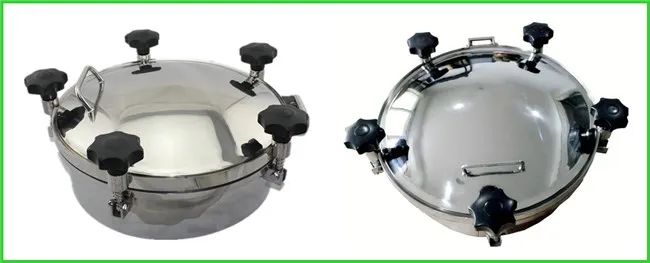

Photo Gallery:
