Product Description
Product Features:
1. 320*160mm module size design, compatible with 640 * 480mm cast aluminum cabinet, compatible with R1.667 / R1.86 / R2 / R2.5, etc;
2. Select high-performance PCB board substrate and cooperate with rigorous process to greatly reduce the "color temperature"phenomenon;

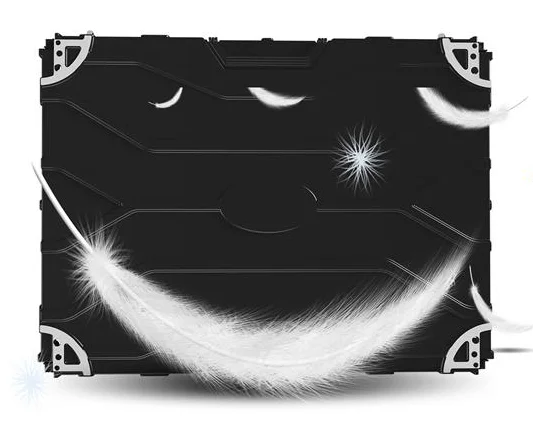

3. Cast aluminum box structure,ultra-light and ultra-thin, with a weight of 7Kg and a thickness of 65mm, unit box seamless splicing, more convenient for assembly and transportation;
4. Cablesless connecting between module and board,front maintenance design,easy installation and cost saving;
5. High precision, the box is CNC processed, the flatness is 0.2mm;
6. Reliable, high strength and good heat dissipation.
3. Cast aluminum box structure,ultra-light and ultra-thin, with a weight of 7Kg and a thickness of 65mm, unit box seamless splicing, more convenient for assembly and transportation;
4. Cablesless connecting between module and board,front maintenance design,easy installation and cost saving;
5. High precision, the box is CNC processed, the flatness is 0.2mm;
6. Reliable, high strength and good heat dissipation.
Details Show

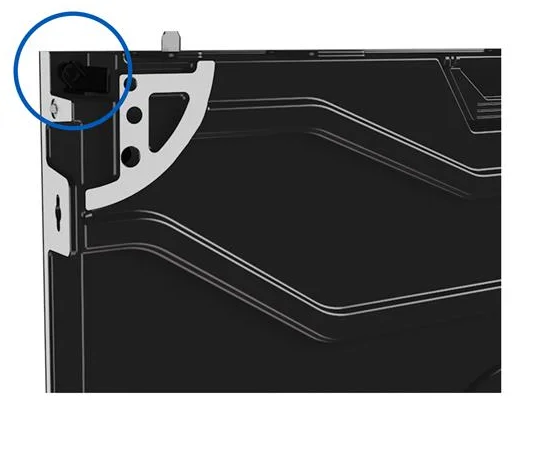

Corner guard
Use money to maintain the suction cup tool and suck the module (install the iron sheet on the back of the module)
Product Parameter
Pixel pitch(mm) | Lamp | Scan | Resolution | Brightness |
1.25 | SMD1010 | 1/64 | 640000 | 600 |
1.538 | SMD1212 | 1/52 | 422753 | 600 |
1.667 | SMD1212 | 1/64 | 359856 | 600 |
1.839 | SMD1515 | 1/58 | 295690 | 600 |
2 | SMD1515 | 1/40 | 250000 | 800 |
2.5 | SMD2020 | 1/32 | 160000 | 1000 |
3.076 | SMD2020 | 1/26 | 111111 | 1200 |
5 | SMD2020 | 1/16 | 40000 | 800 |
Note:

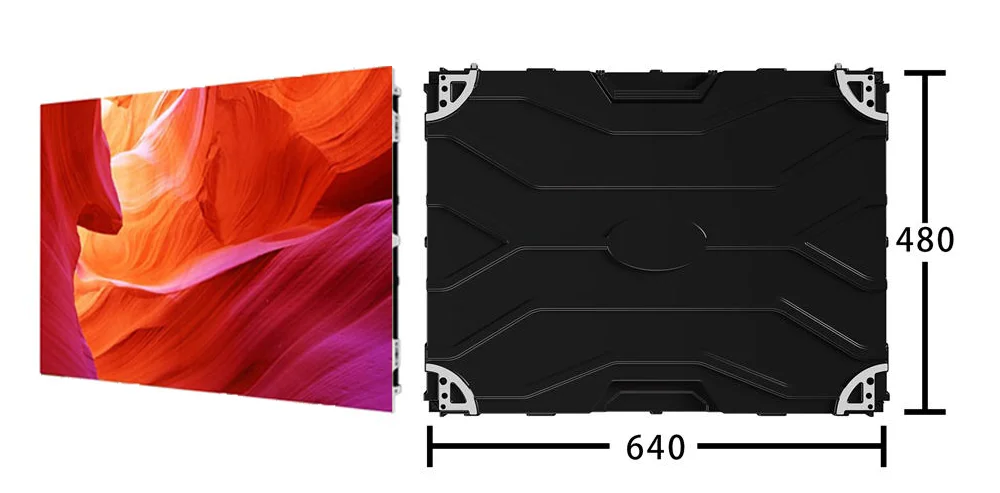

All are 640*480mm cast aluminum cabinet,with 320*160mm led modules;
We also P1.379 P1.904 P4 and other size cabinet,if you need others,please
Product Details

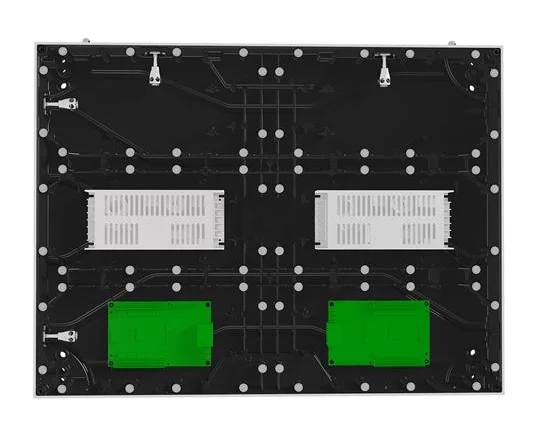

Detaile Image

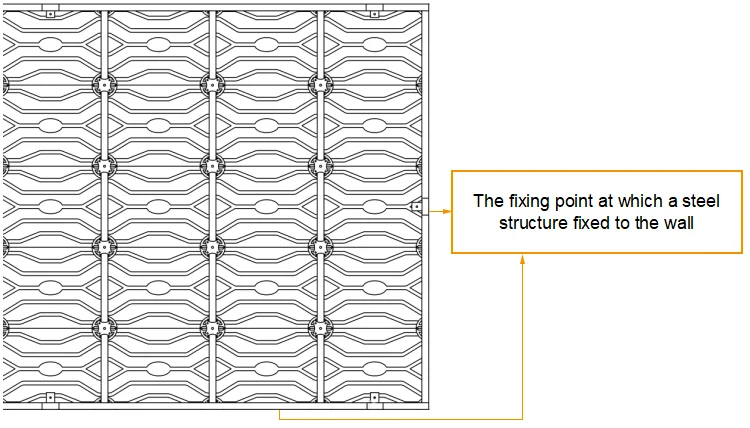

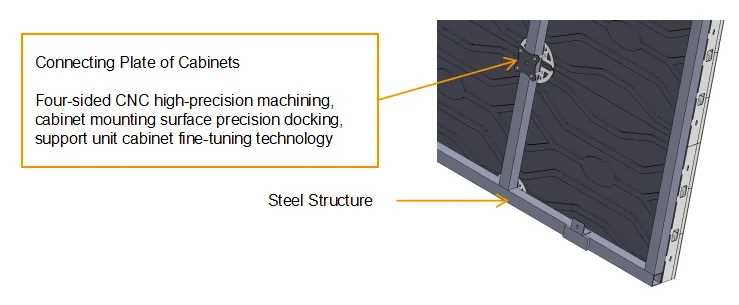

Installing Details

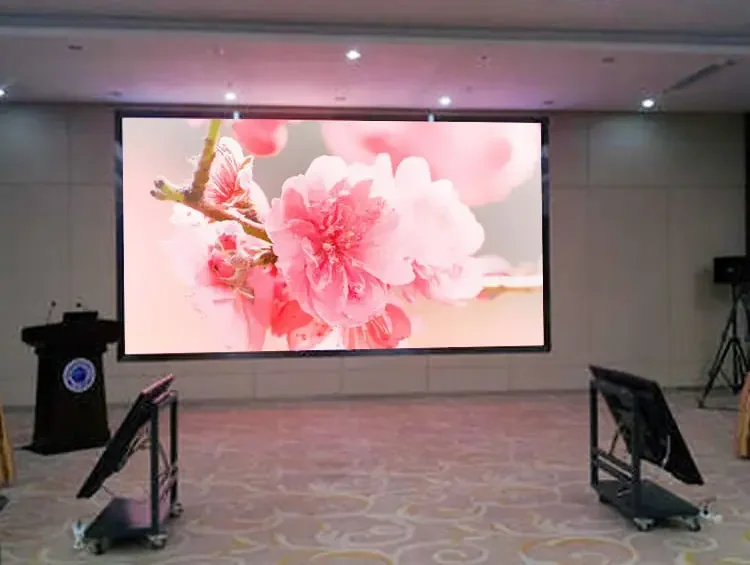

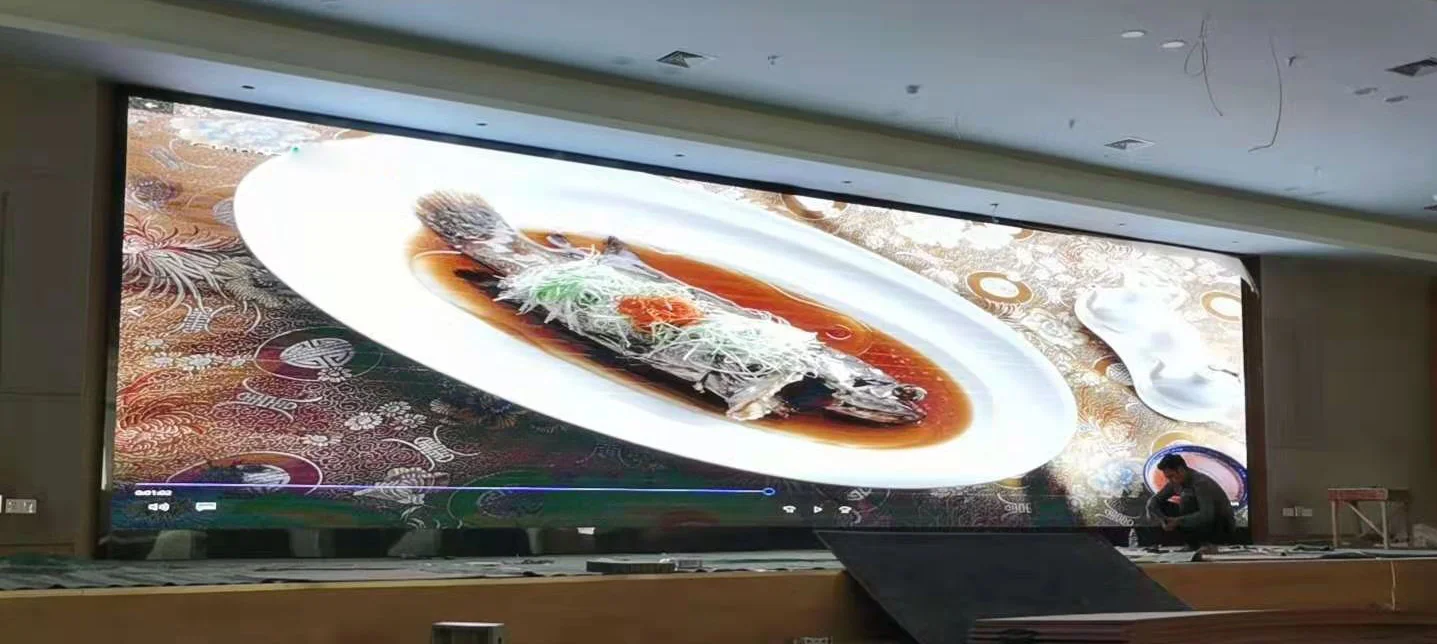

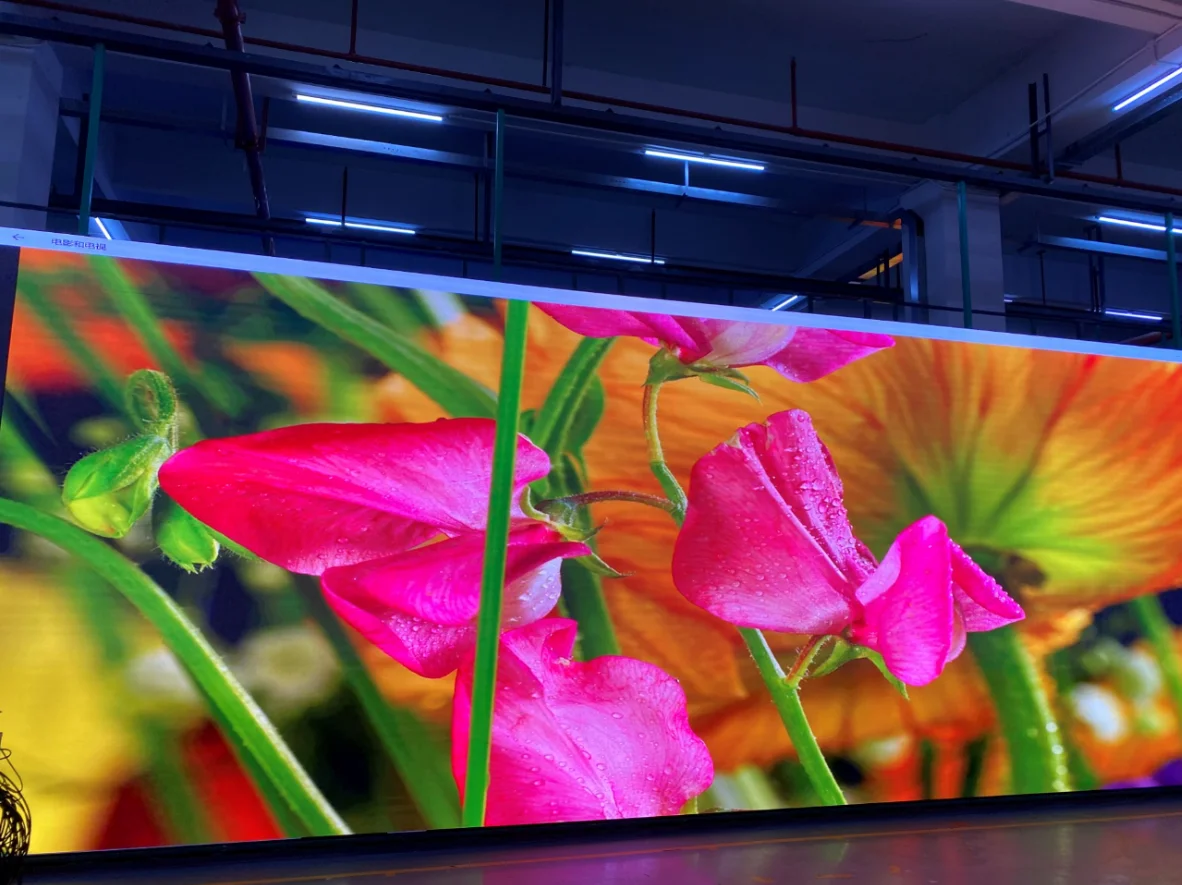

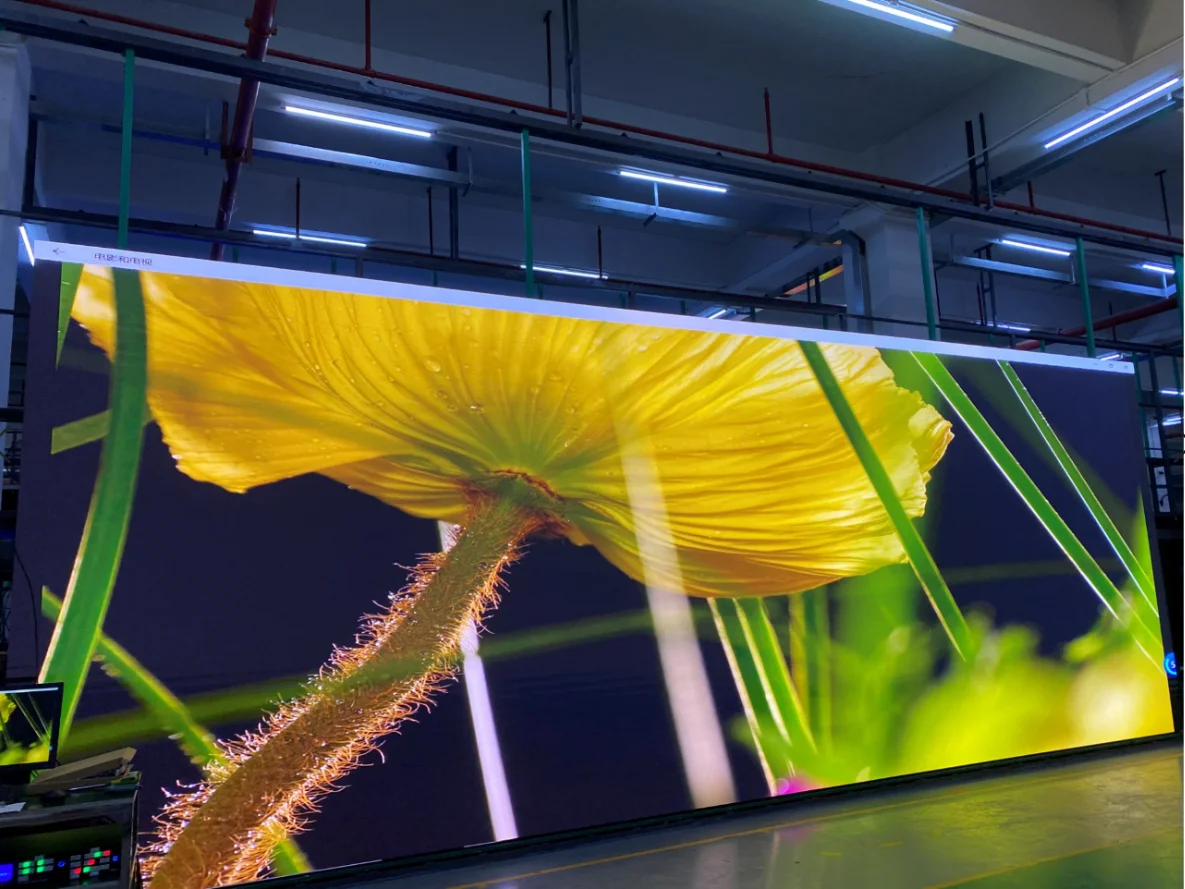

Product Case
Package & Delivery
Package
Plywood Case Size: L880mm*W710mm*H680mm
Eight cabinets /Plywood case
You can choose wooden box or flight Case.
Shipping
