SY-C9370 тормозного диска машина для резки с барабанного тормоза токарный станок
- Категории: Other Vehicle Equipment >>>
- Поставщик: Guangzhou,Shinely,Import,And,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

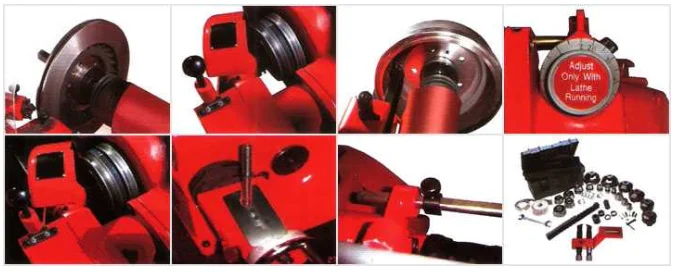

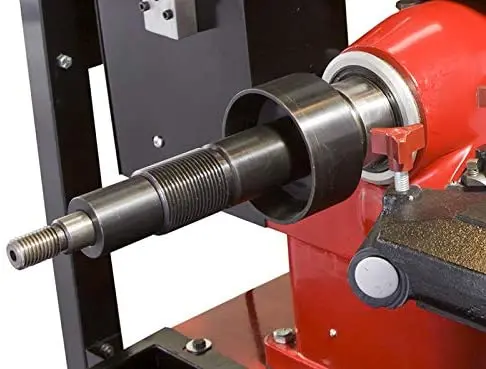

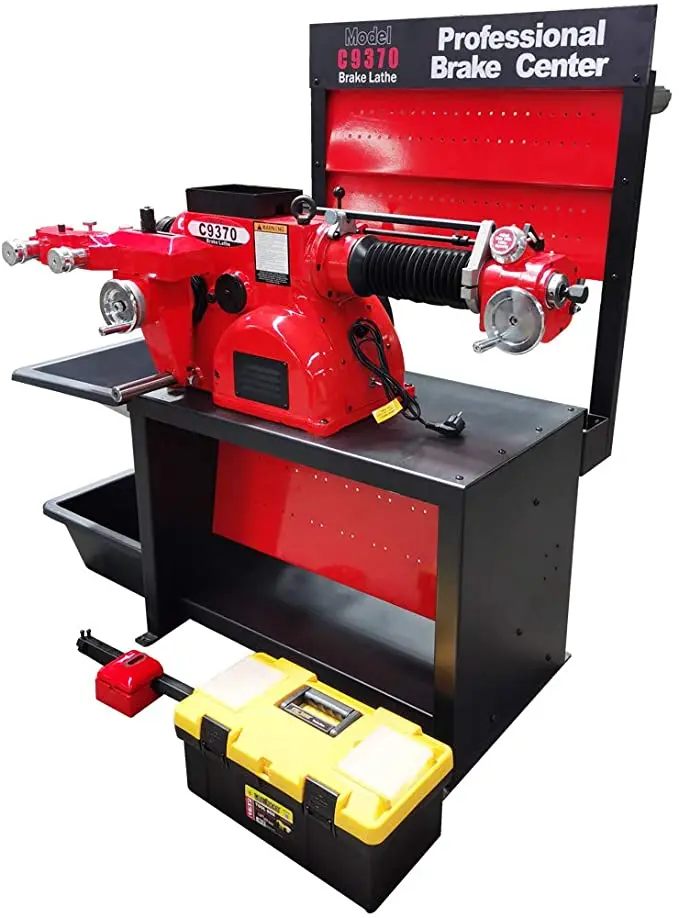

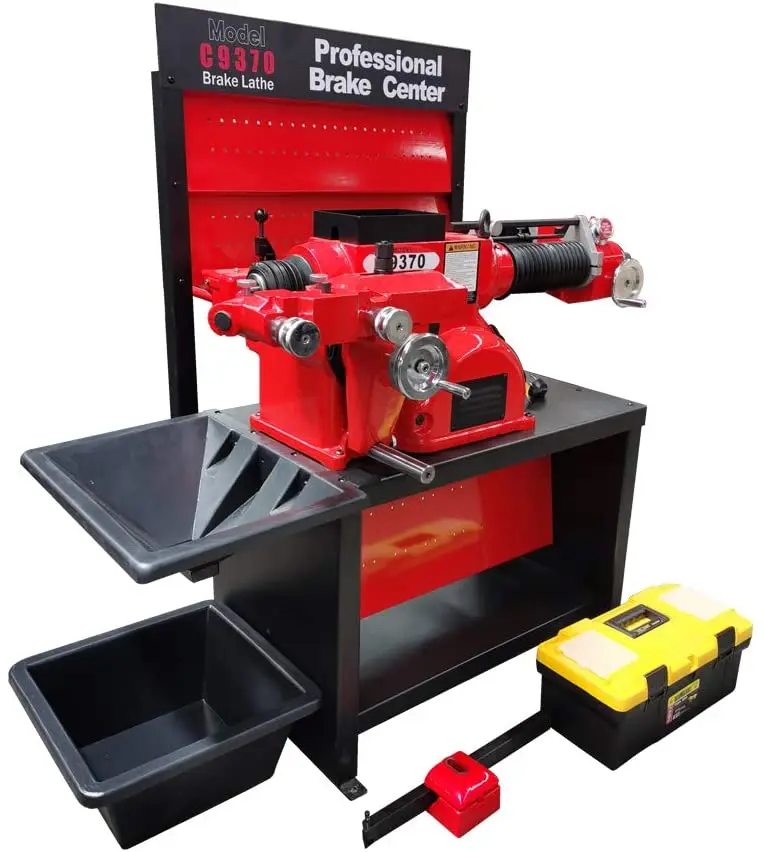

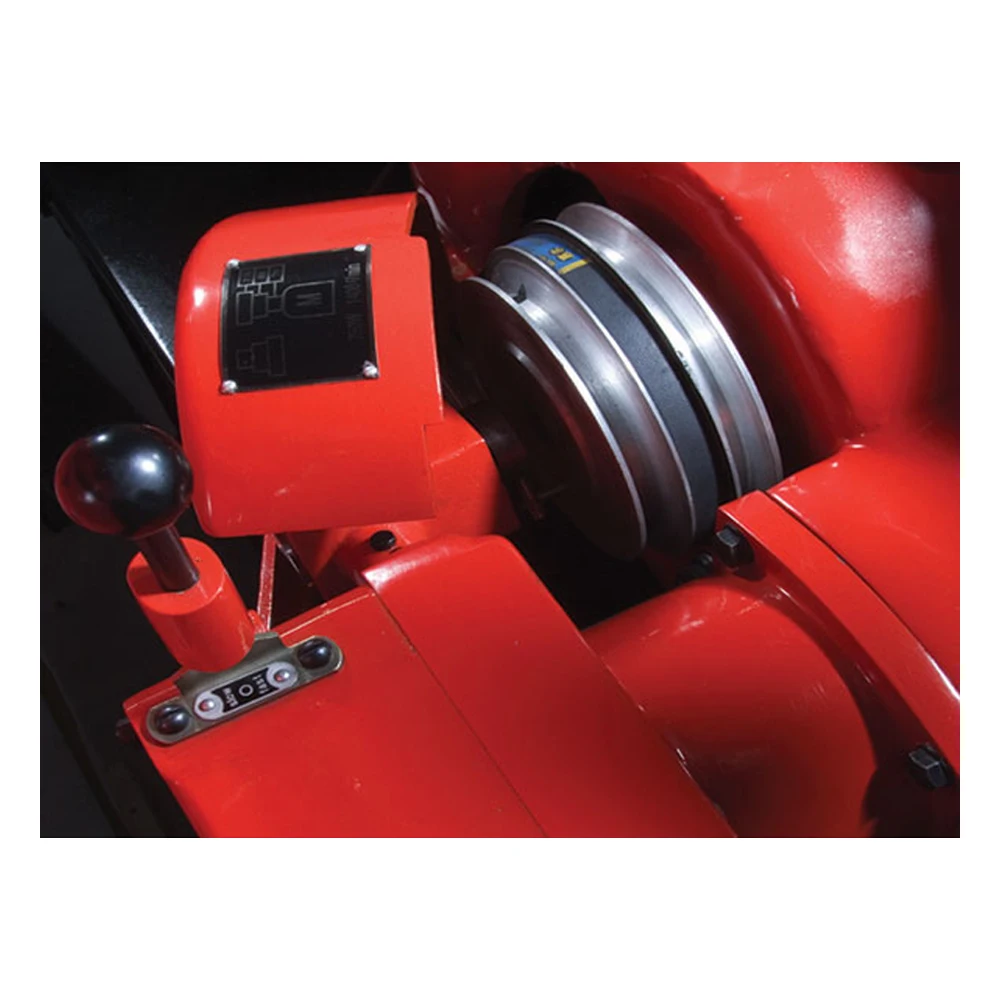

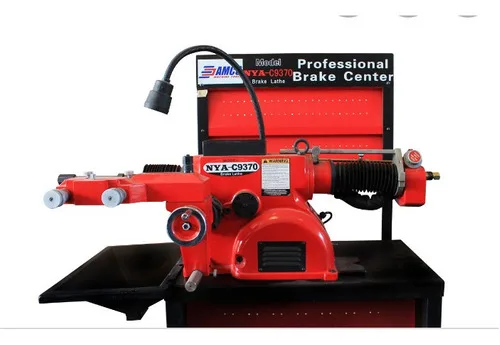

SY-C9370 Brake Disc Cutting Machine Combination Disc Drum Brake Lathe
Quickly, accurately and efficiently to cutting rotor;
Fast and slow setting allow cutting rotor;
Quick, accurately and efficiently to cutting drum;
Finitely adjustably setting allow cutting drum;
Three kinds of speed to choice for spindle speed;
Fully equipped adapter package.
A convenient design allows to quickly change from rotor to drum;
Position of stop make the lathe stop automatic after the cutting;
Fast and slow setting allow cutting rotor;
Quick, accurately and efficiently to cutting drum;
Finitely adjustably setting allow cutting drum;
Three kinds of speed to choice for spindle speed;
Fully equipped adapter package.
A convenient design allows to quickly change from rotor to drum;
Position of stop make the lathe stop automatic after the cutting;
| Model | C9350 | C9370 |
| Spindle Travel | 175mm | 251mm |
| Spindle Speed | 70, 80, 118rpm | 70, 88, 118 rpm |
| Spindle Feed Speed | Min 0.05mm/rev | Min 0.05mm/rev |
| Max 0.5mm/rev | Max 0.5mm/rev | |
| Cross Feed Speed | Min 0.05mm/rev | Min 0.05mm/rev |
| Max 0.5mm/rev | Max 0.25mm/rev | |
| Handwheel Graduations | 0.05mm | 0.05mm |
| Rotor Diameter | 180-381mm | 180-457mm |
| Rotor Thickness | 48mm | 102mm |
| rum Diameter | 152-711mm | 152-711mm |
| Drum Depth | 175mm | 251mm |
| Motor | 1PH 110V/220V 50/60HZ, 3PH 380V 50/60HZ | |
| Gross Weight | 290kg | 400kg |

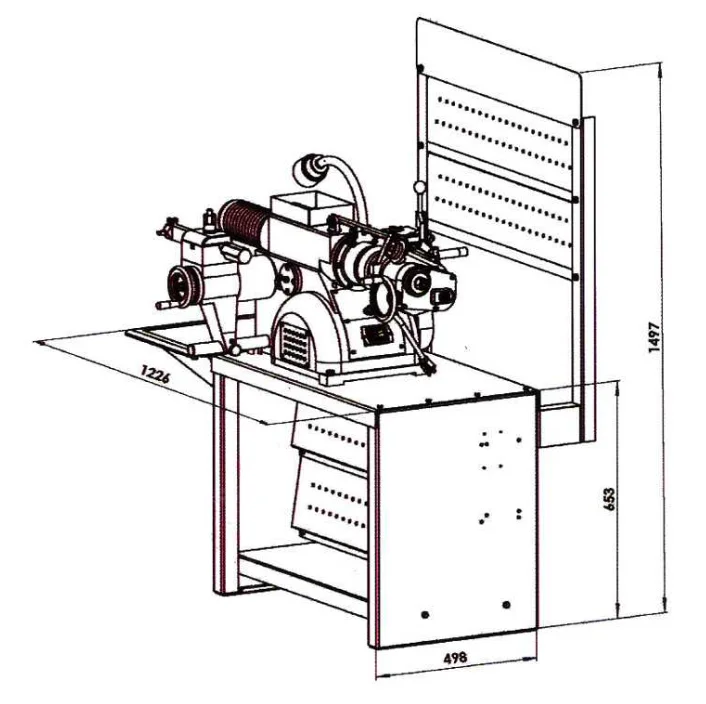

| Dimension | 970x920x1140mm | 1100x1070x1140mm |
