metal Laser Fiber 50W Making Birds Rings Marking Machine For Metal
- Категории: Laser Marking Machines >>>
- Поставщик: Jinan,Finework,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Feature of machine
Advantage 1
High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction.
Advantage 2
High pulse repeating rate and stable power bring high speed laser marking.
Advantage 3
High speed 2-3 times over than traditional diode pumped marking machine.
Advantage 4
Air-cooling smart machine size!
Advantage 5
Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%
Advantage 6
Suitable for various fiber laser generators.
Product Description
Specification
Laser power | 10W/20W/30W/50W/option |
Laser wave length | 1064nm |
Sandard marking area | 200*200mm |
Optional marking area | 100*100 , 300*300 customerized aviliable |
Minimum character | 0.15mm |
Marking speed | ≤7000mm/s |
Marking depth | 0.01~1mm |
Repeat frequency | 20KHZ~80KHZ |
Output laser beam | M²≤2 |
Focus spot diameter | < 0.01mm |
Control interface | Standard USB port |
Graphic format supported | BMP,JPG,AI,PLT,DST,DWG ETC. |
Marking format | Text,symbols,graphics,images,barcodes,two-dimension bar. date marking,batch number,serial number etc. |
Operating temperature | 0-45°C |
Cooling way | Built-fan for air cooling |
Working voltage | 220V-50Hz(single phase)or 110V-60Hx(single phase) |
Computer | Including laptop cpmputer per set(software installed) |
Laser marking oftware | Ezcad(English version)(the other optional software please contact us) |
General power | <0.5KW |
Working environment | Clean and dust-free or dust less |
Working condition | 5%~75%,free of condensed water |
Optional device | Rotary marking attachment ;X/Y adjustable table, Mopa color marking |

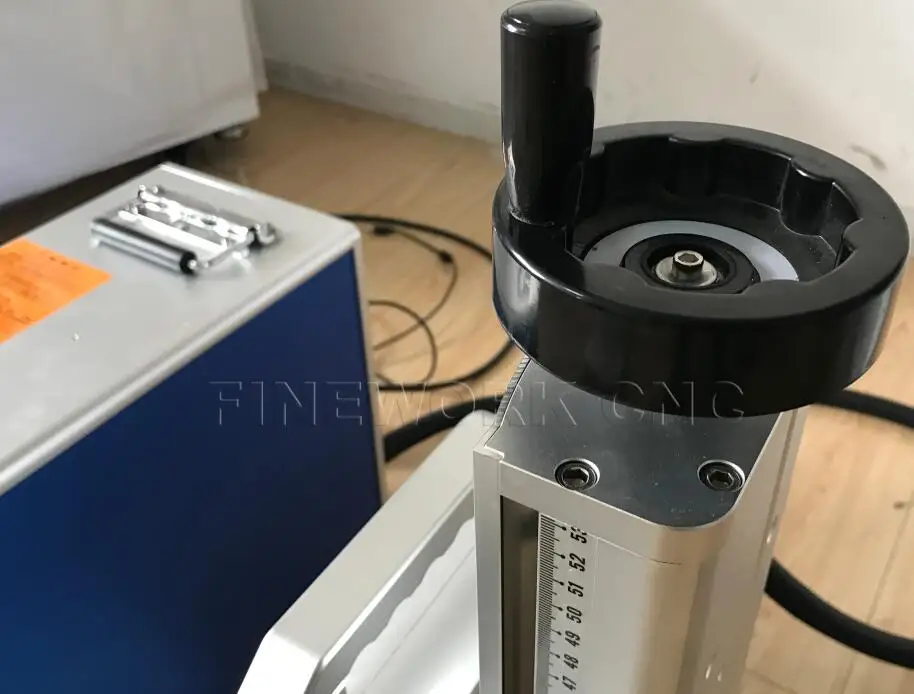

Details Images

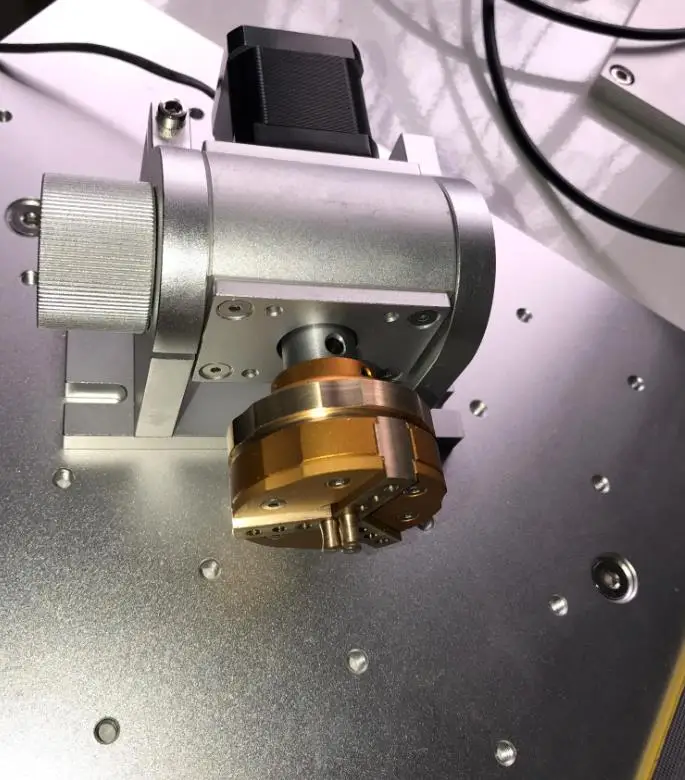

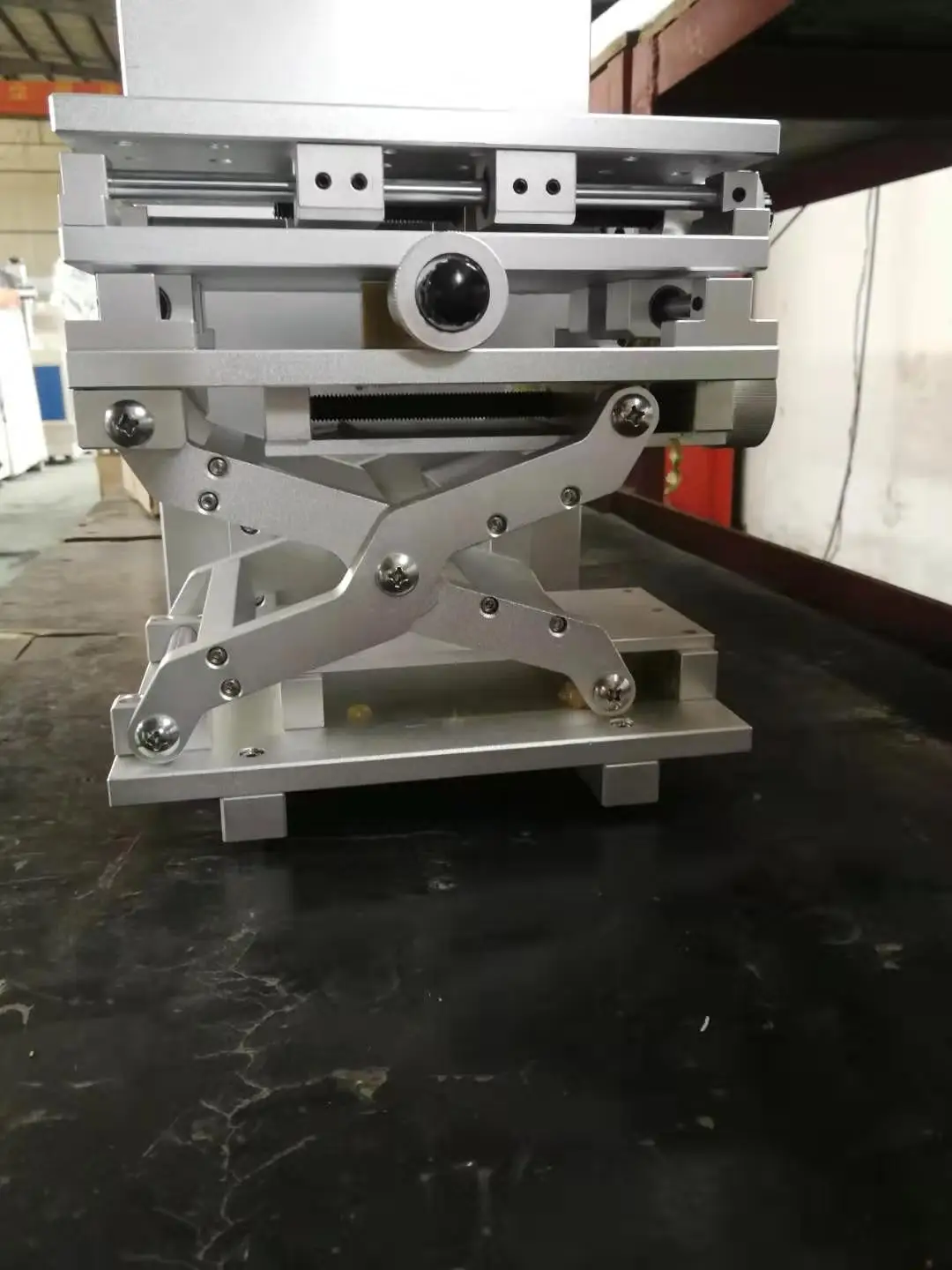

Optional Parts

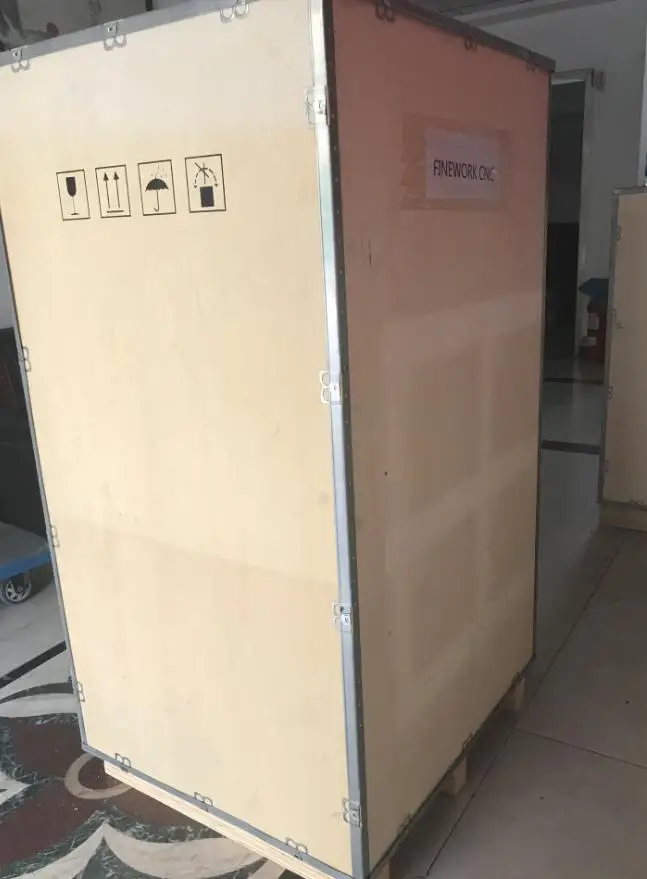

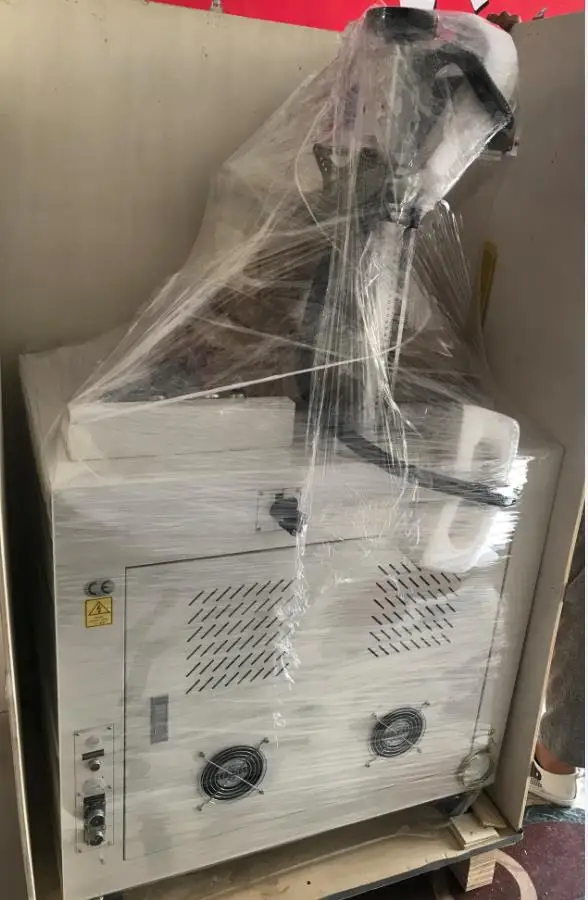

Packing & Delivery

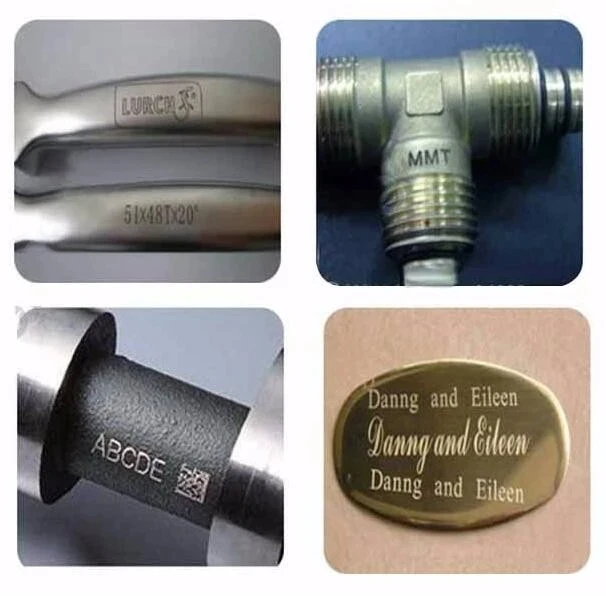

Samples made by machine
