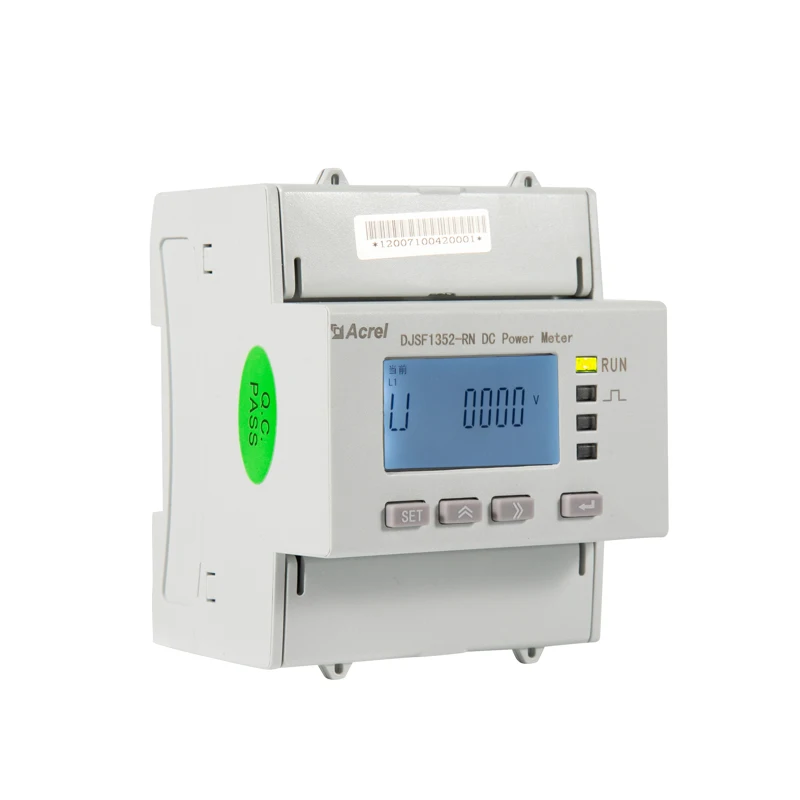

Счетчик энергии DC1000V DJSF1352-RN класс 1 Modbus-RTU блок питания переменного тока/DC85 ~
Счетчик энергии DC1000V DJSF1352-RN класс 1 Modbus-RTU блок питания переменного тока/DC85 ~

Счетчик энергии DC1000V DJSF1352-RN класс 1 Modbus-RTU блок питания переменного тока/DC85 ~


Поделиться:

Цена:92,00 $ - 104,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



DJSF1352-RN din rail DC power meter with dual channel DC input is suitable for telecommnications base stations,dc
chargingpiles,solar pv and other applications.It can measure voltage,current,power,forward and reverse energy and so on in DC system.Itcan also measure total power and energy within a period of time.
The meter have infrared communication interface and RS-485 communication interface, and supports Modbus-RTU protocol andDLT645-97(07) protocol at the same time. The meter can have relay alarm output and digital input function; You can set the ratio,alarm, and communication through the meter panel keys according to different requirements. The meter can have event recording of switch (Modbus protocol), programming and event setting records (645 protocol), instantaneous and timing freeze function of data(645 protocol), maximum and minimum value recording function of voltage and current power.


Model
DJSF1352-RN
Input
Input DC voltage range
DC 0~1000V
Input DC current
75mv shunt or hall current sensor(0-20mA,4-20mA,0-5V,0-10V)
Power consumption
Voltage: ≤0.2VA, current ≤0.1VA≤2VA
Overload
1.2 times sustainable work, 2times lasts a second
Function
Display
8-bit segment LCD
Communication
RS485 Modbus RTU,infared
switch
switch input
2 Relay outputs, 2A/30VDC or 2A/250VAC
switch output
2 dry contact inputs
Pulse output
1 second pulse output and another energy pulse output
Optional function
Dual channel dc input(D)
Power module(DC24v or 48v)P1
Digital input and output(K)
Power supply
AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)

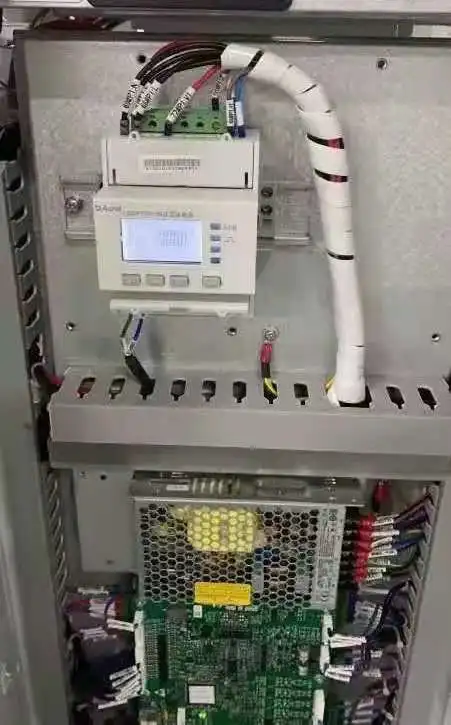

DJSF1352-RN Used in Korea charging pile industry application
