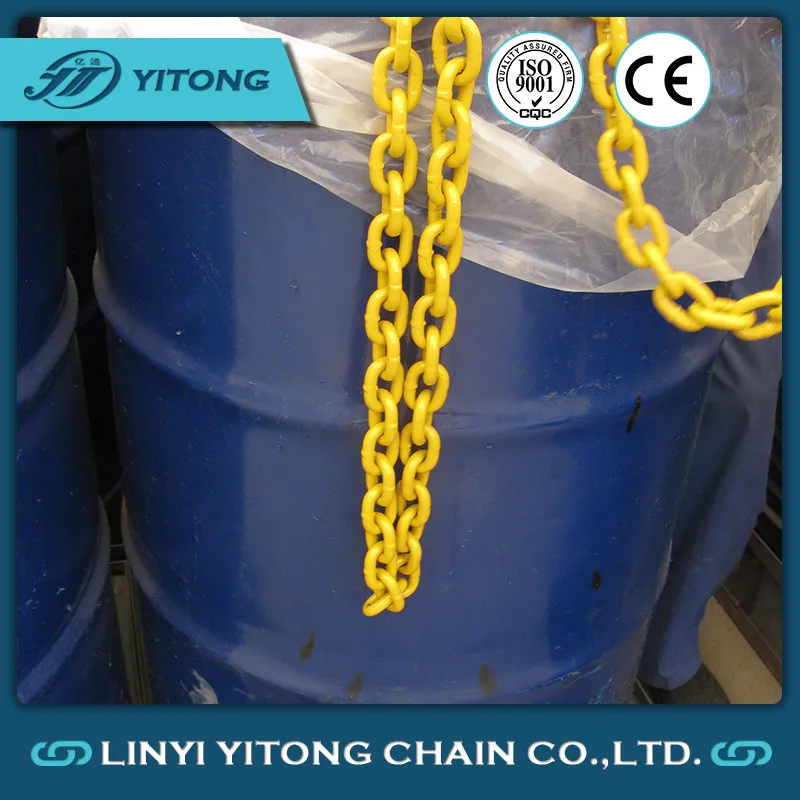

G80 Alloy Steel Lifting Chain
Product Description:
Products produced by automatic machine | |
Test | welded test, breaking loading test |
Surface | Self colour, Blacken oxiden, Electro galvanized, Hot dipped galvanized , Black finished |
Grade | 80 |
Usage | Drag, lifting, |
Delivery time | 1x20'GP 24tons 40days, |
2x20’GP 45tons 45days, | |
3X20'GP 72tons 60days, | |
MOQ | 3tons |
Payment | T/T or L/C at sight |
Port | Qingdao,Shanghai |
Supply ability | 500-800tons per month |
Package | iron drum, plastic drum, gunny bag, plastic reel, carton,etc. |
Product Specification:
SIZE | INSIDE LENGTH MIN | INSIDE WIDTH MIN | OUTSIDE WIDTH MAX | WORKING LOAD MAX | BREAKING LOAD KN | UNIT WEIGHT KG/Meter |
6 | 18 | 7.8 | 22.2 | 1150KG | 45 | 0.8 |
7 | 22 | 9.1 | 25.9 | 1570KG | 61.6 | 1.08 |
8 | 24 | 10.4 | 29.6 | 2050KG | 80.6 | 1.4 |
9 | 27 | 11.7 | 33.3 | 2500KG | 102 | 1.8 |
10 | 30 | 13 | 37 | 3200KG | 126 | 2.2 |
13 | 39 | 16.9 | 48.1 | 5400KG | 214 | 3.8 |
16 | 48 | 20.8 | 59.2 | 8200KG | 322 | 5.6 |
18 | 54 | 23.4 | 66.6 | 10000KG | 407 | 7.1 |
20 | 60 | 26 | 74 | 12500KG | 500 | 9 |
22 | 66 | 28.6 | 81.4 | 15000KG | 600 | 10.9 |
26 | 78 | 33.8 | 96.2 | 20000KG | 800 | 15.2 |

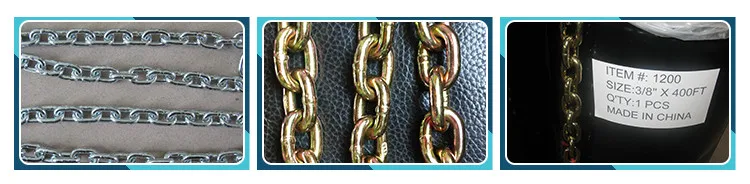

Product Show:
Related Products:
proof coil chain (g30) high test chain (g43) transport chain (g70)

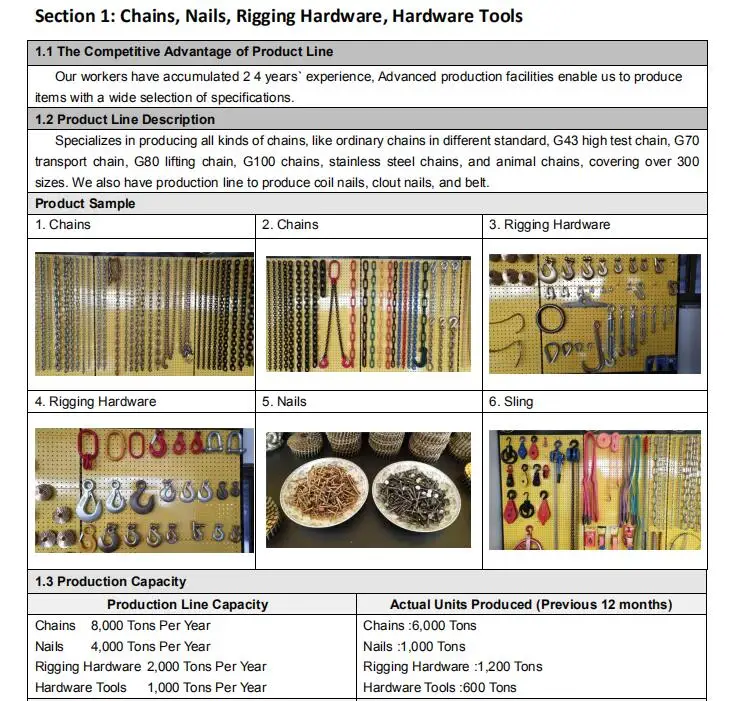

Company Information:
