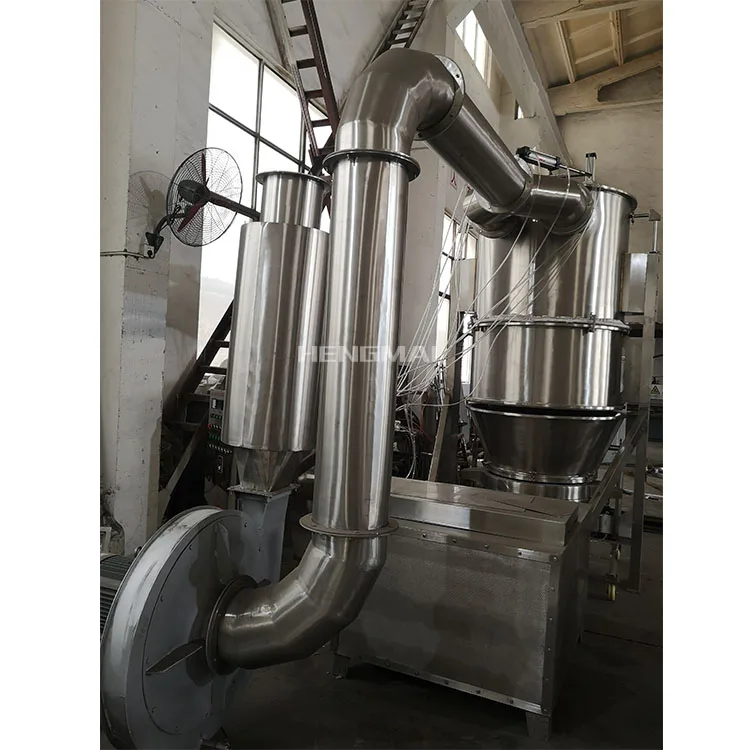

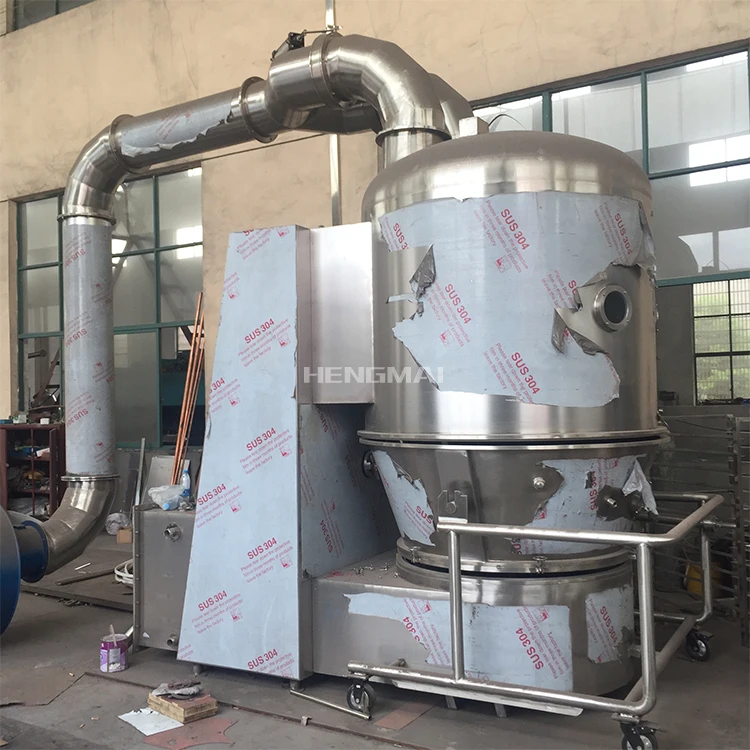

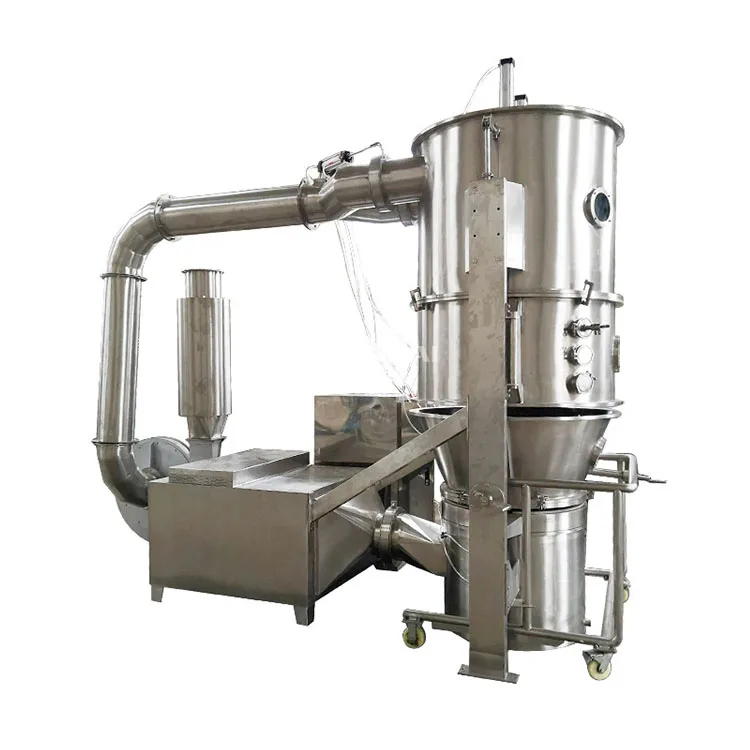

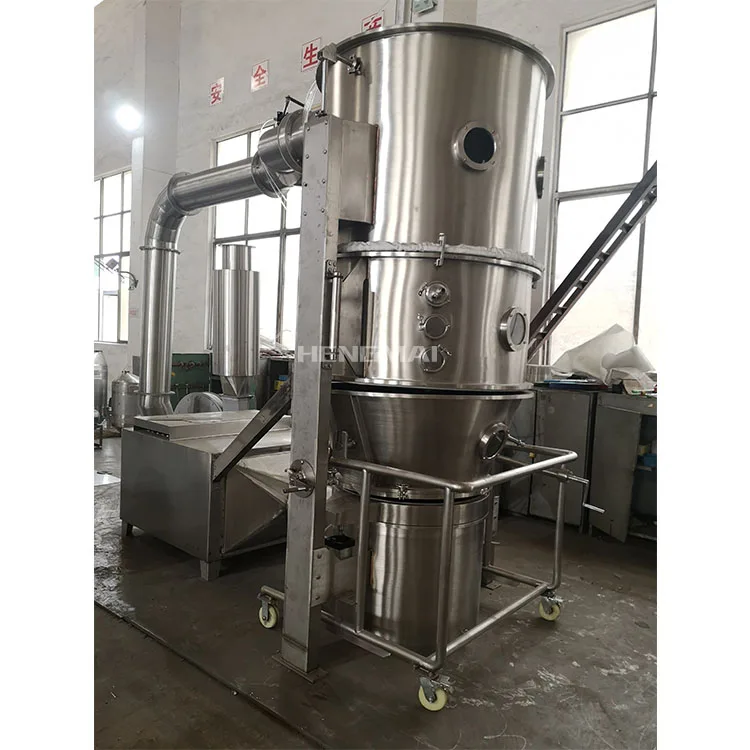

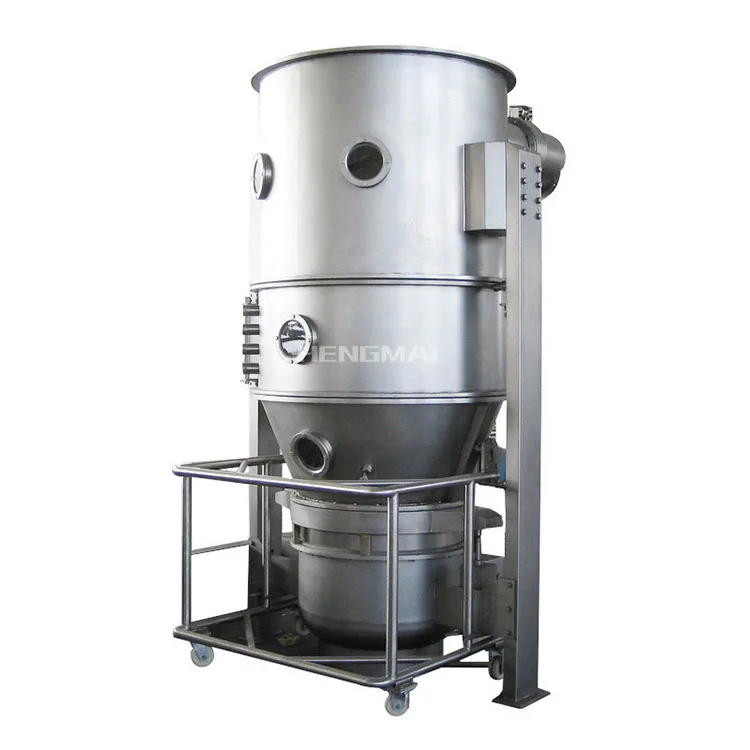

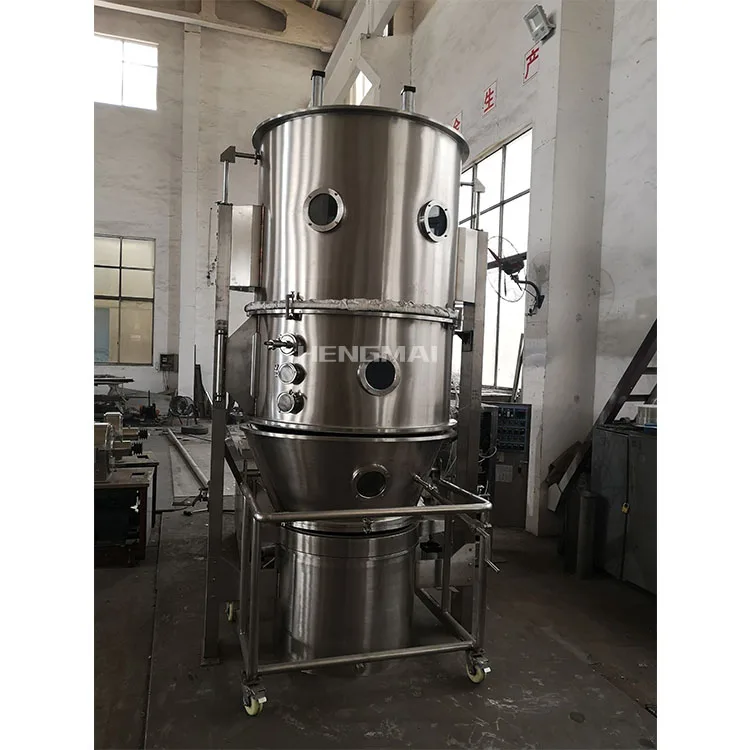

Серия FL гранулятор для сушки зерен мгновенного
- Категории: Granulators >>>
- Поставщик: Changzhou,Hengmai,Drying,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

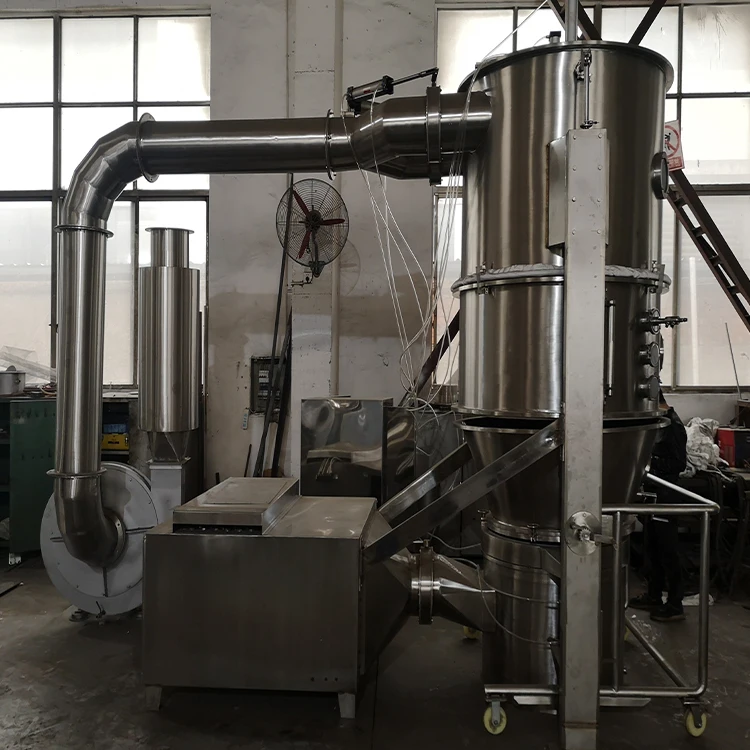

FL series boiling dry granulator is mainly used for the operations of mixing, granulating,drying and coating of granule，powder material in pharmaceutical industry , foodstuff industry,chemical industry etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
Main Features
Through powder granulation, improve fluidity, reduce dust flying.
The solubility was improved by powder granulation.
Mixing- granulation -drying is completed in one machine.
Use anti static filter cloth to ensure the safety of the equipment.
Set up the pressure discharge hole, in case of explosion, personnel will not be injured.
There is no dead angle in the equipment, the loading and unloading is light and fast, and the washing is convenient, which
conforms to the GMP specification.
High degree of automation, equipped with program control, simulation screen display technology for users to choose.
The solubility was improved by powder granulation.
Mixing- granulation -drying is completed in one machine.
Use anti static filter cloth to ensure the safety of the equipment.
Set up the pressure discharge hole, in case of explosion, personnel will not be injured.
There is no dead angle in the equipment, the loading and unloading is light and fast, and the washing is convenient, which
conforms to the GMP specification.
High degree of automation, equipped with program control, simulation screen display technology for users to choose.
Principle
Powder material into the hopper container, due to the effect of hot air flow, the powder suspension shows a fluidized circulation flow and achieve uniform mixing,at the time, spray a mist binder to wet the powder in the container to make the powder condensed into loose small particles, when granulating, due to the high-efficiency drying of hot air flow, the water is continuously evaporated and the powder is solidified continuously, process repeated, forming ideal and uniform spherical particles with multiple micropores, the three processes of mixing, granulation and drying are completed in the container at one time.The water content and disintegration time of solid preparation were taken as the investigation indexes, and the results were tested by T test. Results: when the solid preparation was dried, the boiling drying method was significantly different from the traditional drying method.
Boiling dry granulator | ||||||||||||||||
Item | Model | |||||||||||||||
5 | 30 | 60 | 120 | 300 | 500 | 800-1000 | ||||||||||
Container | Volume (L) | 22 | 100 | 220 | 420 | 1000 | 1500 | By client | ||||||||
Diameter(mm) | 400 | 700 | 1000 | 1200 | 1600 | 1800 | ||||||||||
Capability | min.(kg) | 4 | 15 | 30 | 80 | 150 | 250 | |||||||||
max.(kg) | 6 | 45 | 90 | 160 | 450 | 750 | ||||||||||
Fan | Capacity(m³/h) | 1200 | 1800 | 3000 | 4500 | 7000 | 8000 | |||||||||
Pressure(mmH2O) | 375 | 480 | 950 | 950 | 950 | 950 | ||||||||||
Power(kw) | 4 | 7.5 | 11 | 18.5 | 30 | 45 | ||||||||||
Steam expenditure(kg/h) | 23 | 70 | 141 | 211 | 366 | 451 | ||||||||||
Compressed air expenditure(m³/min) | 0.9 | 0.9 | 1.0 | 1.0 | 1.5 | 1.5 | ||||||||||
Weight of the main body(kg) | 700 | 1000 | 1100 | 1300 | 1800 | 2000 | ||||||||||
Steam pressure(mpa) | 0.3-6 | |||||||||||||||
Temperature(°C) | (adjustable at the range from room temperature to 120°C ) | |||||||||||||||
Working time(min) | 45~90 ( decided in accordance with the proplerties of raw materials ) | |||||||||||||||
Field(%) | ≥99 | |||||||||||||||
Noise(dB(A)) | ≤75dB(A) (When installation.main machine is separated from fan) | |||||||||||||||
Size(LxWxH)m | 1.2*0.7*2 | 1.6* 1.1*2.5 | 1.9* 1.4*3 | 2.2* 1.7*3.3 | 2.8* 2*4 | 3*2.3 *4.4 | ||||||||||
Different product parameters, freight cost different, please consult before ordering.Support non-standard customization.
Applications
Drug granulation and coating. Granulation: tablet granule, granule for granule, capsule granule. Coating: pellet, pill protective layer, color slow release, film, enteric coating. Food granulation and coating. Fried sugar, coffee, cocoa powder, cream powder juice, amino acid, seasoning, puffed food. Granulation of pesticides, pigments and dyes. Powder, granule, block material drying.
Company Profile
Changzhou Hengmai Drying Equipment Co., Ltd. located in Changzhou, an industrial star city and a beautiful water town in the south of the Yangtze River, covering total area of 5000sqm. With strong technical force, perfect test system, precision processing equipment and strict management system. We have 10 years of customization experience and excellent R&D team. We specializing in the production of oven, belt dryer, vacuum drying machine, vacuum rotary dryer, drying machine, centrifugal spray dryer, drum scraper dryer, hollow leaf dryer, drum scraper dryer, three dimensional mixing machine, high efficiency wet granulation machine, two dimensional mixer, trough mixer, twin screw mixer, rotary granulator, V mixer, swing system Granulator, high efficiency granulator, hot blast stove, pulverizer, etc. We support non-standard customization and have a great advantage in the quality of price, devoted to creating a set of product design and development, processing and manufacturing, engineering installation and after-sales service in one integrated enterprise.
Raise requirement
Customer drawings, samples, ideas
Provide design scheme
Give solutions as required and confirm quotation
Sign contract
Confirm cooperation, sign contract, pay advance payment
Production
Arrange production and delivery inspection
Delivery
Pay the balance and deliver the goods
After-sale service
One year warranty, video service, on-site solution

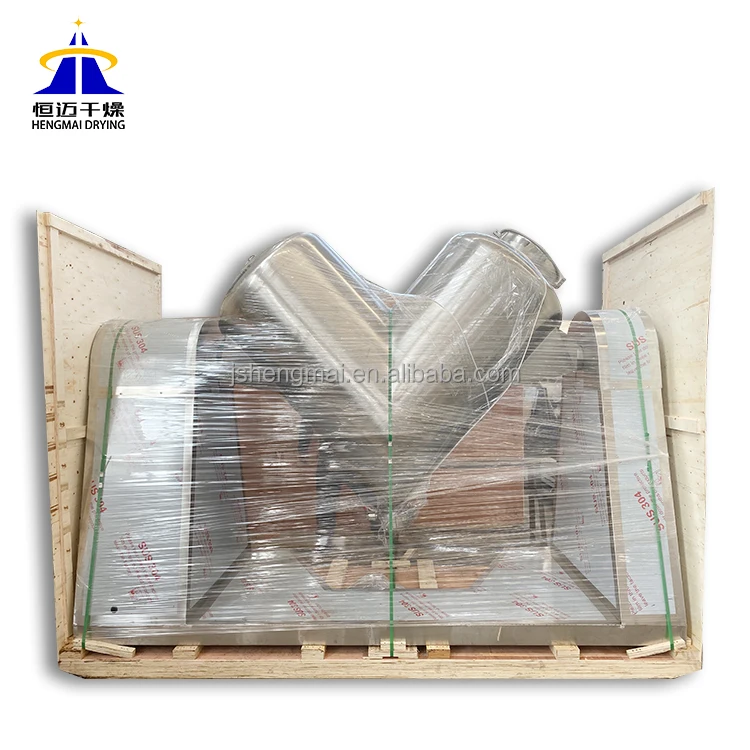

Product packaging and delivery
Recommend Products
FAQ
Q: How to choose suitable equipment?
A: Tell us your work flow and requirements, then we will recommend you suitable equipments.
Q: What is your minimum order quantity?
A: 1 set.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.
Q: How long is your delivery time?
A: We make machines after receiving the payment, the production cycle is usually around 15-35 days, depending on which kind of machine.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: How to solve the equipment trouble during using?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. We suggest ordering more consumable parts in advance.
Q: What is your minimum order quantity?
A: 1 set.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.
Q: How long is your delivery time?
A: We make machines after receiving the payment, the production cycle is usually around 15-35 days, depending on which kind of machine.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: How to solve the equipment trouble during using?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. We suggest ordering more consumable parts in advance.
