Высококачественные жалюзи для оконных окон из
- Категории: Blinds, Shades & Shutters >>>
- Поставщик: Guangdong,Grand,Homedecor,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Wooded shutter
The natural beauty of wood Light weight allows for wider panels and easier operation than heavier materials Can be offered in stained colors, painted colors, as well as
Product Description

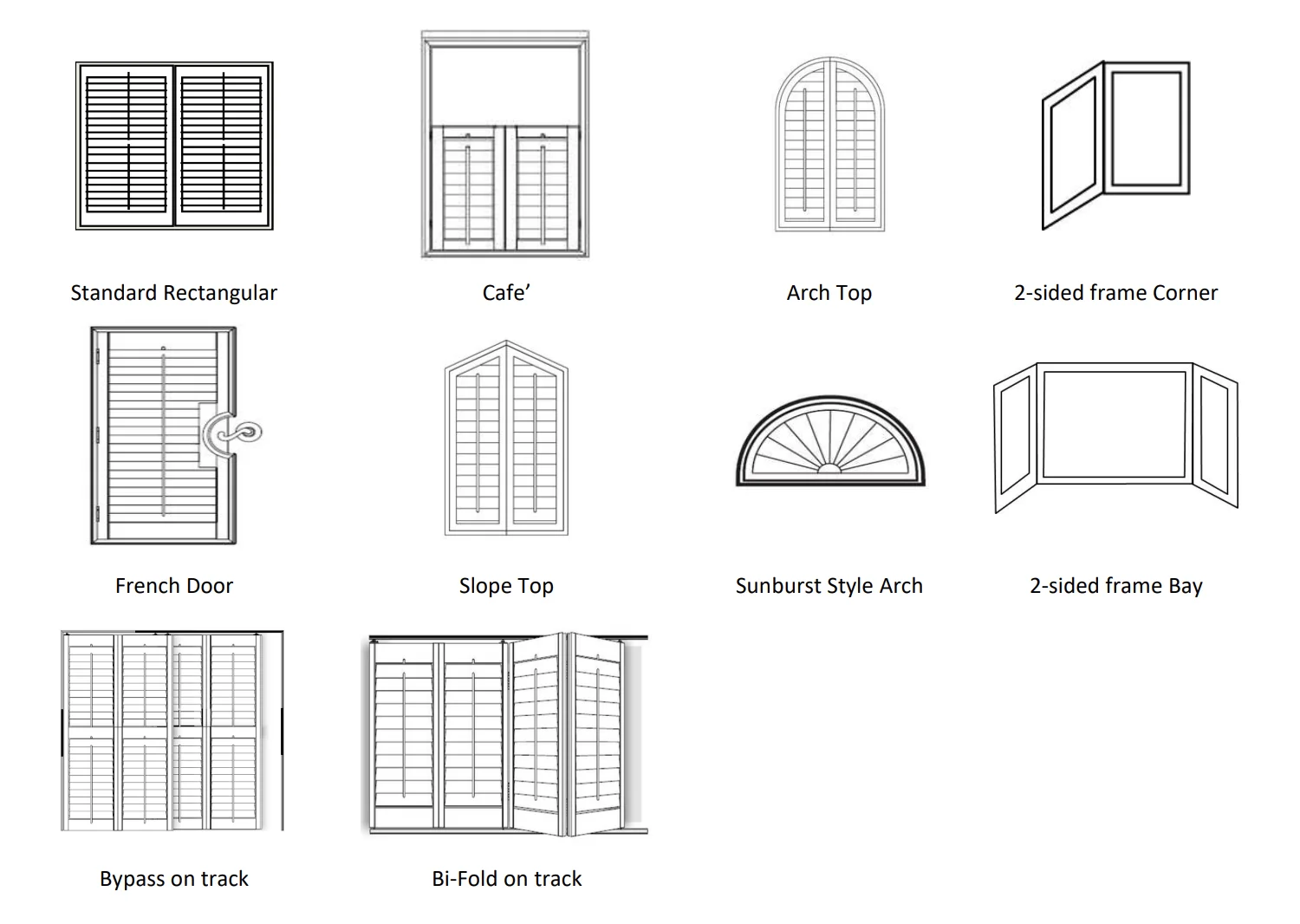

Shutter Styles
Specification
Technology Specifications | value | ||
Standard | Hinged. | ||
Shutter Colours | Painted: 10 colours.Stained: 5 colours. | ||
Hinge Colours | 6 colours available. All hinges will be colour matched by the factory unless a specific colour is requested. | ||
Louvre Widths | 63mm, 89mm & 114mm. | ||
Louvre Shape | Elliptical. | ||
Maximum Panel Height | 3000mm. | ||
Divider Rail Required | 1800mm. | ||
Hinged Panel Maximum Width | 920mm. | ||
Double Hinged Panel Maximum Width | 600mm. | ||
Tilt Rod Options | Centre or Hidden. The centre tilt rod will be attached by a series of silver staples. The hidden tilt rod will be colour matched to the hinge colour. If the height is greater than 1500mm or if there is a divider rail the hidden tilt rod will be in more than one piece. Off set tilt rod available | ||
Louvre Thickness | 12mm. | ||
Stile Width | Beaded 50mm. Flat 50mm, 60mm, 70mm. | ||
Stile Thickness | 28mm. | ||
Rail Thickness | 19mm. | ||
Factory Deductions | Inside Mount: Factory will deduct 3mm width and 4mm off the height. Outside Mount: No deduction take | ||
Make size | If you do not want the factory to take any deductions you must write “make size” in the general notes section. | ||
Louvre Options | |||
Louvre Options | 89mm flat louvre (10mm thick). | ||
Framing Options | Small L Frame, Medium L Frame, Large L Frame. Z Frame, Hang Strip, Light Block. 90 degree Corner Post, 45 degree Bay Post. “U” Channel – top and bottom channel is supplied along with a left and right light block. | ||
Hinges | |||
Pivot | The top and bottom stiles are routered by the factory to accommodate the pivot hinge.Colours: White or Antique Brass. | ||
Double Hinges | Reverse Double Hinging is available. The second panel will fold in front of the first. | ||

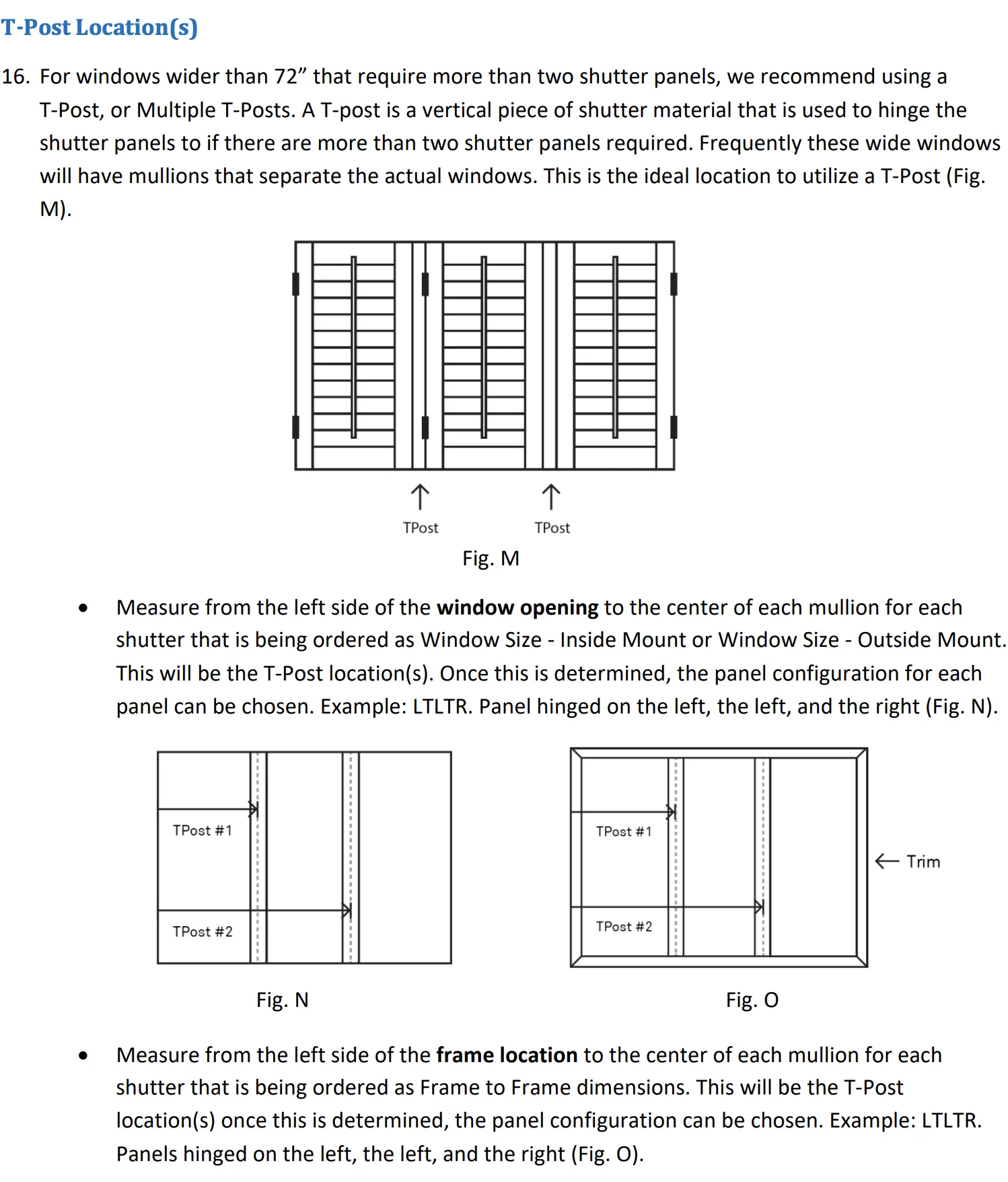

T Posts | Single or multiple T posts are available. All measurements are to be supplied from the left hand side to the middle of the T-Post. If T–Posts are uneven, then you will need to fill out the” Uneven T-Post” section of the order form. T-Posts can be made bigger if required. Please nominate the size required. T-Post brackets will be supplied when frames are not ordered. | ||

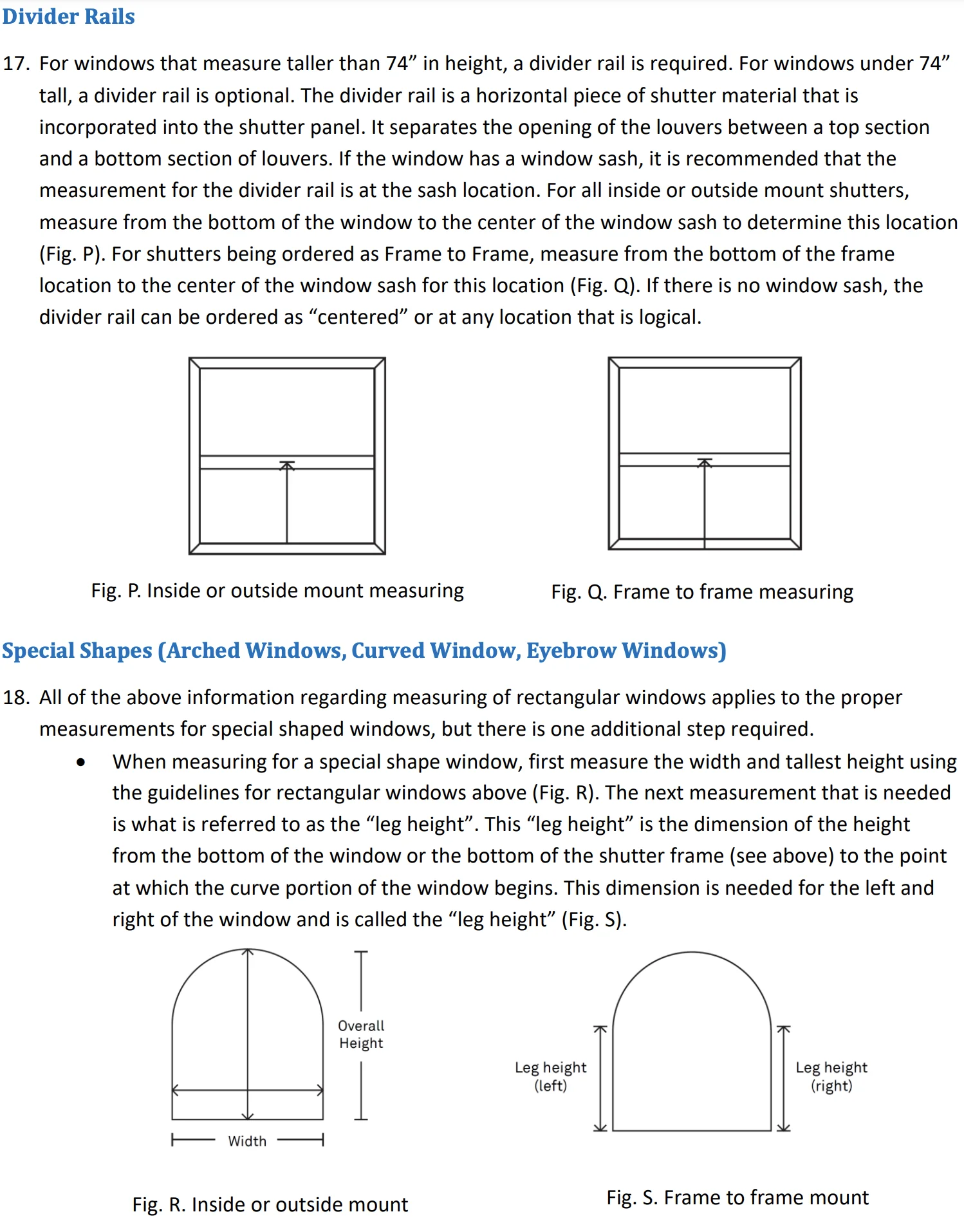

Mid Rails | Single or multiple mid rails are available. All measurements are to be supplied from the bottom of your order height to the centre of the mid rail. Mid rail widths come standard at approx. 80-90mm for 63-89mm louvres, 100mm for 144mm louvres, If you require smaller or larger mid rails, please specify the size on the order form. Mid rail height can be positioned up or down by a maximum of 20mm by the factory unless ordered as CRITICAL. | ||
Multi Panels | Window orders with two or more panels will come STANDARD with rabitted stiles. | ||
If you require “D”mould | Please specify on your order. You must indicate which panel will require the D-Mould. L-DR shows the right hand panel to have D-Mould LD-R shows the left hand panel to have the D-Mould | ||
Tilt Rod Type | |||
Tilt Rods are available | Three options: Hidden Tilt Rod, Offset Tilt Rod, Centre Tilt Rod. | ||
The Hidden Tilt Rod | Fitted to the rear of the panel.Is usually 40-50mm in, from the stile. Shutter panels can have split tilt mechanism split into two or three sections without the need for a mid rail. Measurement from the bottom of the panel are required. When ordering direct mount without light block, striker plates will be supplied. | ||
U Channel | Eliminates the need for hinges on the panels. Four lengths of light block are supplied as standard. U Channel maximum panel widths. 1000mm Max Panel or 1200mm with Centre Stile. | ||
Barn Door Style | We recommend using a horizontal T-Post. Measurements are to be supplied from the bottom of your order height to the centre of the T-Post. If you require rabitted style in place of horizontal T-Post you must specify if top or bottom panel(s) open first. Diagrams must be supplied. | ||
Sliding or Bi Pass Shutters | Normal square metre price plus surcharge (please refer to Shutter manual).Bi Pass maximum panel widths. 1000mm Max Panel or 1200mm with Centre Stile. All sliding Shutters will be supplied with a top track and bottom guide as standard. Option 2 - “M” Shaped bottom track available on request. Option 3 - A bottom board with the track routed in, is also available on request. All sliding Shutters come with light blocks. Headboard, sideboard and fascia 19mm, 185mm, or 220mm. | ||
Bifold Shutters | Normal square metre price plus surcharge (please refer to shutter manual). Track Bifold maximum width 600mm. All Bifold Shutters are supplied with a top track and no bottom track as standard. Bottom track available on request. Headboard, sideboard and fascia 19mm x 60mm for inside mount, 80mm outside mount. The max size for a one piece headboard and fascia is 4200mm. | ||
Shaped Shutters | Normal square metre price plus surcharge (please refer to shutter manual). Shapes are charged at maximum Height x Maximum width plus surcharge. Horizontal Blades are supplied by default. (please advise on order if you require fan blades). Shaped Shutters require a template to be sent. | ||
Square or Round Cutout | Normal square metre plus surcharge (please refer to shutter manual). | ||
French Door Cutouts | French Door Cutouts can only be fitted with an L Frame. There are two choices a rectangle cut out or a half round cut out. Please see manual for diagram to be submitted with all orders. | ||
Bay Window | Normal square metre price plus surcharge (please refer to shutter manual). | ||
Corner Window | Normal square metre price plus surcharge (please refer to shutter manual). | ||
Flat Louvres | Available in 89mm only – normal square metre price plus surcharge (please refer to shutter manual). | ||
Any stile width in excess of 50mm | Normal square metre price plus surcharge (please refer to shutter manual). | ||
Cut outs in Frame | Normal square metre price plus surcharge (please refer to shutter manual). | ||
Additional Timbers | Painted – Extra charge applies. Stained – Extra charge applies. | ||
Barn Door Style | Normal square metre price plus surcharge (please refer to shutter manual). | ||
Stainless Steel Hinges | Normal square metre price plus surcharge (please refer to shutter manual).Specific sized Top or Bottom rails are available on request – No Extra Charge. | ||

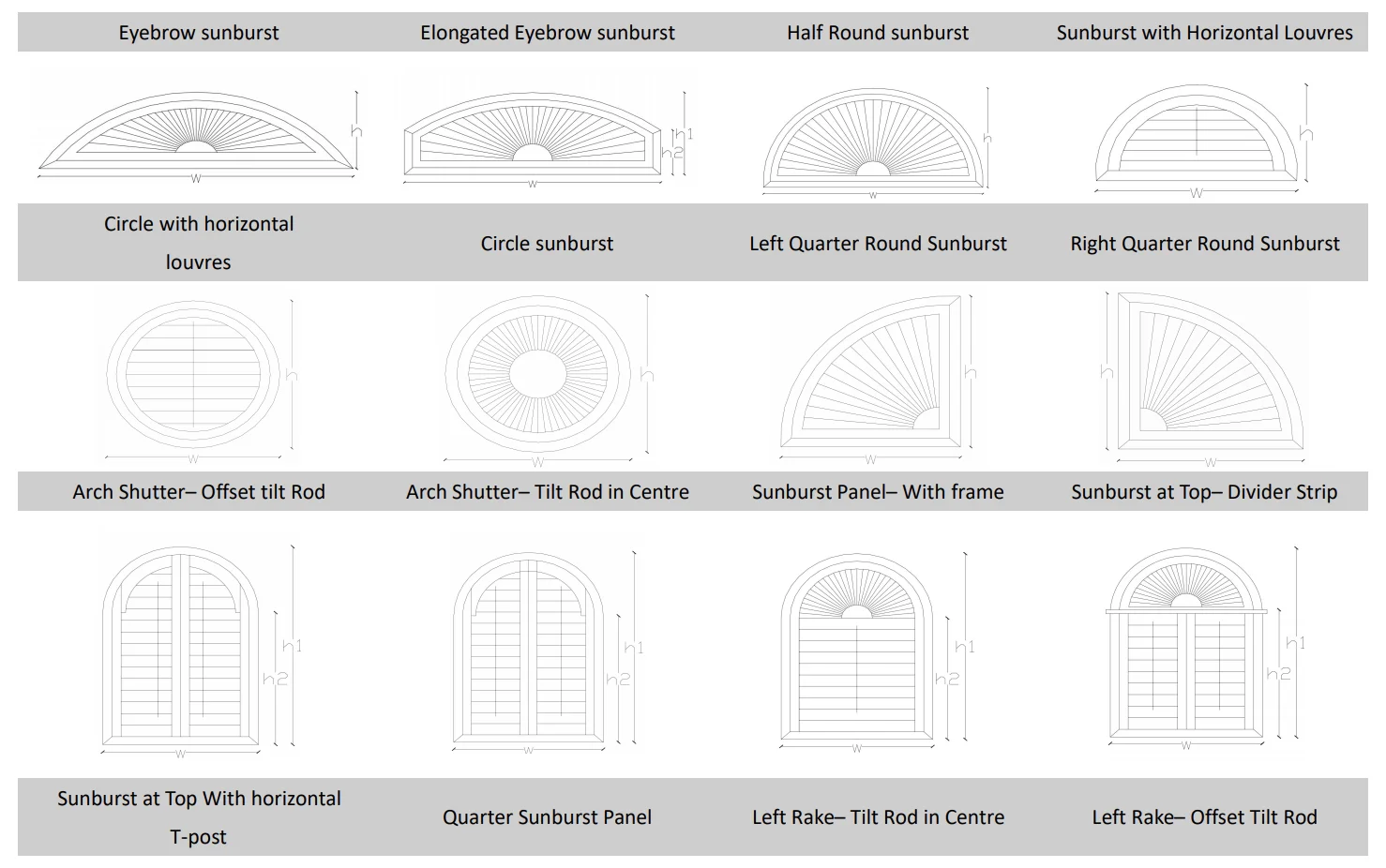

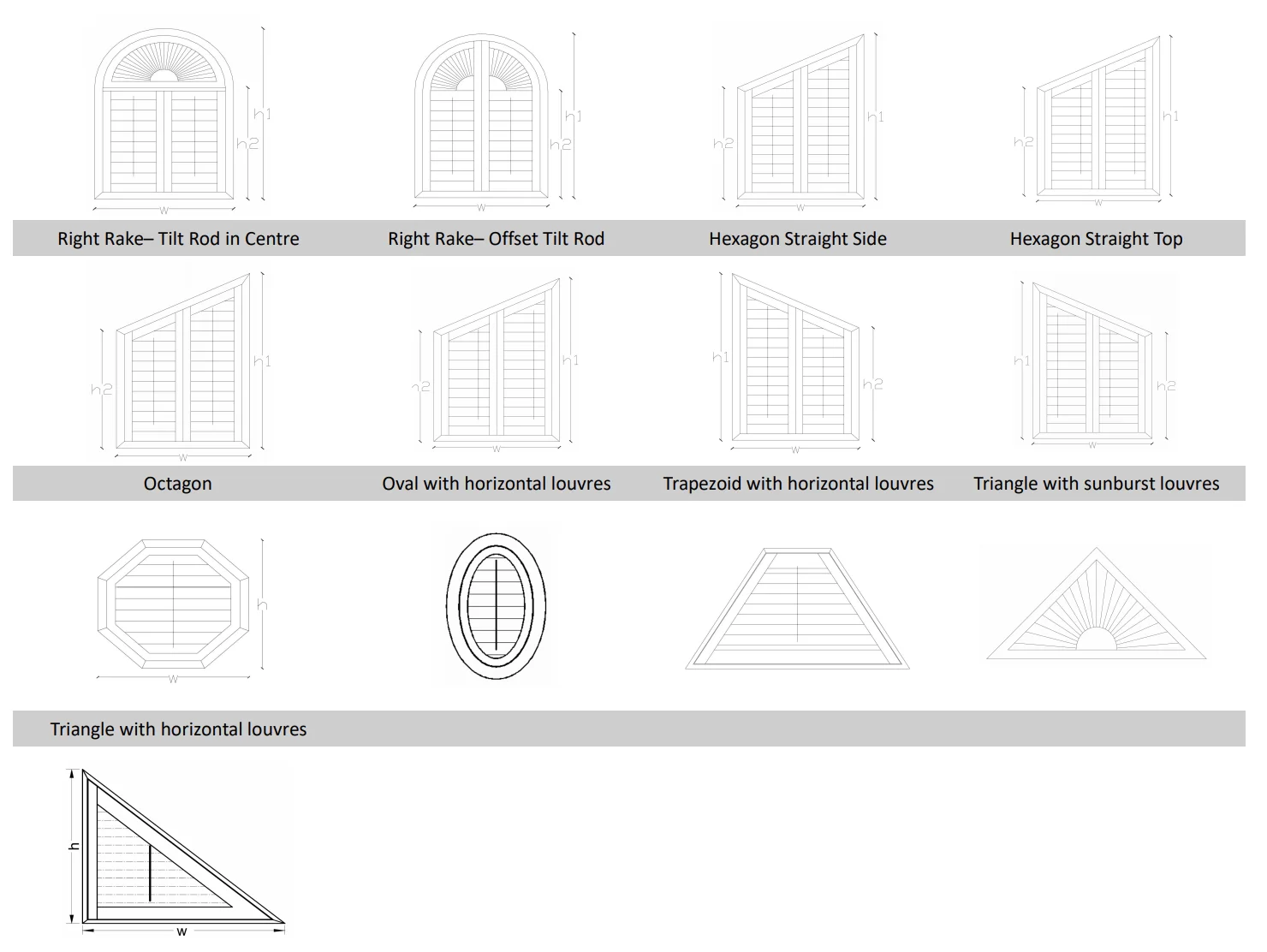

SHAPE WINDOW | |||

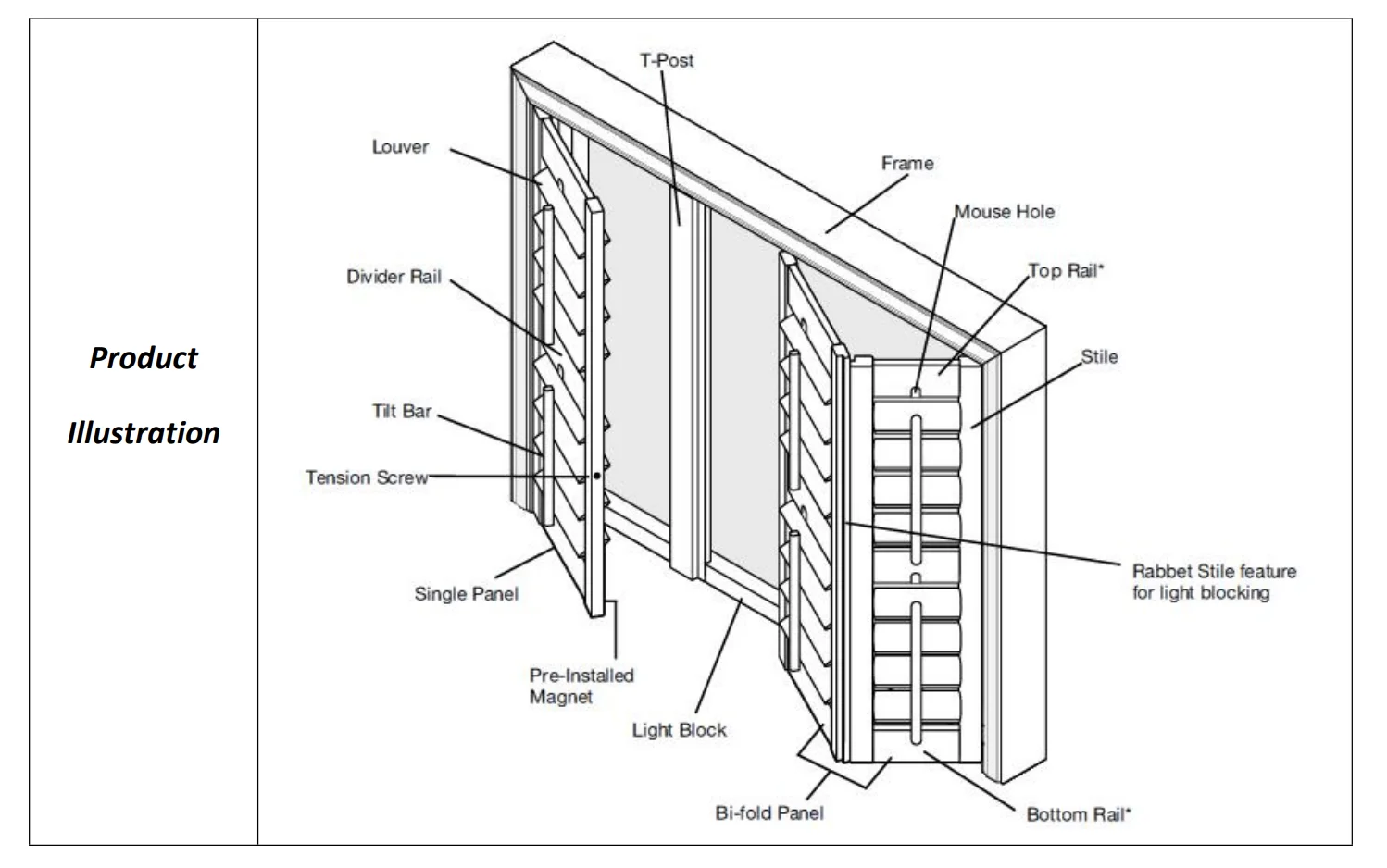

SHUTTER COMPONENTS
114mm wooden louver
90mm wooden louver
63mm wooden louver
50.8mm wooden butt stile
64.5mm wooden astragal stile
56.3mm wooden rebate stile
50.8mm wooden rebate stile
73mm wooden middle rail
100mm wooden middle rail
25mm wooden Flat T post
44mm wooden bead T post
100mm wooden top *bottom rail
115mm wooden top*bottom rail
140mm wooden top*bottom rail
150mm wooden top*bottom rail
19mm wooden light block
49.5mm wooden bead L frame
65mm wooden bead L frame
65mm wooden bead L frame
50mm wooden vantage L frame
65mm wooden vantage L frame
50mm wooden bullnose Z frame
with 20mm nose
50mm wooden crown Z frame
with 44mm nose
50mm wooden large crown Z frame
with 70mm nose
50mm wooden decor Z frame
with 25.4mm nose
50mm wooden bell Z frame
with 35mm nose
50mm wooden mini Z frame
with 8mm nose
50mm wooden bead Z frame
with 19mm nose
50mm wooden big shaker Z frame
with38.1mm nose
50mm wooden Anti flash Z frame
with35mm nose
50mm wooden trim Z frame
with 9.5mm nose
50mm wooden camber L frame
50mm wooden hill L frame
Packing & Delivery

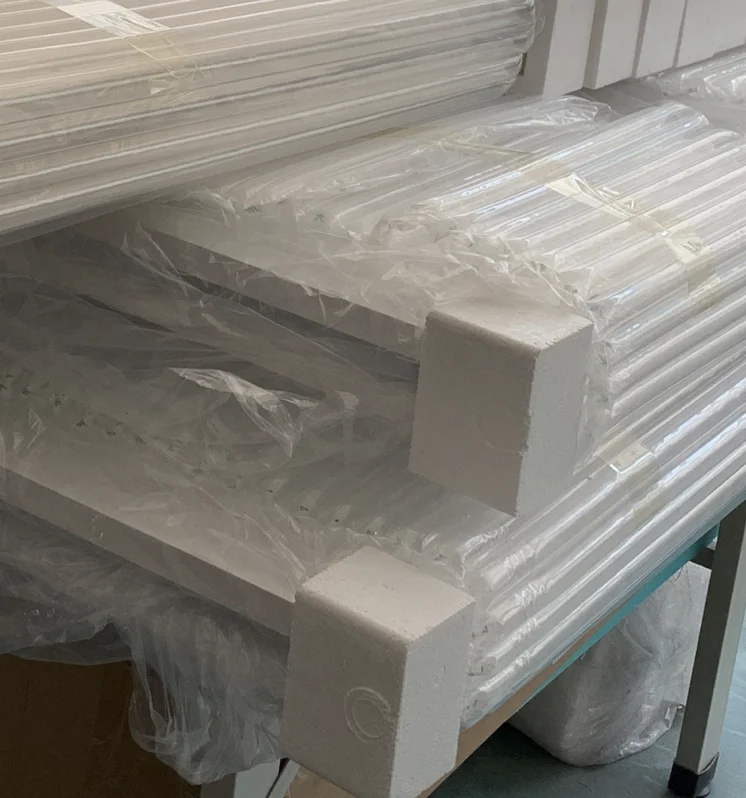

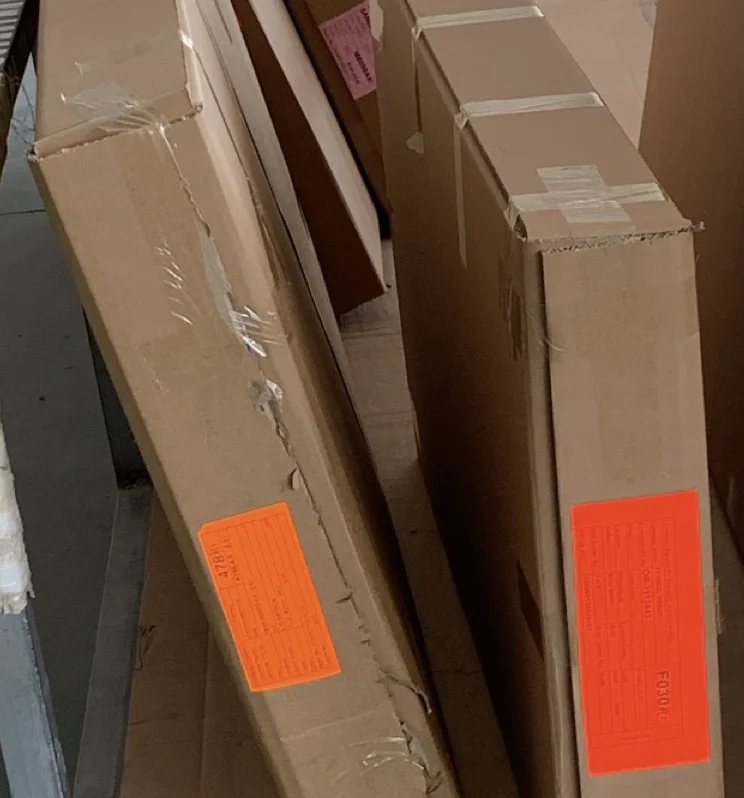

Normally poly bag cover the panels and parts, outside cover the bubble bag and cartons for container sea shipping,
If delivery air shipping, should be add extra crates to protect,If long delivery, should be add extra package.
If delivery air shipping, should be add extra crates to protect,If long delivery, should be add extra package.

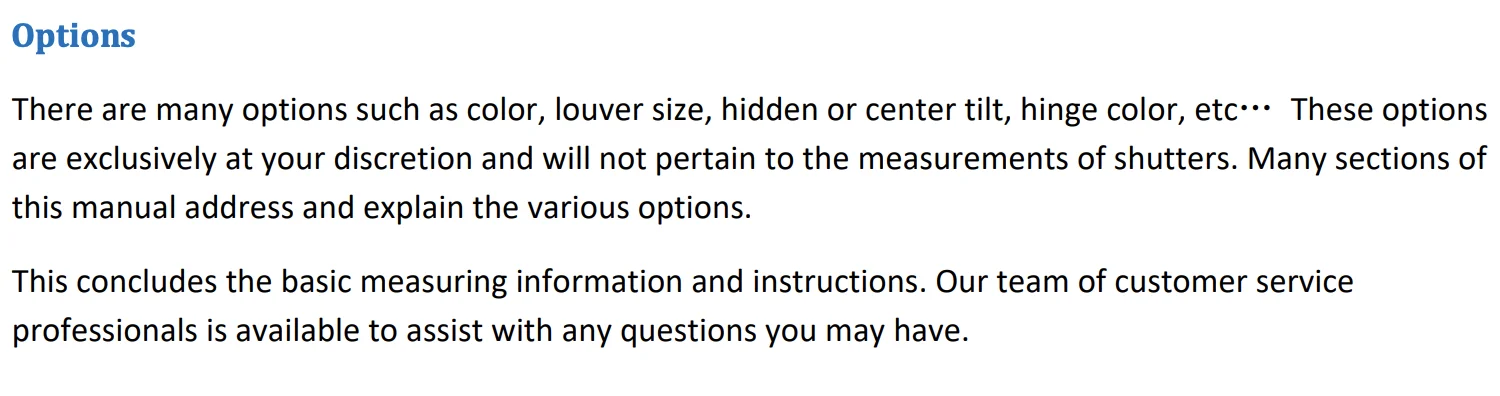

MEASURING GUIDELINGS
Company Profile
Guangdong Grand Homedecor Technology Co., Ltd. has a long tradition of providing quality window treatment products to both retail and fabrication customers which is one of largest manufacturers of quality window treatment products joint venture, with total investment of $10 million with 1100 staff members and two branch company, which are located in Guangdong and Zhejiang. Guangdong branch product faux wood shutter, wooden shutter and venetian blind and Zhejiang branch factory product aluminum shutter and wooden shutter. Our company has all kinds of modern automatic production line equipment and a large number of production machines, including aluminum alloy plate of the lacquer, bake paint powder electrostatic coating and wood automatic spray paint and other large-scale production line. The main production: Venetian blind (wood, aluminum and faux wood ), vertical blind, shutter (aluminum, wooden and faux wood ) etc. all kinds of curtain and hardware.With more than two million square feet of manufacturing space, we take pride in our ability to deliver a consistent product time and again. We maintain our strong commitment to quality by being fully vertically integrated. From rolling our own steel to embossing our own vertical louvers, we do it all!Products are to be 100% exported, customer are from all over the world, mainly exported to the United States, Australia, Japan and other countries in the European Union.With great effort of Grand Homedecor people, the company has the excellent quality, perfect service and fine credit. The company is striding forward normalization and internationalization. At the same time, the company will cooperate with you and create the brilliant future with the pioneer, enterprising, united and practical spirits.
