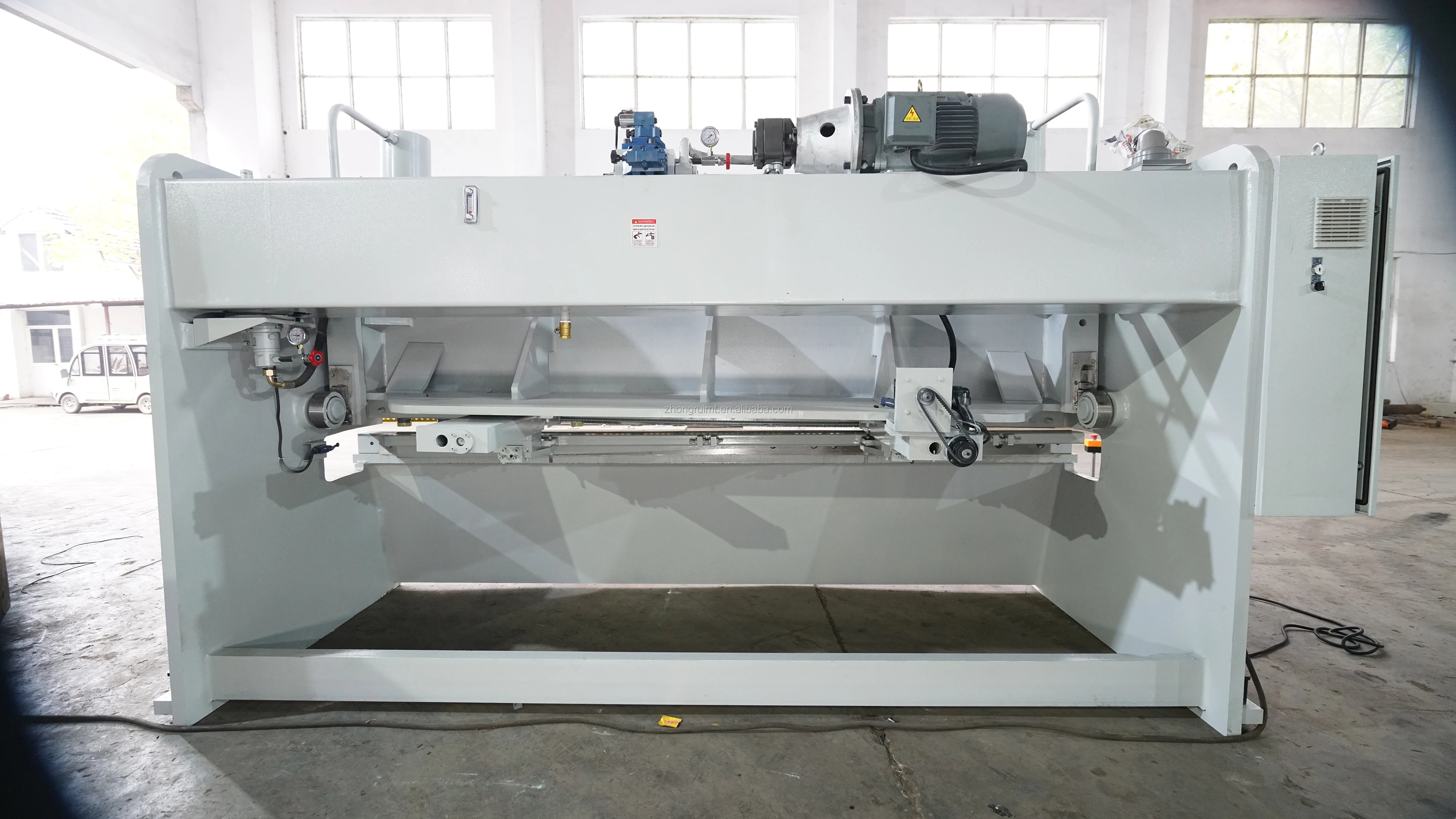

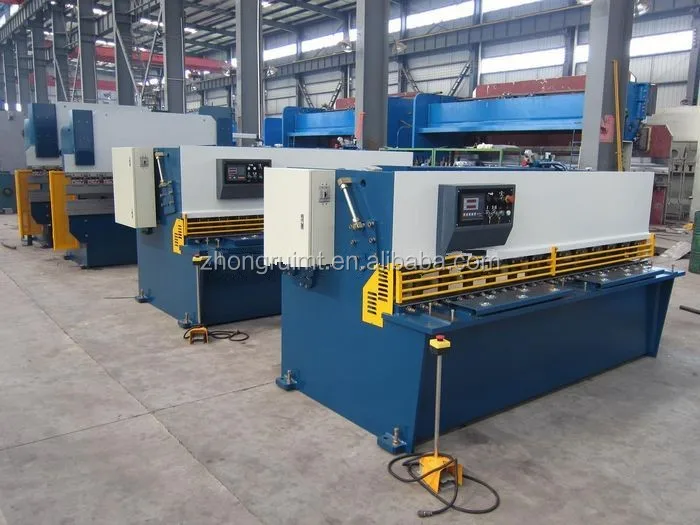

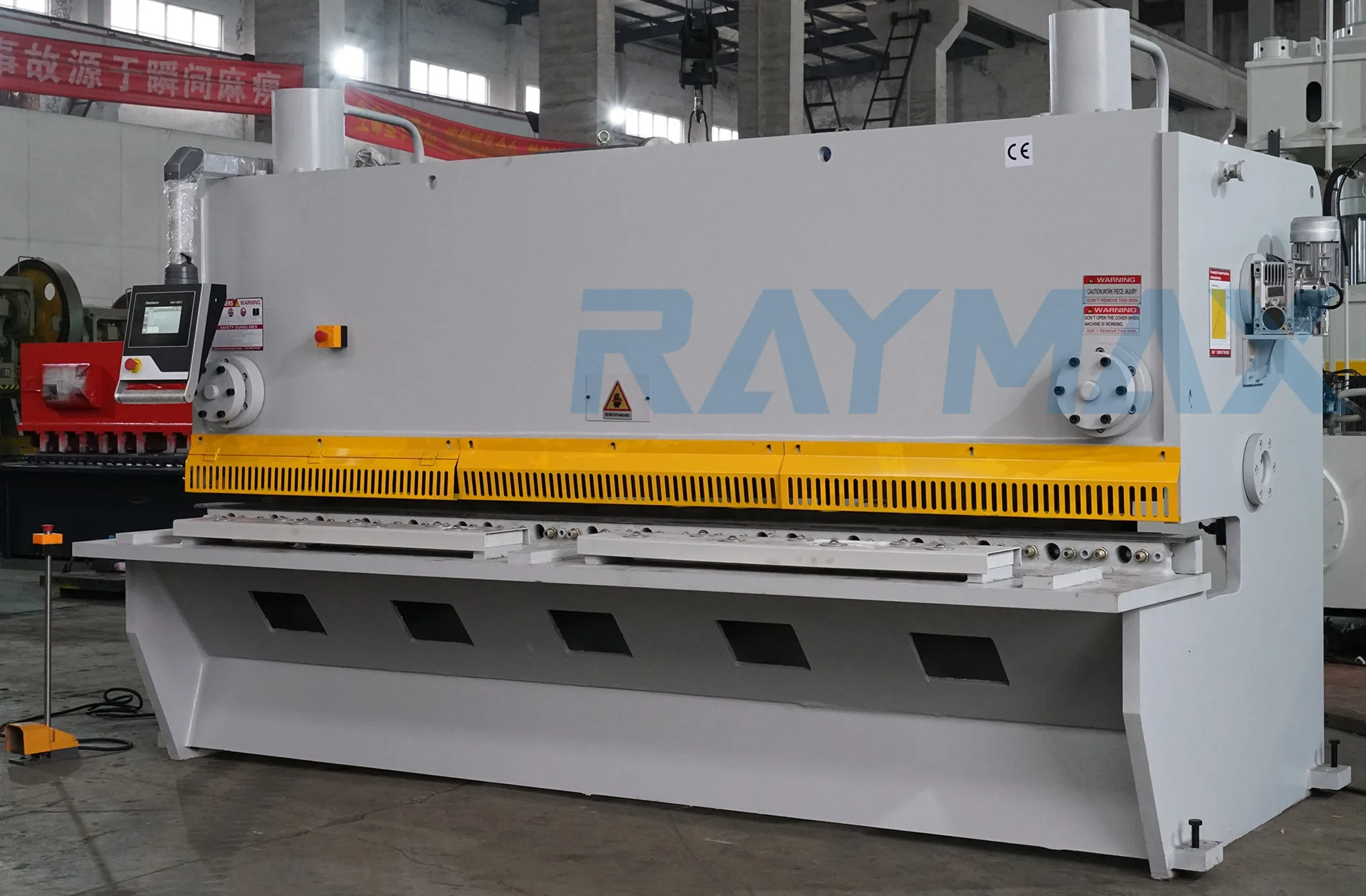

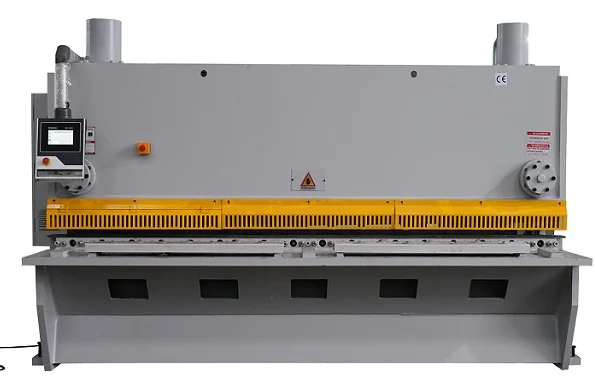

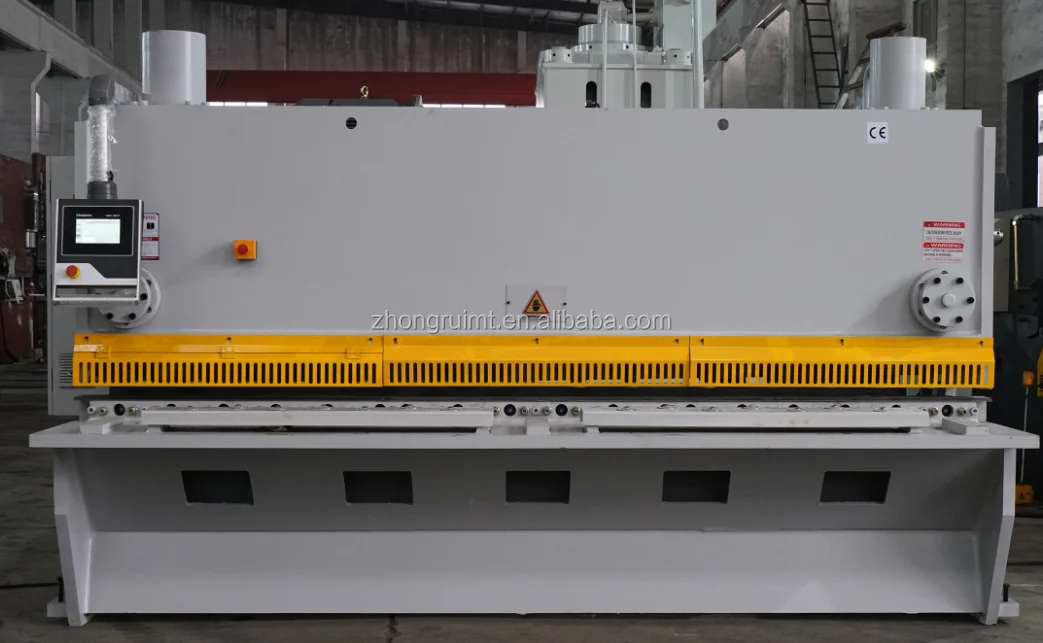

QC11Y/K CNC Guillotine Type Hydraulic shearing machine
Main feature :
1. The machine adopts full steel welding structure,vibration eliminate stress,has tye very good rigidity and stability .
2. Hydraulic Guillotine Shearing machine adopt ball screw,linear guide and servo motor to drive the back gauge with high positioning accuracy
3.Rapidly,accurately and conveniently adjusting the blade clearance by motor.
4.Integrated steel welded structure,eliminate stress by vibration,with good rigidity. 5.Adopt the advanced hydraulic integrated valve block which is in compact structure and will reduce piping connections, and improves system reliability and maintainability.
6.Accumulator return smooth and rapid
Manual/automatic adjustment of blade clearance (depend on the controller), accurate, rapid and convenient
Manual/automatic adjustment of blade clearance (depend on the controller), accurate, rapid and convenient
Product Description

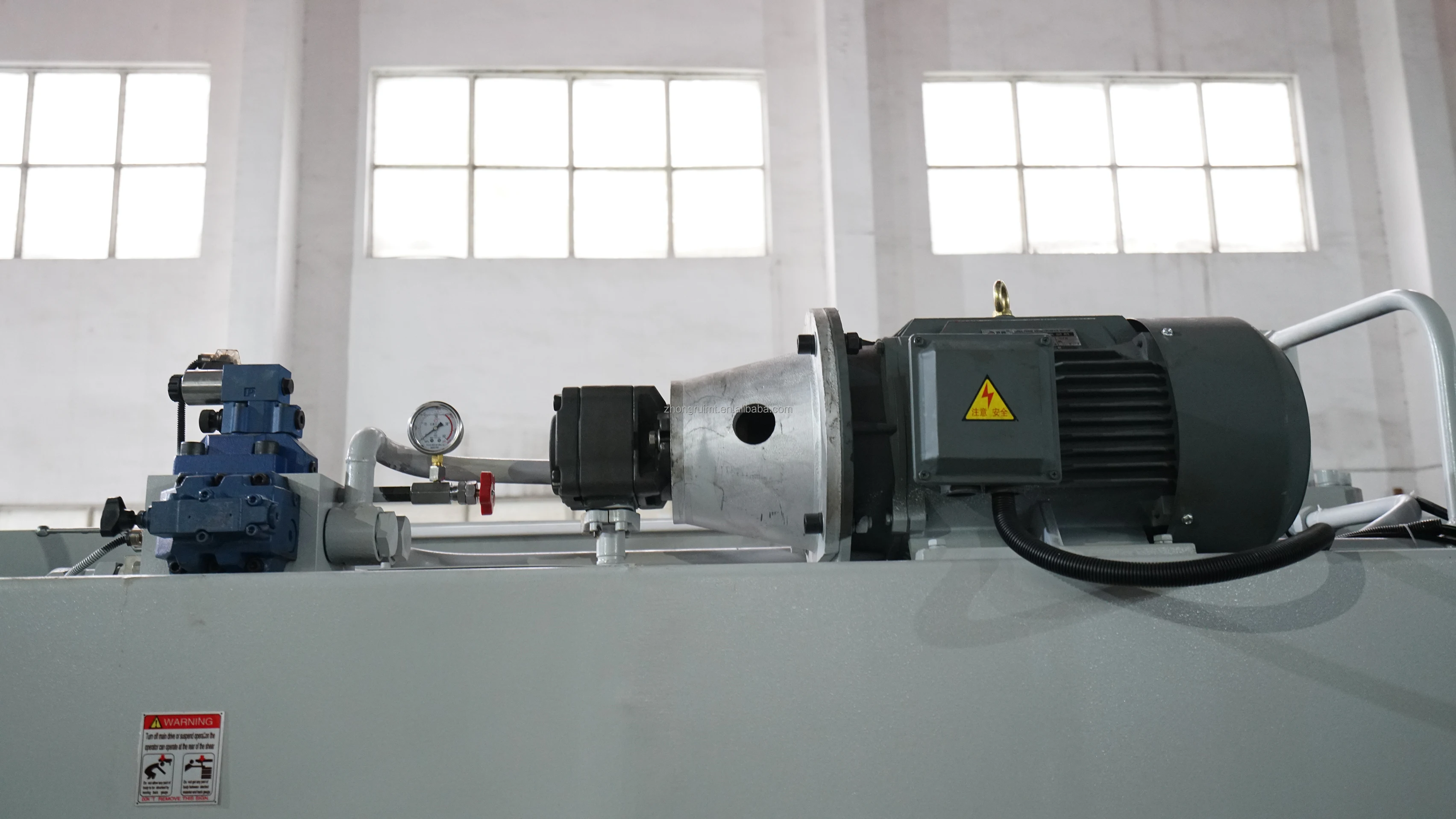

Motor and Pump
improves the lifespan of the machine and keeps the machine working in low noise environment.
Hydraulic pump performs well and provides great power for the whole hydraulic system.

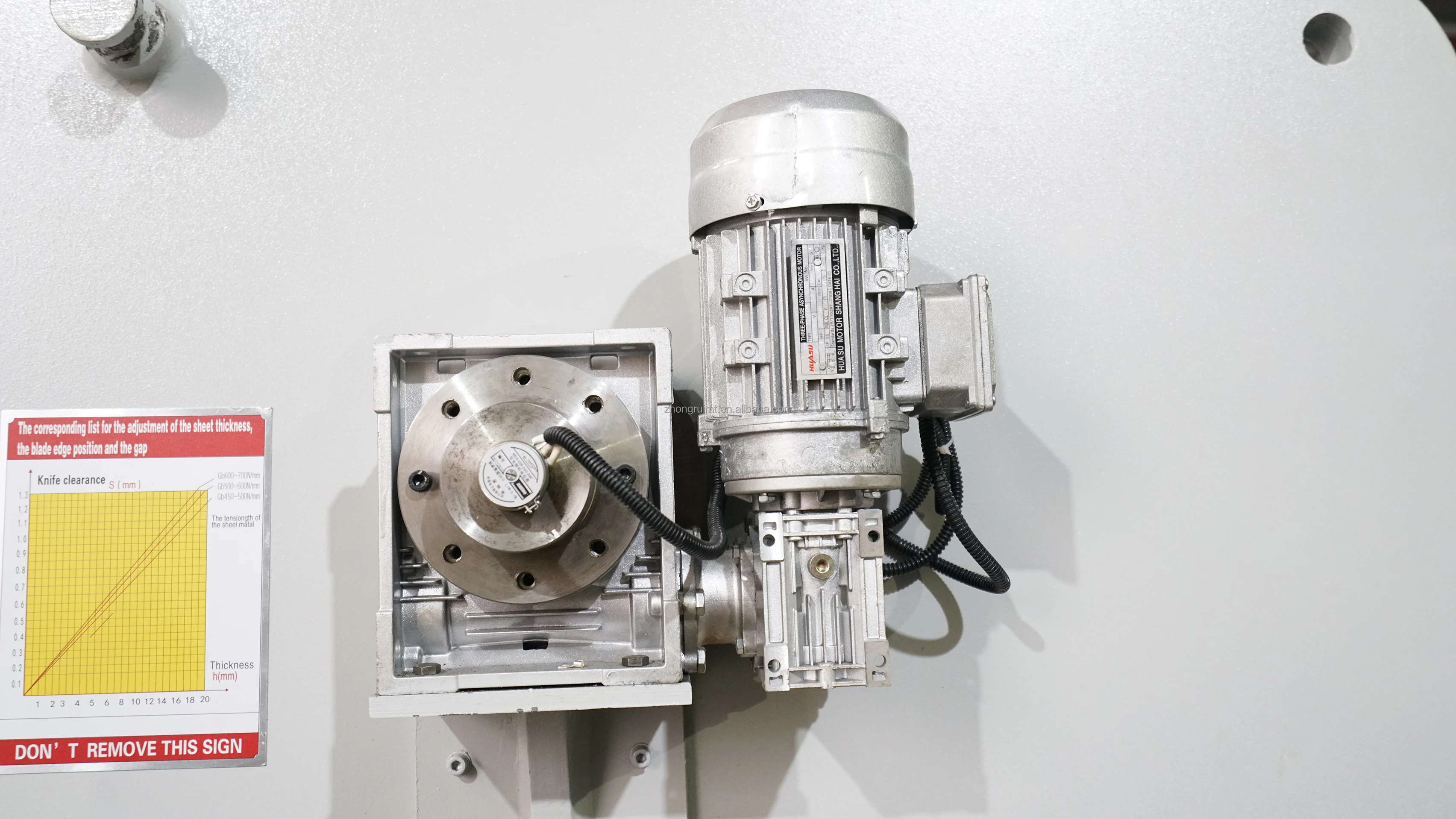

Motorized blade clearance adjustment
Motorized blade clearance adjustment
Adjust the cutting blades gap by motor according the cutting thickness of the metal sheet can get better cutting performance
Adjust the cutting blades gap by motor according the cutting thickness of the metal sheet can get better cutting performance
BOSCH-REXROTH Germany
The oil in the lower cylinder of the left cylinder is forced into the upper cylinder upper chamber and the right cylinder lower
chamber. Oil back to the tank. The return stroke is reversed by the solenoid valve.
chamber. Oil back to the tank. The return stroke is reversed by the solenoid valve.

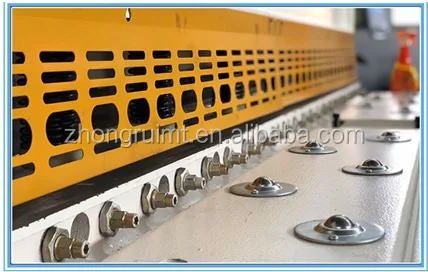

Safety Fence and cuting blade
1.Protective guards on each side can protect the user during operation
2.Upper blade with 4 cutting edges
Bottom blade with 4 cutting blade.
Tower rolling ball
Tower rolling ball, reduces the sheet of material and can reduce scratches
The cylinder is designed with multi-layer and anti-wear sealing, no oil leakage, and the distance between the presser foot and the
tool holder is controlled within the width of the blade, saving as much material as possible
The cylinder is designed with multi-layer and anti-wear sealing, no oil leakage, and the distance between the presser foot and the
tool holder is controlled within the width of the blade, saving as much material as possible
DAC360
* Panel based housing
* Bright LCD screen
* Back / front gauge control
* Retract function
* Cutting angle control and gap control
* Stroke length limitation
* Manual movement of all axes* Force control
* Sheet thickness measurement
* RTS, Return to Sender function
* Second servo axis (DAC-362s)
* Sheet support
* Bright LCD screen
* Back / front gauge control
* Retract function
* Cutting angle control and gap control
* Stroke length limitation
* Manual movement of all axes* Force control
* Sheet thickness measurement
* RTS, Return to Sender function
* Second servo axis (DAC-362s)
* Sheet support
DAC310
* Bright LCD 128 x 64 display
* Backgauge control
* Gap control
* Stroke length limitation
* Actual and Programmed position visualization
* Stock counter
* Programmable up to 100 steps
* Panel-based housing
* Servo control / inverter / 2-speed AC control
* Backgauge control
* Gap control
* Stroke length limitation
* Actual and Programmed position visualization
* Stock counter
* Programmable up to 100 steps
* Panel-based housing
* Servo control / inverter / 2-speed AC control
E21S
* Numerical, one page programming
* Monochrome LCD Box Panel.
* Integral factor programmable freely
* Automatic positioning control
* Spindle allowance offset
* Internal time relay
* Stock counter
* Backgauge position display, resolution in 0.05mm
* Monochrome LCD Box Panel.
* Integral factor programmable freely
* Automatic positioning control
* Spindle allowance offset
* Internal time relay
* Stock counter
* Backgauge position display, resolution in 0.05mm
QC11Y/K Technical parameters | ||||||||
Model | Cutting thickness | cutting length | cutting angle | Stopper Adjust Range | ||||
QC11Y/K-4X2500 | 4 mm | 8.2 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-4X3200 | 4 mm | 10.5 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-4X4000 | 4 mm | 13.1ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-6X2500 | 6 mm | 8.2 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-6X3200 | 6 mm | 10.5 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-6X4000 | 6 mm | 13.1 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-6X5000 | 6 mm | 16.4 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-6X6000 | 6 mm | 19.7 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-6X8000 | 6 mm | 26.2 ft | 30’—1.5° | 800 mm | ||||
QC11Y/K-8X2500 | 8 mm | 8.2 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-8X3200 | 8 mm | 10.5 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-8X4000 | 8 mm | 13.1 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-8X5000 | 8 mm | 16.4 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-8X6000 | 8 mm | 19.7 ft | 30’—1.5° | 800 mm | ||||
QC11Y/K-10X2500 | 10 mm | 8.2 ft | 30’—1.5° | 600 mm | ||||
QC11Y/K-10X4000 | 10 mm | 13.1 ft | 50‘-2° | 600 mm | ||||
QC11Y/K-16X8000 | 16 mm | 26.2 ft | 1 °-3.5 ° | 800 mm | ||||
Certifications
Company Profile

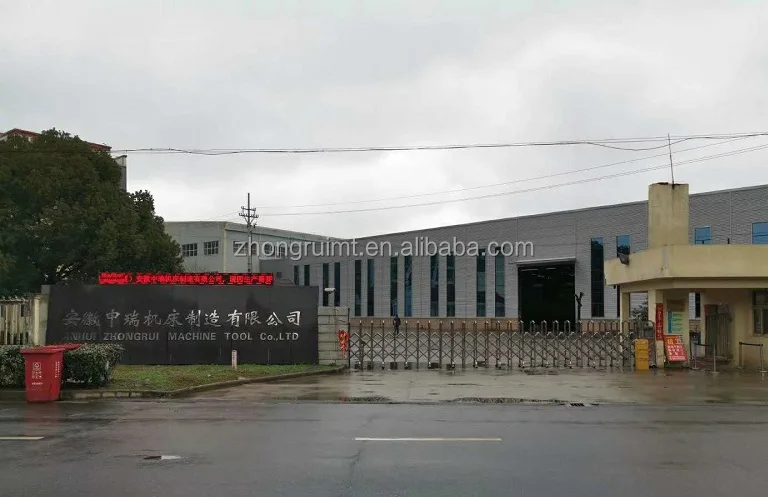

Anhui zhongrui machine manufacturing co;Ltd
Anhui zhongrui machine manufacturing co;Ltd was build in 2002 and located in Bowang Special Economical Zone, Anhui province. It was registered RMB 0.21 billion ,occupy 120,000.000 square meter with more than 400 employees and is composed of highly trained and qualified machine operators and assembly technicians supported by staff of experience engineers and designers, and making it is one of the largest manufactures of sheet metal fabricating machinery in China. We are dedicated to the R&D and manufacturing of medium or high -level processing equipment and press lines for punching ,shearing, bending and laser cutting of metal plates.
Zhongrui not only is the AAA level contracts and keep promise in enterprises, but also passes the ISO9001 certification and CE certification With years of development and accumulation , we continued to strengthen research and development of new products ,introduce the cnc technology which come from Italy and Germany. CNC press brake ,cnc fiber laser cutting machine that we produced have achieve a real sense of CNC automatic control and improve the productivity greatly. To control the quality strictly and to ensure the customers satisfaction, the company achieved a product with strict control from design, manufacture process, inspection until the whole machine delivery ,installation and service. Zhongrui will keep enterprising in the corporate spirit of "credit, collaboration, pragmatism and innovation" and Sincerely hope to make progress together and jointly create brilliance with friends of all circles
Zhongrui not only is the AAA level contracts and keep promise in enterprises, but also passes the ISO9001 certification and CE certification With years of development and accumulation , we continued to strengthen research and development of new products ,introduce the cnc technology which come from Italy and Germany. CNC press brake ,cnc fiber laser cutting machine that we produced have achieve a real sense of CNC automatic control and improve the productivity greatly. To control the quality strictly and to ensure the customers satisfaction, the company achieved a product with strict control from design, manufacture process, inspection until the whole machine delivery ,installation and service. Zhongrui will keep enterprising in the corporate spirit of "credit, collaboration, pragmatism and innovation" and Sincerely hope to make progress together and jointly create brilliance with friends of all circles
