Introduction:

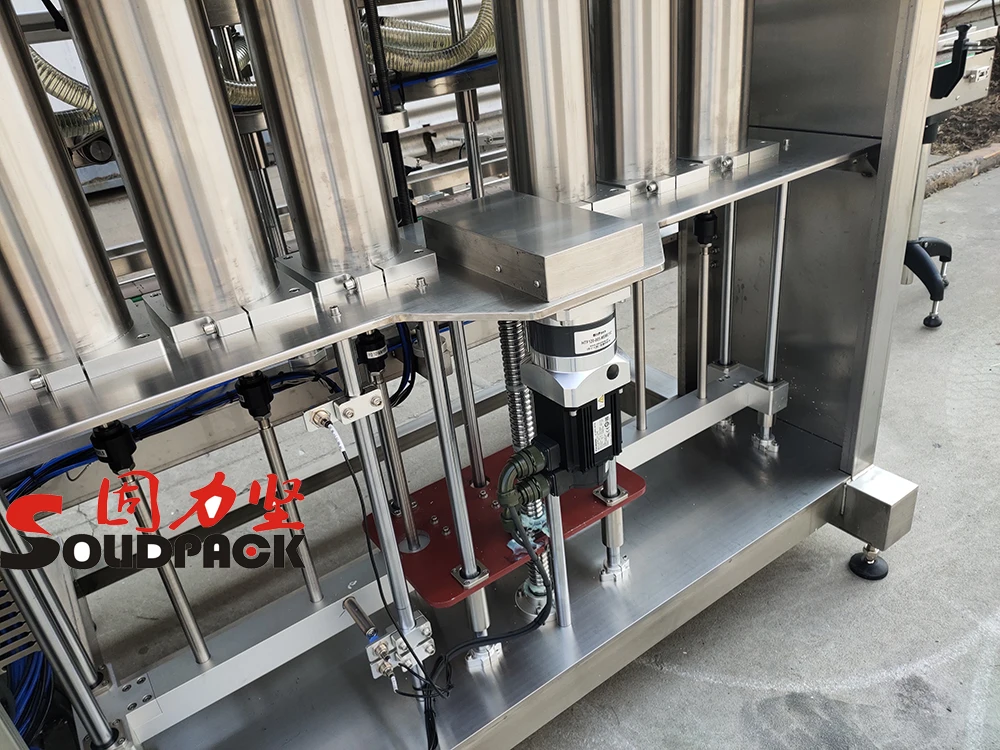

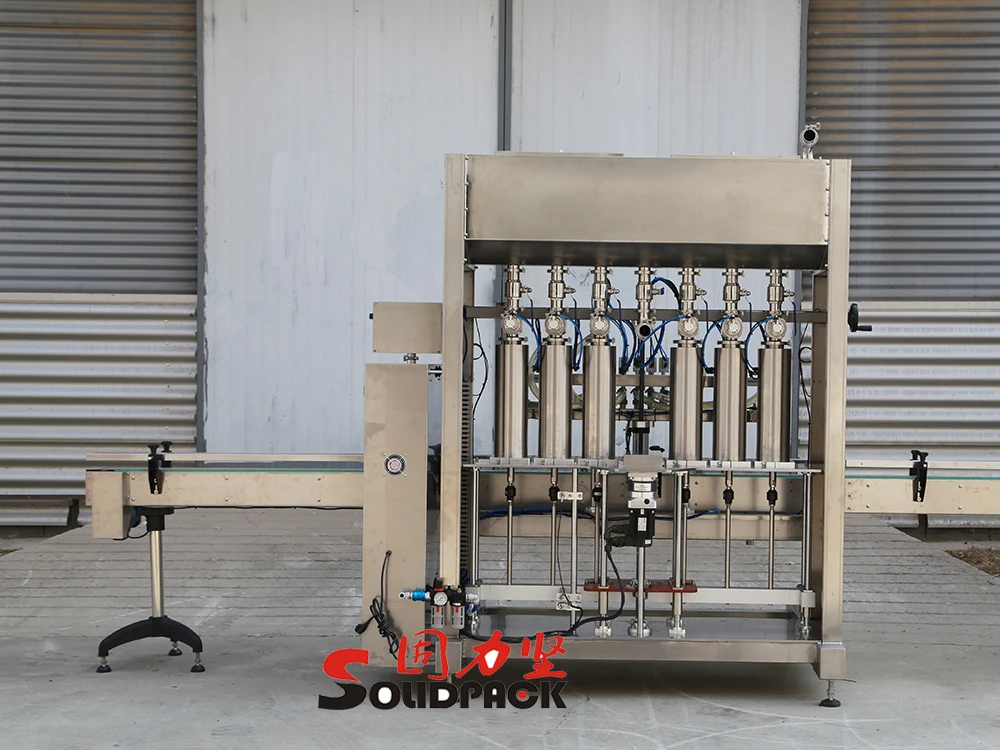

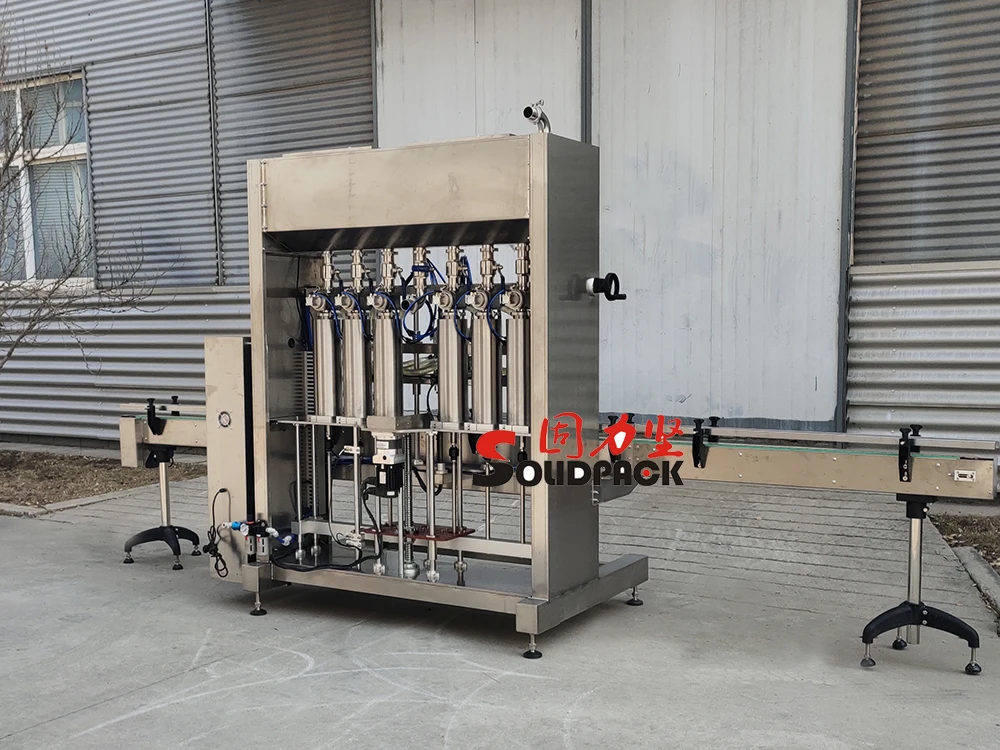

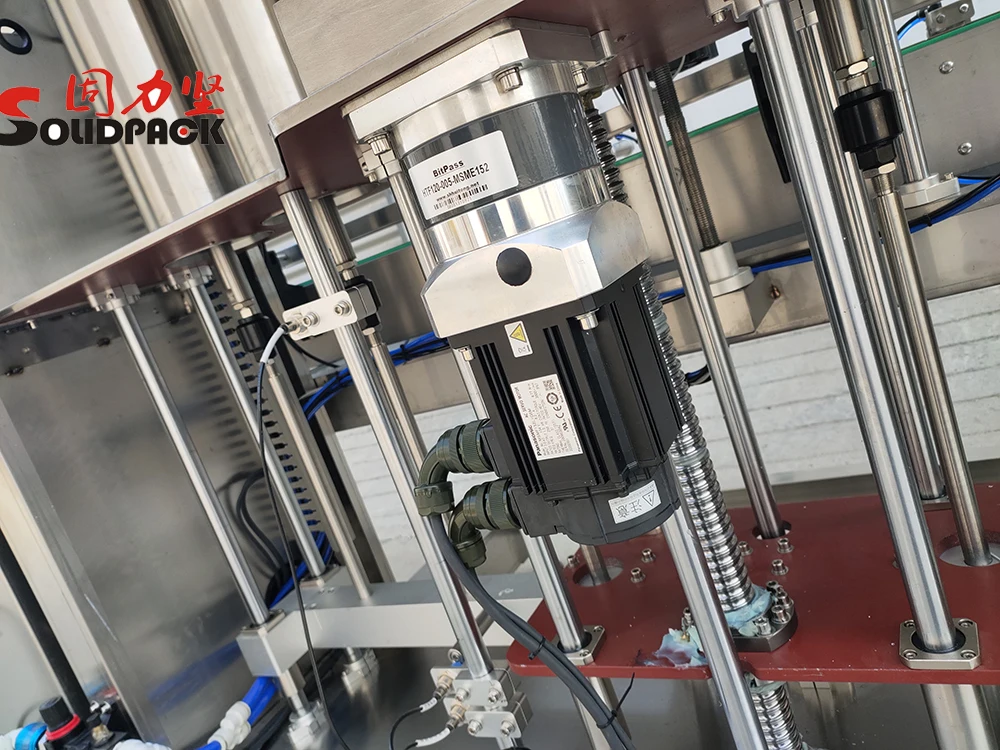

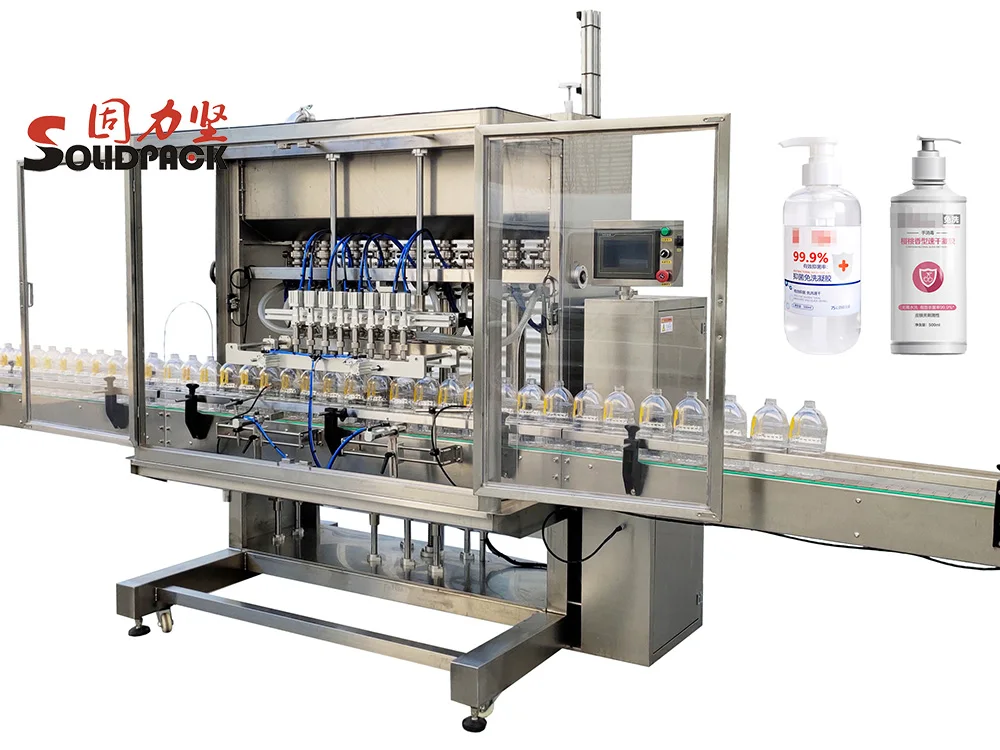

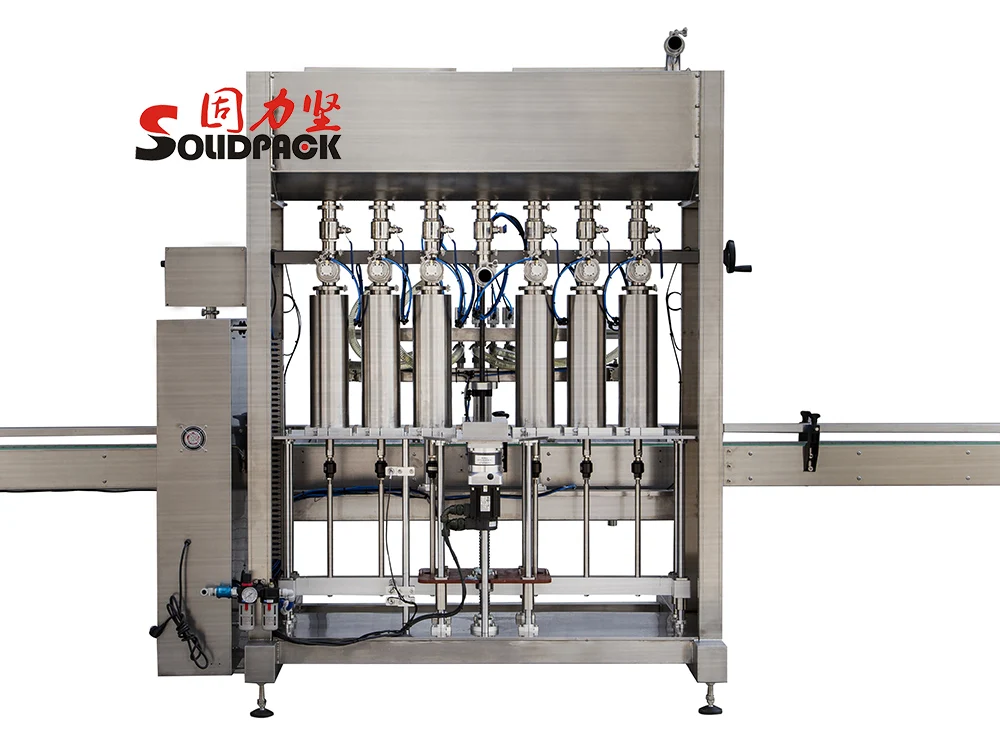

This machine adopts piston pump and rotary valve, suitable for filling all kinds of thick & sticky material:
In cleaning liquid and cosmetic industry, like shampoo, liquid soap, hand sanitizer, laundry detergent, shower gel, cream, lotion , hair gel, etc.
The machine can be made with 4 filling heads/ 6 filling heads/ 8 filling heads/ 10 filling heads/ 12filling heads ,16 filling heads, 18 filling heads etc, according to the filling capacity customers needed.
Parameters:
Material | SUS304 and SUS316L | ||||
Filling range | 10-100ml/ 30-300ml/ 50-500ml/ 100-1000ml/ 250-2500mml/ 300-3000ml/ 500-5000ml (600-6000ml can be tailor made) | ||||
Fillling heads | 4 | 6 | 8 | 10 | 12 |
Filling speed | About 2000-2500 | About 2500-3000 | About 3000-3500 | About 3500-4000 | About 4000-4500 |
Filling precision | ±0.5-1% | ||||
Power | 220/380V 50/60Hz 1.5Kw (Can be tailor made to suit different countries) | ||||
Air pressure | 0.4-0.6Mpa | ||||
Machine Size (L*W*Hmm) | 2000*900*2200 | 2400*900*2200 | 2800*900*2200 | 3200*900*2200 | 3500*900*2200 |
Weight | 450Kg | 500Kg | 550Kg | 600Kg | 650Kg |
Strong Wooden Case
15 Working Days after Receipt of Deposit 30% T/T
