Koller cylinder ice making machine 1ton per day pure edible tube ice maker machine for bars drinking shops baverage cooling
Product Overviews
1. Product Features:

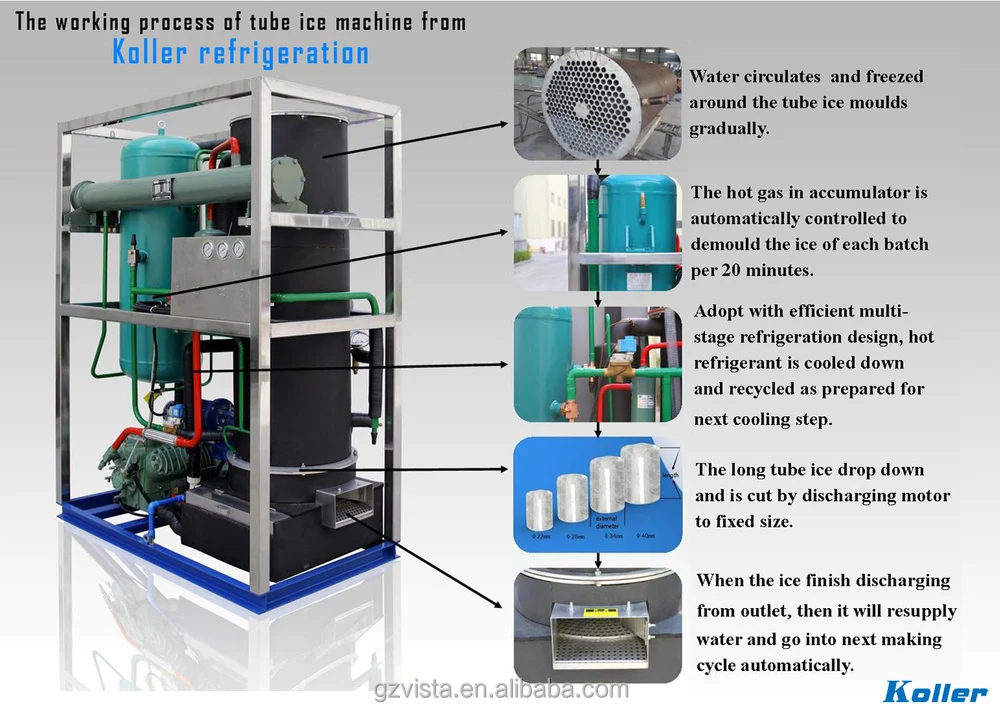

1). Harvest ice way: Hot gas defrosts
2). Ice tube Size: 20mm, 28mm, 30mm or 34mm in diameter; 30mm~50mm in length; hollow and transparent ice.
3). Evaporator: tube vessel, its top and bottom part was welded with quality joining.

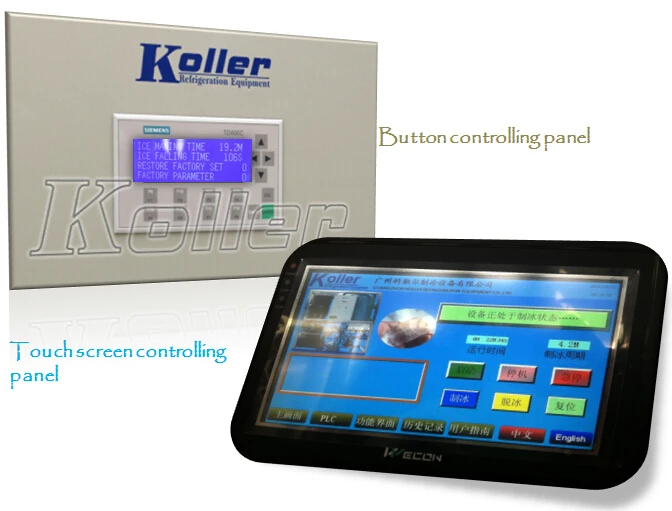

4). PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.
5). Rotating Driver Ice Cutter: stainless steel 304 Ice Cutter Blade run by medium speed gear motor.
6. Install according to the operation manual and CD, Supply failure alarming system, and no requirement of skilled workers, high durability, and minimum maintenance.
7. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.

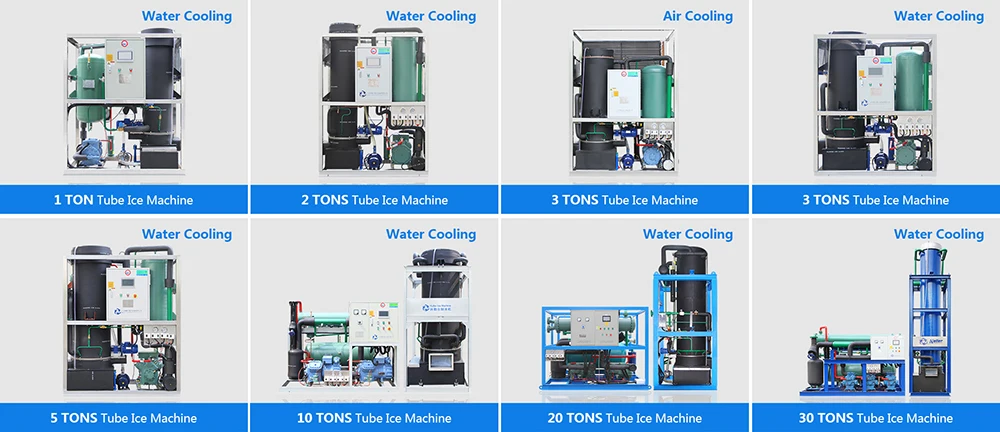

8. Koller tube ice machine daily capacoty varies from 1ton to 20tons.
Technical parameter
| Model | TV10 | TV20 | TV30 | TV50 | TV80 | TV100 | TV200 | |
| Capacity (Tons/24hrs) | 1 | 2 | 3 | 5 | 8 | 10 | 20 | |
| Refrigerant | R22/R404a/R507 | |||||||
| Compressor Brand | Bitzer/ Refcomp | |||||||
Cooling Way | Air/ Water Cooling | Water Cooling | ||||||
| Compressor Power | 4 | 9 | 14(12) | 28 | 44(34) | 46(44) | 102(88) | |
| Ice Cutter Motor | 0.37 | 0.37 | 0.55 | 0.75 | 1.1 | 1.1 | 2.2 | |
Power of Circulating Water Pump | 0.37 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | |
| Power of Water Cooling Pump | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 5.5 | |
| Cooling Tower Motor | 0.18 | 0.37 | 0.55 | 0.75 | 1.5 | 1.5 | 1.5 | |
| Ice Machine Size | L (mm) | 1500/1500 | 1500/1500 | 1660/1660 | 1660 | 2200 | 2320/1450 | 2800/1600 |
| W (mm) | 1000/1000 | 860/1140 | 1000/1216 | 930 | 1900 | 1200/1200 | 2300/1354 | |
| H (mm) | 1750/1750 | 2095/2120 | 2015/2320 | 2175 | 2550 | 2260/2645 | 2100/4537 | |
* Power supply: 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P;
440V/60Hz/3P.
* Standard conditions: water temperature: 21℃;ambient temperature: 25℃;condensing temperature: 40℃.
* Ice making capacity would be changed depending on installation place, refrigerator’s freezing capability, or surrounding usage environment such as outside temperature.
* The above data si subjected to the final design without notice.
2. Main Components
Item | Name of Components | Brand Name | Original Country |
1 | Compressor | Bock/BITZER/REFCOMP | Germany/Italy |
2 | Ice Maker Evaporator Grid | KOLLER |
China |
3 | Water cooled condenser | KOLLER | |
4 | Refrigeration components | DANFOSS/CASTAL | Denmark/Italy |
5 | PLC Program control | SIEMENS | Germany |
6 | Electrical components | LG (LS) | South Korea |
3. Machine size
Tube ice machine: 1560mm*1060mm*1780mm;
Cooling tower: 1230mm*1230mm*1260mm.
4. Supply Power Form: 380~420V, 50Hz, 3P or 220~240V, 60Hz, 3P.
5. Cooling System: Water cooled system or air cooled system.
After-Sales Service
(1) During 12 months after selling, maintenance and parts free of charge.
(2)We can provide 12 months warranty for our machine. During the warranty period, if your machine don’t work, you can send us pictures or video or call us about the fault. We will immediately mail you the solution to solve the problems within 24hours. If the part is broken for nonpersonal reason,we will replace one for free within guarantee period. But if beyond guarantee period, we will charge market price for the new parts.
Installation
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation
manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
(2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the
actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
(5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.

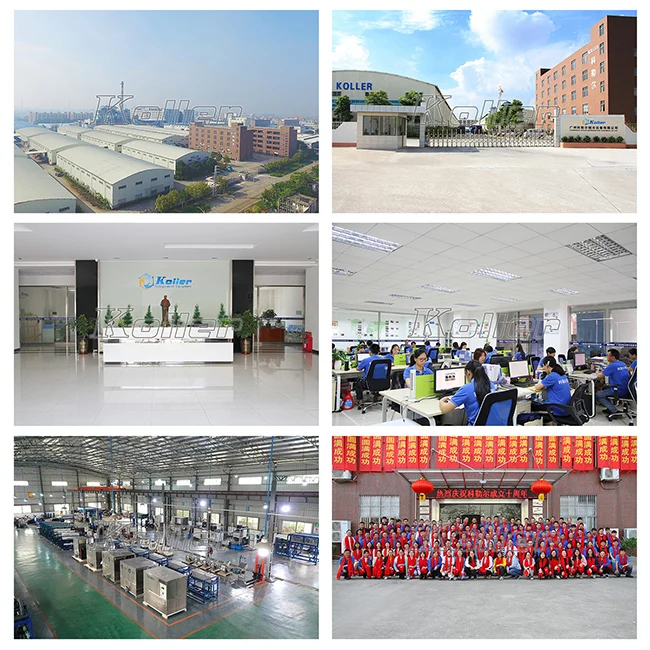

Company Information
We have our own factory and professional sales team,we are strict on the quality.Our company located in Nansha district,Guangzhou,China.

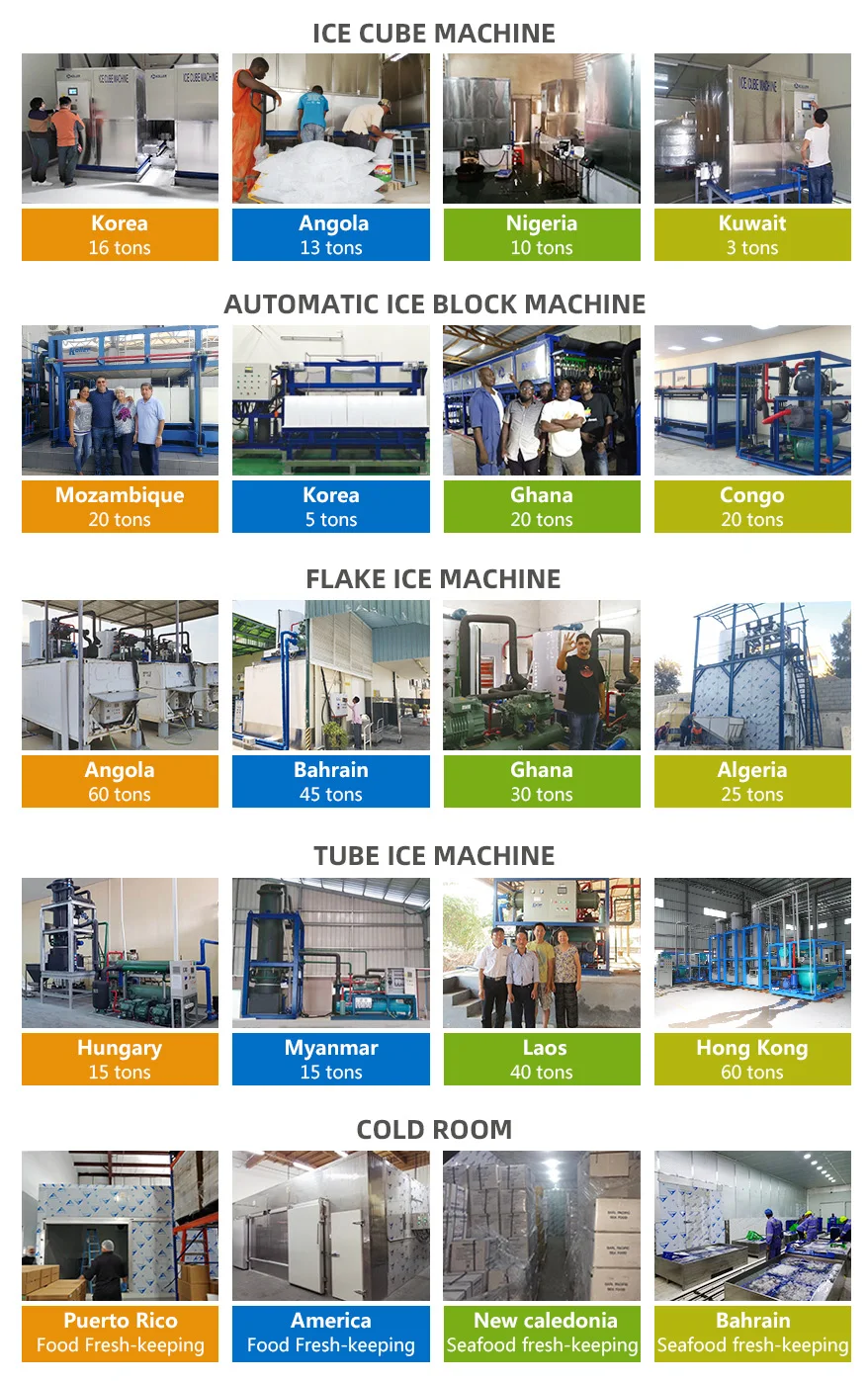

1) We have exported our ice machines to more than 150 countries ;
2)Excellent Brand of China Ice Machine Industry;
3)The Drafting Committee of National Ice Machine Industrial Standard;
4)Produce & Academic Research Strategy Cooperating Partner with Tsing Hua University.
