Холодильные Контейнеры 20 и 40 футов (Reefer), новые и б/у
US $1645-$2134
Охлаждающий охлаждающий контейнер US Thermo King на 40 футов продажа со
- Категории: Reefer Containers >>>
- Поставщик: ACE,Container,&,Parts,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Hot Products
10ft reefer container
20ft reefer container with side door
23ft reefer container
20ft Carrier Reefer Container
40ft HC Reefer Container
20ft HC Reefer Container Room
Product Details
About Reefer Container
Reefer container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or bellow deck) throughout the world and will range from -30°C (-22F Deg) to +80°C (176F Deg) without effect on the strength of basic structure. A mechanical refrigeration unit of a “one piece picture frame type” will be fitted to the front end frame. The container is designed with a refrigeration unit to maintain the inside space temperature at -18°C in ambient temperature up to 38°C.
3 Brand Cooling Unit for Choose
Thermo King (US)
Cooling gas: R134a
400 to 500 Vac 3ph 60 Hz
360 to 460 Vac 3ph 50 Hz
Temperature Range:
-40℃ (-40F) to 30℃ (86F).
Carrier(US)
Cooling gas: R134a
380/460 VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30℃ (-22F) to 30℃ (86F).
Daikin (Japan)
Cooling gas: R134a
380/440VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30~50°C (-22~122°F)
Specifications
Reefer container 40 feet Specifications: | ||||||
40ft refrigerator container | External | 12192x2438x2896 | mm | |||
Internal | 11590x2294x2554 | mm | ||||
Door Opening(W*H) | 2290x2569 | mm | ||||
Inside Cubic Capacity | 67.9 | CBM | ||||
Maximum Gross Weight | 34000 | KG | ||||
Tare Weight | 4560 | KG | ||||
Maximum Payload | 29440 | KG | ||||
Allowable Stacking Weight | 216000 | KG | ||||
Cooling Capacity /W | 6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ | |||||
Main Circuit | 3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | |||||
Heat Leakage | 23 | |||||
Air Leakage | 5 | |||||
Warranty | Container Body | 1 Year | ||||
Cooler Units | 1 Year | |||||
Compressor | 3 Years | |||||
Marks | 5 Years | |||||
Detailed Images
Refer Container Cable Plug
CSC Plate
Thermo King MP4000 Controler
TK Compressor, R404A gas
Power Cable 18mm

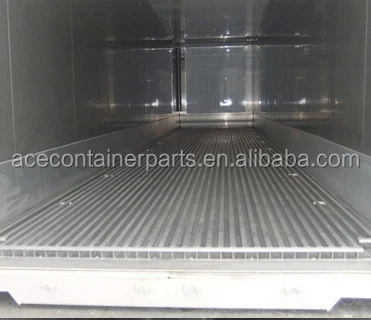

Aluminum T Floor
It can be use for storage or transport food or other products that need to be refrigerated.
Our Company
Certificates
Packing & Delivery
1 There is no packaging requriement for the reefer contianer.
We also can help you to transport our container to anyplace you want in china, and also can export it to your country
2 We have over 14 years experience in container service, so exporting containers is easy for us, and "one way" is also ok!
