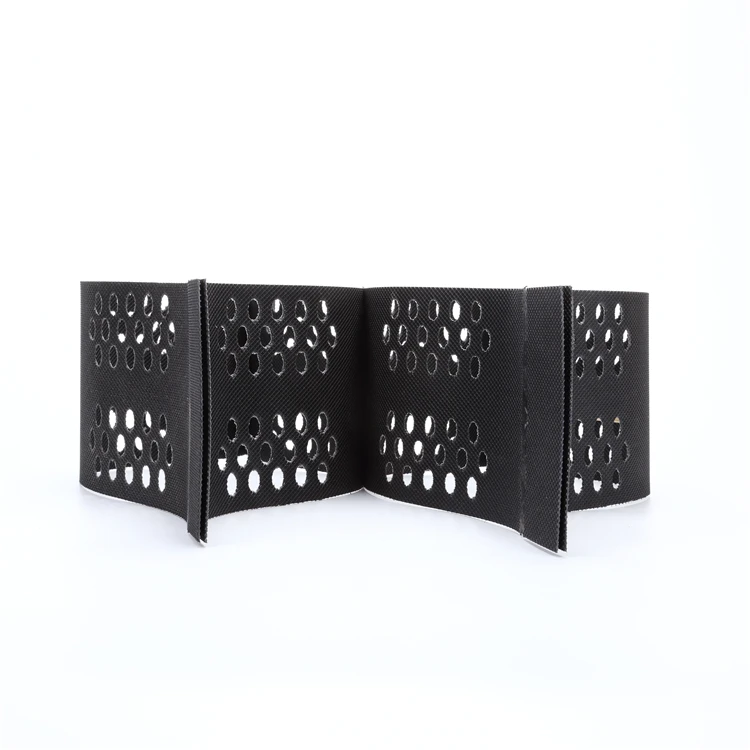

Geocell - Cellular confinement systems (CCS)
Cellular confinement systems (CCS)—also known as geocells—are widely used in construction for erosion control, soil stabilization on flat ground and steep slopes, channel protection, and structural reinforcement for load support and earth retention.Typical cellular confinement systems are geosynthetics made with ultrasonically welded high-density polyethylene (HDPE) strips or novel polymeric alloy (NPA)—and expanded on-site to form a honeycomb-like structure—and filled with sand, soil, rock, gravel or concrete.




Advantages:
1,Virgin HDPE basic with Unique Formula.
2,Tensile Strength reaches 33000 kN/m² (33 MPa)
3,Seam Peel Strength above 16 kN/m (USACE GL-86-19); Split Strength above 28 kN/m (EN ISO13426-1 Method C).
4,Various weld spacing available from 220mm to 1600mm
5,Various strip height available from 25mm to maximum 300mm
6,Maximum strip length reaches 8m, expanded width reaches 6m.
7,Reduce construction thickness, improve load and bearing capacity, long life span, save maintenance cost
8,Easy to transport, all weather installation with high construction speed.
9,Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost..




Item
Main Specification
Welding Spacing
300mm to 1600mm
Cell Height
50mm to 300mm
Seam Peel Strength
1000N, 1100N,1200N,1420N
Color
Black, Green, Sand
Surface
Smooth/Textured/Perforated


Cell
Test Method
Units
Values
Material
-
-
Virgin HDPE
ESCR
ASTM D1603
Hours
400
Density
ASTM D1505
g/cm3
0.945-0.960
Thickness(smooth)
ASTM D5199
mm
1.20 (-5% +10%)
Thickness(Textured)
ASTM D5199
mm
1.50 (-5% +10%)
Carbon Black
ASTM D1603
%
≥ 1.5
Seam Peel Strength
USACE GL-86-19
N
≥ 15KN/m
Tensile Strength at Break
ASTM D638
KN/m2
≥ 32000 (TD) / ≥ 30000 kN (MD)
Elongation at Break
ASTM D6693
≥ 900 (TD) / ≥ 480 (MD)
Oxidative Induction Time
ASTM D3895
min
≥150
 Long-term
Seam Peel Strength
Long term seam peel strength test shall be performed on all resin or pre-manufactured sheet or strips. A 100mm wide seam sample shall support a 72.5kg load for a period of 168 hours minimum in a temperature controlled environment undergoing a temperature change on a 1-hour cycle from 23ºC to 54ºC

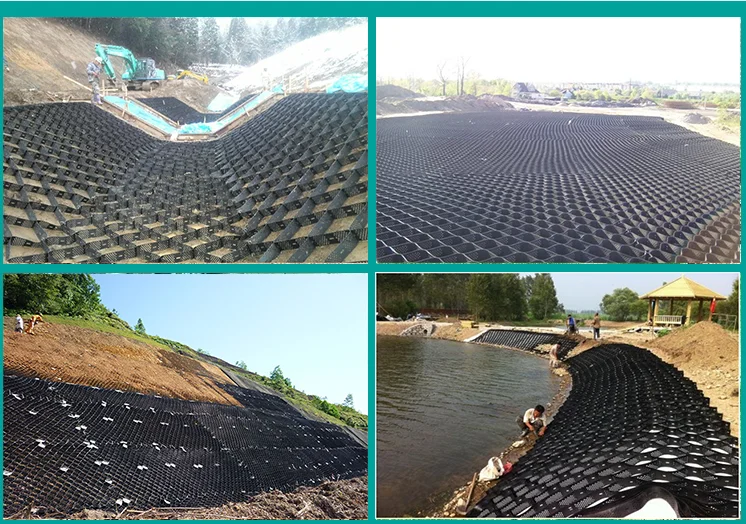

Applications
Roadway load support
Steep soil slope
Channel protection
Earth retention
Reservoirs and landfills






Samples

One piece sample for free

Sample sent by courier

Courier cost paid by buyer
