65 кВт инвертор воздуха в воду охладитель и тепловой насос для коммерческих
- Категории: Industrial Chiller >>>
- Поставщик: Zhengzhou,Tempmate,Refrigeration,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

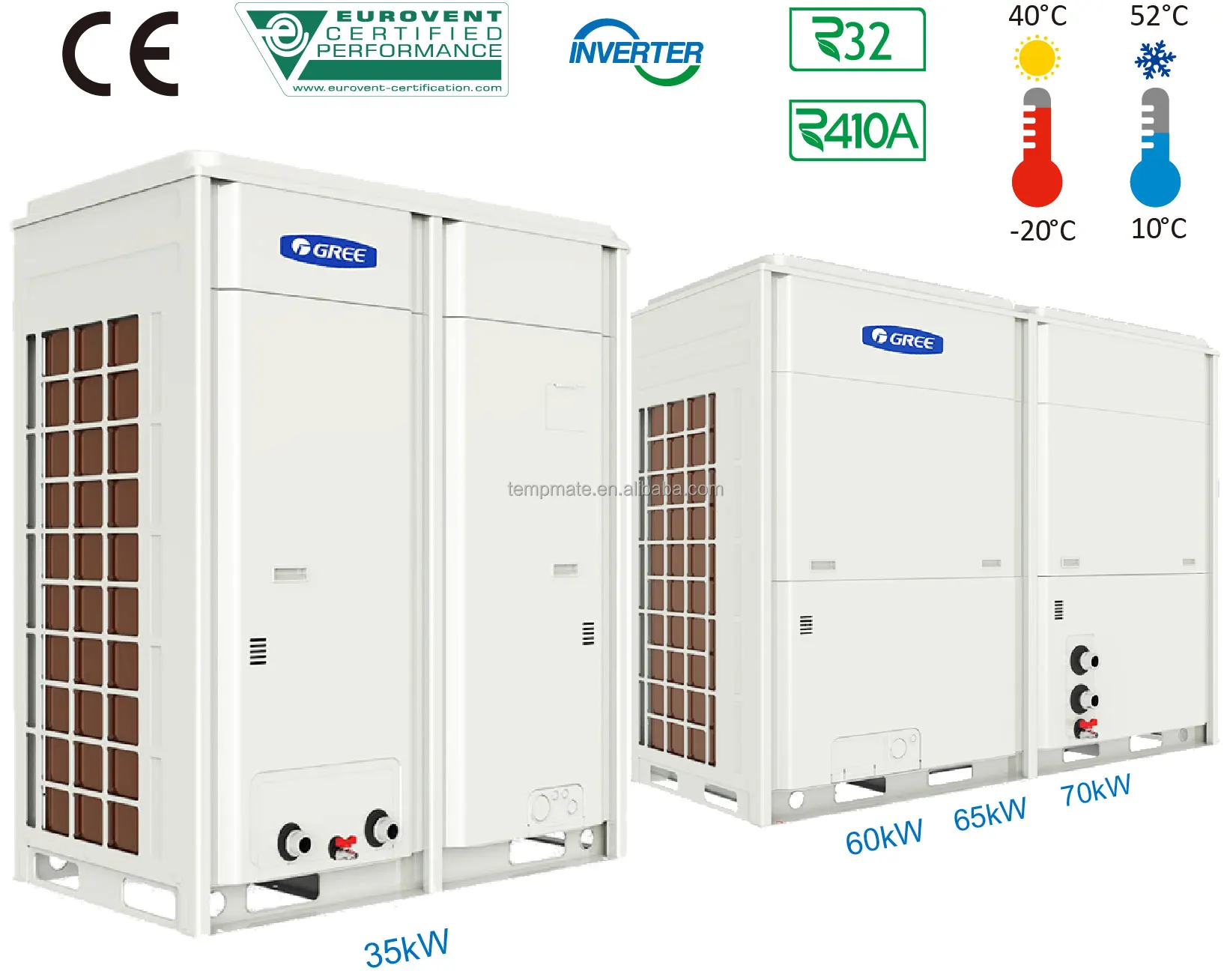

Products Line Up
All Inverter Modular Air to Water Chiller & Heat Pump
Total 4 Basic Modulues from 35 to 70kW,
Max Combination Up to 1120kW
Cooling Capacity: 32kW ~ 1100kW; Heating Capacity 36kW ~ 1232 kW
A Series Inverter Modular Air-cooled Chiller adopts All DC inverter and has wide operational range, compact design and can be modularized.
Main Features:
> High-efficiency and energy-saving, with all DC inverter compressor and fan;
> Quiet and wide operational range;
> Easy installation, modularized combination, intelligent control;
> With water pump switch function for prolonging service life of water pump;
> Long-distance one-key ON/OFF control.
> Quiet and wide operational range;
> Easy installation, modularized combination, intelligent control;
> With water pump switch function for prolonging service life of water pump;
> Long-distance one-key ON/OFF control.
Product Application
Specifications

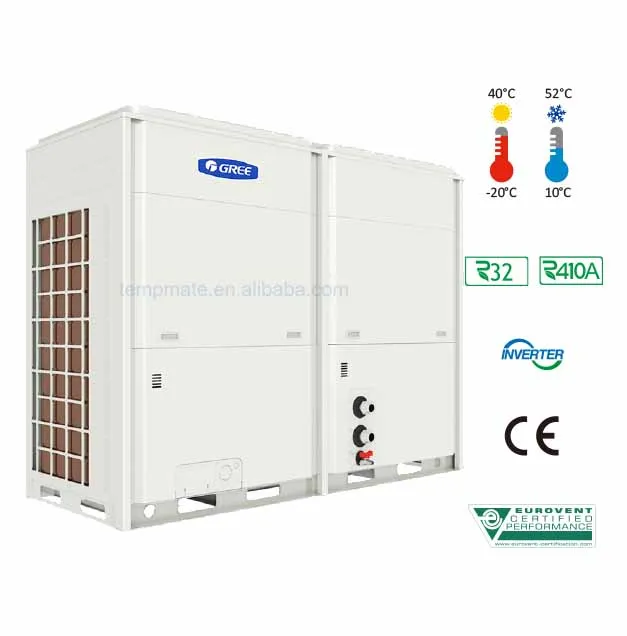

LSQWRF65VM/Na/M 19RT
50/60Hz
Model | Heat pump | ||||
Capacity | Cooling/Heating | kW | 60/65 | ||
RT | 18.5/19.9 | ||||
Capacity steps | % | 0~100 stepless | |||
Power supply | V/ph/Hz | 380-415/3/50/60 | |||
Power input | Cooling | kW | 24.8 | ||
Heating | kW | 21.9 | |||
Compressor | Type | -- | Hermetic scroll | ||
Starting modee | -- | Inverter starting | |||
Quantity | -- | 1 | |||
Water side heat exchanger | Type | -- | Dry expansion | ||
Water flow | l/s | 3.11 | |||
Pressure drop | kPa | 60 | |||
Connection pipe | -- | G1 1/2 ex-thread | |||
Air Side Heat Exchanger | Type | -- | Aluminum fin-copper tube | ||
Fan type & qty. | -- | Axial / 2 | |||
Total fan motor power | kW | 0.75 | |||
Sound pressure level | dB(A) | 68 | |||
Dimensions | Outline(WxLxH) | mm | 2200x965x1675 | ||
Packaged(WxLxH) | mm | 2267x1030x1867 | |||
Net/Gross/Operation weight | kg | 689/725 | |||
Loading 40/40H | sets | 11/11 | |||
Product Description

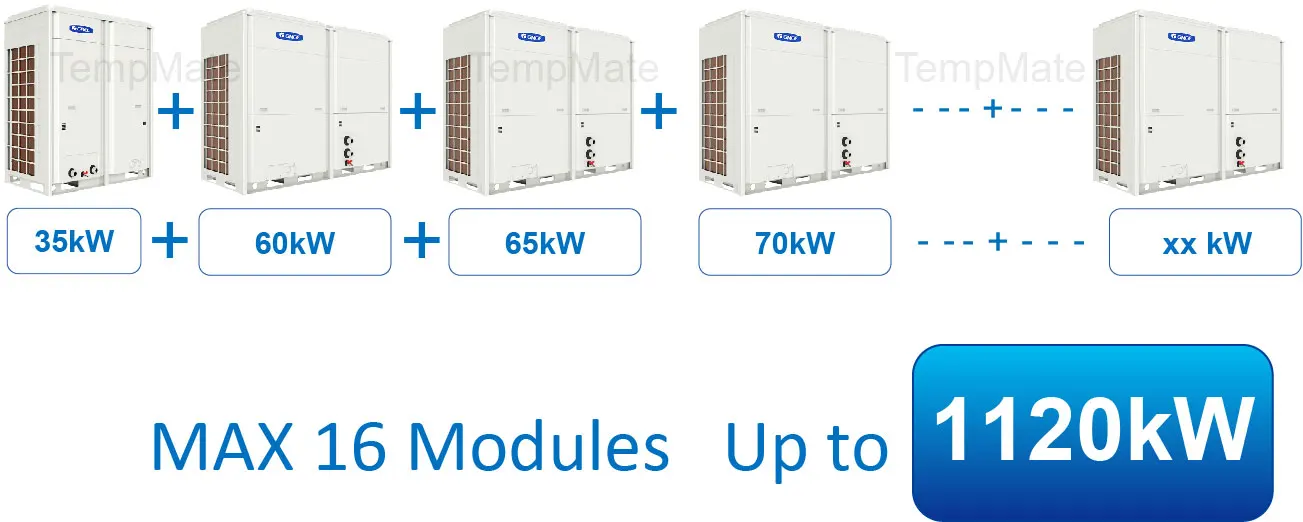

Excellent compatibility：
The all-inverter modular air-cooled chillers can be constructed of multiple single units with the same or different structure or capability (30kW, 60kW, 65kW, 70kW). For the 35kW unit, it has only one cooling system; for the 60kW, 65kW and 70kW units, they are of two independent systems. Up to 16 single units can be modularized, with cooling capacity ranging from 35kW to 1120kW.

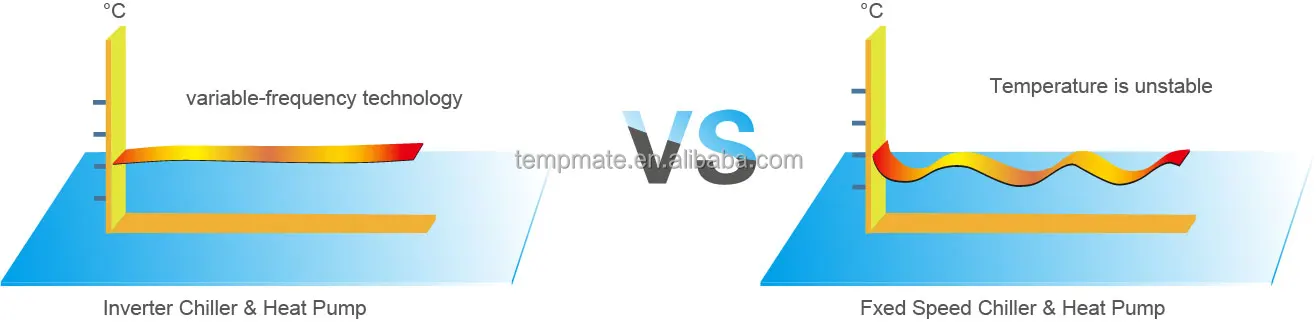

Comfort and energy saving
The variable-frequency technology can quickly respond to load change and lead to decreased water temperature fluctuation and better comfort.

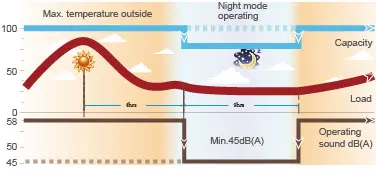

Ultra-quiet
The high-efficiency and low-noise fan blades and motor as well as the optimized air assage can greatly lower operation noise of the unit. Besides, the quite mode can provide the user a ultra-quite environment.
Powerful self-protection：
It is equipped with the top-end microcomputer control system which is capable of providing well-rounded protection and self-diagnosis.
High reliability：
It is constructed of well-designed refrigeration parts and well-designed system, structure and electric control, adequately guaranteeing reliable operation
Remote ON/OFF：
The unit can be started or stopped by the ON/OFF key operation
Shiftwork of water pumps：
Two water pumps can work alternately with equilibrium runtime so as to extend their service life and lower the maintenance difficulty.

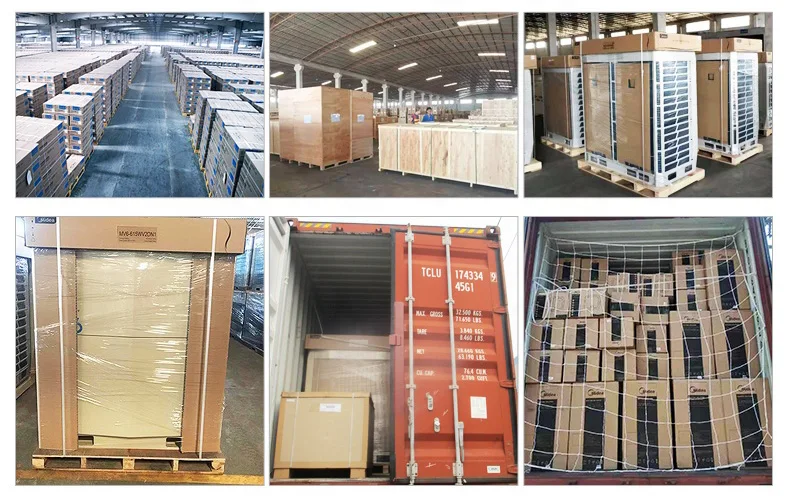

Packing & Delivery
Packing:
1: The Outdoor Unit is fixed on a plywoodwooden pallet, protected by carton or plywood booard;
2: The Indoor Unit is packed by carton protected by shock absorptive material
2: The Indoor Unit is packed by carton protected by shock absorptive material
Shippment: By Land, By Sea Or By Air.
Note: We can help you to arrange cost effective shipping service, to get you fast shipment with less cost.
Usually we recommend full container shipment 20GP, 40GP, 40HQ.
Usually we recommend full container shipment 20GP, 40GP, 40HQ.
FAQ
Q1: What's your payment terms?
A: T/T or L/C.
Q2: What documents you provide?
A:Usually, we provide Commerical Invoice, Packing List, Bill of loading. If your have any special requirements, let us know.
Q3: Can you provide drawing service?
A: Yes, Our professional HVAC engineering team may give the optimized solutions, we can also provide professional HVAC drawings.
Q4: Can you provide installation accessories along with equipment?
A: Sure. we can calculate and quote you needed HVAC installation kit which includes copper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Q5: How long is the lead time?
A:For the standard model, the lead time is around 30days.
Q6: Do you have technical support?
A: All the product is guarantee for one year. And we will supply the technical support and spare parts after the warranty time. You can contact us 24 x 7 online.
Q7: How to transport the products to my country?
A: We can arrange the shipping by sea or by air.
Q8: How about the packing?
A:Usually we provide the packing as wooden pallet or carton.
Q9: What is loading port?
A:Usually the loading port is Zhuhai, China
A: T/T or L/C.
Q2: What documents you provide?
A:Usually, we provide Commerical Invoice, Packing List, Bill of loading. If your have any special requirements, let us know.
Q3: Can you provide drawing service?
A: Yes, Our professional HVAC engineering team may give the optimized solutions, we can also provide professional HVAC drawings.
Q4: Can you provide installation accessories along with equipment?
A: Sure. we can calculate and quote you needed HVAC installation kit which includes copper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Q5: How long is the lead time?
A:For the standard model, the lead time is around 30days.
Q6: Do you have technical support?
A: All the product is guarantee for one year. And we will supply the technical support and spare parts after the warranty time. You can contact us 24 x 7 online.
Q7: How to transport the products to my country?
A: We can arrange the shipping by sea or by air.
Q8: How about the packing?
A:Usually we provide the packing as wooden pallet or carton.
Q9: What is loading port?
A:Usually the loading port is Zhuhai, China
