Product Description

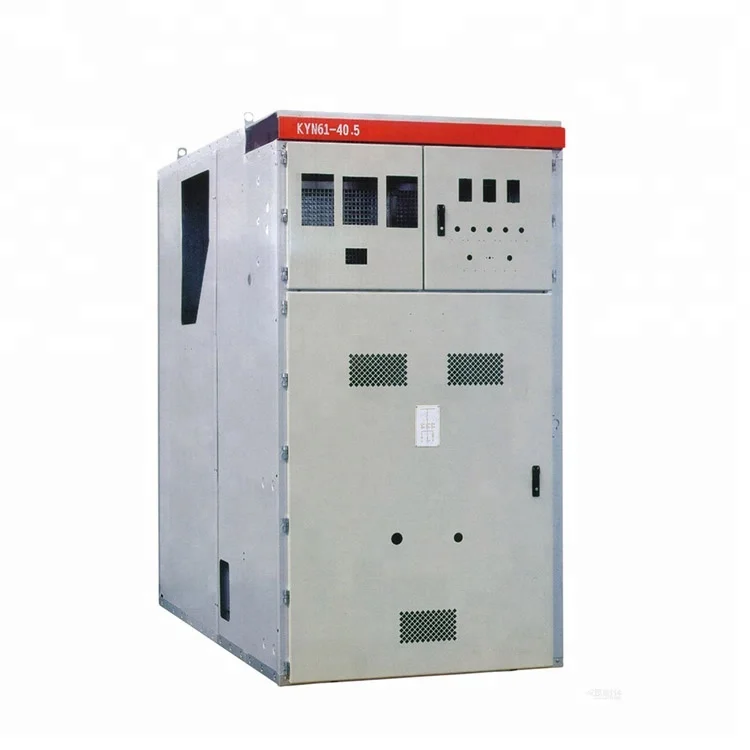

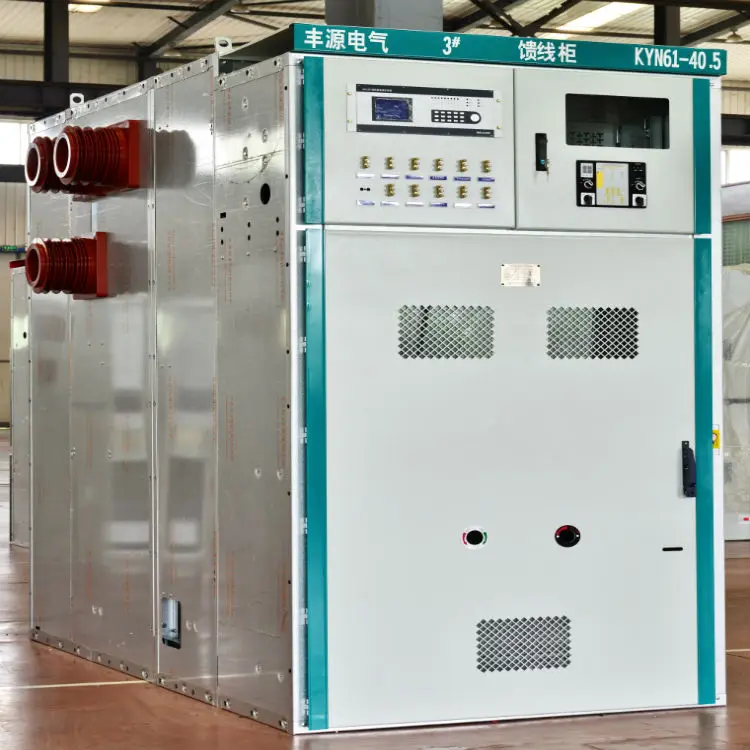

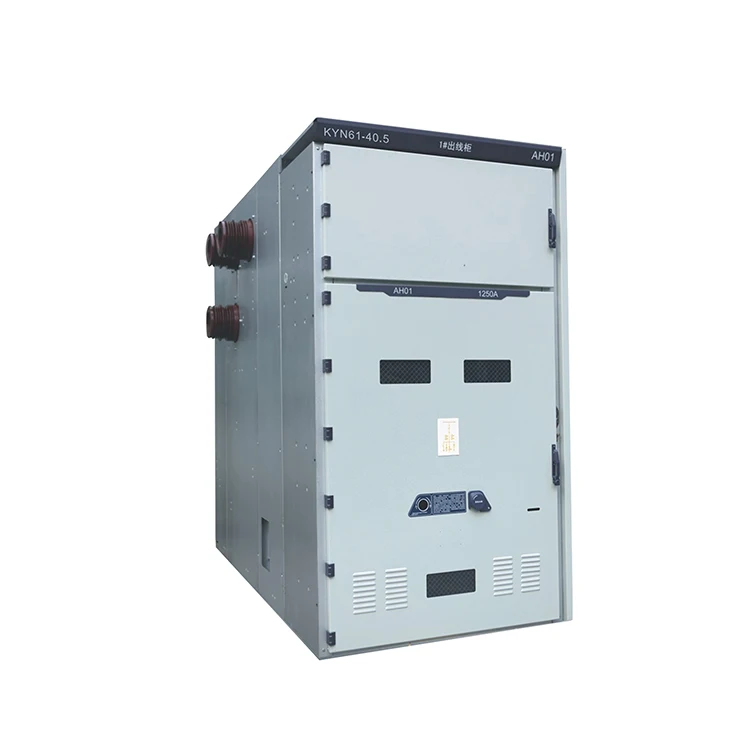

KYN61-40.5 removable AC metal-clad switchgear applies to 40.5kV, 3 phase, AC and 50/60Hz electrical power network for receiving and distributing power energy and also for control, monitor and protect ion. It is applicable in general power system and occasions with frequent operation. The product conforms to GB3906: 3~35kV AC Metal Enclosed Switchgear, IEC60694 & GB/T11022: The common technical clauses of HV Switchgear and controlgear Standard, DL/T404-1997: Order Technical term of Indoor AC HV Switchgear and IEC62271-200 1~52kV AC Metal Enclosed Switchgear and controlgear standard.
Environmental Conditions
1) Suitable Temperature: -10℃ ~ +40℃, Daily average temperature:≤35℃.
2) Suitable Altitude: ≤1000m
3) Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
4) Gradation of Earthquake Damage: ≤ Level 8
5) Applicable occasions should be free from corrosives, inflammables and vapor.
Main Electric Parameters
No. | Items | Unit | Parameters | ||
1 | Rated voltage | KV | 40.5 | ||
2 | Rated frequency | Hz | 50 | ||
3 | The main busbar rated current | A | 1250,1600,1200 | ||
4 | Branch busbar rated current | A | 630/1250/ 1600 | ||
5 | Rated insulation level | Power frequency withstand voltage in 1min (Effective value) | Phase-phase, Phase-ground | KV | 95 |
| KV | 115 | |||
Lightning Impulse Withstand Voltage (peak value) | Phase-phase, Phase-ground | KV | 185 | ||
| KV | 215 | |||
Power frequency withstand voltage of auxiliary control circuit |
| V | 2000 | ||
6 | Rated short circuit breaking current | KA | 25/31.5 | ||
7 | Rated short circuit closing current (peak value) | KA | 63/80 | ||
8 | Rated short-time withstand current (4S) | KA | 25/31.5 | ||
9 | Rated peak withstand current | KA | 63/80 | ||
10 | Rated voltage of auxiliary control circuit | V | -110,-220,~220 | ||
11 | Protection grade |
| Enclosure IP4X, IP2X When the door of the circuit breaker opens | ||
12 | Outline size (width * depth * height) | mm | 1400(1200)*2800(2600)*2600(*includes an internal digital SF6 handcart scheme) | ||
13 | weight | kg | ~2300 | ||

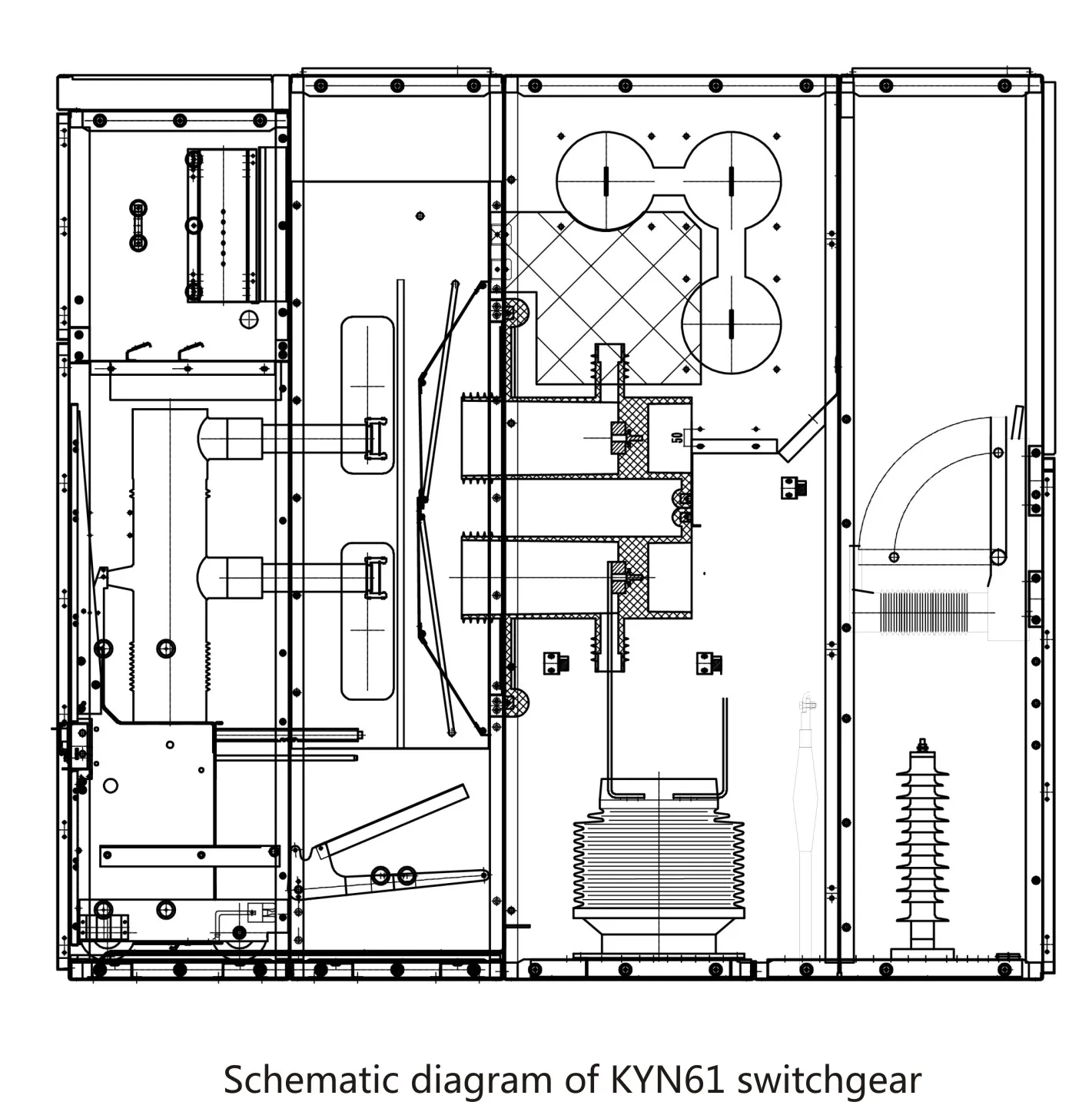

Structure Description:
Switchgear according G83906 and IEC298 standards and design,And can be removed from the cabinet as a whole unit (trolley )components .
Cabinet structure are made of aluminum deposited zine plate or galvanized sheet assembled with both connection ,separate circuit breaker switchgear roon ,bus room ,cable room and instrument room,All metal components are grounded ,each compartment of the main circuit .system have separate pressure release channel in the cable compartment can be set 10*60mm ground bus .
Main characteristics:
1.The use of assembled cabinet structure ,circuit breaker handcart floorstanding structure ,
Samall size:
2.Optional: The company vacuum breaker VW1-40.5,xiamen huadian vacumm breaker VEP-40.5 ,similar circuit breaker are interchangeable .
3.Equipped with special transport vehicles can lift ,transport vehicles amd cabinet accurate positioning ,locking and reliable
4.The main switch ,handcart ,door interlock switch between mandatory mechanical locking methods are used to meet the ‘Five Anti’ interlock function .
5.all operation can be carried out at the door closed state ,to protect the safety of the operator .
6.Cable ample room space ,can be connected to multiple cables ,and overhead outlet .
7.Shell protection grade IP3X,handcart room door open between the various compartments protection class IP2X.
8.The material can be galvanized sheet can be deposited alumimum zinc plate production .
Certifications
Exhibition
Company Information
Jiyuan Fengyuan Electrical Equipment Co., Ltd was established in 1984 and is a designated enterprise specializing in the production of high and low voltage switch cabinets by the State Grid Corporation of China.
we have more than 30 years professional experience in high and low voltage switchgear and integrated substationm,box type substation,transformer,etc, have CE,ISO, GB,CQC,certificate
Factory directly,Professional manufacturer,All can be customized
welcome to inquiry
Packaging & Shipping
FAQ
Q1 :I know your quality is perfect but in our market normal quality are more popular what can I do?
A: Please don't worry, we can provide a series of quality of products, you can choose the best one to meet your market,we will try our best to support you. I believe we can provide products meet all your requirements
Q2 :Can I get a sample before the order because I really don't how is your products quality?
A: Of course! We also think sample order is the best way to build trust. We offer free sample service ! Do not hesitate to send inquiry to get the free sample!
Q3 :What's the delivery time? Because we really need them is urgently?
A: 3~7days For sending sample order. .15days for regular order , we will never eat our words.
Q4 :What's the warranty period for your products?
A: For One year warranty.
Q5 : Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.
Q7 : Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity or package
Q8 : How about inspection?
A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.
Q9 : What is payment terms?
A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
Q10 : What is the service offered by company?
A: We have the professional engineer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
Our Services
We offer free after-sale service for one year
Tips for quote &Placing Order:
The customer shall specify the following items:
♠ Primary circuit scheme and single line system diagram
♠ Secondary circuit schematic diagram, the wires shall be connected according to factory standard if customer has no requirement;
♠ Switchgear arrangement diagram, plan view of electric power substation.
♠ Detailed specification and parameter of electric element of each circuit;
♠ Surface colour of switchgear;
♠ Other requirements.
Trade terms:
1.Payment: 1) 30% in advance, 70% balance against copy of B/L
2.Port of loading: Qingdao port or Lianyungang port
3.Discounts: offered based on order quantities
4.Delivery time: 10-30 days according to order quantities
5.Package: wooden box and wooden pallet and can be csutomized
