Четырёхканальные ПИД-температурные приборы YUDIAN AI-7048
US $65.00-$110.00
Цифровой контроллер температуры термостата STC-1000 1 м NTC датчик Термостат Регулятор обогреватель радиатор Два релейный выход Digital LCD Temperature Controller Thermostat 1m Sensor Regulator
- Категории: Temperature Instruments >>>
- Поставщик: Shenzhen,Topd,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

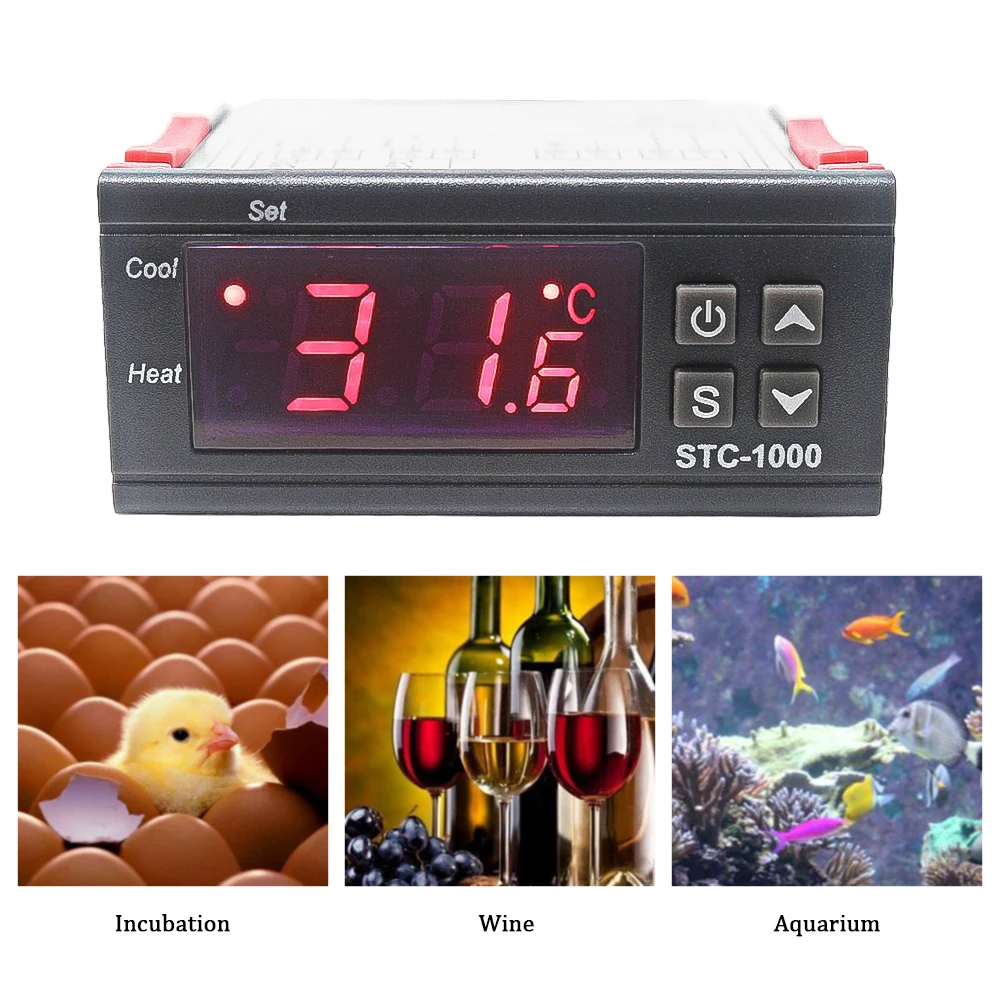

Digital LCD Temperature Controller Thermostat STC-1000 1m NTC Sensor Thermostat Regulator Heater Cooler Two Relay Output

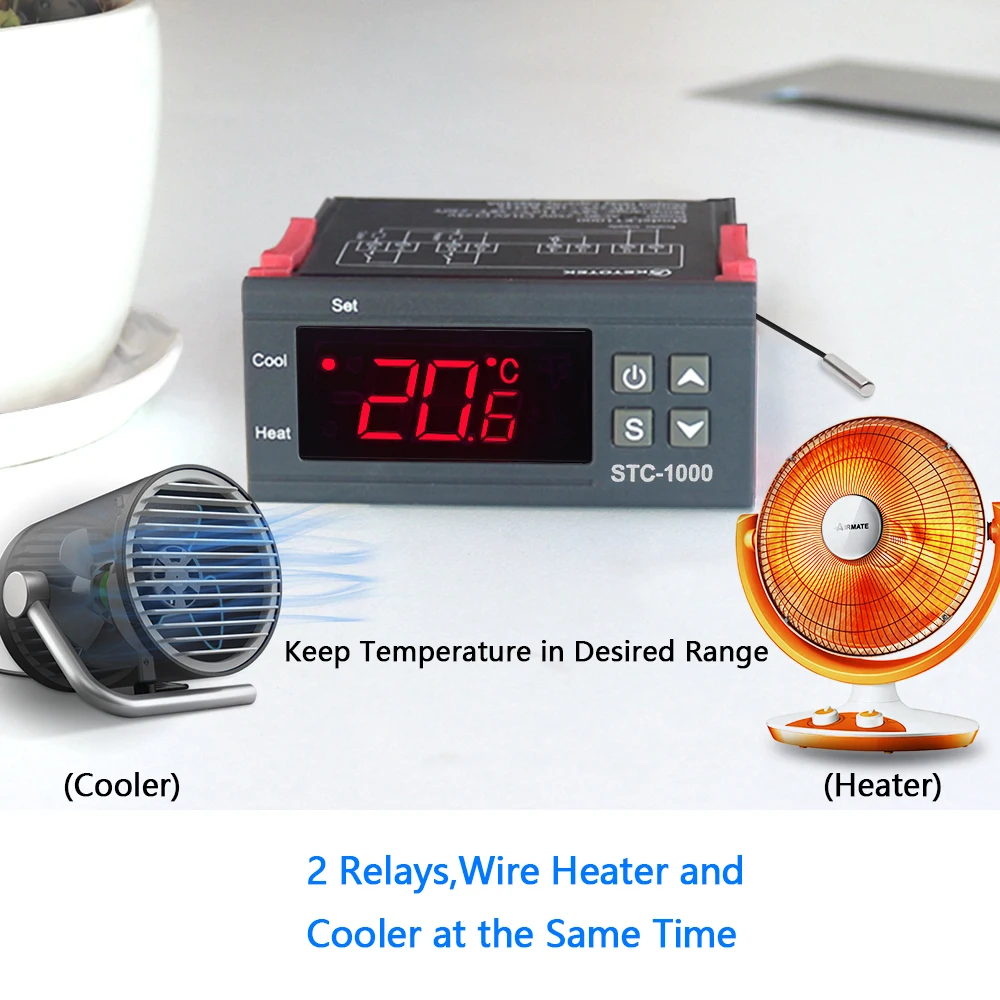

- Switch the modes between cool and heat;
- Control temperature by setting the temperature setting value and the difference value;
- Temperature calibration;
- Refrigerating control output delay protection;
- Alarm when temperature exceeds temperature limit or when sensor error.
- All parameters setting can be saved when power off.

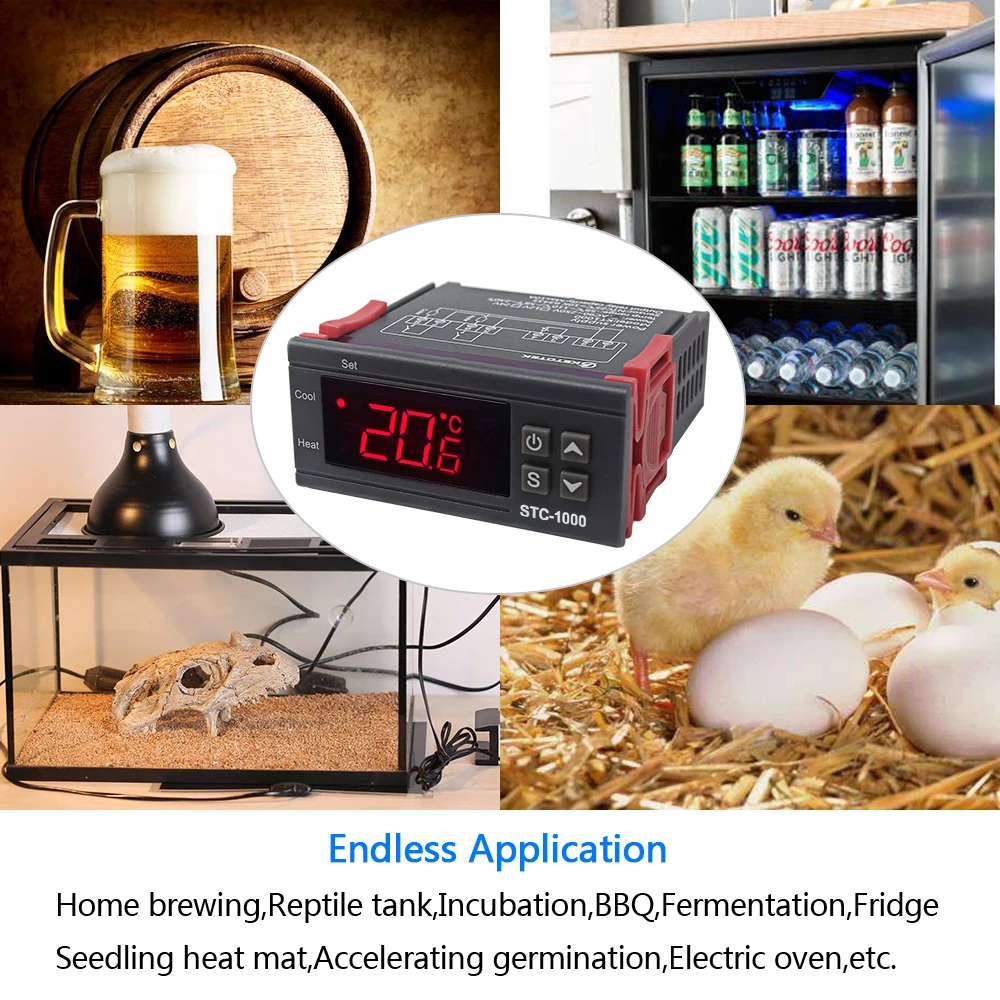

- Can be used for domestic freezer, water tanks, refrigerator,industrial chiller, steamer, industrial equipment and other temperature control applications.
|
STC-1000 |
|
|
Modes |
Heating and Cooling |
|
Display |
° C |
|
High temperature alarm limit setting |
NO |
|
Temperature measuring range |
-50 ° C ~ 99 ° C |
|
Return difference Value: |
0.3~10.0°C |
|
Resolution |
0.1 ° C |
|
Accuracy |
+/- 1° C (-50 ° C ~ 70 ° C) |
|
Power supply |
110-220VAC 50/60Hz, 12VDC , 24VDC |
|
Power Consumpption |
<3W |
|
Sensor error delay |
1 minute |
|
Output Relay |
Two Relay Cool 10A/220VAC; Heat 10A/220VAC |
|
NTC sensor |
1m |
|
Delay start and temperature calibration |
Yes |
|

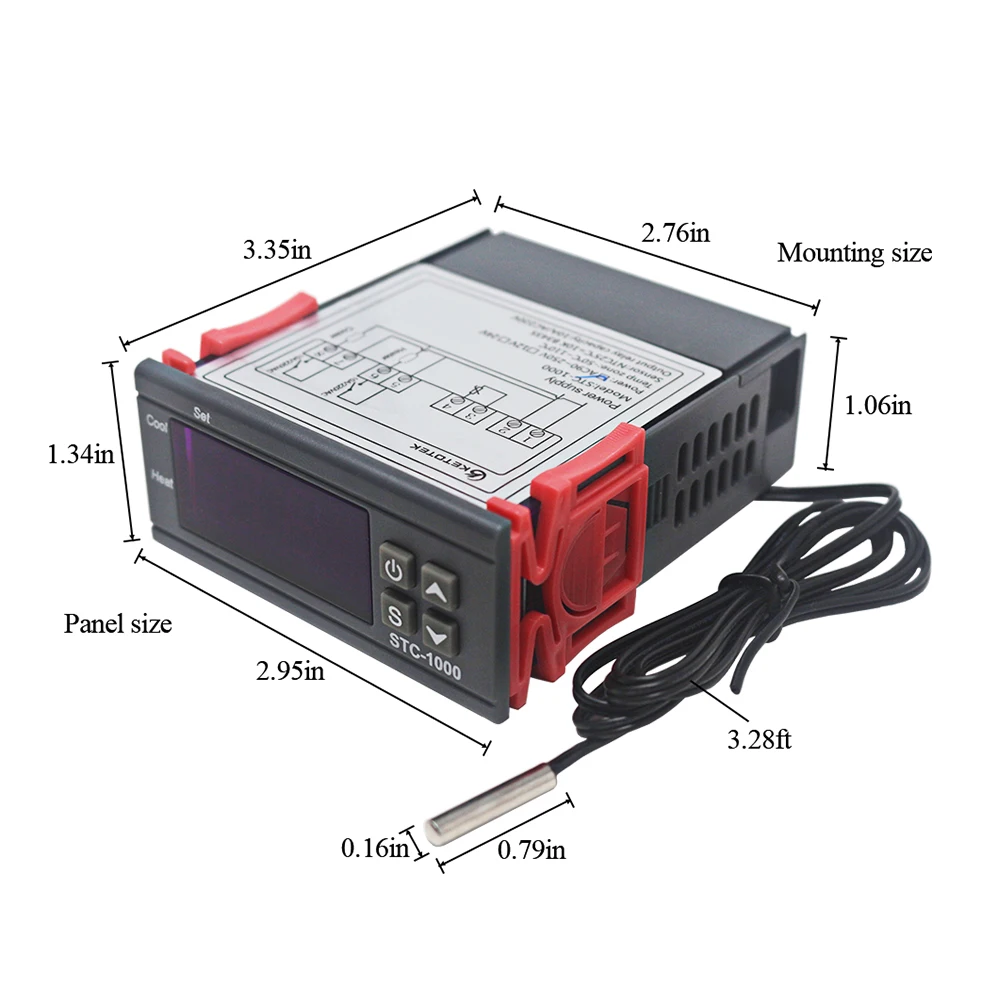

Size |
75mm(L)*34mm(W)*85mm(Depth) |
|
Mounting Size |
71(L)*29(W)mm |
Menu Instruction
|
Code |
Function |
Set Range |
Default |
|
F1 |
Temperature set value |
-50.0~99.9°C |
10.0°C |
|
F2 |
Difference set value |
0.3~10.0°C |
0.5°C |
|
F3 |
Compressor delay time |
1~10 minutes |
3 minutes |
|
F4 |
Temperature calibration value |
-10.0°C~10.0°C |
0°C |
- 1 * Temperature Controller ( No retail box )STC-1000 ( Only ° C display )
- 1 * Temperature sensor
- 1 * Instruction Manual
STC-1000 ( Only ° C display )
