Specifications | Range | Best Accuracy | ||

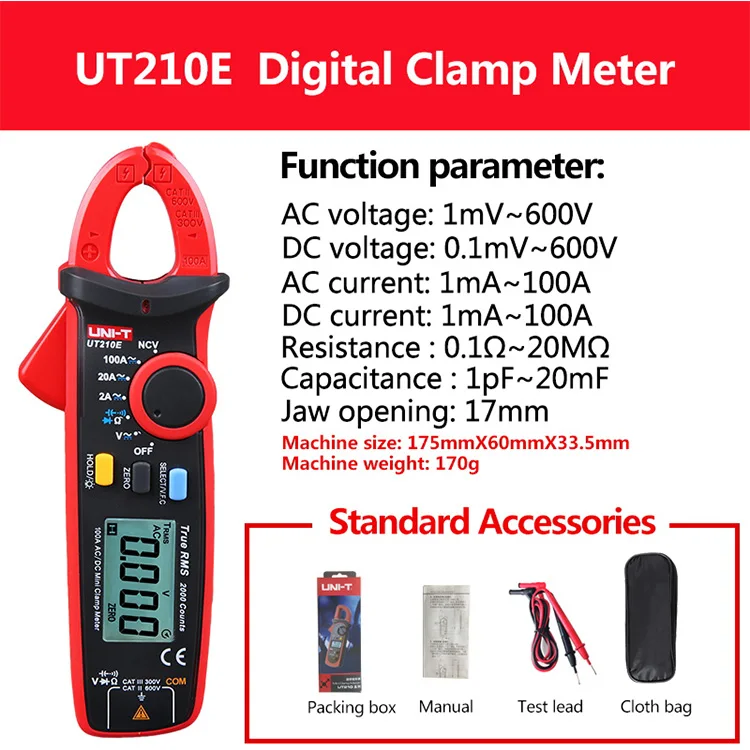

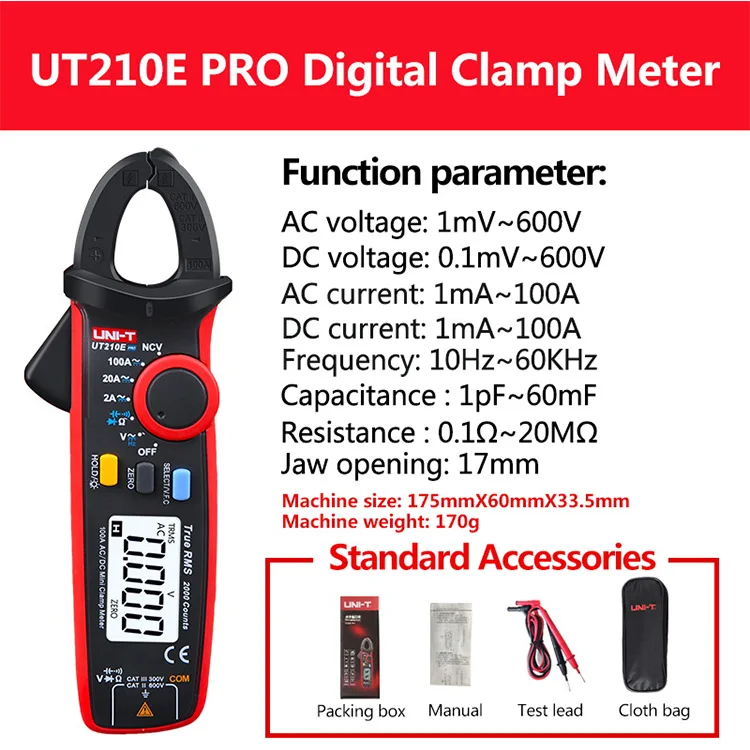

Model | UT210E | |||
AC Current (A) | 2A/20A/100A | ±(2.5%+5) | ||
DC Current (A) | 2A/20A/100A | ±(2%+3) | ||
AC Voltage (V) | 2V/20V/200V/600V | ±(1%+3) | ||
DC Voltage (V) | 200mV/2V/20V/200V/600V | ±(0.7%+3) | ||
Resistance (Ω) | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ | ±(1%+2) | ||
Capacitance (F) | 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF | ±(4%+5) | ||

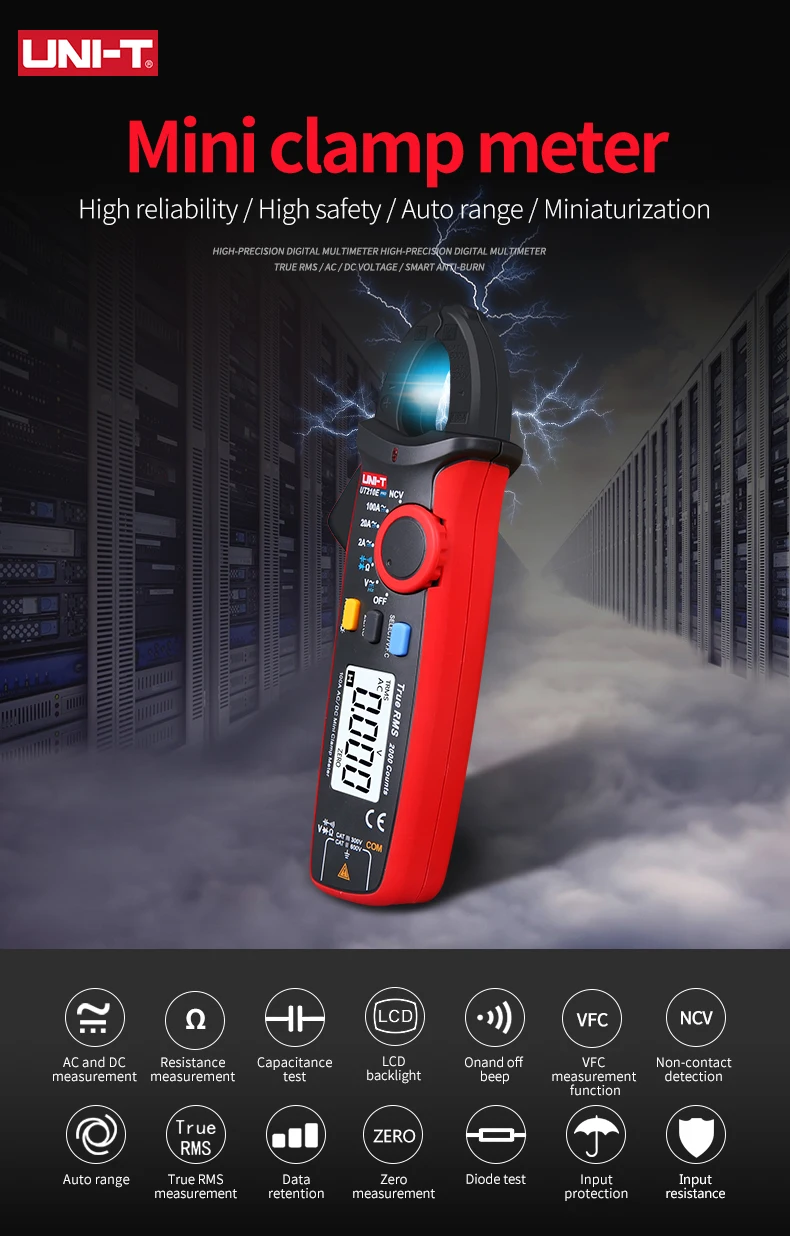

Features | ||||
Display Count | 2000 | |||
Auto Range | √ | |||

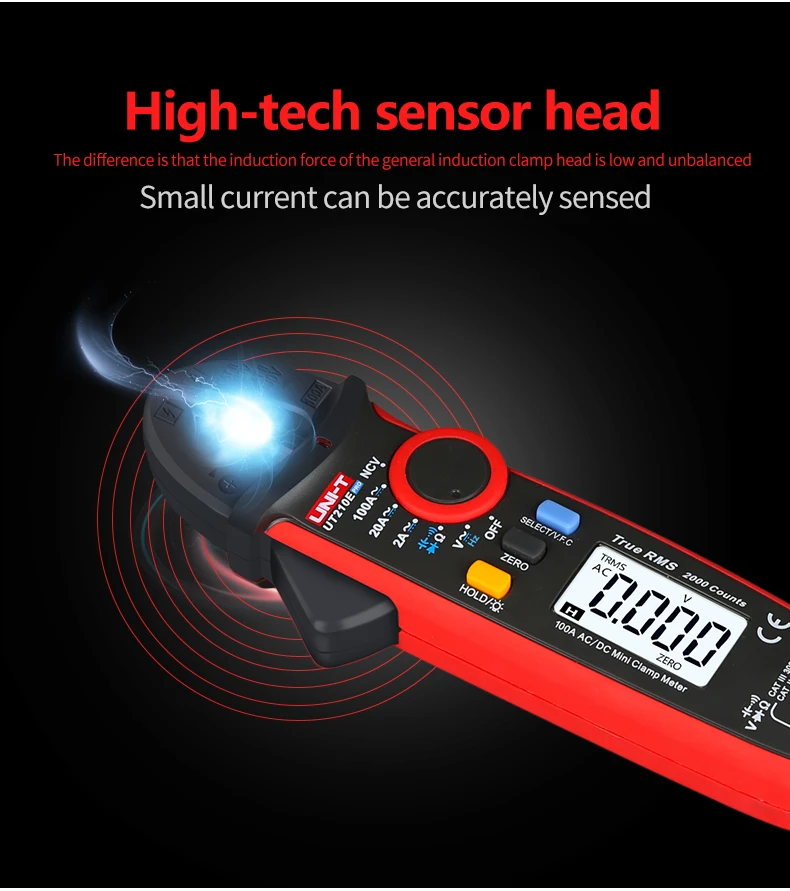

Jaw Capacity | 17mm | |||

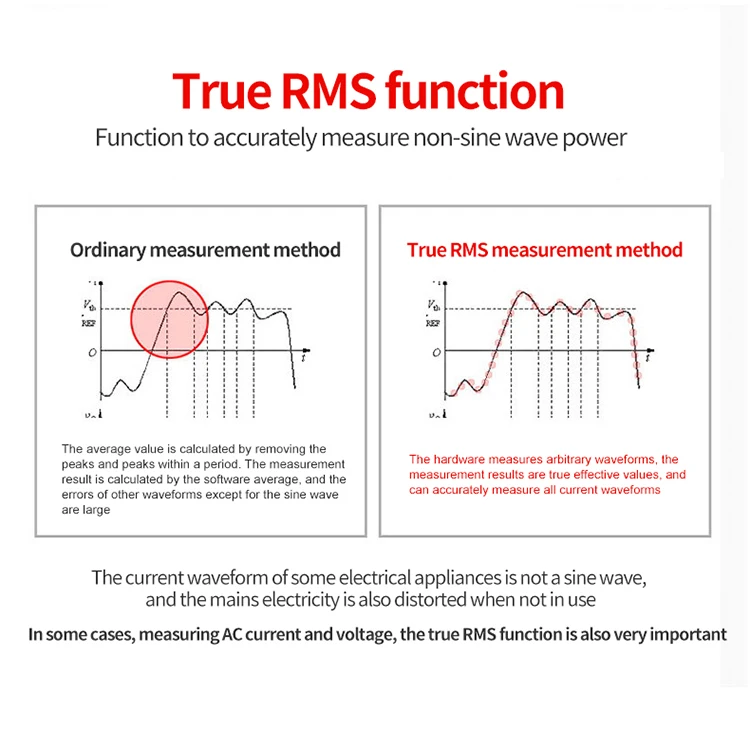

True RMS | √ | |||
Diode | Around 3.0V | √ | ||

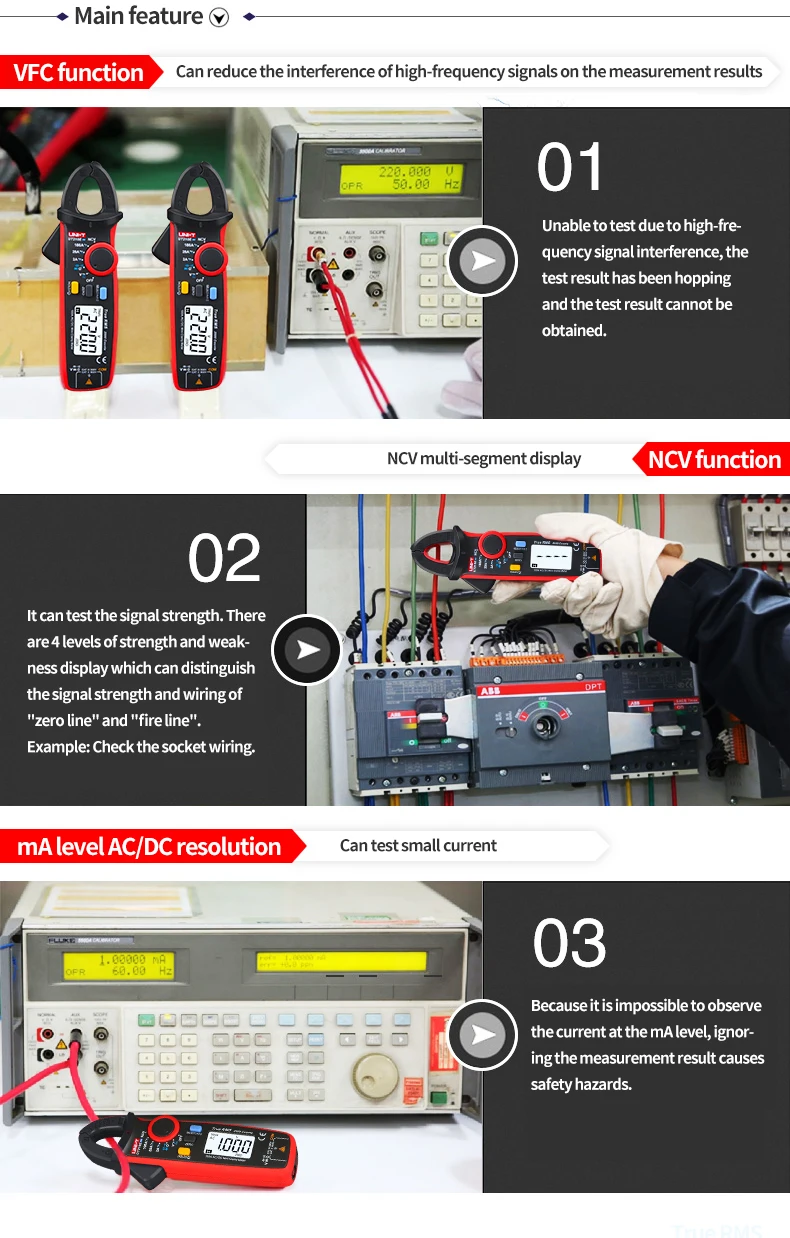

V.F.C. | √ | |||
NCV | √ | |||
Data Hold | √ | |||
Zero Mode | √ | |||
LCD Backlight | √ | |||
Auto Power Off | Around 15 Minutes | √ | ||
Continuity Buzzer | √ | |||
Low Battery Indication | ≤2.5V | √ | ||
Input Protection | √ | |||
Input Impedance for DCV | ≥10MΩ | √ | ||
General Characteristic | ||||
Power | AAA 1.5V × 2 | |||
LCD Size | 39.3mm × 26.5 mm | |||
Product Color | Red and Grey | |||
Product Net Weight | 170g | |||

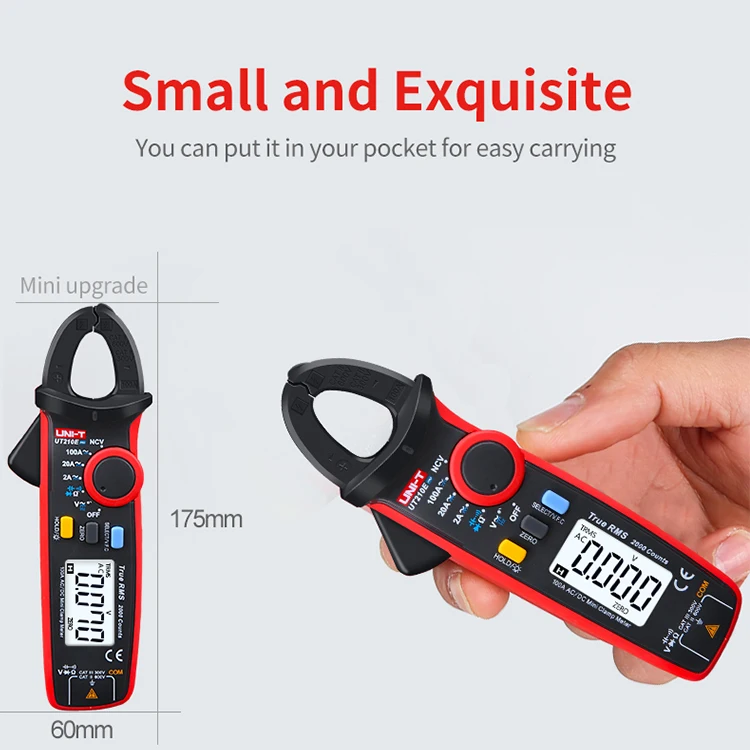

Product Size | 175mm × 60mm × 33.5mm | |||

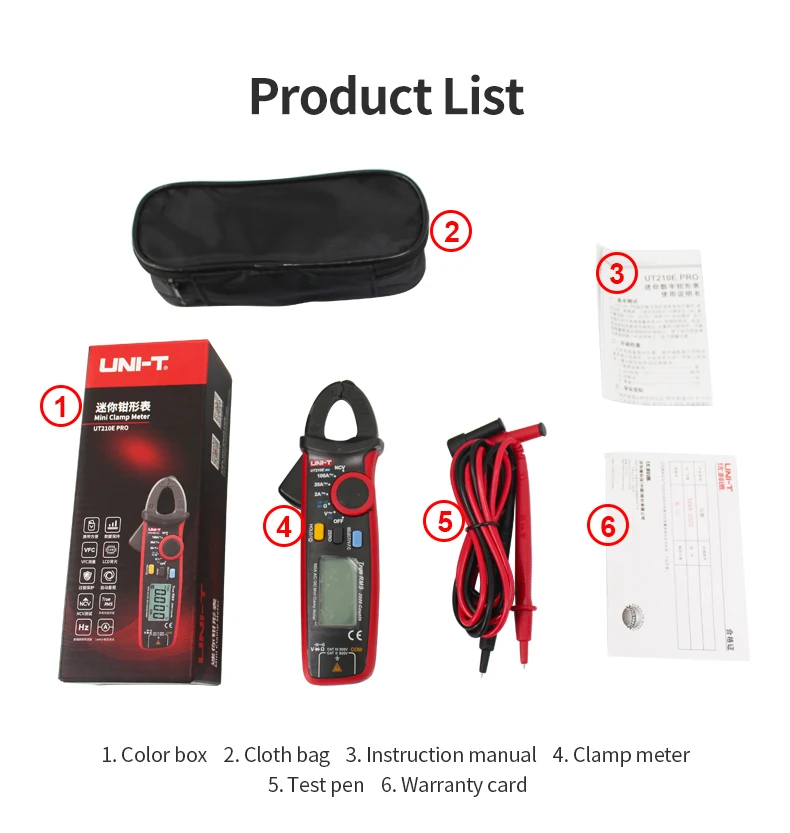

Standard Accessories | Batteries, Test Lead | |||
Standard Individual Packing | Box, Carrying bag, English Manual | |||
Standard Quantity Per Carton | 40PCs | |||
Standard Carton Measurement | 385mm×345mm×305mm (0.041 CBM Per Standard Carton) | |||
Standard Carton Gross Weight | 11Kg |
