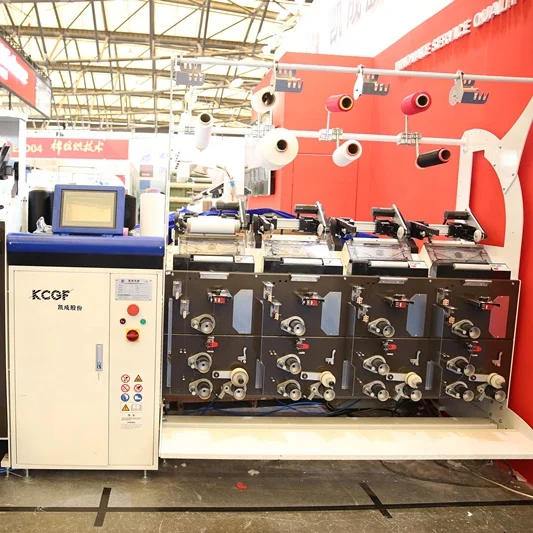

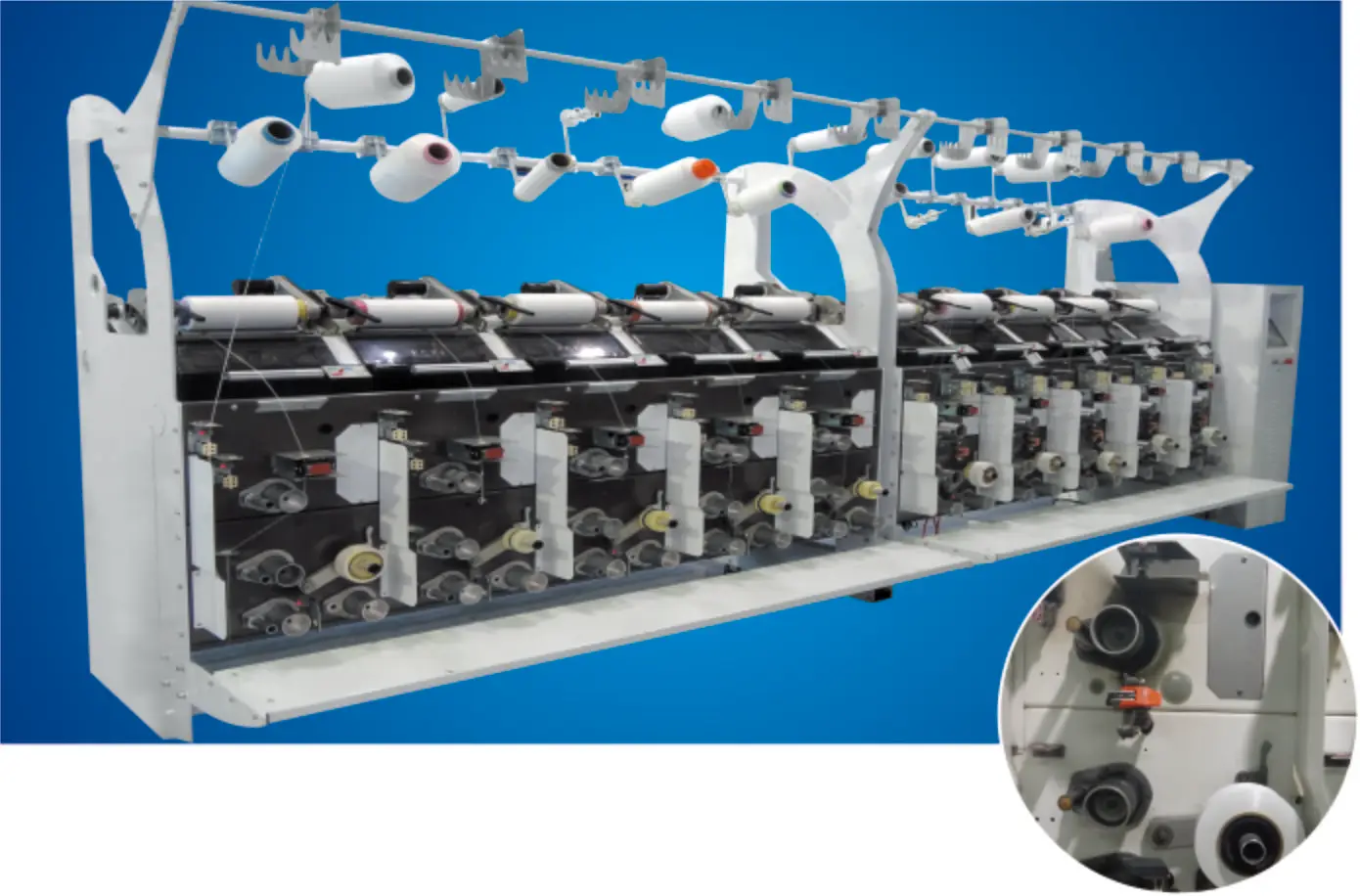

KC215B air covering yarn coil winder high efficiency winding machine for spandex
KC215B air covering yarn coil winder high efficiency winding machine for spandex
KC215B air covering yarn coil winder high efficiency winding machine for spandex
KC215B air covering yarn coil winder high efficiency winding machine for spandex
KC215B air covering yarn coil winder high efficiency winding machine for spandex
KC215B air covering yarn coil winder high efficiency winding machine for spandex
KC215B air covering yarn coil winder high efficiency winding machine for spandex

KC215B air covering yarn coil winder high efficiency winding machine for spandex


Поделиться:

Цена:1 900,00 $ - 2 100,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики









No
Item
Details
1
Machine structure

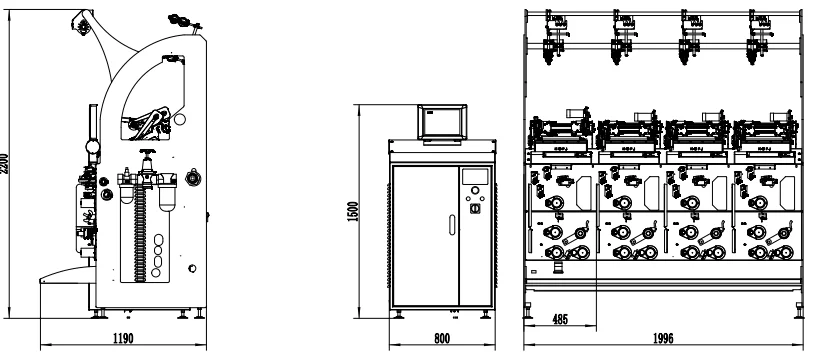

Single sided, single layer, 4 spindles per sections, 10 sections, 40spindles/set
2
Spindle gauge
485mm
3
Type of winding
Digital winding or precision winding
4
Linear speed
Up to 1100m/min (depend on the process parameters)
5
Type of tension
Electronic Gate tension
6
Take-up tube
Cylindrical
7
Package shape
Straight edge or tapered edge shape (The taper angle can be adjusted)
8
Traverse length
130mm-250mm(It can be changed according to the actual situation
9
Take-up package diameter
Up to 280mm(depend on the tank size, there are certain limitations)
10
Rated power
580W/spindle
11
Compression air
6Pa(depend on the process parameters)
