Product Overview

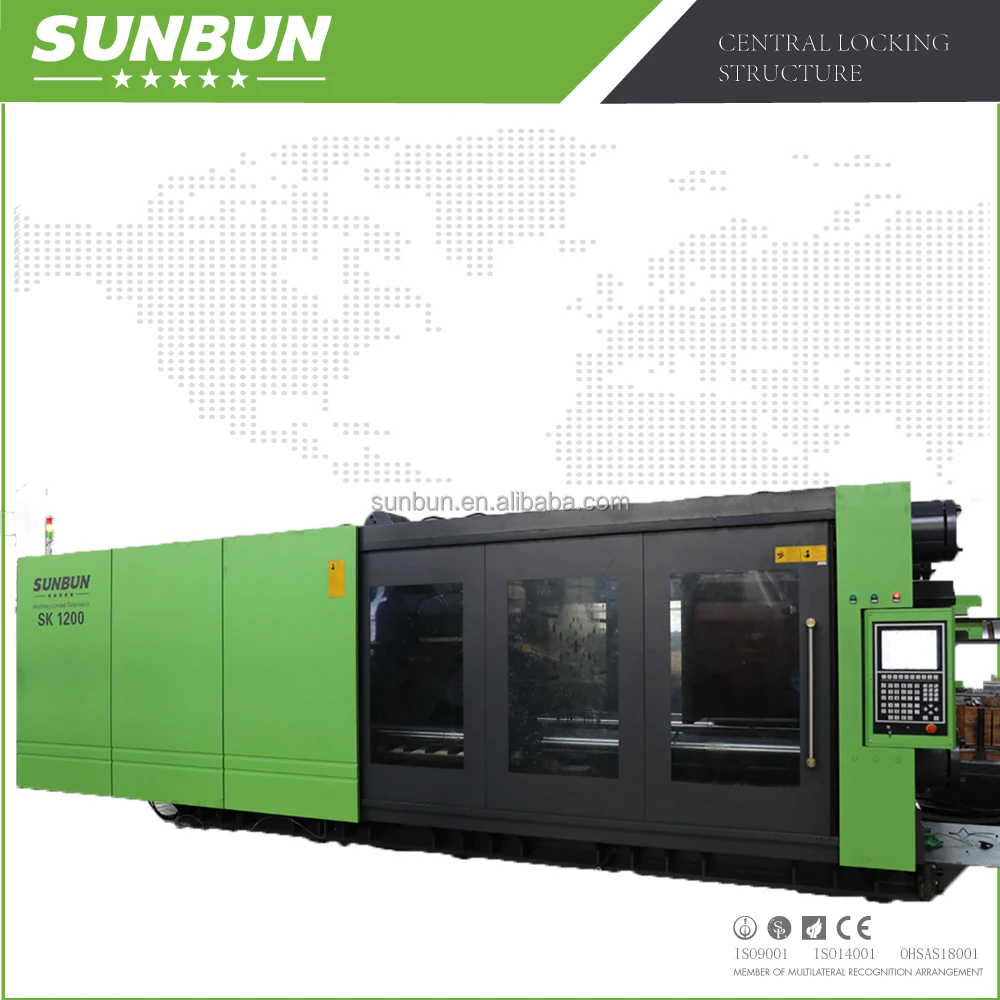

Sunbun, Your best high Speed & Precision Injection Molding Machine
SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market
With 100% clamping force and longer open stroke which can be use smaller machine make bigger products. Material saving 2%-6% than normal machine enjoy solid reputation from all the clients.
Horizontal Thermoplastic cheap price injection speed arrive 111-140 mm/s .
Horizontal Thermoplastic cheap price injection speed arrive 111-140 mm/s .
FEATURES AT A GLANCE
ADVANTAGE OF "CENTRAL LOCKING TECHNOLOGY "
● 100% Clamping Force Ratio, 10%-20% Higher Than Tradtional One
● 2%-6% Raw Material Saved From Tradtional One
● Effective Production For Mold, Mold Board and Pull Rod
●Open Stroke 10%-20% Bigger Than Morlam One
● Less Deformation By CoolIng
● Effective Production For Mold, Mold Board and Pull Rod
●Open Stroke 10%-20% Bigger Than Morlam One
● Less Deformation By CoolIng
PRODUCT SPECIFICATIONS
Item / Type | Unit | SK1200 / C8900 | ||||||
Screw Type | A | B | C | D | ||||
Screw Diameter | 100 | 110 | 120 | 130 | ||||
Screw Ratio | L/D | 24.2 | 22 | 20.2 | 18 | |||
Theoretical Injection Volume | cm³ | 4343 | 5255 | 6254 | 7340 | |||
Injection Volume （PS） | g | 3952 | 4782 | 5691 | 6679 | |||
Max Injection Rate | cm³/s | 650 | 787 | 937 | 1155 | |||
Injection Pressure | Mpa | 205 | 169 | 142 | 122 | |||
Injection Stroke | mm | 452 | ||||||
Max Injection Speed | mm/s | 83 | ||||||
Max Rotational Speed Of Screw | r/min | 0-93 | ||||||
Clamping Part | ||||||||
Clamp Tonnage | KN | 12000 | ||||||
Toggle Stroke | mm | 1260 | ||||||
Tie Bar Distane | mmxmm | 1210x1055 | ||||||
Max mold | mm | 1200 | ||||||
Min Mold | mm | 400 | ||||||
Ejection Stroke | mm | 320 | ||||||
Ejector Force Forward | KN | 204 | ||||||
Ejector Back Force Forward | KN | 152 | ||||||
Die Timble Amount | Pcs | 1+28 | ||||||
Others | ||||||||
System Pressure | Mpa | 17.5 | ||||||
Motor Power | KW | 45+45 | ||||||
Temperature Control Zone Qty | KW | 56.5 | ||||||
Oil Tank Capacity | L | 1400 | ||||||
Machine Size | M | 12x3x3.5 | ||||||
Machine Weight | Ton | 47 | ||||||
INJECTION SYSTEM
* The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return duringejection. have a quicker injection speed and longer service life
* The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy
* Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate. (38/42 CrmoAl)
* The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal
* The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency
* The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy
* Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate. (38/42 CrmoAl)
* The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal
* The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency

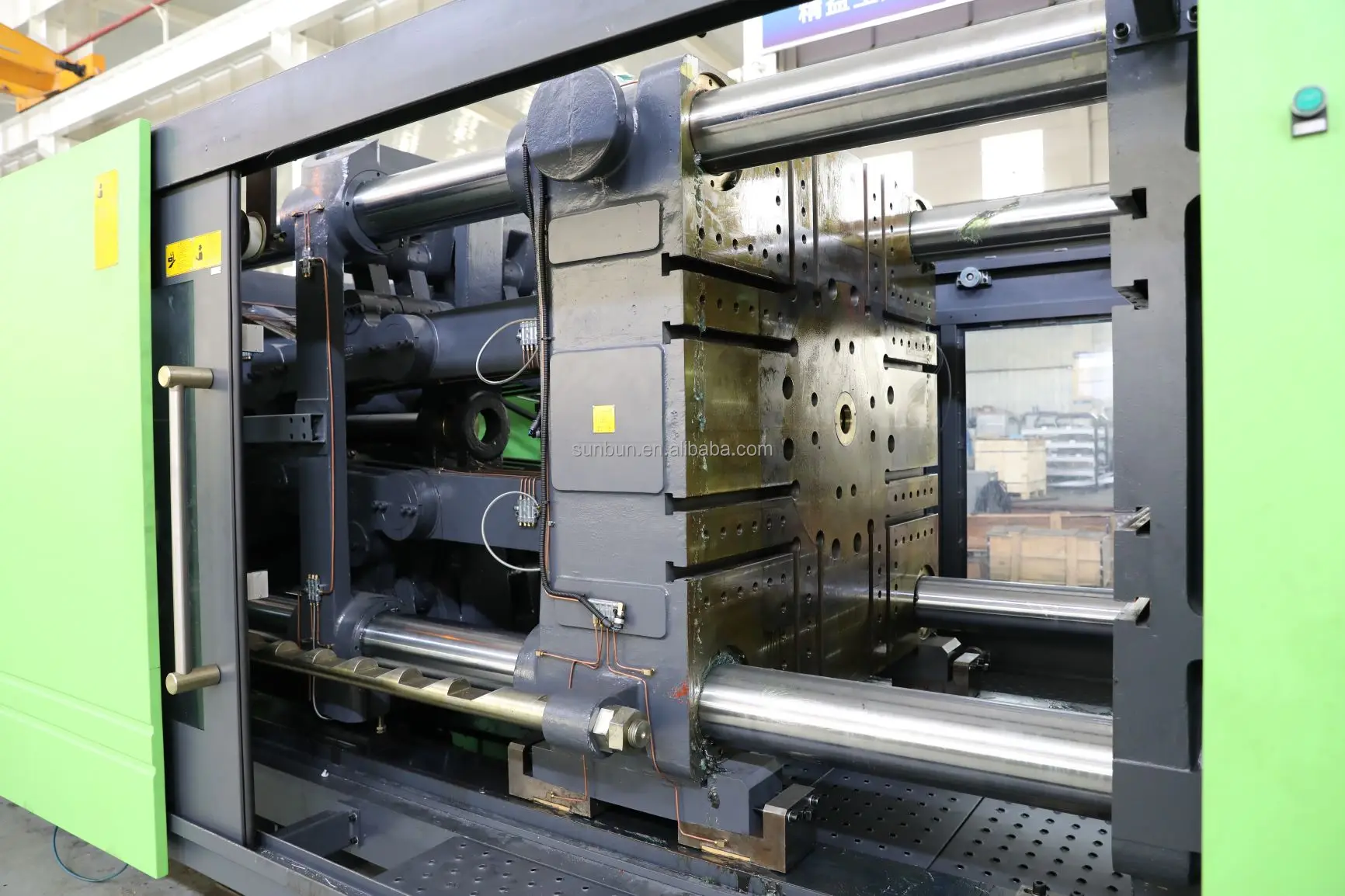

CLAMPING SYSTEM - CENTRAL LOCKING TECHNOLOGY
* SK Series adopts outwards toggle and excelent design ideal . with quite large bar space between four column. Which is required by different industries.
* Super large open stroke is 10%-20% bigger than normal one. More suitable for deep cavity product
* QT500-7 Mold board is much strong for long time service .
* Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness
* Super large open stroke is 10%-20% bigger than normal one. More suitable for deep cavity product
* QT500-7 Mold board is much strong for long time service .
* Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness
HYDRAULIC SYSTEM
* With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation
* Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability
* Original germany oil pipe and seals avoid oil leak
* Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability
* Original germany oil pipe and seals avoid oil leak
PRODUCT CONFIGURATION
Company Profile
FAQ
Q1：What is your machine warrenty ?
Q3: How about the quality control in your factory?
A3: We have full set testing control files. Every part testing have full record . Before shipment small machine need shot over 7000 times. and big machine shot for 5000 times
A1： For the whole machine we provide 12 month , For the Pull Rod. We provie 24 month For the Mold Platen we provide 36 month
Q2: Are you provide auxiliary machine for the whole project ?
A2: Yes We provide many brand auxiliary machine also provide turnkey solustation
A3: We have full set testing control files. Every part testing have full record . Before shipment small machine need shot over 7000 times. and big machine shot for 5000 times
Q4: What is your lead time ?
A4: If we have stock we can deliver in 3 days. For normal production we need around 30-60 Days depends on machine tonnage
Q5 : Mold trial will be available in your factory ?
A5： Yes, Customer can send the mold to our factory and test. If clients buy mold together, we will testing and send sample to clients for final confirmation then shipment
Q6 . Do you provide any spare parts with machine?
A6: Yes, We will provide one set standard spare parts to customer including heater ,filter, noozle ,tool box etc
A5： Yes, Customer can send the mold to our factory and test. If clients buy mold together, we will testing and send sample to clients for final confirmation then shipment
Q6 . Do you provide any spare parts with machine?
A6: Yes, We will provide one set standard spare parts to customer including heater ,filter, noozle ,tool box etc
Q7: What about your after sales service
A7: we have many experience technical engineers for oversea service, they would help you install machine and provide basic training.
