NEW High Bay luminaire 100w 150w 200w Industrial Lighting Led Flat High Bay Light for GYM Warehouse
Product Description
Our anti-glaring high bay is an indeal solution for office, stadium, and other commercial applications where low UGR is needed.
※ UGR <19
※ O.s.r.a.m / Meanwell Driver
※ UGR <19
※ O.s.r.a.m / Meanwell Driver
※ Cree LED

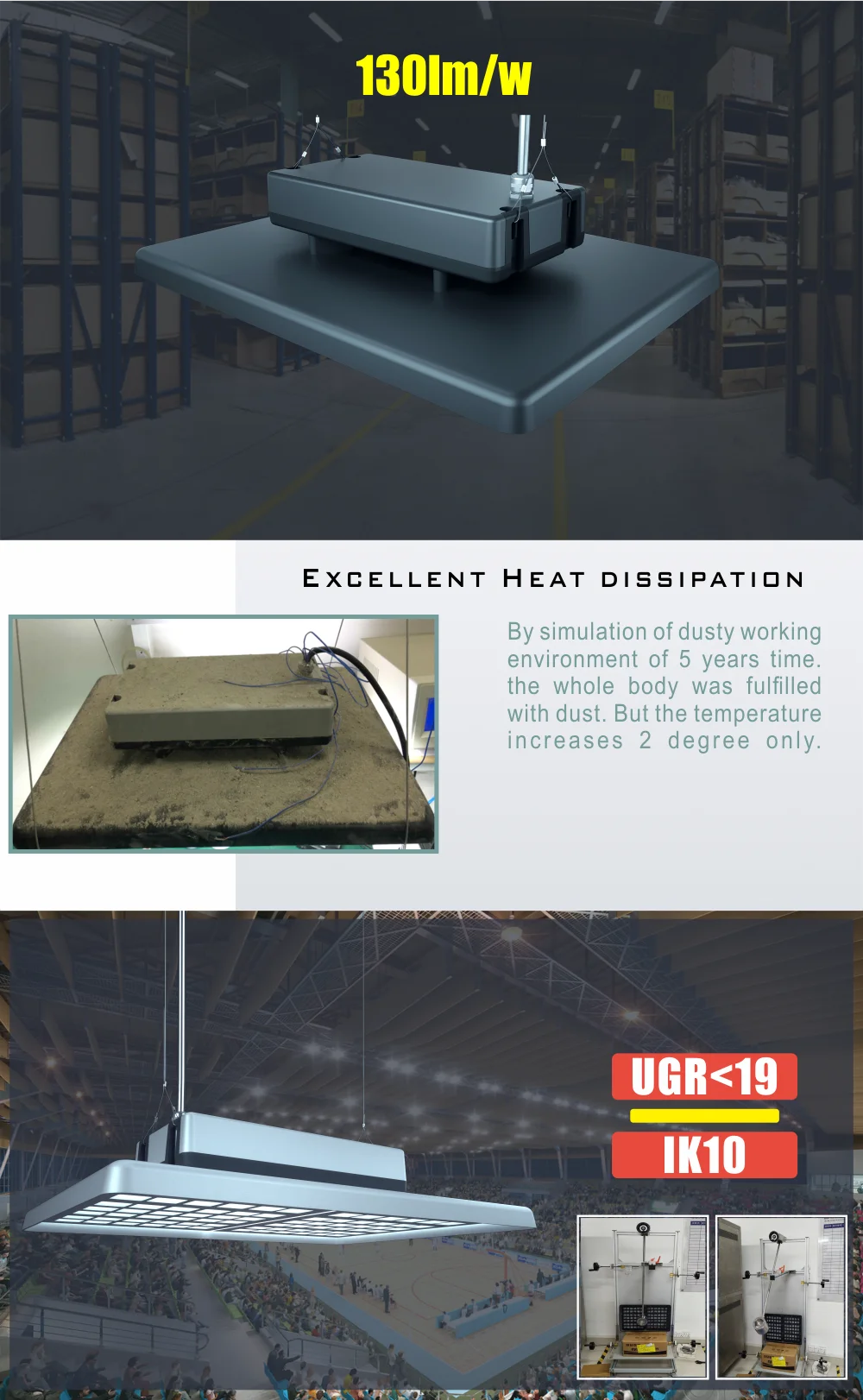

※ Pure Aluminum heatsink with thermal conductivity: 226W/m.k, while die-casting heatsink is only 96W/m.k. The heat dissipation of our heatsink is 135.4% better than die-casting heatsink.
※ 130LM/W and 160LM/W available
※ Beam angle: 80°， 110°， 30*90°
※ Pure Aluminum heatsink with thermal conductivity: 226W/m.k, while die-casting heatsink is only 96W/m.k. The heat dissipation of our heatsink is 135.4% better than die-casting heatsink.
※ 130LM/W and 160LM/W available
※ Beam angle: 80°， 110°， 30*90°
※ZigBee, PWM, DALI , 0/1~10V, Micro-wave available
Detailed Images

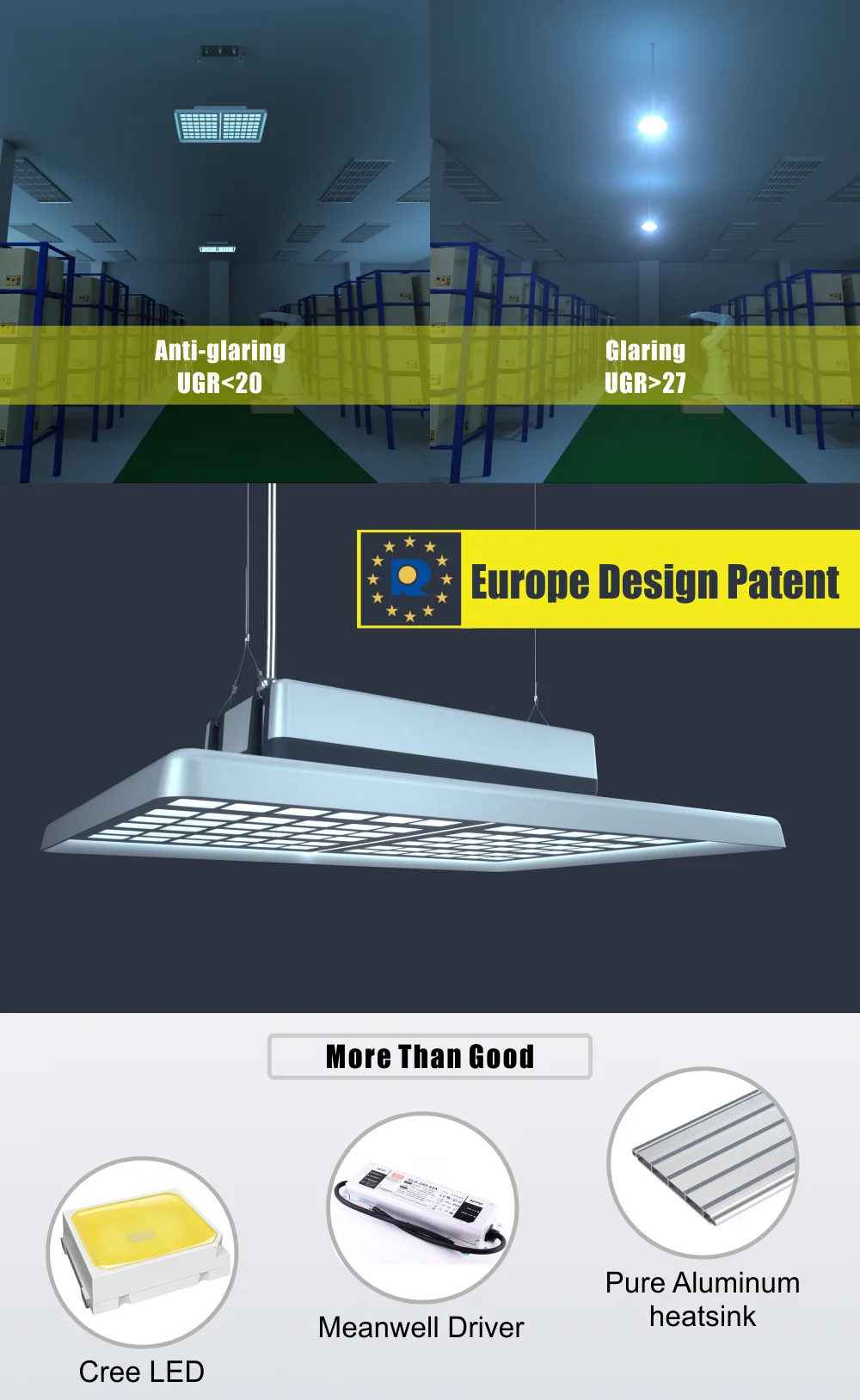

Anti-glare High Bay Light
Housing: Pure Aluminum
Thermal Conductivity: 226 W/m·K
Led: CREE JK 3030
CRI: Ra>70 ( 80/90 for option)
CRI: Ra>70 ( 80/90 for option)
SDCM: <6
Power Factor: >0.95
THD: <15
Driver: Meanwell ELG or Osram
Driver Efficiency: >93%
Power Factor: >0.95
THD: <15
Driver: Meanwell ELG or Osram
Driver Efficiency: >93%
Protection: OTP, OCP, OVP, SCP
Surge Protection: 6KV
Waterproof: IP65
Impact Test: IK10
Electrical: 100-277V, 50/60Hz
Impact Test: IK10
Electrical: 100-277V, 50/60Hz
Operating Temperature: -40~50 ℃
Lifetime: 50,000H
Warranty: 5 years
Product color: Silver
(other colors can be customized)

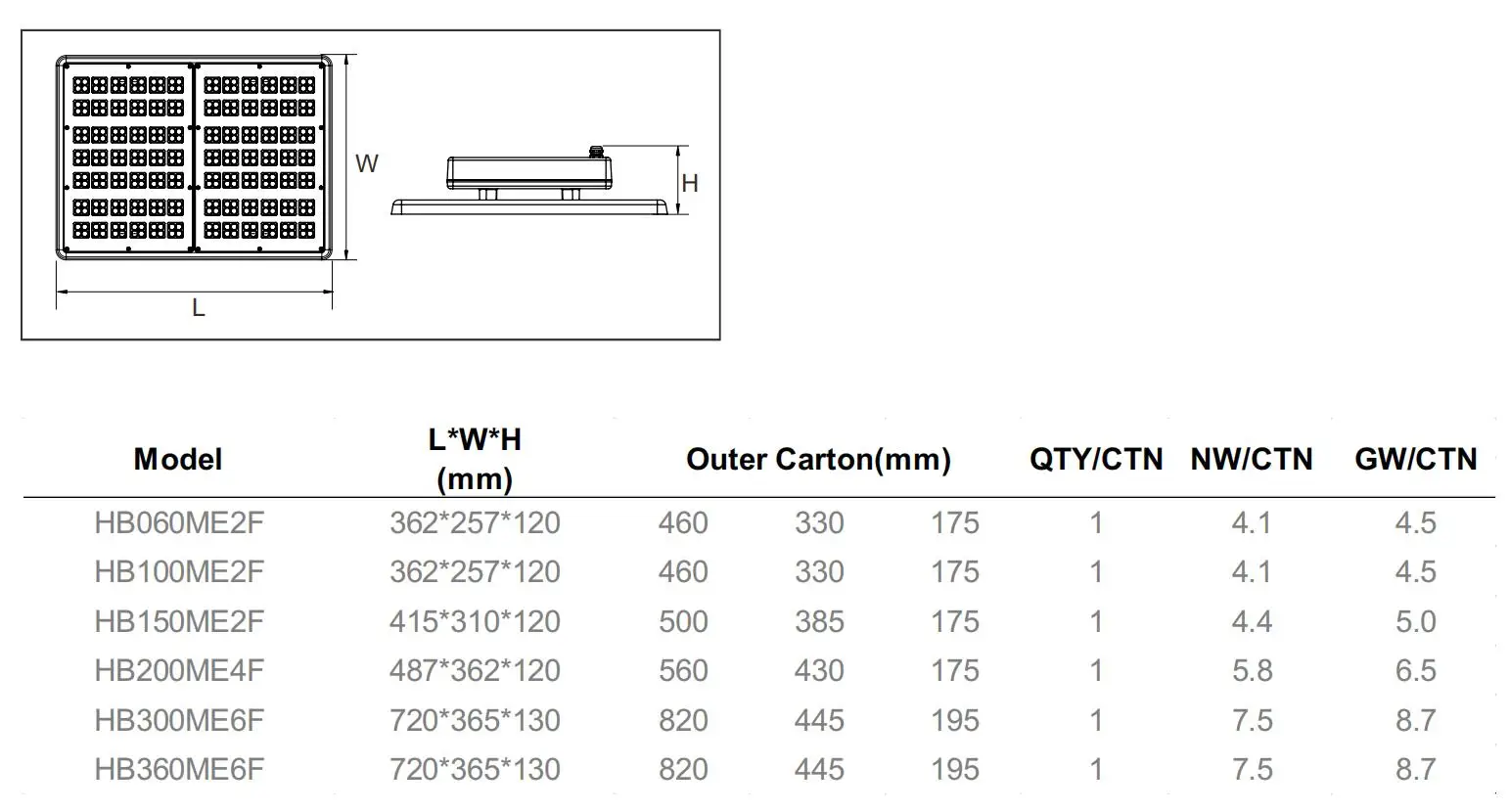

Model | Watt | Lumens at 130lm/w | Lumens at 160lm/w | Dimension |
HB060ME2F-CO | 60W | 7800LM | 9600LM | L362*W257*H120MM |
HB100ME2F-CO | 100W | 13000LM | 16000LM | L362*W257*H120MM |
HB150ME2F-CO | 150W | 19500LM | 24000LM | L415*W310*H120MM |
HB200ME4F-CO | 200W | 26000LM | 32000LM | L487*W362*H120MM |
HB300ME6F-CO | 300W | 39000LM | 39000LM | L720*W365*H130MM |
HB360ME6F-CO | 360W | 43200LM | 43200LM | L720*W365*H130MM |
Project
Here are some projects with our anti-glare high bay light
Indoor stadium
Factory
