Q26 Diy sandblasting booth designed to meet specific process requirements and design of special equipment. By blasting can remove surface dirt complexity, scale, welding slag, waste paint, etc., so that the surface smooth, while reducing stress within the workpiece, the workpiece surface to be strengthened so as to improve the quality of surface and internal purposes.
This equipment adopts manual shot peening, after removing surface rust, surface finish and roughness of the cleaning workpiece in accordance with the relevant standards. Removal of complex workpiece surface dirt, scale, welding slag, waste paint, etc., make the workpiece surface bright and clean, also can reduce internal stress of workpiece, the workpiece surface strengthened in order to improve the adhesion and corrosion resistance of the paint.
This machine is a special flat car reciprocating blasting machine, which consists of blasting chamber body, trolley systems, shot peening, spiral conveyors, elevators, separators, projectile control systems, lighting systems, dust removal system, electric control system system components
Detailed Images

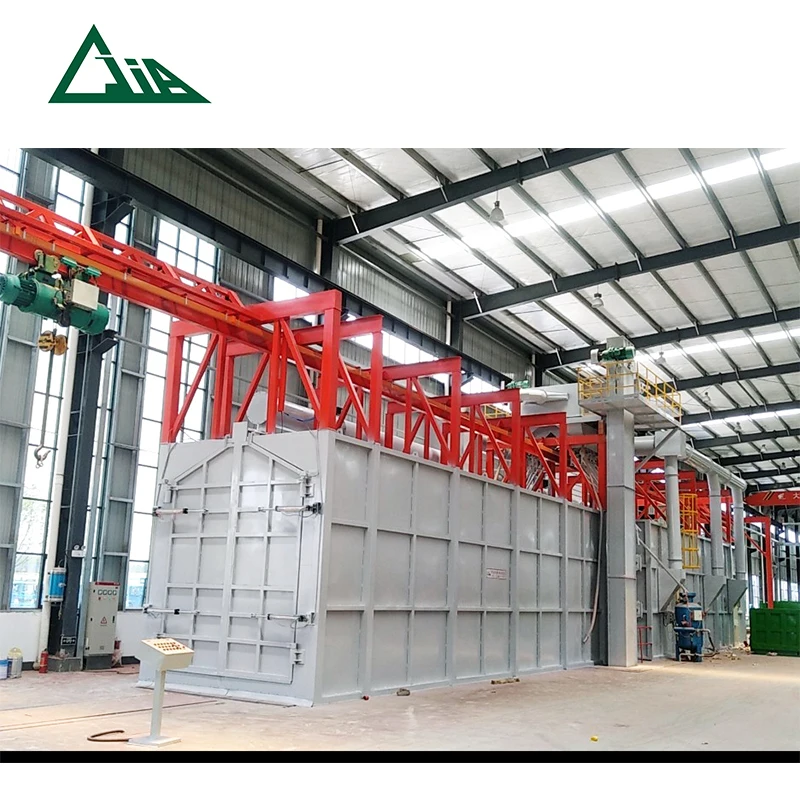

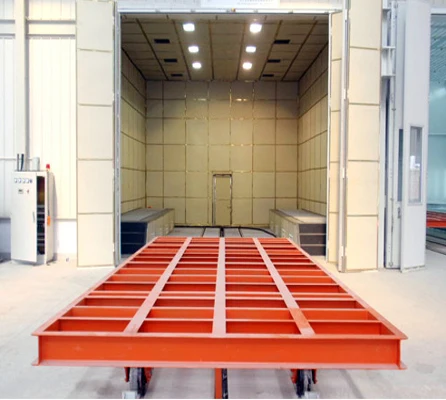

Sandblasting chamber
1. Sandblasting chamber is strengthened with high quality corrugated board to ensure sufficient rigidity and exquisite appearance.
2. In front of the sand blasting chamber, the workpiece enters and exits. The workpiece is opened and closed manually by left and right. Light rail is installed on the ground, and the workpiece is transported into and out of the sand blasting chamber by trolley car.
3. Dust-proof and explosion-proof LED lighting is installed on the top of the sand blasting chamber
4. Sandblasting start switch and emergency stop button in sandblasting chamber can be started by one key in automatic state when sandblasting.

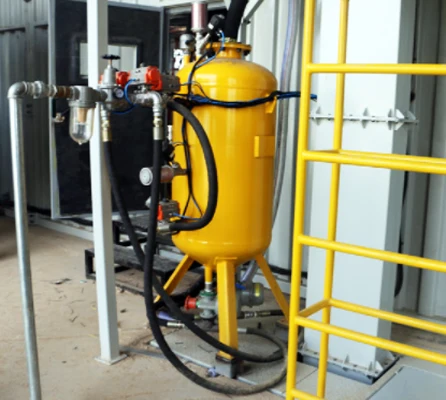

Sandblaster systems
1. It is composed of a 300L pressure tank, which adopts peach-shaped design to increase the fluidity of steel balls.
2. The upper part is connected with pneumatic butterfly valve and storage bin. The pneumatic valve is closed during sandblasting operation. At the end of sandblasting, the pneumatic valve opens and begins to sand the pressure tank.
3. The pipeline is equipped with manual air switch valve, oil-water separator + pressure regulating valve, pneumatic diaphragm valve, gas storage tank, riot preventer, exhaust muffler and sand valve, etc.
Derusting sytems
1. Equipped with a set of secondary filtering device. Suitable for indoor emission, dust emission is less than 80 mg/m3.
2. With automatic back-blowing cleaning device, the time interval of back-blowing can be set.
3. The air inlet of the dust collector is equipped with an air valve, which can adjust the air volume according to the use of the equipment.

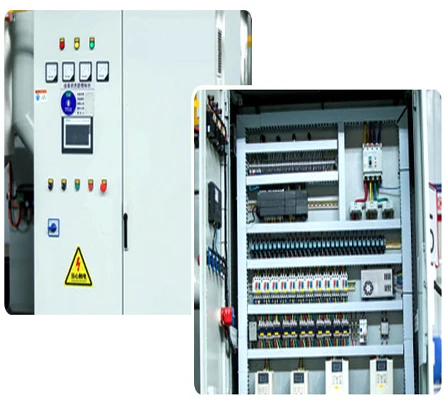

Electric control system
1. Using Zhengtai or Schneider brand low-voltage electrical components
