Лидер продаж оптовая продажа гибридный шаговый двигатель nema 23 57
- Категории: Stepper Motor >>>
- Поставщик: Dongguan,ICAN,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Related Products

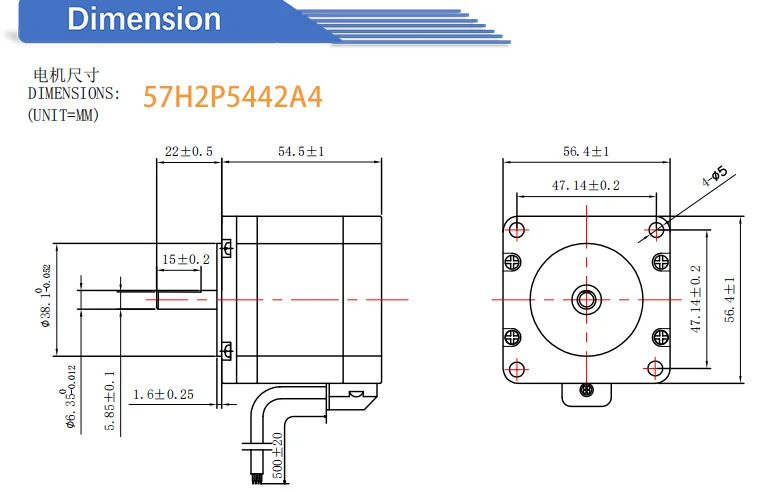

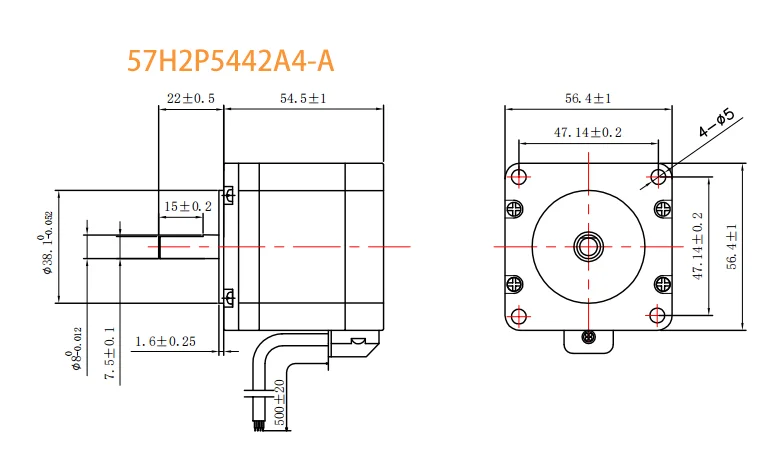

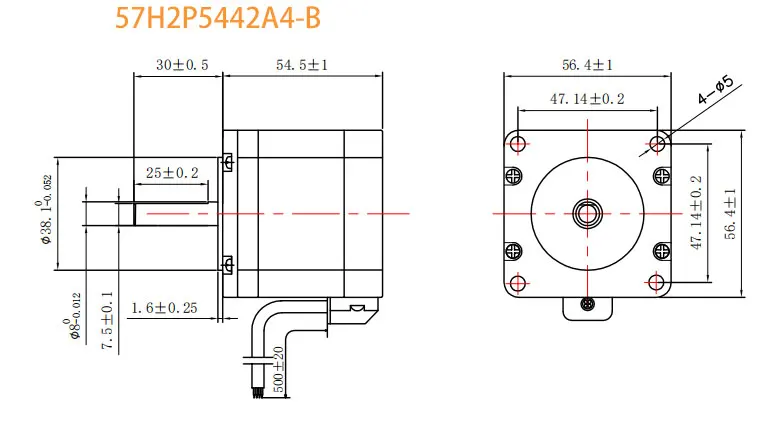

Nema23 Specification
| Model | Step Angel(degree) | Holding Torque (Nm) | Phase Current (A) | Resistance (Ω) | Inductance(MH) | Shaft Diameter (mm) | Shaft Length (mm) | Motor Length (mm) |
| 57H2P5442A4 | 1.8 | 1.2 | 4.2 | 0.38 | 1.3 | 6.35 | 19 | 54 |
| 57H2P5442A4-A | 1.8 | 1.2 | 4.2 | 0.38 | 1.3 | 8 | 20.4 | 54 |
| 57H2P5442A4-B | 1.8 | 1.2 | 4.2 | 0.38 | 1.3 | 8 | 31 | 54 |
| 57H2P7842A4 | 1.8 | 2.1 | 4.2 | 0.55 | 1.9 | 8 | 20.4 | 78 |
| 57H2P7842A4-A | 1.8 | 2.1 | 4.2 | 0.55 | 1.9 | 6.35 | 19.4 | 78 |
| 57H2P7842A4-B | 1.8 | 2.1 | 4.2 | 0.55 | 1.9 | 8 | 31 | 78 |
| 57H2P9850A4 | 1.8 | 2.6 | 4.5 | 0.9 | 2.4 | 8 | 32 | 98 |
Main Products Series
Company Information
Original factory: YES
Year Established: 2009
Total Employees: 80-100People
Manufacturing Equipment: Ultra-precision CNC universal grinder (Sweden), CNC (Germany), DMG lathe and milling, etc.
Detection Capacity:
Motor: Full detection one by one; Motor driver aging time: 8H
Our Services
Packaging & Shipping
Contact us
