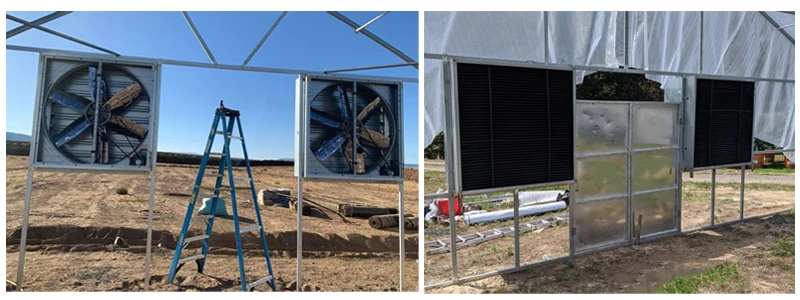

110v shuttered exhaust fan for America greenhouse
Specification
Model | Blade diameter | Motor speed | Air flow M3/h | Air flow M3/h | Noise | Size |
HYA-620 | 500 mm | 1400 | 6500 | 6500 | 60 | 620*620*400 mm |
HYA-800 | 710mm | 1400 | 22000 | 22000 | 60 | 800*800*400 mm |
HYA-900 | 750 mm | 1400 | 28000 | 28000 | 65 | 900*900*400 mm |
HYA-1000 | 900 mm | 1400 | 30000 | 30000 | 70 | 1000*1000*400 mm |
HYA-1100 | 1000 mm | 1400 | 32500 | 32500 | 70 | 1100*1100*400 mm |
HYA-1220 | 1100 mm | 1400 | 38000 | 38000 | 70 | 1220*1220*400 mm |
HYA-1380 | 1250 mm | 1400 | 44000 | 44000 | 70 | 1380*1380*400 mm |
HYA-1530 | 1400 mm | 1400 | 55800 | 55800 | 70 | 1530*1530*400 mm |

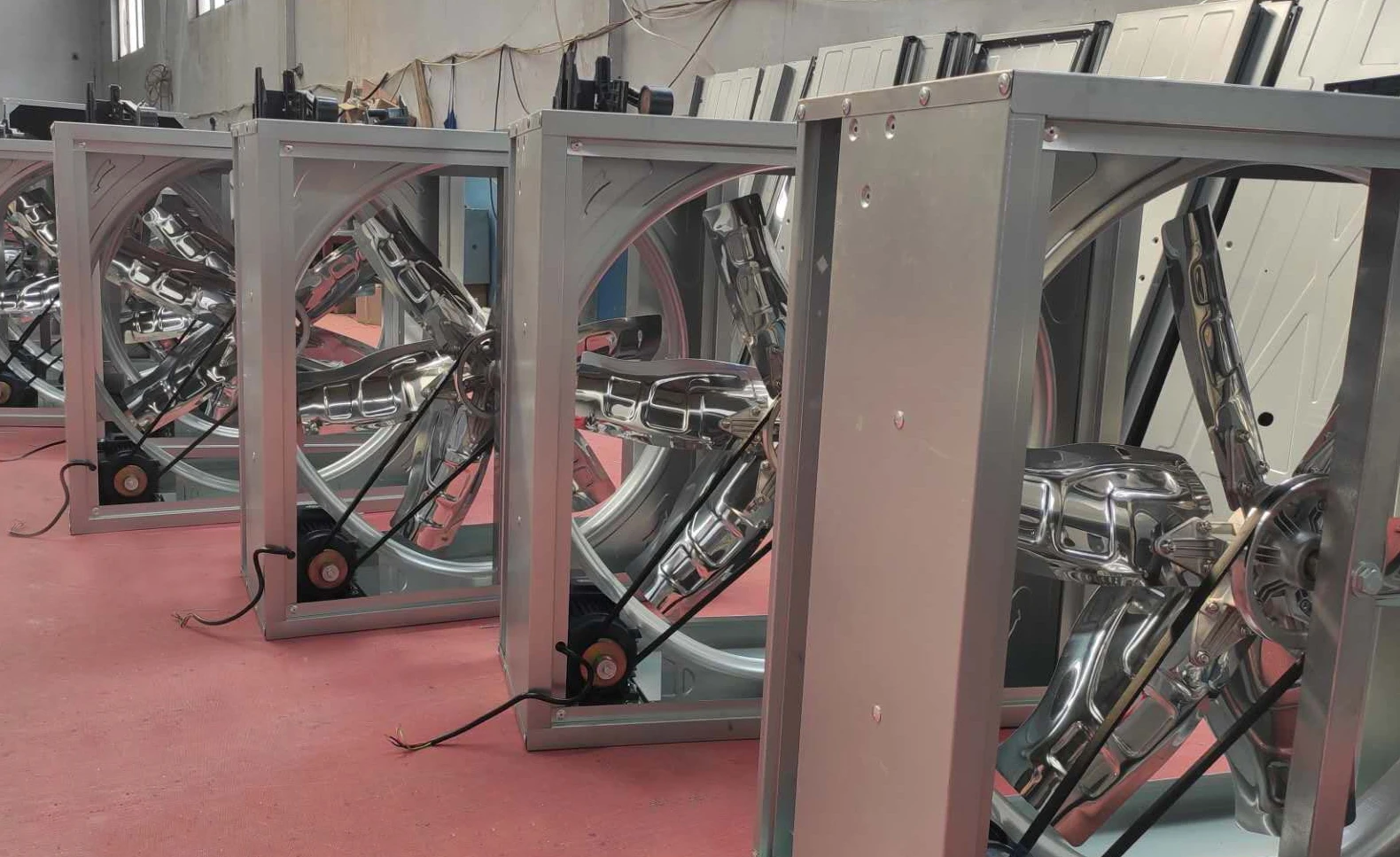

Details Images
Motor
1. Brand: Chinese famous motor, Siemens motor, and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
4. Voltage and frequency is custom made
Pulley
1. Material: High strength aluminum-magnesium alloy
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability

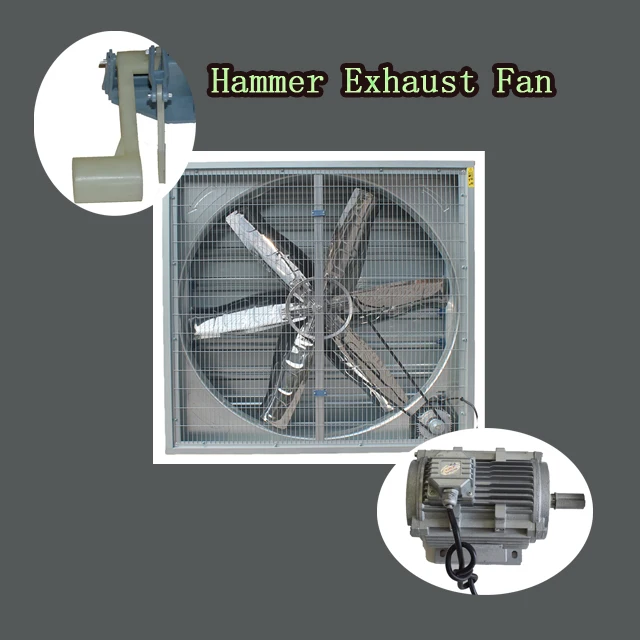

Opening system
.Material: High quality Nylon
Using Nylon Swung Drop hammer opening device to ensure the shutters opening and closing flexible.
Belt
Brand: Mitsuboshi belt (Japanese) and Sanlux(China )
Type: B type
Type: B type
Packing & Delivery

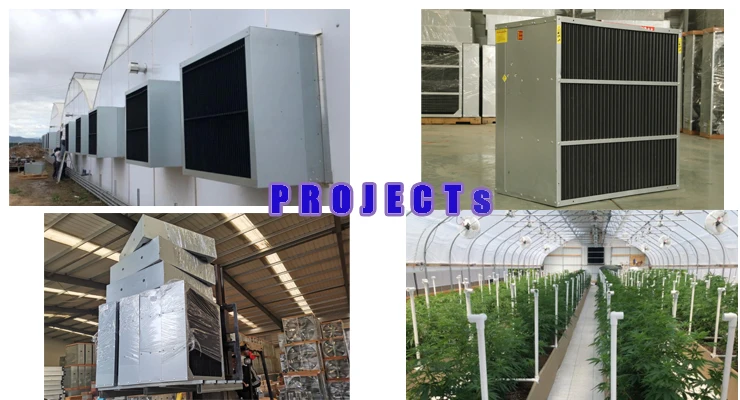

Exhibition
Certifications
Company Profile
Qingzhou Ventimax Equipment Co.,Ltd. is a high-tech enterprise engages in researching, designing and manufacturing products for livestock and poultry husbandry, industry and advanced agriculture. Besides producing and offering ventilating and cooling system, feed system, nipple drinking system, environment control system and battery cages system, it also engages in the project design of modernized farms as well as green houses and workshops.
In order to realize your project in shortest time, we offer one-stop material procurement and personalized solutions.
FAQ
Q: What is the MOQ ?
A: Normally 20GP for big unit , 40HQ for small unit .
Q: What voltages you can do , if we can make special voltages?
A: Almost all kinds of voltages we all can make .
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products,it's all by your request .
Q: What payment term ?
A: Normally T/T or L/C we can accept .
Q: When you ship my order?
A: Normally 7-30days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q: How about the warranty ?
A: All the unit we have one year warranty
A: Normally 20GP for big unit , 40HQ for small unit .
Q: What voltages you can do , if we can make special voltages?
A: Almost all kinds of voltages we all can make .
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products,it's all by your request .
Q: What payment term ?
A: Normally T/T or L/C we can accept .
Q: When you ship my order?
A: Normally 7-30days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q: How about the warranty ?
A: All the unit we have one year warranty
